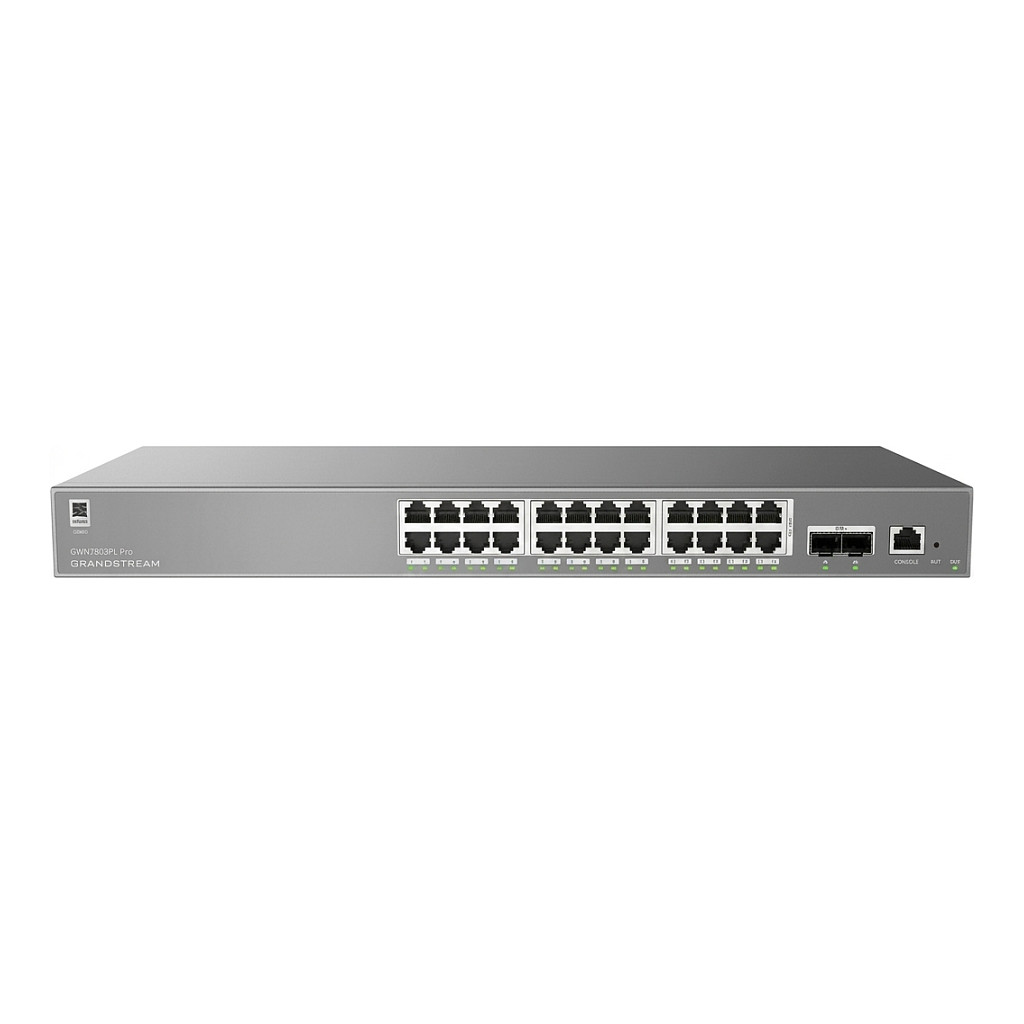

Grandstream GWN7803PL PRO – Επιχειρησιακό Managed Switch Layer 2++ – 24× Gigabit RJ45 (PoE/PoE+) + 2× Gigabit SFP+

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Grandstream
• Model / MPN
  GWN7803PL-PRO
• SKU
  21157086
• EAN / Barcode
  6947273705758
• Product Type
  Enterprise Layer 2++ Managed Switch
• Ports
  24 × Gigabit RJ45 (PoE/PoE+)
• SFP / Uplink Ports
  2 × Gigabit SFP+
• PoE Standard
  IEEE 802.3af/at
• Max PoE per Port
  30 W
• Total PoE Budget
  250 W
• Switching Capacity
  88 Gbps
• Non-blocking Throughput
  44 Gbps
• Forwarding Rate
  65.472 Mpps
• Packet Buffer
  8.4 Mb
• MAC Address Table
  16K MAC addresses
• Jumbo Frames
  Up to 12288 bytes
• VLANs Supported
  4K VLANs; port-based, 802.1Q, QinQ, MAC-based, protocol-based, voice VLAN
• QoS
  Port priority, priority mapping, queue scheduling, traffic shaping, rate limiting
• Security Features
  802.1X, DHCP snooping, ARP inspection, IP source guard, DoS protection, ACL filtering, port security, storm control, port isolation, AAA/RADIUS/TACACS support
• Layer 2/3 Features
  Link aggregation (802.3ad), STP (802.1d/w/s), static routing / unicast routing via ACLs
• Multicast
  IGMP/MLD snooping
• Management
  Full management (web GUI/CLI/REST/API depending on firmware), DHCP Server/Relay, IPv4/IPv6
• Hardware Platform
  Single-core MIPS 1 GHz CPU, 256 MB RAM, 32 MB flash (GWN7800 Pro Series 24-port models)
• Form Factor / Mounting
  1U rackmount / desktop / wall-mountable
• Intended Use
  VoIP phones, IP cameras, IP intercoms, wireless APs, SMB and enterprise networks
• Physical Material
  Metal chassis (rackable)
• Operating Temperature
  (not specified in available sources)
• Dimensions (product)
  (not specified in available sources)
• Weight (product)
  ~4000 g (estimated)
• Box Contents
  Switch, rack ears, power cord, quick start guide (varies by reseller)
