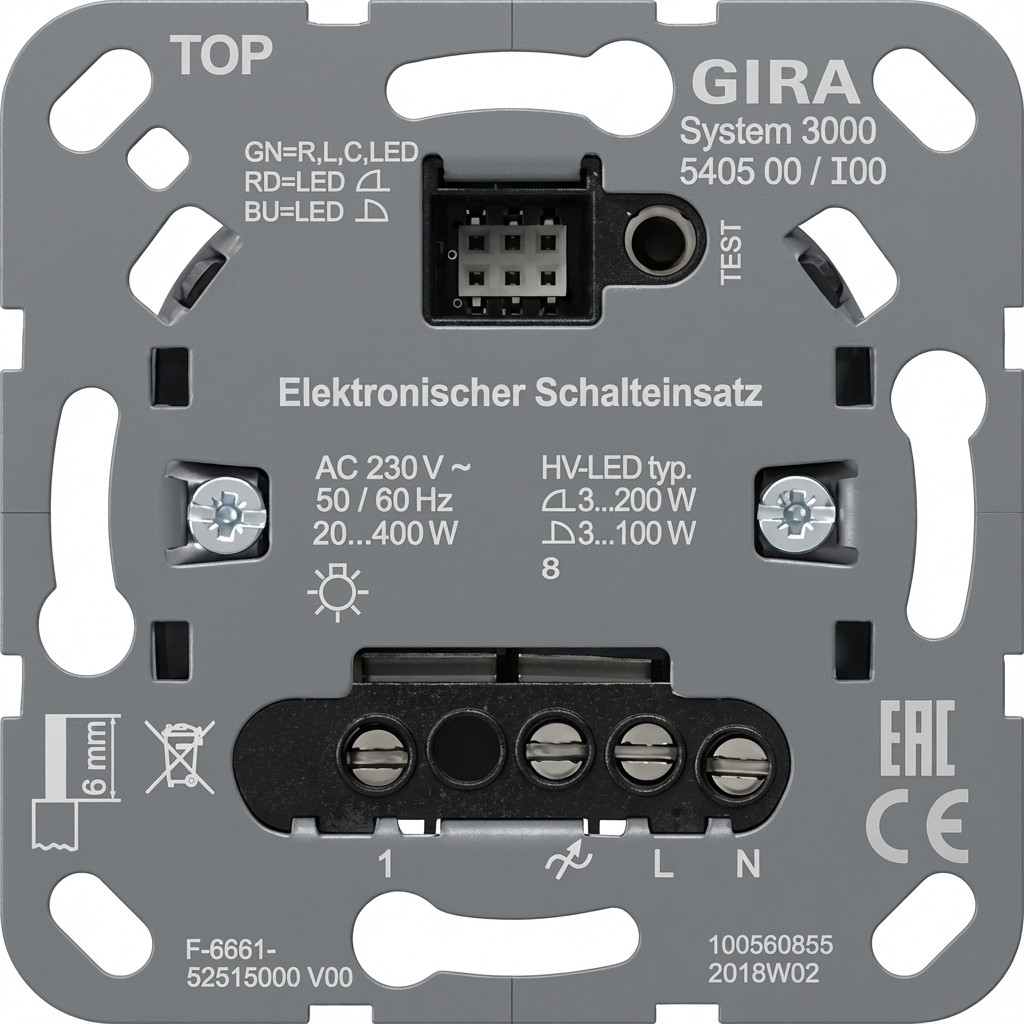

GIRA 540500 S3000 Schalteins. Einsatz — Ηλεκτρονική ενσωματωμένη μονάδα διακόπτη System 3000

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Gira
• Model / MPN
  540500
• SKU
  21313552
• EAN / Barcode
  4010337048299
• Product type
  Electronic switch insert (Elektronischer Schalteinsatz)
• Series / System
  Gira System 3000
• Channels
  1
• Mounting type
  Flush-mounted (Unterputz)
• Fixing method
  Claw-/screw fixation (Krallen-/Schraubbefestigung)
• Minimum device box depth
  min 32 mm
• Rated voltage
  AC 230 V, 50/60 Hz
• Operation with neutral
  Yes
• Operation without neutral
  Yes (auto-adapts dimming principle)
• Minimum load without neutral
  50 W for incandescent/HV halogen/coil transformers
• Load ratings (typ.)
  HV LED (phase-cut) 3–200 W; electronic transformers NV LED 20–200 W; mixed resistive-capacitive 20–400 W; mixed resistive-inductive 20–400 VA; resistive + HV LED typically 3–100 W; resistive + compact fluorescent 3–100 W
• Standby power
  ≈0.1–0.5 W (depending on attachment)
• Power loss
  ≈4 W
• Ambient temperature range
  -5 to +45 °C
• Protection features
  Electronic short-circuit protection, electronic overtemperature protection
• Additional features
  Lamp-saving soft start; LED indicates operating mode; supports connection of side/secondary stations
• Compatibility
  System 3000 operating attachments (e.g., switches, detectors); not integrated with Apple HomeKit/Google Assistant/Alexa/IFTTT (catalog entries indicate no smart-home cloud integrations)
• Material / Surface
  sonstige (other)
• Color
  Transparent (catalog/reseller listings sometimes list transparent)
• Installation note
  Installation by qualified electrician only
