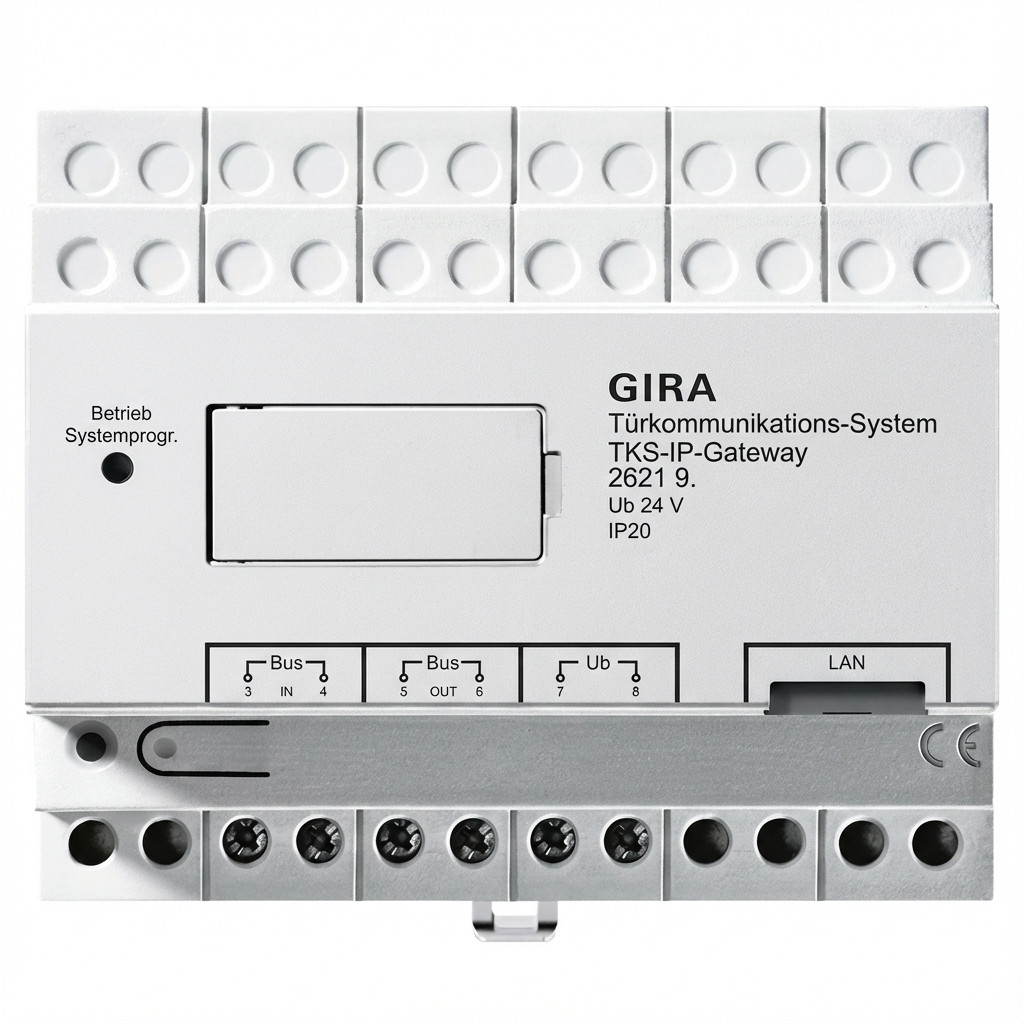

GIRA 262197 TKS-IP-Gateway (2η γενιά) - 5 άδειες (θύρα/θυροτηλεφωνία)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  GIRA
• Model / MPN
  262197
• EAN
  4010337125211
• Product Type
  TKS IP Gateway (door communication gateway)
• License
  5 simultaneously active TKS/DCS Communicator licenses
• Generation
  2nd Generation
• Mounting Type
  DIN‑rail (DIN‑Schiene)
• Width
  108.00 mm
• Height
  76.00 mm
• Depth
  91.00 mm
• Module Width / TE
  6 TE
• Network Interface
  LAN / RJ45 (10/100 Mbit)
• Power Supply
  DC 24 V ±5% (requires external power supply)
• Power Consumption
  5.0 W (in conversation), 1.6 W (standby)
• Connections
  2x screw terminal for power, 2x screw terminal for 2‑wire bus OUT, 2x screw terminal for 2‑wire bus IN, 1x RJ45
• Supported Image Resolution
  CIF
• Supported Cameras
  External IP cameras (H.264, all profiles)
• Supported End Devices
  Android and iOS mobiles (via Gira TKS mobil), PCs (via TKS‑Communicator software)
• Remote Access
  Encrypted via Secure Data Access (same protocol as Gira S1)
• Integration
  Gira HomeServer / FacilityServer (via plugin)
• Commissioning
  Configuration via built‑in web interface
• Ambient Temperature
  -5 °C to +50 °C
• Weight (reported)
  conflicting listings: 120 g (one retailer) / 420 g (another retailer)
• Typical Use Case
  Door intercom gateway for video home‑station, remote door opening, switching actuators, access control integration (e.g., Gira Keyless In)
