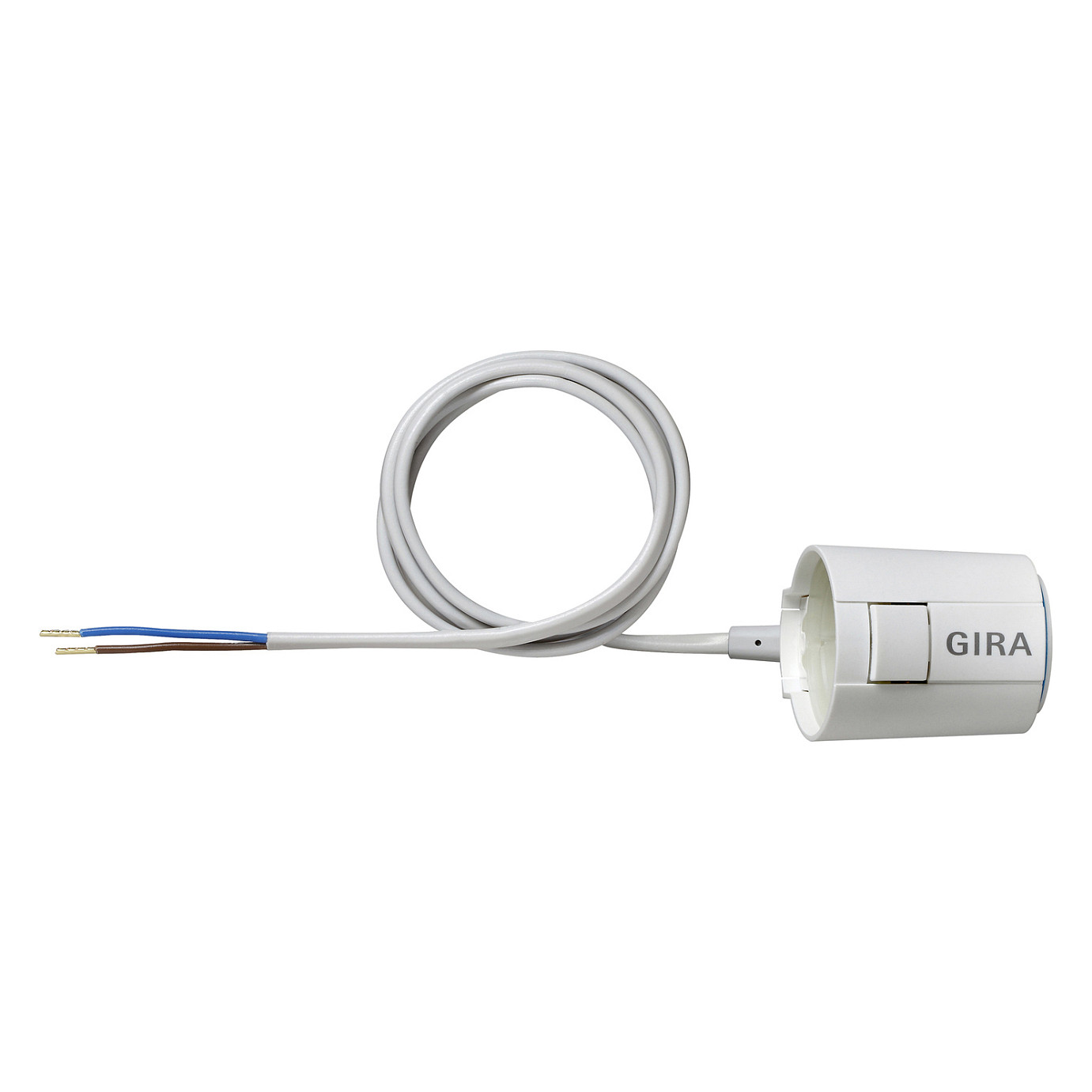

GIRA 216900 Θερμικός Ενεργοποιητής 230V Ηλεκτρονικός

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  GIRA
• Model / MPN
  216900 (2169 00)
• SKU
  21313505
• EAN / Barcode
  4010337016724
• Product Type
  Thermal (thermischer) actuator for heating valves
• Function
  Actuates heating valve for single-room temperature control; thermostat actuator
• Operating Voltage
  230 V AC, 50/60 Hz
• Power Consumption
  approx. 1 W
• Actuating Force
  100 N
• Valve Stroke
  4 mm
• Behaviour
  Normally closed (stromlos geschlossen)
• Protection Rating
  IP54
• Ambient Temperature Range
  0 °C to 60 °C
• Connection Cable
  2 x 0.75 mm²
• Cable Length
  1 m
• Dimensions (W x H x D)
  58 x 58 x 45 mm
• Product Weight
  120 g
• Package Weight (approx.)
  200 g
• Included Accessories
  Ventiladapter VA 80
• Compatibility
  Compatible with Gira valve adapter system and predecessor connection cables; compatible valve types include Heimeier, Oventrop (M30x1.5), Schlösser, Comap M30x1.5, and others listed by Gira
• Features
  Open/closed status indication, First-Open function, adapter included, normally-closed safety state
• Applications
  Heating, ventilation and climate control; radiator and underfloor heating valve actuation in single-room regulation
