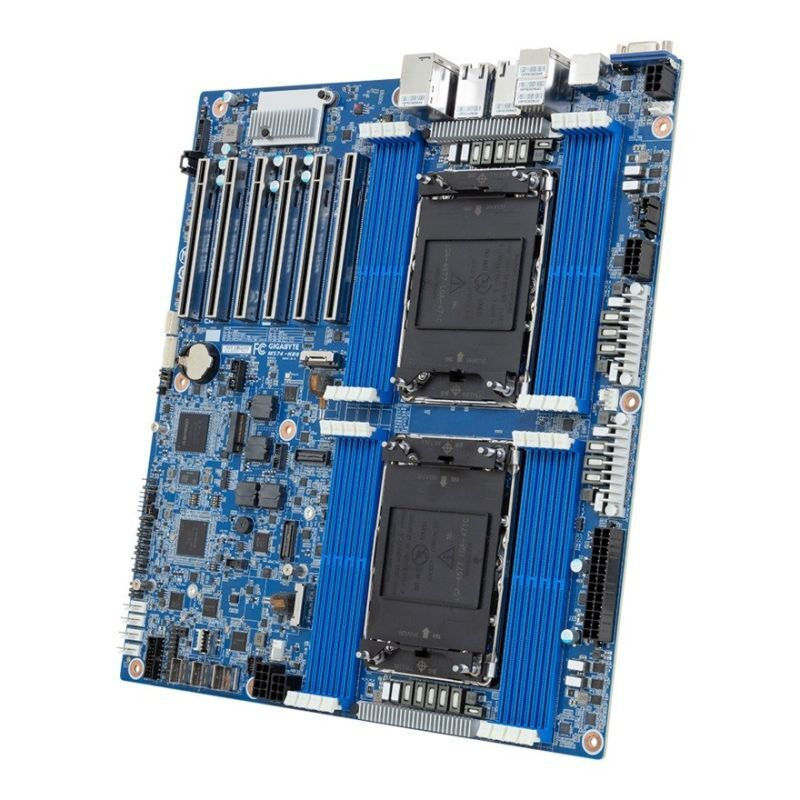

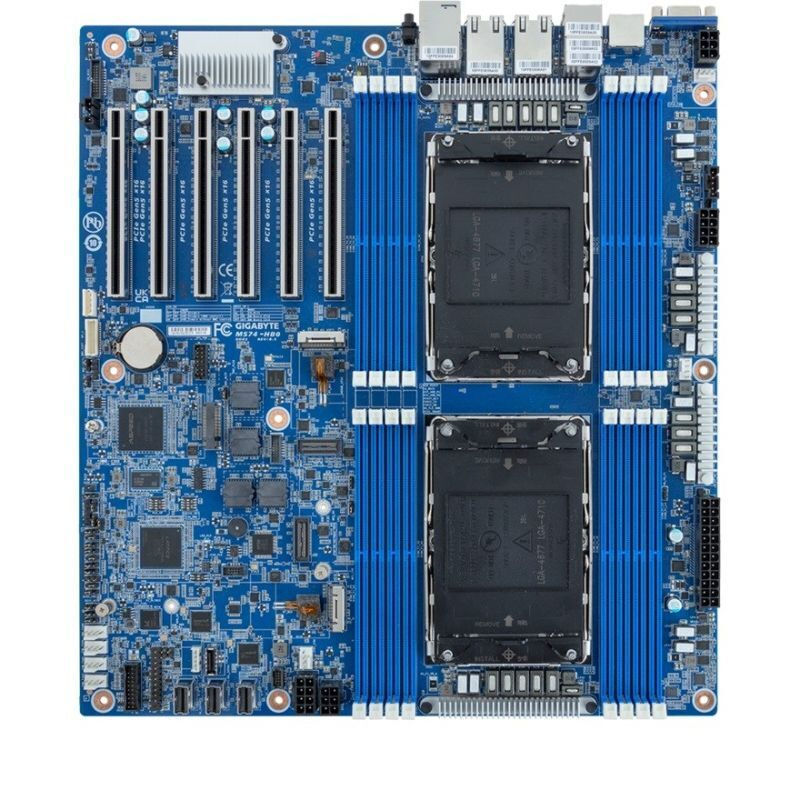

Gigabyte MS74-HB0 SoC Μητρική Πλακέτα (Socket FCLGA4710, Extended ATX, 2x CPU, 16x DDR5)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Product Type
  Server / Desktop (SoC motherboard)
• Manufacturer
  Gigabyte
• Model
  MS74-HB0 (MPN: 9MS74HB0MR-000, EAN: 4719331864439)
• Socket
  FCLGA 4710 (LGA4710)
• Compatible Processor Series
  Intel Xeon
• Number of Processors Supported
  2
• Chipset
  SoC (System on Chip)
• On-board Graphics / BMC
  Aspeed AST2600
• Form Factor
  Extended ATX
• Board Dimensions (W x D)
  305 mm x 330 mm
• Memory Type
  DDR5 RDIMM / MR-DIMM
• Number of DIMM Slots
  16
• Memory Channels
  Octa-channel
• Supported Memory Speeds
  6400 MT/s, 8000 MT/s
• Maximum Internal Memory
  2 TB
• PCI Express x16 Slots
  6 (including at least one PCIe x16 Gen4-capable slot)
• PCI Express x16 (Gen4) Dedicated Slot
  1 (primary x16 Gen4 slot for GPU/accelerator)
• M.2 Slots
  2
• SATA III Ports
  12
• Supported Storage Interfaces
  PCI Express, SATA III
• Ethernet LAN Ports
  4 (RJ-45)
• USB Ports
  USB 3.2 Gen1 (Type-A) x2
• VGA (D-Sub)
  1
• COM Ports
  1
• TPM Connector
  Yes
• ATX Power Connector
  24-pin present
• CPU Fan Connector
  Yes
• RGB Lighting
  No
• WiFi / Bluetooth
  No
• Operating Temperature
  10 - 40 °C
• Storage Temperature
  -40 - 60 °C
• Operating Relative Humidity
  8 - 80 %
• Storage Relative Humidity
  20 - 95 %
