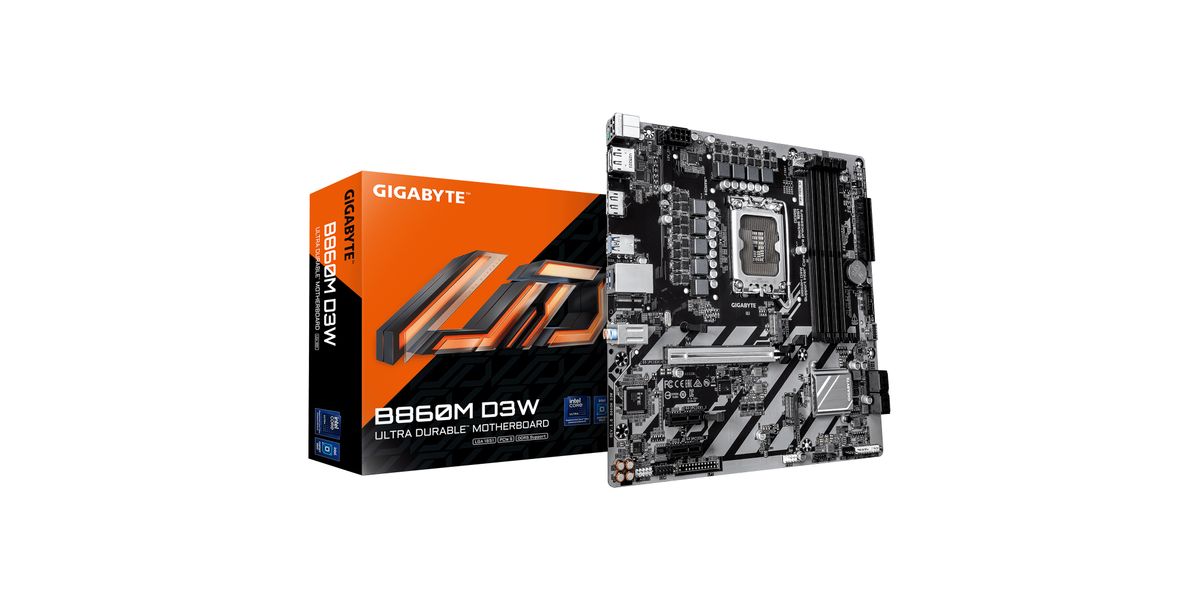

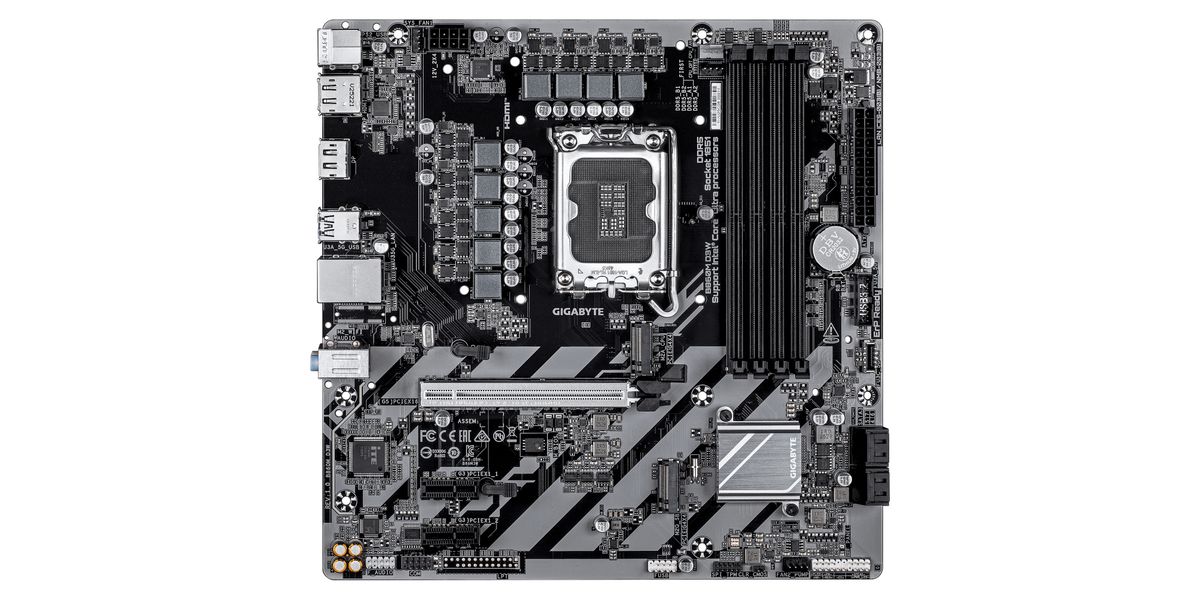

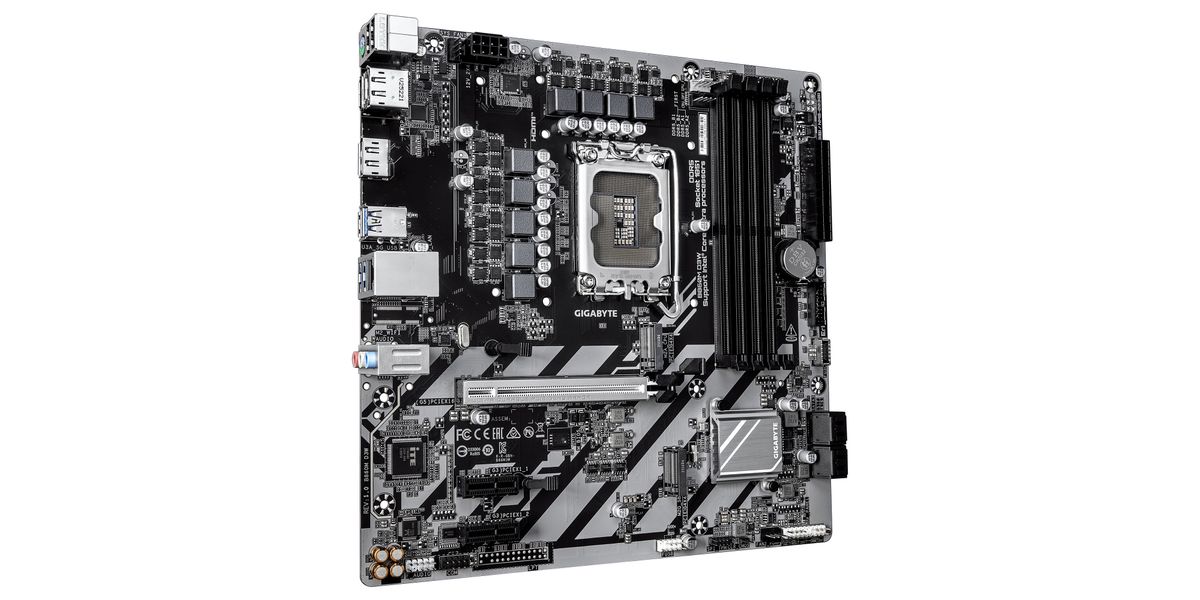

Gigabyte B860M D3W Μητρική Πλακέτα (mATX, LGA1851, DDR5)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Model
  B860M D3W
• Brand
  GIGABYTE
• SKU
  590443
• EAN / Barcode
  4719331880613
• MPN
  B860M D3W
• Chipset
  Intel B860 Express
• CPU Socket
  LGA1851 (Supports Intel Core Ultra Series 2)
• Form Factor
  Micro ATX (mATX)
• Memory Slots
  4 x DDR5 DIMM (Dual Channel)
• Maximum Memory
  256 GB (up to 64 GB per DIMM)
• Supported Memory Speeds
  Default up to DDR5-6400 / 5600 MT/s; OC up to DDR5-9066 (various profiles)
• VRM / Power Design
  Hybrid 4+1+2 phase VRM, Premium Chokes & Capacitors, 24-pin ATX + 8-pin CPU UD Solid Pin
• PCIe Expansion
  1 x PCIe 5.0 x16 (full-length, PCIe UD Slot, EZ-Latch), 2 x PCIe 4.0 x4, 2 x PCIe x1 (PCIe 3.0)
• M.2 Slots
  2 x M.2 (including M2A_CPU: Socket 3, M Key, 2280, PCIe 4.0 x4/x2 support)
• SATA Ports
  4 x SATA 6Gb/s
• Storage RAID
  RAID support for SATA (drivers available)
• Onboard Graphics Outputs
  1 x HDMI (up to 4096x2160@60Hz), 2 x DisplayPort (DP 2.1, up to 3840x2160@144Hz)

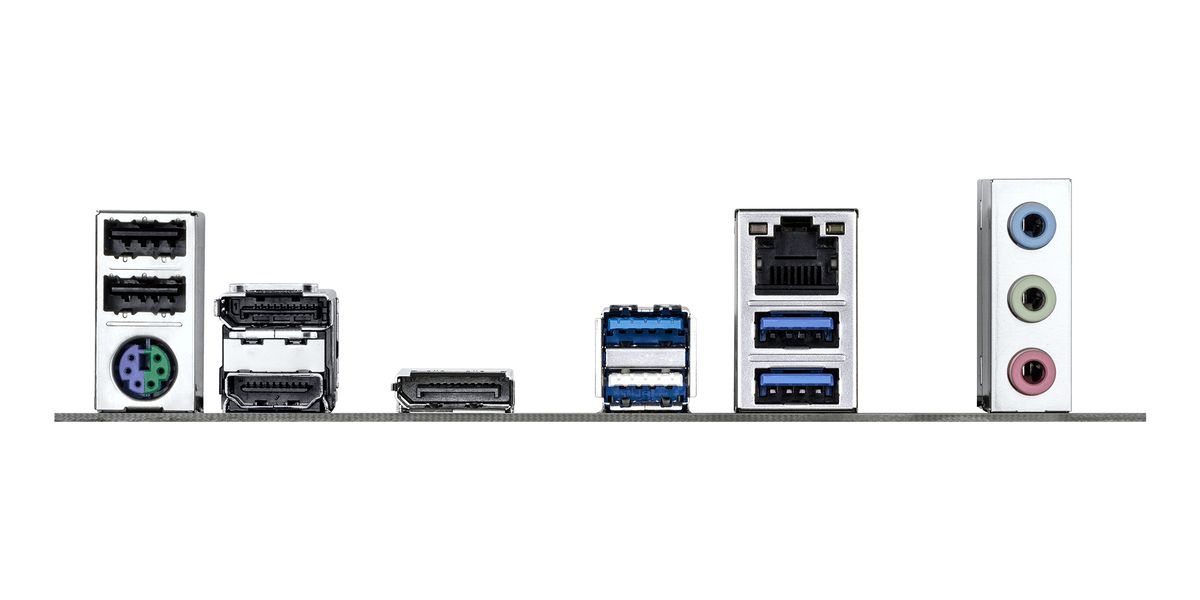

• Rear I/O USB
  Multiple: USB 3.2 Gen1 ports, USB 2.0 ports (exact count per product page)
• LAN
  Realtek Gigabit Ethernet
• Audio
  Realtek ALC897 codec (HD Audio)
• BIOS / Software Features
  AI PerfDrive presets, EZ-Latch PCIe slot, EZ-Debug Zone (Debug LEDs), BIOS updates & support
• Thermal
  Chipset heatsink
• Dimensions
  Micro ATX standard (~244 x 244 mm)
• Product Weight
  600 g (motherboard only, approximate)
• Boxed Package Weight
  1200 g (approximate)
• Compatibility
  Intel 800-series platform; supports PCIe 5.0 GPU and DDR5 modules
• Manual / Support
  GIGABYTE support, drivers and BIOS available online
• Notes
  Designed for gaming/productivity builds; specifications subject to manufacturer updates
