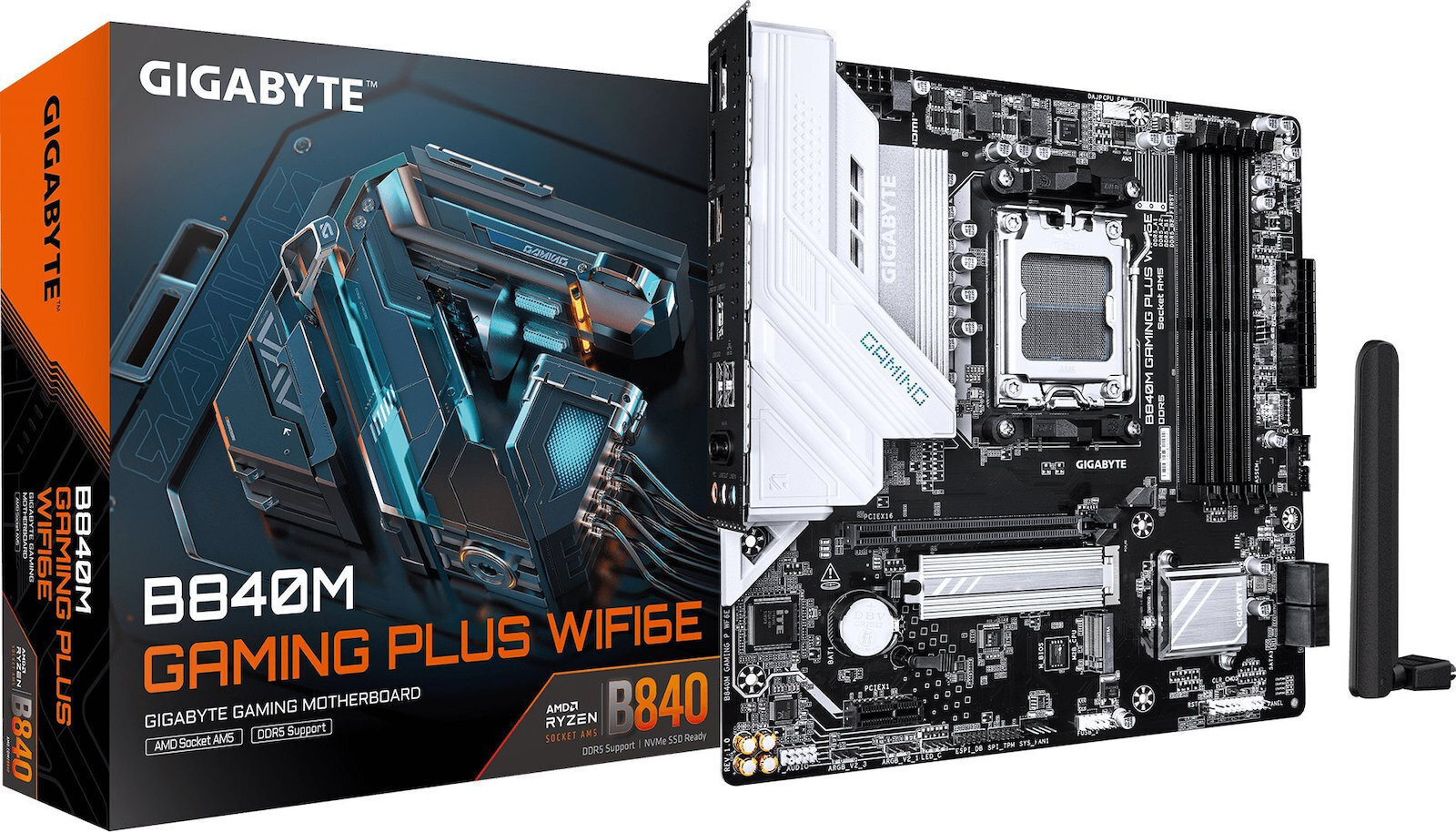

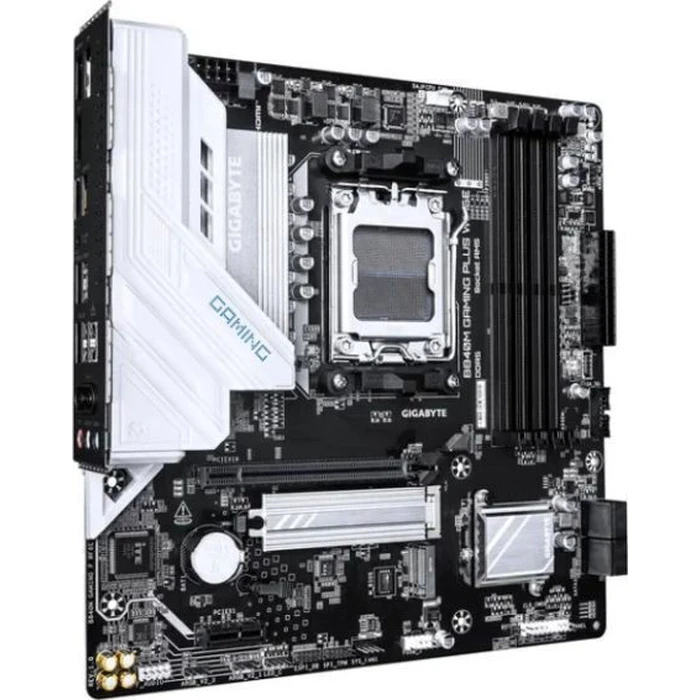

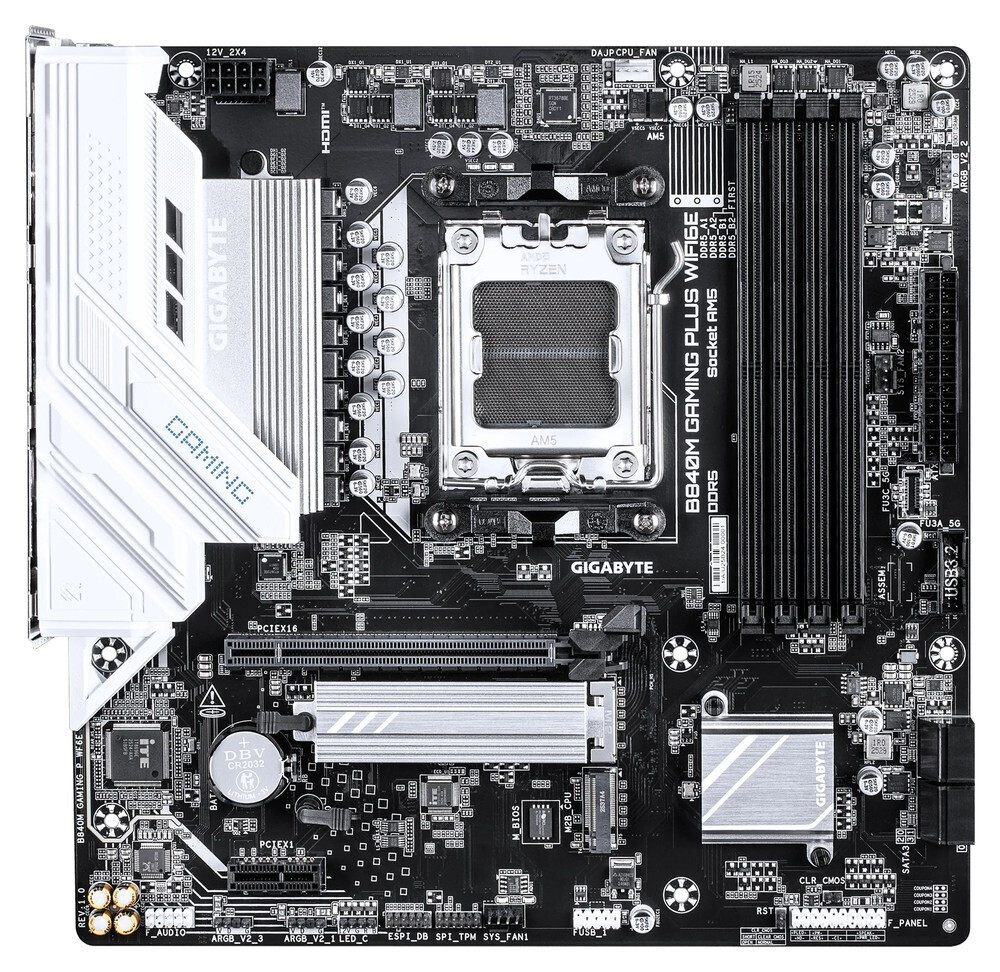

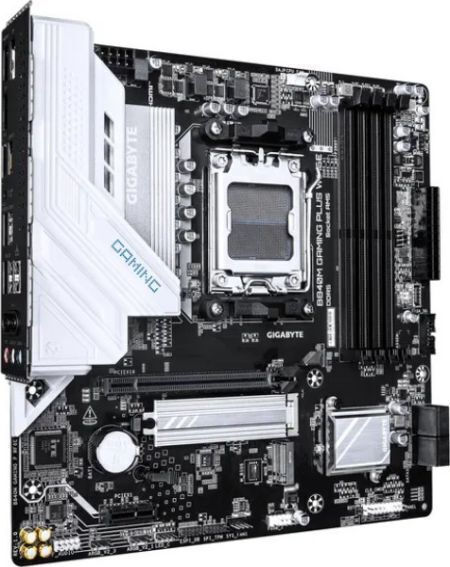

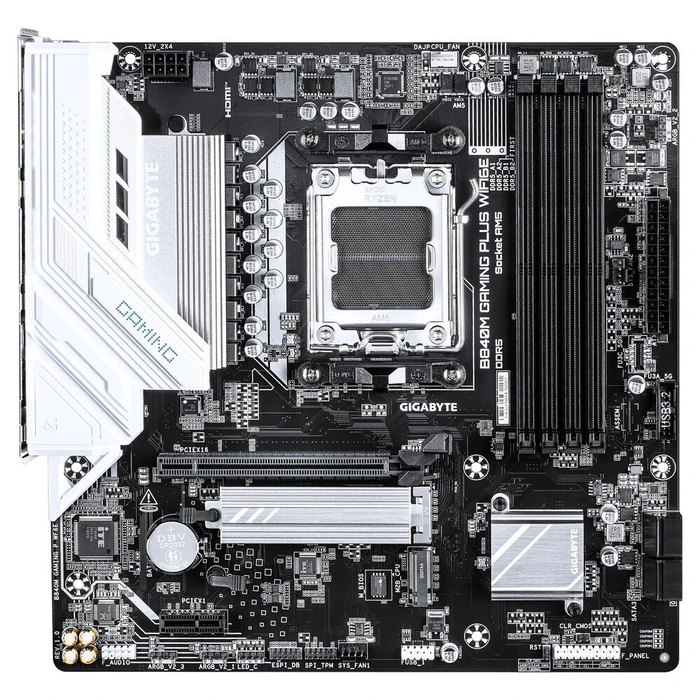

Gigabyte B840M Gaming Plus WiFi6E - Μητρική Κάρτα AM5 mATX DDR5

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Form Factor
  Micro ATX
• Chipset
  AMD B840
• CPU Socket
  AM5
• Compatible CPUs
  AMD Ryzen (AM5)
• Memory Type
  DDR5
• Memory Slots
  4 DIMM slots
• Memory Channels
  Dual Channel
• Supported Memory Speeds
  7600OC, 7800OC, 7900OC, 7950OC, 8000OC, 8200OC (OC profiles)
• PCIe x16 slots
  1 x PCIe 5.0 x16 (physical) ; 1 x PCIe 4.0 x16 (listed)
• M.2 Slots
  1 x M.2 PCIe 4.0
• SATA Ports
  4 x SATA III 6Gb/s

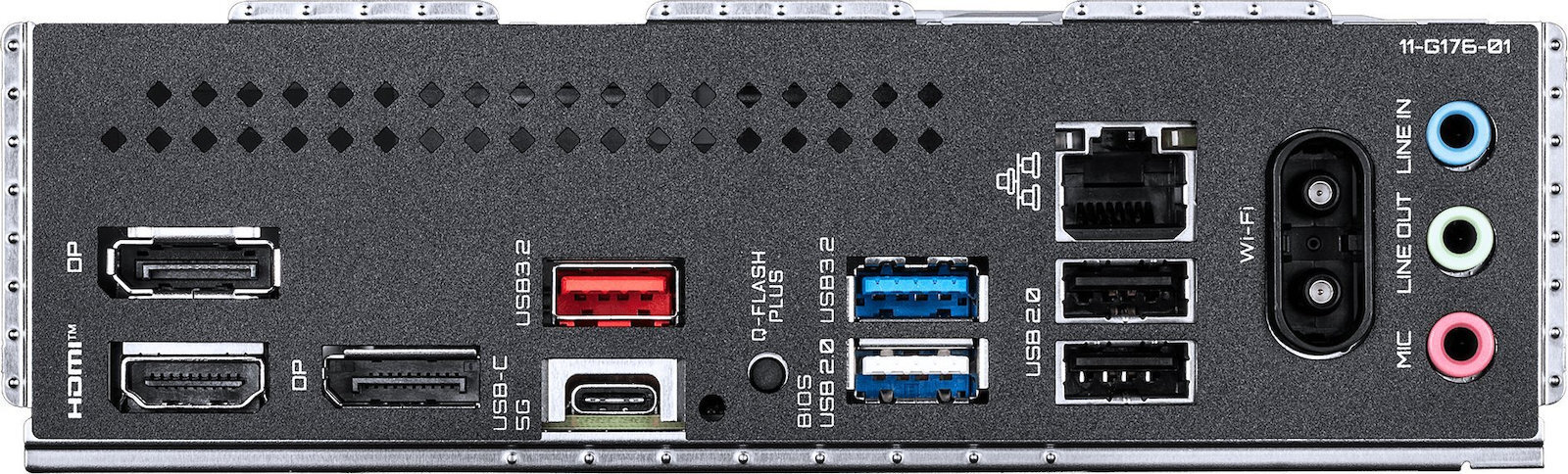

• USB Ports (rear)
  2 x USB 3.2 Type-A, 1 x USB 3.2 Type-C, 3 x USB 2.0 (rear)
• Video Outputs
  DisplayPort, HDMI
• Ethernet (LAN)
  1 x Gigabit LAN
• Wireless
  Integrated Wi‑Fi 6E
• Bluetooth
  Integrated Bluetooth
• RGB
  RGB header (Yes)
• BIOS Features
  HyperTune BIOS, BIOS Flashback
• Special Features
  AORUS AI Snatch (AI overclocking tools), AI-ViaFusion, AI-Trace, AI-Layer
• VRM Configuration
  8 phases VCORE, 2 phases SOC, 2 phases MISC
• Cooling / Fan Headers
  Smart Fan 6 support, multiple PWM/DC fan headers
• Extras
  Bios Flashback, RGB Header, X3D Turbo support for Ryzen X3D
• Form Factor Target
  Gaming micro-ATX builds
