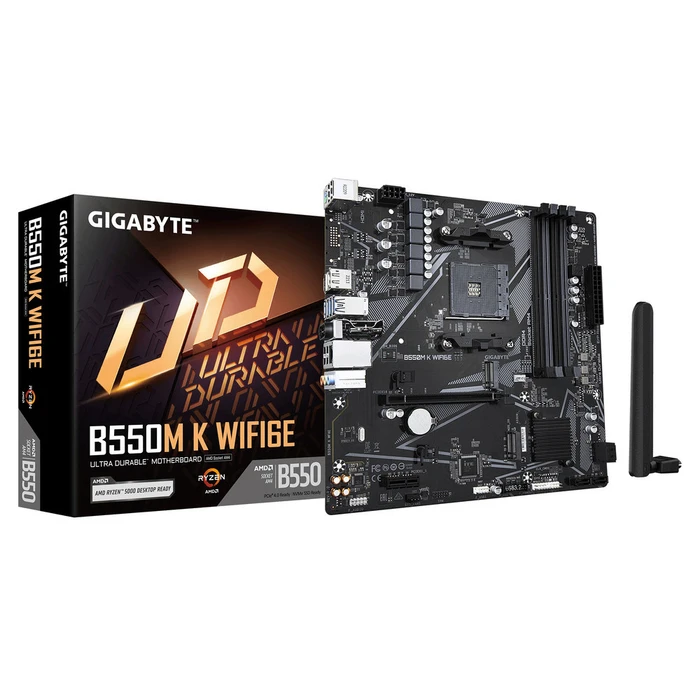

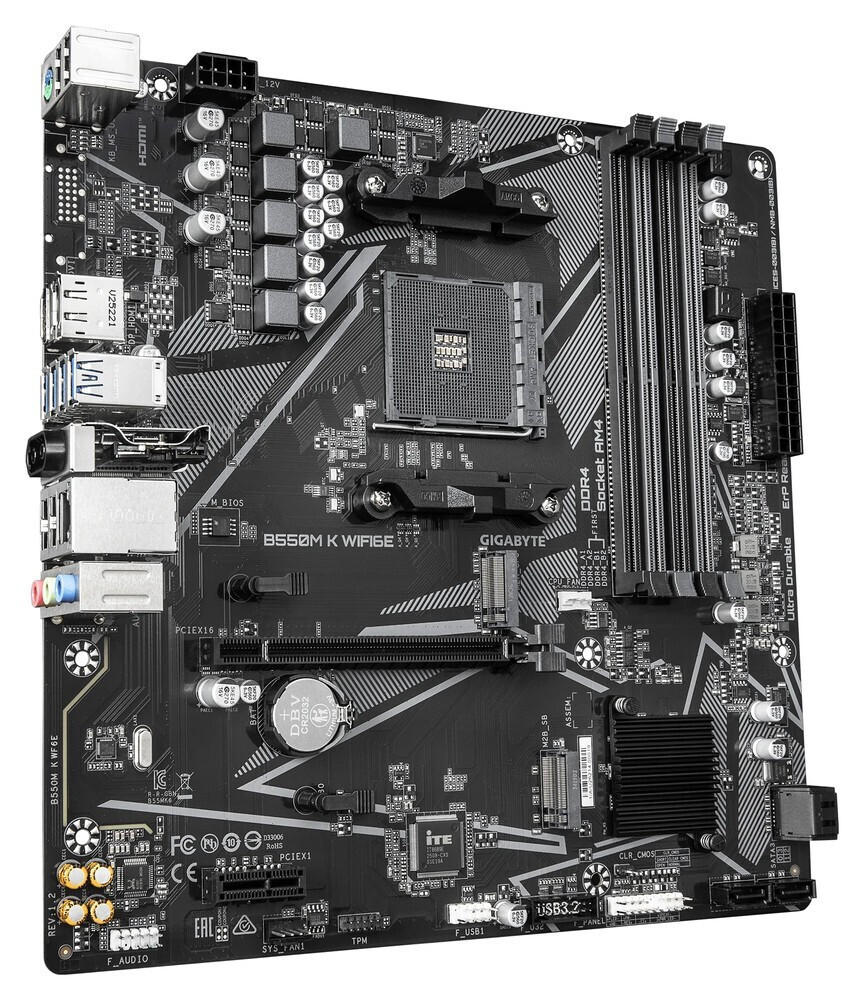

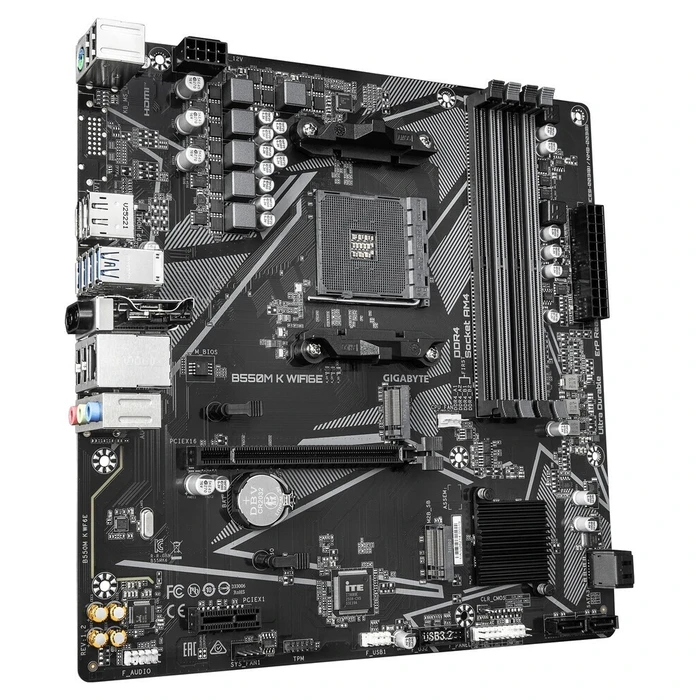

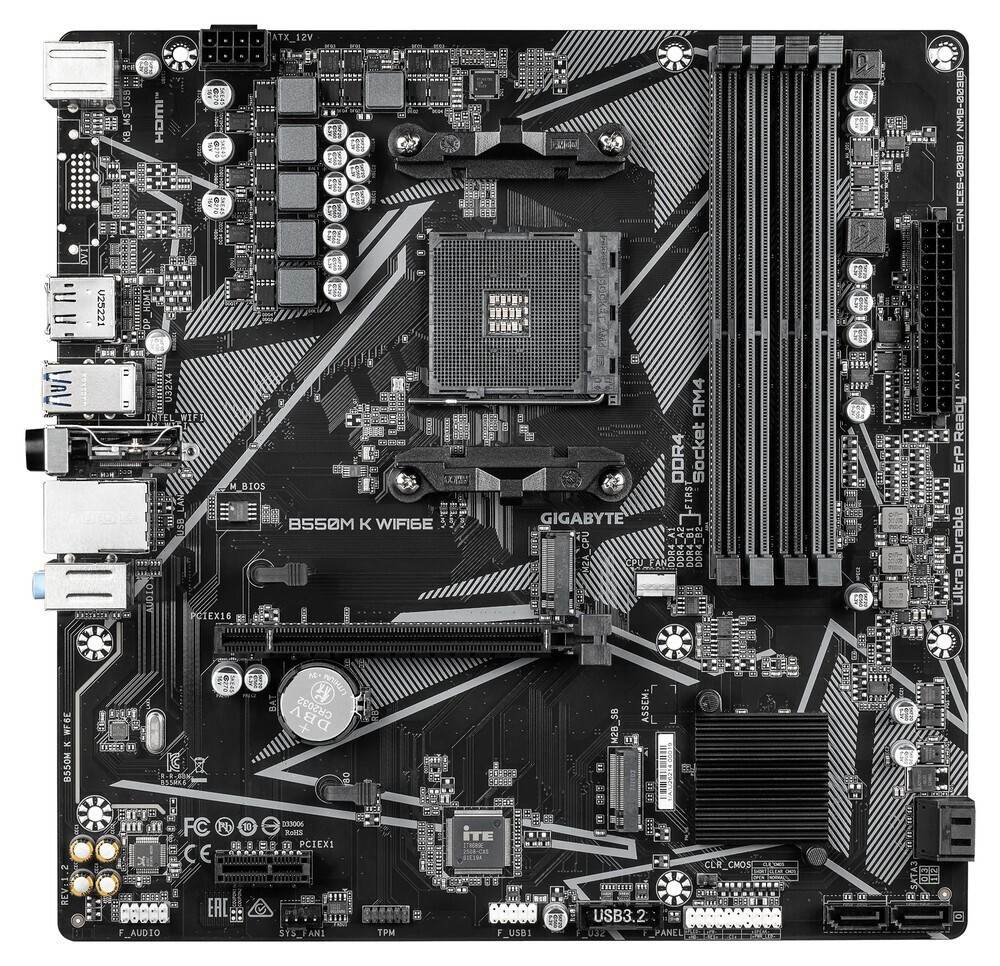

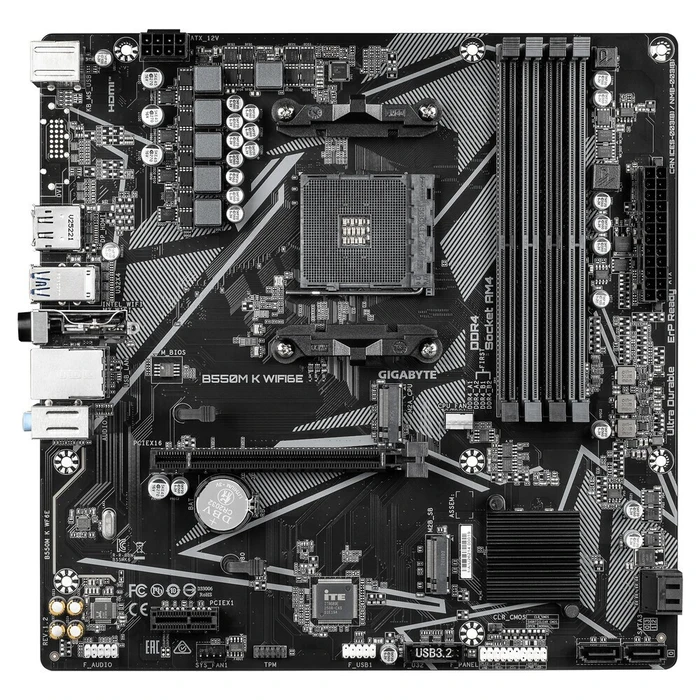

Gigabyte B550M K WIFI6E Μητρική Κάρτα Micro ATX (Socket AMD AM4, B550, Wi‑Fi 6E, Bluetooth)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Gigabyte
• Model
  B550M K WIFI6E (Rev. 1.0)
• SKU
  223-05-GBMAB55MKW
• MPN
  9MB55MK6-00-G10
• EAN / Barcode
  4719331880811
• Form Factor
  Micro-ATX (244 mm × 244 mm)
• CPU Socket
  AMD AM4
• Chipset
  AMD B550
• Supported CPUs
  AMD Ryzen 5000 Series, Ryzen 4000 G-Series, Ryzen 3000 Series (including G variants)
• Memory Slots
  4 × DDR4 DIMM
• Max Memory
  128 GB (32 GB per DIMM), Dual-channel
• Memory Types & Speeds
  DDR4, supports high frequency and XMP; up to DDR4-4733 (OC) practical
• PCIe Slots
  1 × PCIe 4.0 x16 (CPU), 1 × PCIe x1
• M.2 Slots
  2 × M.2 PCIe (supporting PCIe 4.0/3.0, 2280)
• SATA Ports
  4 × SATA III 6 Gbps
• LAN
  Gigabit Ethernet (Realtek)
• Wi‑Fi
  Integrated Wi‑Fi 6E (802.11ax)
• Bluetooth
  Integrated Bluetooth (paired with Wi‑Fi module)

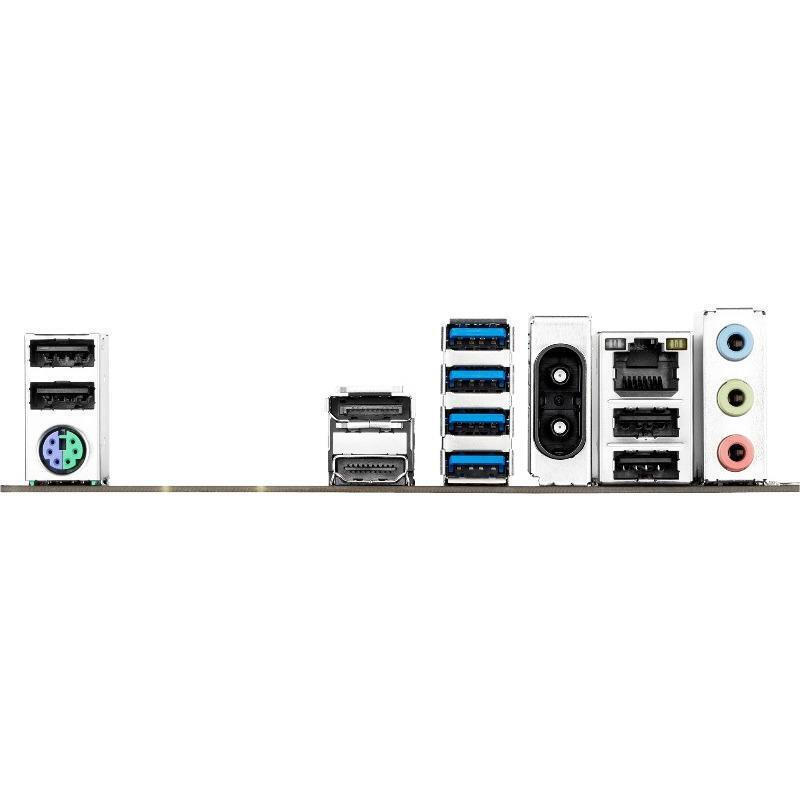

• Rear USB
  Multiple rear USB ports: USB 3.2 Gen1 and USB 2.0 (total rear ports vary by I/O layout)
• Video Outputs
  1 × HDMI 2.1, 1 × DisplayPort (supports iGPU outputs)
• Audio
  7.1‑channel High Definition Audio codec with audio capacitors / noise guard
• Storage Features
  Primary M.2 supports PCIe 4.0 for NVMe SSDs
• BIOS Features
  Q-Flash Plus (BIOS update without CPU), Gigabyte UEFI BIOS
• Cooling & Fans
  Smart Fan 5, multiple fan headers, fan-stop support
• Power & VRM
  4+3 phase VRM design, 50A power stages per phase (modest/budget VRM)
• RGB
  RGB Fusion 2.0 support
• Special Features
  Out-of-the-box Ryzen 5000 support, PCIe 4.0 support for GPU & primary M.2
• Dimensions
  Motherboard size ~244 mm × 244 mm
• Product Weight
  ~600 g (board only)
• Package Contents
  Motherboard, I/O shield, Wi‑Fi antennas, 2× SATA cables, M.2 screws/stand-offs, Quick Installation Guide (may vary)
