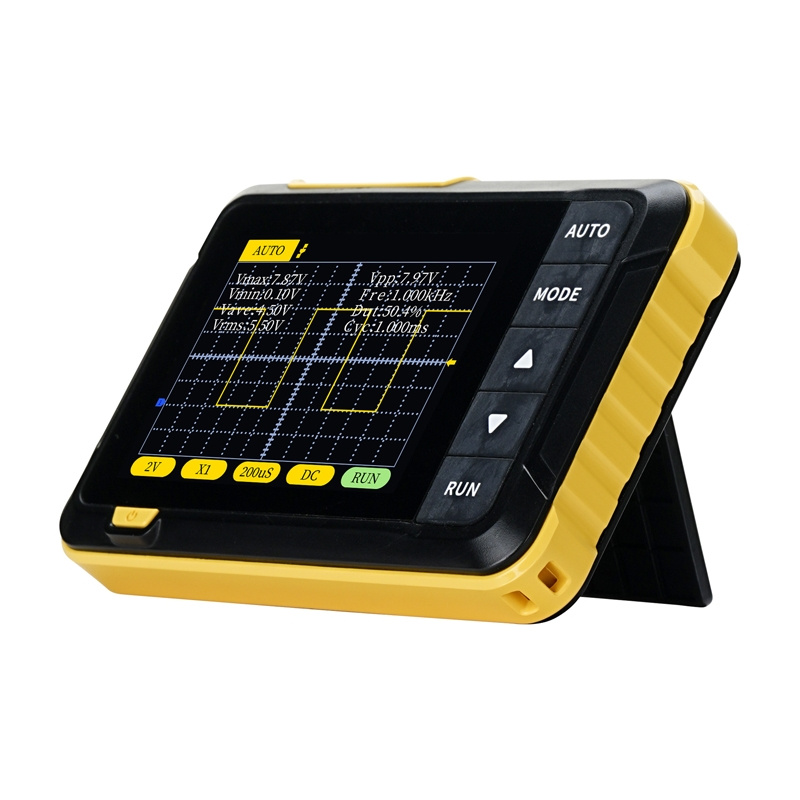

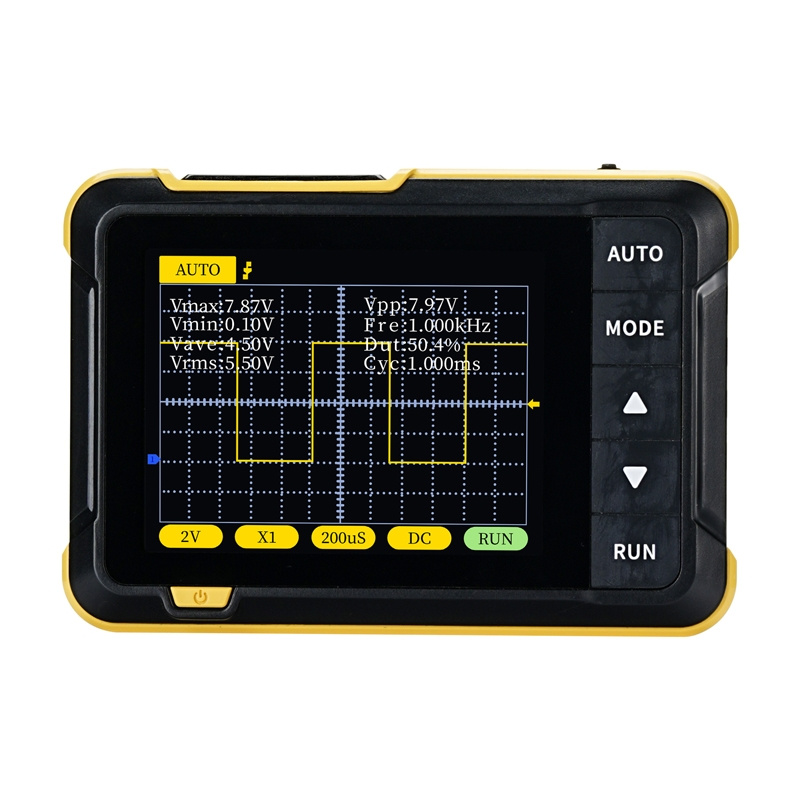

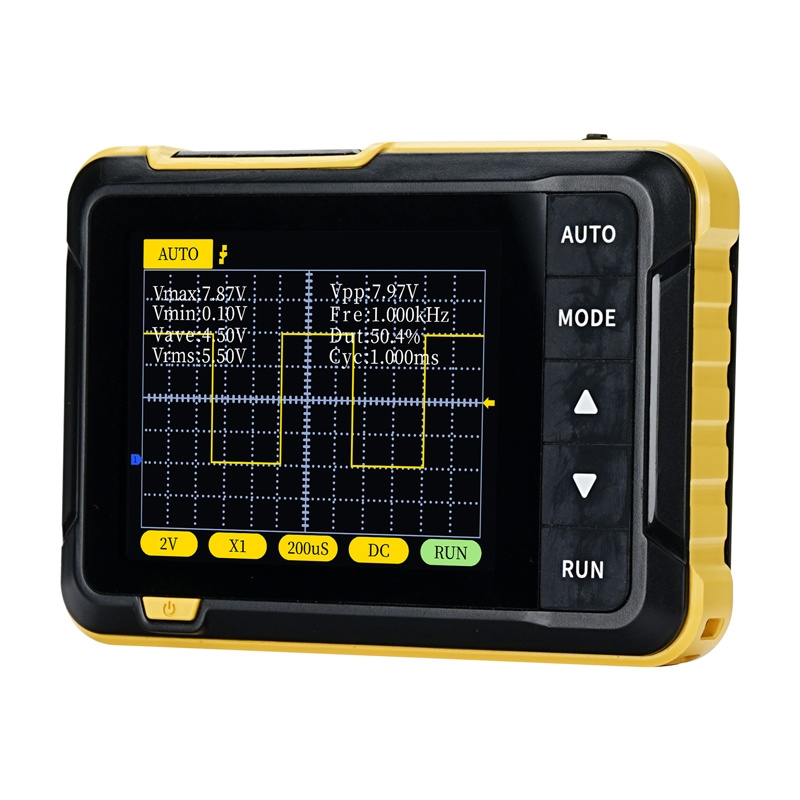

FNIRSI DSO152 μίνι φορητό ψηφιακό παλμογράφο

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  FNIRSI
• Model / MPN
  DSO152
• Product Type
  Portable handheld digital oscilloscope
• Channels
  1 channel
• Bandwidth
  200 kHz
• Sampling Rate
  2.5 MS/s real-time sampling
• Display
  2.8-inch LCD, 320 × 240 resolution
• Trigger Modes
  Auto / Normal / Single
• Coupling
  AC / DC
• Vertical Sensitivity
  10 mV/Div to 20 V/Div
• Time Base Range
  10 s/Div to 50 s/Div (1-2-5 stepping)
• Voltage Range X1
  Up to 40 V (80 Vpp)
• Voltage Range X10
  Up to 400 V (800 Vpp)
• Maximum Measurable Voltage
  Up to ±400 V (with appropriate probe)
• Probe Connector
  MCX (review reported MCX connector instead of BNC)
• Calibration Output
  1 kHz, 50% square wave
• Battery
  Built-in 1000 mAh lithium battery
• Battery Life
  Approximately 4 hours continuous use
• Charging / Interface
  USB Type-C (charging and data/firmware)
• Charging Voltage/Current
  5 V / 1 A
• Dimensions
  99 × 68.3 × 19.5 mm
• Weight
  ~100 g
• Special Features
  One-key AUTO setup; portable pocket-sized assembled unit; designed for periodic analog and aperiodic digital signals
• Typical Package Contents
  Oscilloscope unit, probe, USB-C cable, user manual
