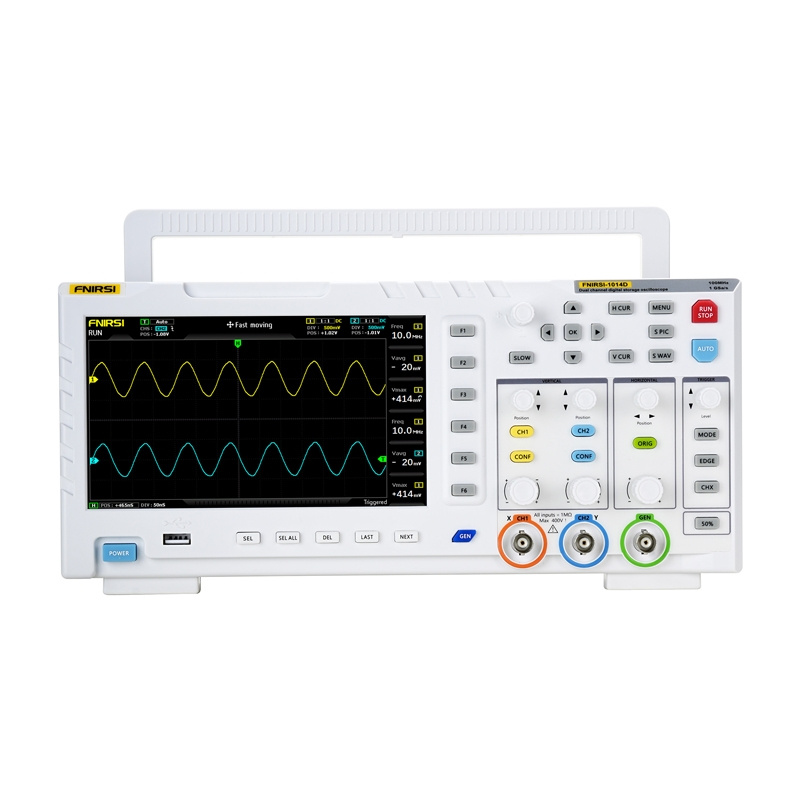

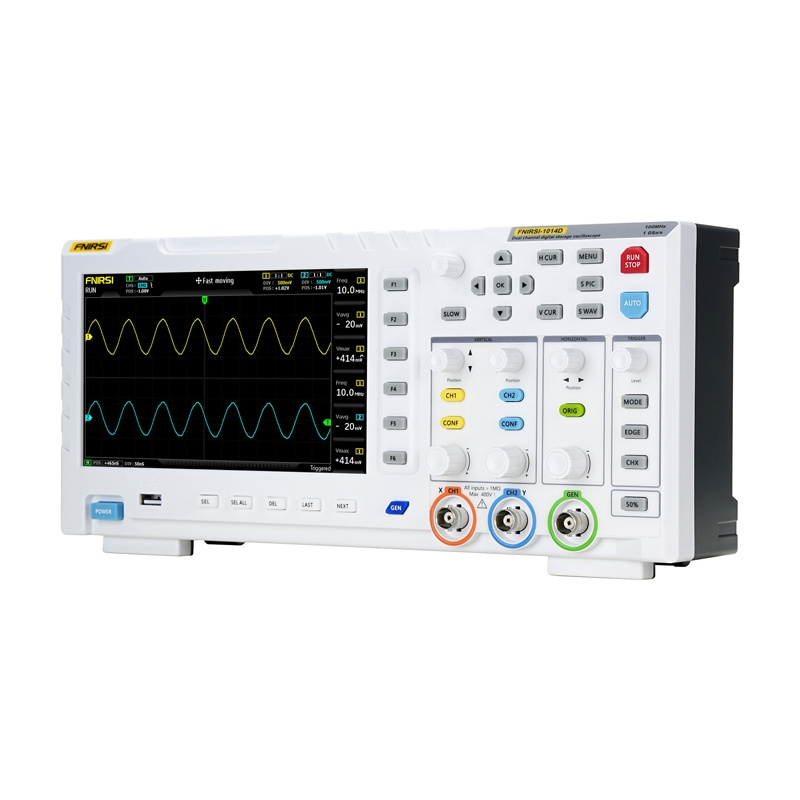

FNIRSI 1014D 2-σε-1 Ψηφιακός Παλμογράφος και Γεννήτρια DDS Σήματος

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  FNIRSI
• Model / MPN
  1014D
• Category
  2-in-1 Digital Oscilloscope + DDS Signal Generator
• Oscilloscope Channels
  2
• Analog Bandwidth
  100 MHz × 2 (100 MHz per channel)
• Sampling Rate
  1 GSa/s (real-time)
• ADC Resolution
  8-bit
• Display
  7-inch color TFT LCD
• Display Resolution
  800 × 480
• Storage Depth
  240 Kbit
• Vertical Sensitivity
  50 mV/div to 500 V/div
• Timebase Range
  50 s/div to 10 ns/div
• Rise Time
  < 3 ns
• Input Impedance
  1 MΩ
• Coupling
  AC / DC
• Trigger Modes
  Auto / Normal / Single
• Trigger Edge
  Rising / Falling
• External Trigger Voltage
  0–40 V
• Maximum Test Voltage
  40 V with 1× probe; 400 V with 10× probe
• Signal Generator Type
  DDS function signal generator
• Signal Generator Channels
  1
• Generator Waveforms
  12–14 standard waveforms (varies by firmware/listing) + custom chopped waveforms
• Generator Frequency Range
  Sine: 1 Hz to 10 MHz; other waveforms often up to 2 MHz (per reviews)
• Generator Frequency Step
  1 Hz
• Generator Output Amplitude
  ~2.5 Vpp (built-in output)
• Waveform Storage
  Supports large number of custom waveforms (listings: up to 1000)
• FFT / Math
  FFT supported
• Measurements
  Vpp, Vp, Vmax, Vmin, Vavg, Vrms, frequency, duty cycle, period, timing measurements
• USB Export
  Supported (data/export)
• Roll Mode
  Supported
• One-button AUTO
  Supported
• Power Supply
  5 V USB (recommended 2 A / 3 A / 4 A depending on usage)
• Material
  High-quality ABS
• Color
  Black & White (device colors listed by resellers)
• Dimensions (product)
  310 × 145 × 70 mm
• Product Weight
  ~1500 g
• Package Weight (approx.)
  ~1700 g
