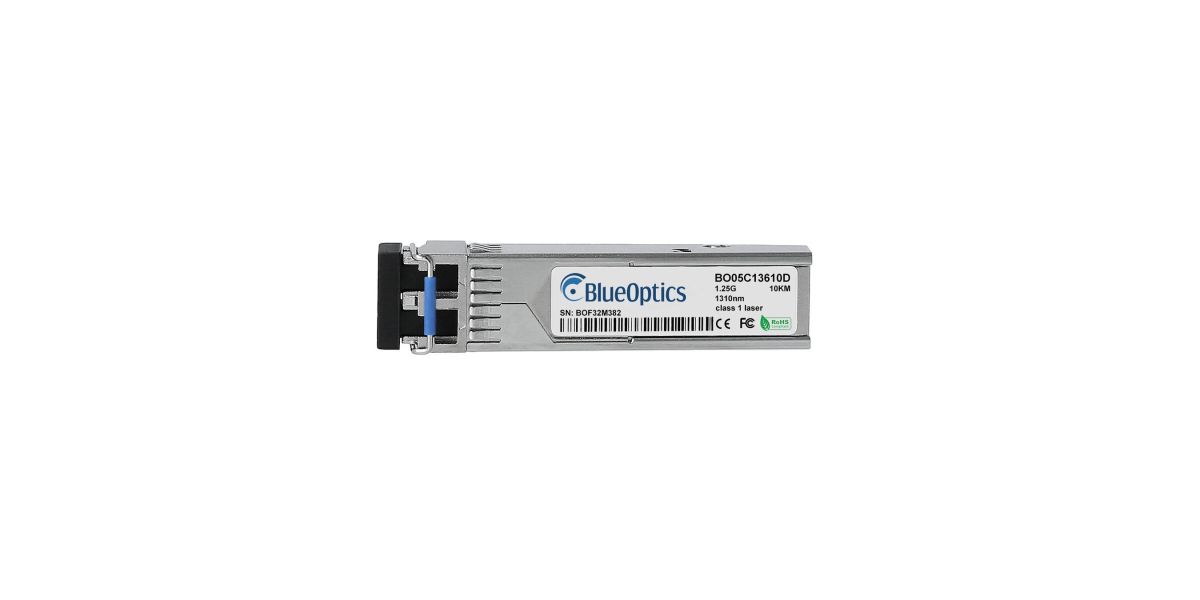

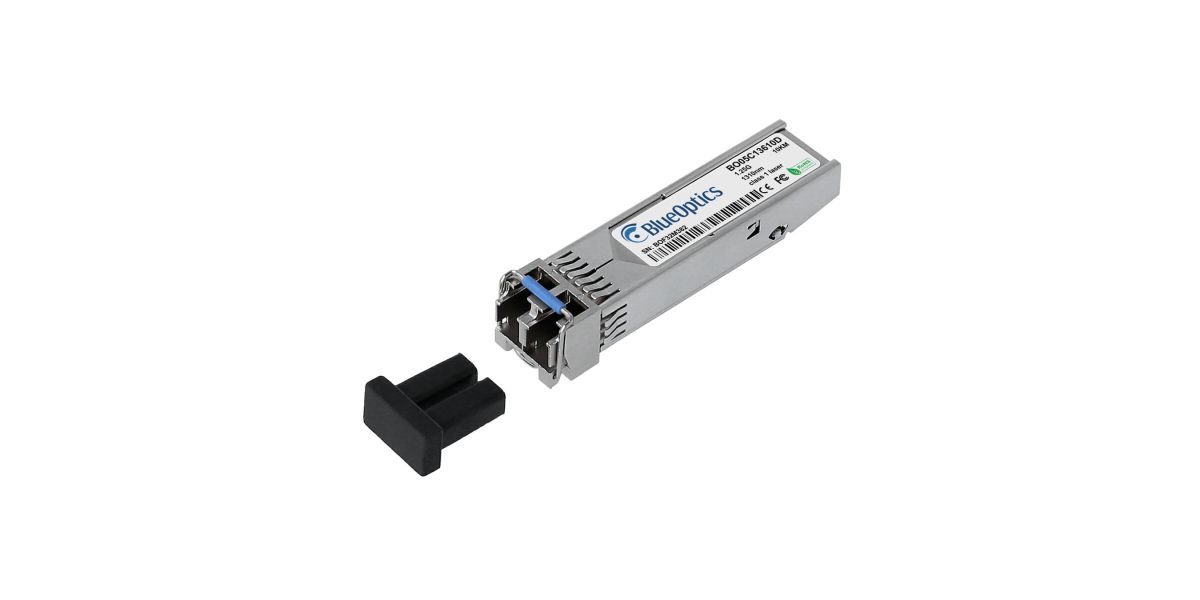

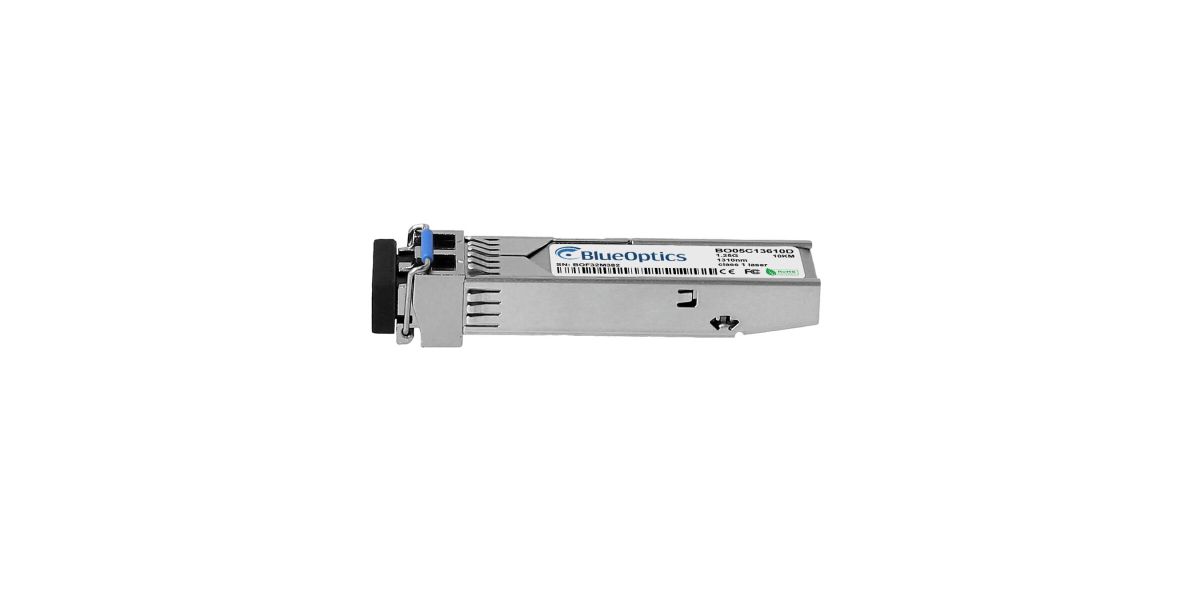

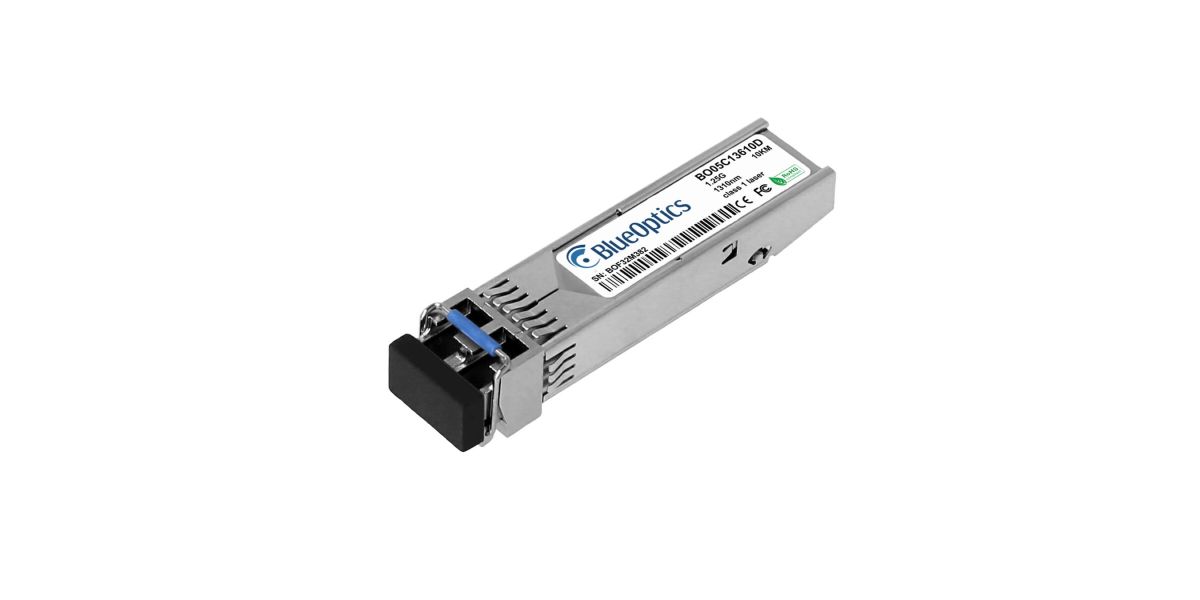

Extreme Networks συμβατό 10052H SFP 1GB-LX Transceiver - BlueOptics 10052H-BO

Περιγραφή

Τεχνικά Χαρακτηριστικά

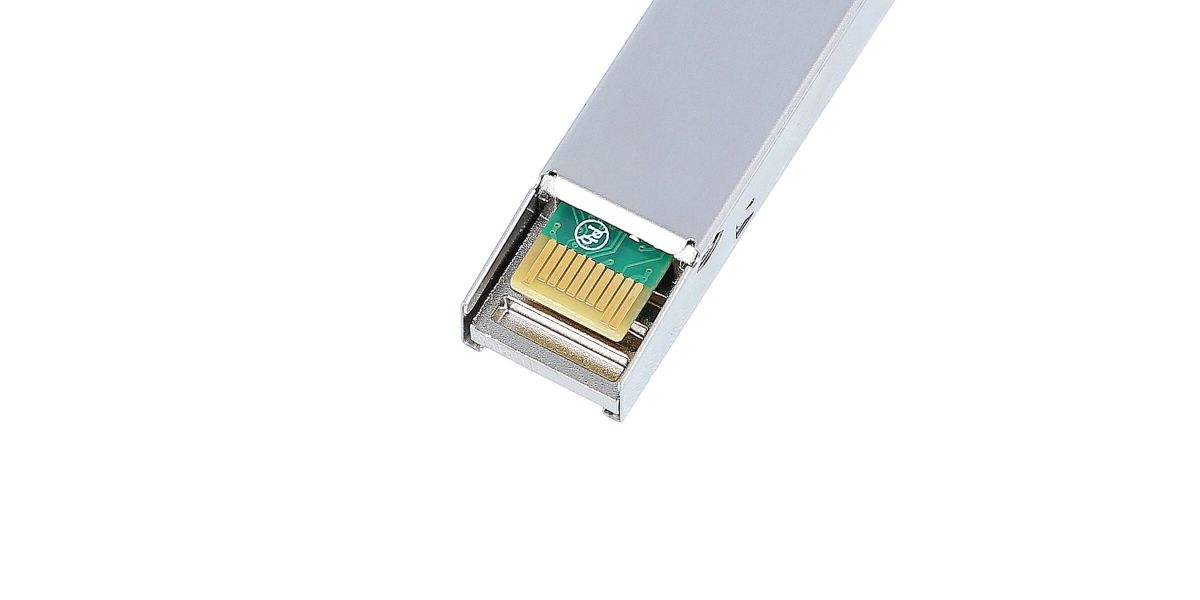

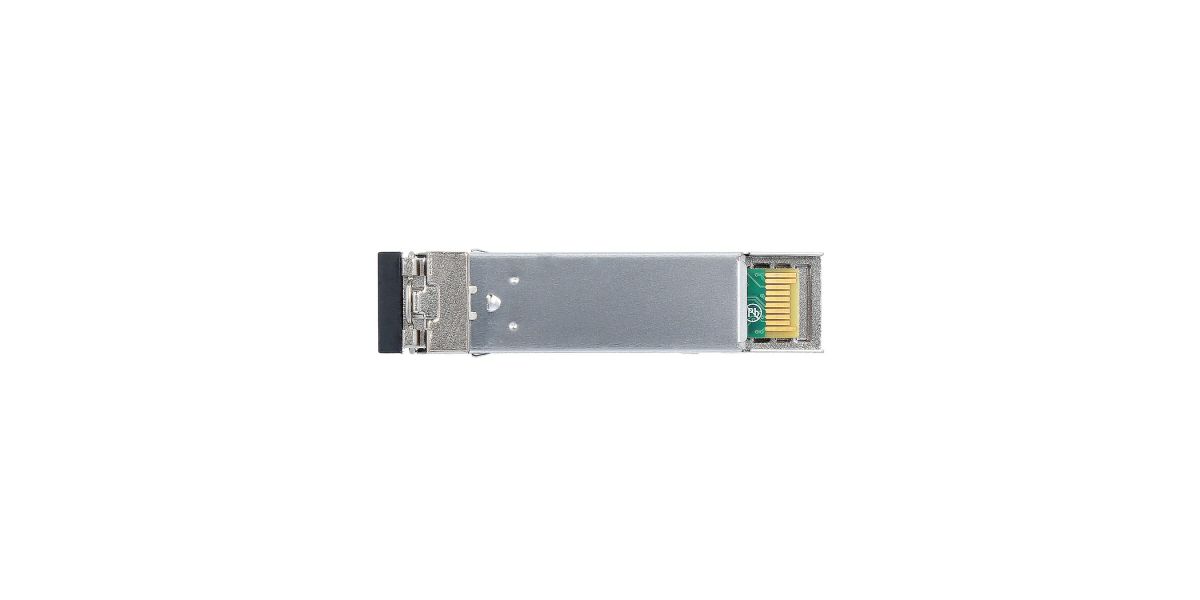

• Form Factor
  SFP (Small Form-Factor Pluggable)
• Interface Type
  1000BASE-LX (1GBASE-LX)
• Transmission Rate
  1.063–1.25 Gbps (Gigabit Ethernet / 1G Fibre Channel)
• Media Type
  Single-Mode Fiber (SMF), 9/125 µm

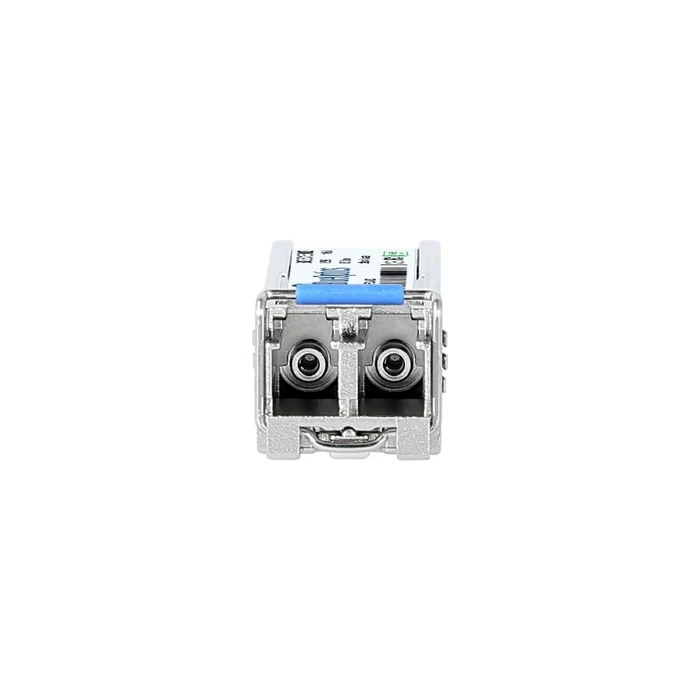

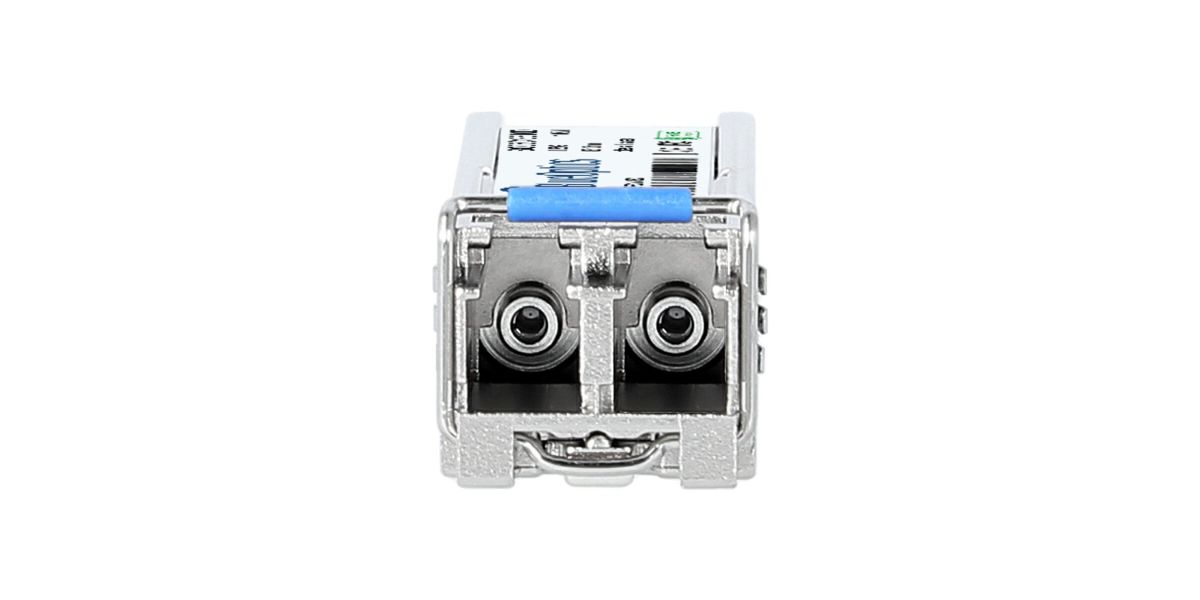

• Connector
  Duplex LC/UPC
• Wavelength
  1310 nm (TX/RX)
• Maximum Distance
  10 km (10,000 m)
• DDM/DOM
  Supported (real-time monitoring of temperature, voltage, laser bias current, TX/RX power)
• Operating Temperature
  Industrial: -40°C to +85°C
• Power Supply
  +3.3 V
• Laser Safety
  Class 1 (IEC 60825-1)
• RoHS Compliance
  Yes
• Typical TX Power
  -9 to -3 dBm (typical -5 dBm)
• Receiver Sensitivity
  -20 to -22 dBm
• Maximum Receive Power
  -3 dBm
• Supply Current
  ~90–150 mA
• Manufacturer Part Number (MPN)
  10052H-BO
• OEM Equivalent
  Extreme Networks 10052H
• SKU
  592697
• EAN/Barcode
  4063232045863
• Packaging
  Individual module in anti-static bag and small retail box / blister (ESD safe)
• Typical Dimensions
  Standard SFP: ~56.5 x 13.4 x 13.7 mm
• Typical Weight
  ~10 g (module)
• Applications
  Gigabit Ethernet, 1G Fibre Channel, optical links
