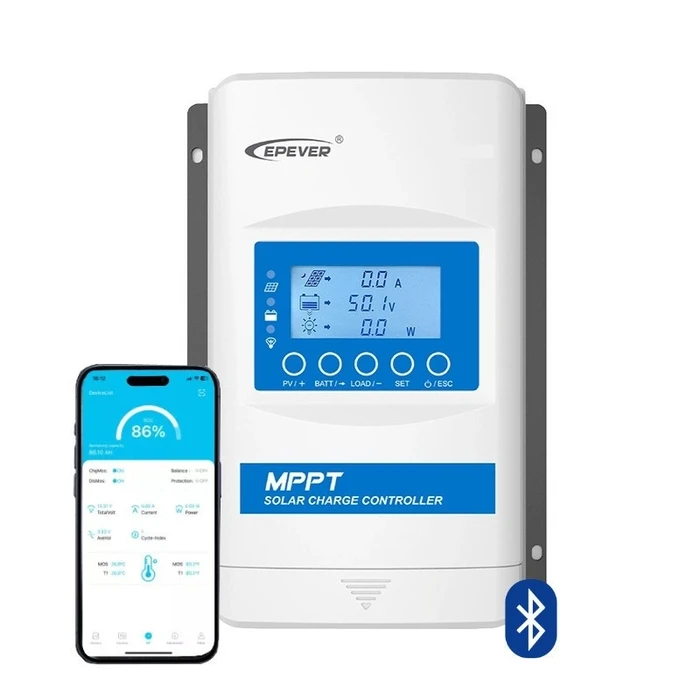

EPEVER MPPT XTRA2210N G3 Φορτιστής/Ρυθμιστής Φόρτισης 20A 12/24V με Bluetooth

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  EPEVER
• Model
  XTRA2210N G3
• Product Type
  MPPT Solar Charge Controller / Charging Regulator
• Rated Charging Current
  20A
• Rated Load/Discharge Current
  20A
• Battery Voltage
  12/24V DC (auto)
• Controller Operating Voltage Range
  8–32V
• Maximum PV Open-Circuit Voltage (Voc)
  100V
• Rated PV Power at 12V
  260W
• Rated PV Power at 24V
  520W
• Maximum Conversion Efficiency
  98.30%
• MPPT Tracking Efficiency
  up to 99.5%
• Maximum DC/DC Transfer Efficiency
  up to 98.5%
• Self-Consumption
  <10mA
• Battery Types Supported
  Lithium, Gel, Sealed, Lead-acid and others
• Charging Algorithm
  Adaptive three-stage charging
• Special Functions
  Lithium battery activation/self-activation, constant voltage output function
• Communications
  Built-in Bluetooth (BLE), RS485
• Remote Monitoring
  Compatible with EPEVER App, optional 4G/Wi‑Fi modules, MT52 remote meter
• Protections
  Overcharge, Over-discharge, PV reverse polarity, Battery reverse polarity, Output overcurrent, Over-temperature power reduction
• Temperature Compensation
  Yes (for lead-acid batteries)
• Enclosure Rating
  IP33
• Dimensions (L×W×H)
  217 × 158 × 56.5 mm
• Net Weight
  970 g
• Operating Temperature Range
  -25°C to +50°C (series documentation)
• Storage Temperature Range
  -20°C to +70°C
• Relative Humidity
  <95% non-condensing
• Package Typical Contents
  XTRA2210N G3 controller, external temperature sensor (mentioned in some sources), manual
