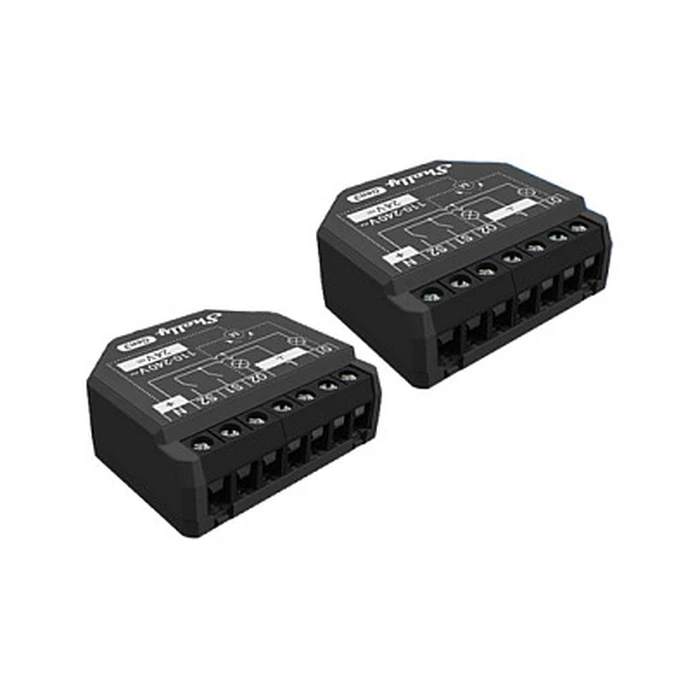

Ενδιάμεσος Διακόπτης Shelly relay "2PM Gen3 pack of 2" max 16A 2 channel WLAN BT

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Power supply
  110–240 V~ / 24 V⎓ ±10%
• Power consumption
  < 1.4 W
• Maximum switching current
  10 A per channel, 16 A total, 18 A total peak
• External protection
  Tripping characteristic B or C
• Wi-Fi range
  up to 30 m indoors, 50 m outdoors
• Bluetooth range
  up to 10 m indoors, 30 m outdoors
• RF band
  2402–2480 MHz
• Maximum RF power Wi-Fi
  < 20 dBm
• Maximum RF power Bluetooth
  < 4 dBm
• CPU
  ESP-Shelly-C38F
• Flash memory
  8 MB
• Schedules
  20
• Webhooks
  20 with 5 URLs per hook
• Scripting
  Yes
• MQTT
  Yes
• Dimensions (H×W×D)
  37×42×16 mm
• Shell material
  Black plastic
• Screw terminals maximum torque
  0.4 Nm
• Ambient working temperature
  −20°C to 40°C
• Humidity
  30% to 70% RH
• Maximum altitude
  2000 m
