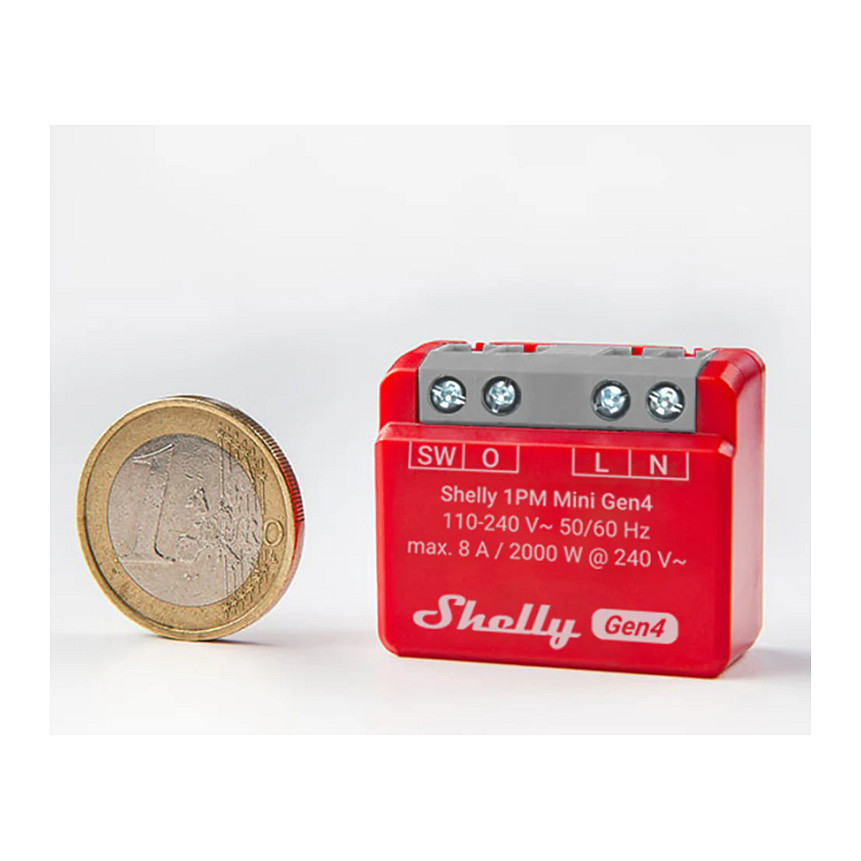

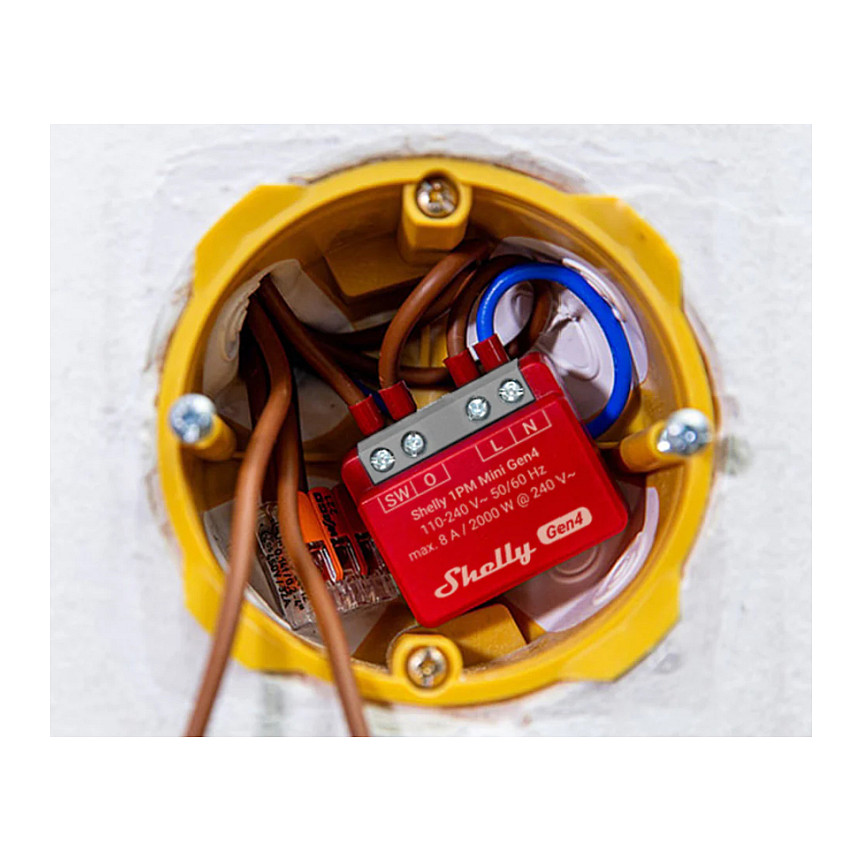

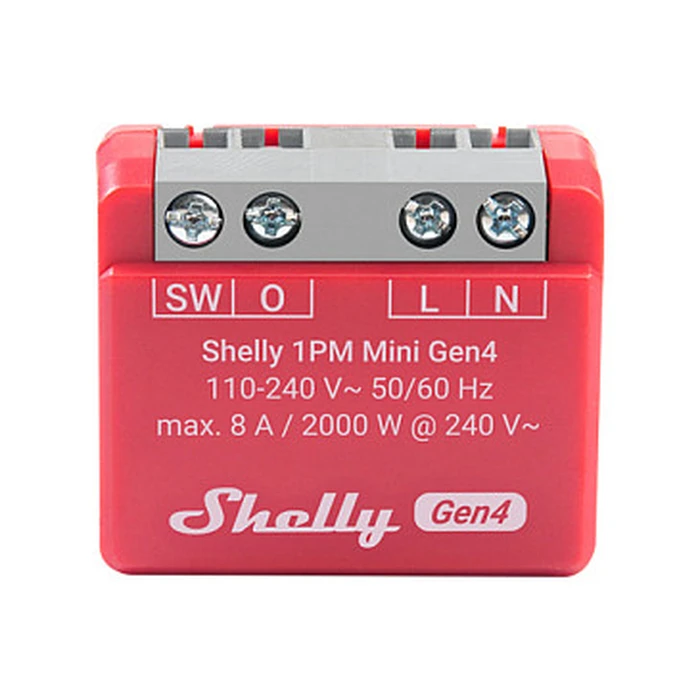

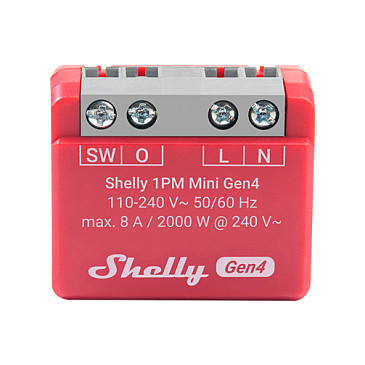

Ενδιάμεσος Διακόπτης Shelly relay "1PM Mini Gen4" WLAN BT Matter Zigbee measuring function max 8A 1 ​​channel flush-mounted

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Power Supply
  110–240 V~ AC
• Relay
  Dry NO contact, 1-pole, µ contact
• Max. Switching Voltage
  240 V~ AC / 30 V⎓ DC
• Max. Switching Current
  8 A / 240 V~; 5 A / 30 V⎓
• Max. Output Power
  2000 W / 240 V~; 150 W / 30 V⎓
• Power Consumption
  < 1.2 W
• Power Measurement
  Yes, accurate to within 1%
• Protections
  Overvoltage, overcurrent, max power cutoff; overheating protection; external circuit breaker (B or C characteristic, max 10 A, min 6 kA interrupting rating, energy limiting class 3)
• Conductor Cross-Section
  0.5–4 mm² (20–11 AWG) or 0.2–2.5 mm² (24–14 AWG) solid/stranded/bootlace; stripped length 6–7 mm
• Screw Terminals Torque
  0.4 Nm / 3.5 lb-in
• Internal Temperature Sensor
  Yes
• Humidity Operating Range
  30–70% RH (non-condensing)
• Max. Altitude
  2000 m / 6562 ft
• Wi-Fi
  802.11 b/g/n/ax
• Bluetooth
  5.0
• Zigbee
  802.15.4
• Matter
  Supported via multiprotocol MCU
• CPU
  ESP-Shelly-C68F
• Flash
  8 MB
• Features
  20 schedules; 20 webhooks (5 URLs each); MQTT, UDP, scripting, advanced schedules, KVS support
