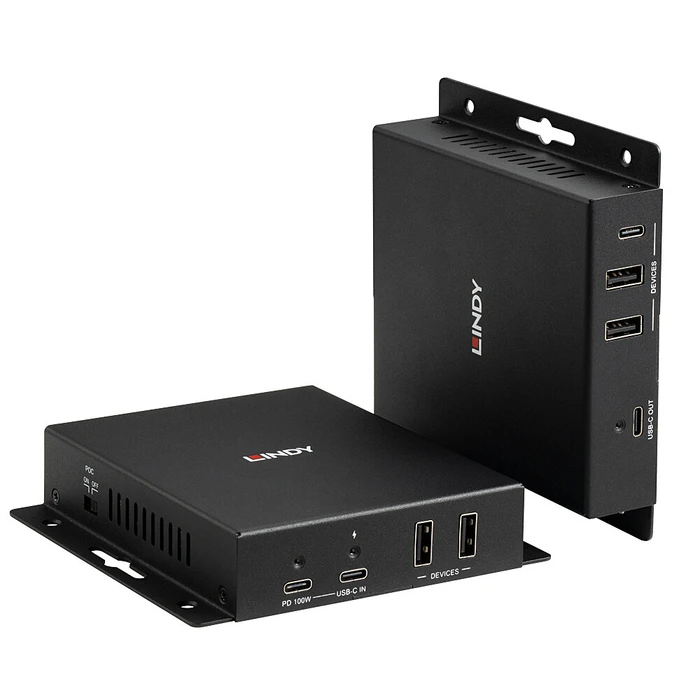

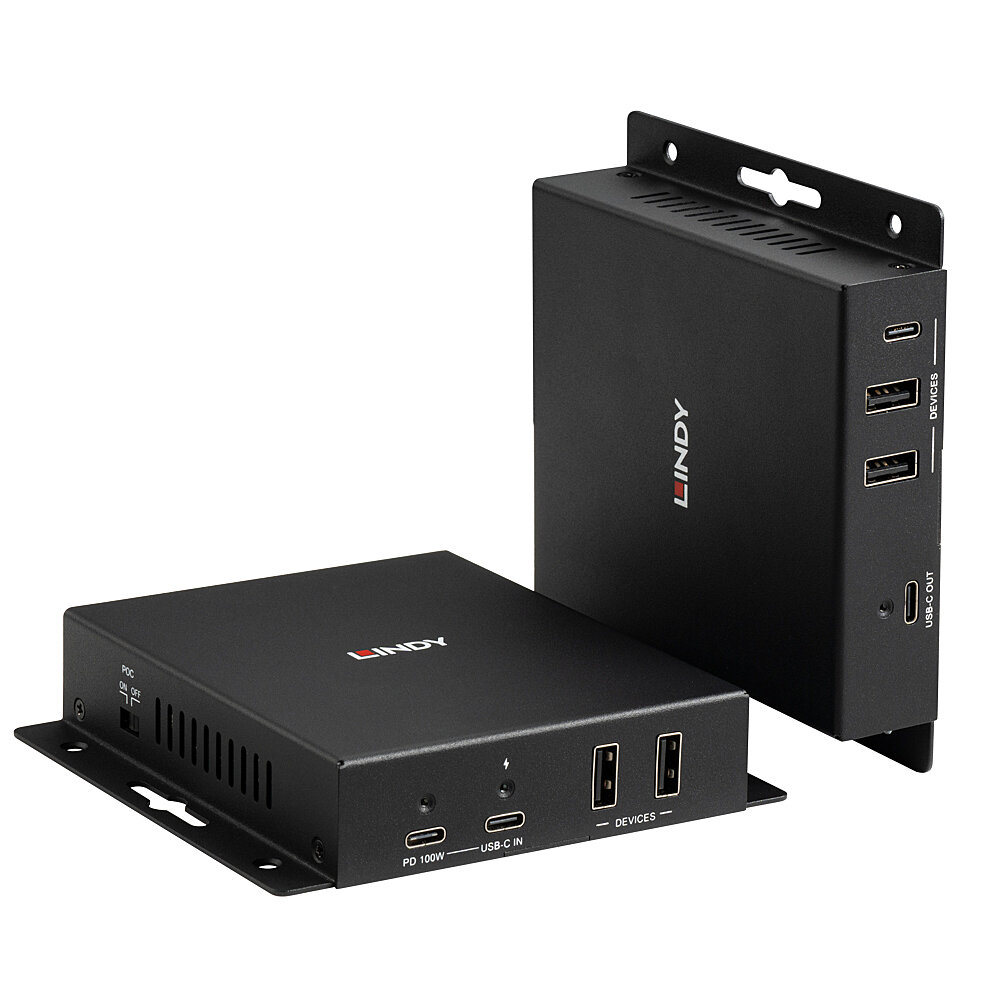

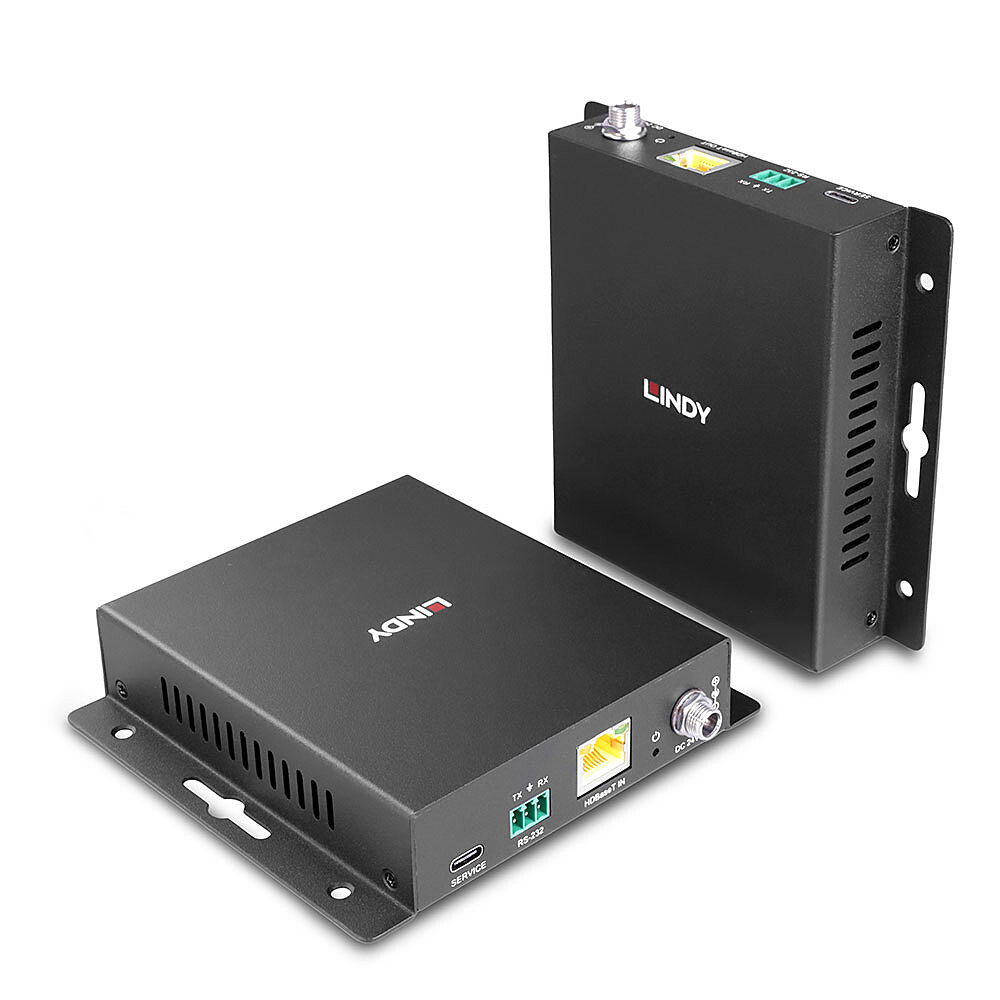

Lindy Video / USB Extender 39347 - 100 m (HDBaseT 3.0 USB‑C επεκτατής βίντεο & δεδομένων)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Lindy
• Model / MPN
  39347
• SKU
  281180
• EAN / Barcode
  4002888393478
• Product type
  USB‑C (Type C) Video & Data HDBaseT 3.0 extender kit (transmitter + receiver)
• Transmission medium
  Cat.6A cable
• Transmission protocol
  HDBaseT 3.0
• Maximum distance
  100 m (328.08 ft)
• Supported bandwidth
  18 Gbps
• Maximum resolution (70 m)
  3840 × 2160 @ 60 Hz, 4:4:4, 8‑bit
• Maximum resolution (100 m)
  3840 × 2160 @ 30 Hz, 4:4:4, 8‑bit OR 4:2:2, 12‑bit
• Video input/output interface
  USB Type‑C Alt Mode (DisplayPort Alt Mode over USB‑C)
• USB standard supported
  USB 2.0
• Power Delivery
  USB‑C PD up to 100W
• PoC (Power over Cable)
  Supported (on/off switch)
• HDCP support
  HDCP 2.2
• EDID
  Pass‑through: presets, user defined and copy function
• Audio
  Audio pass‑through supported
• Serial control
  RS‑232 pass‑through supported
• Chipset
  VS3000
• Transmitter ports

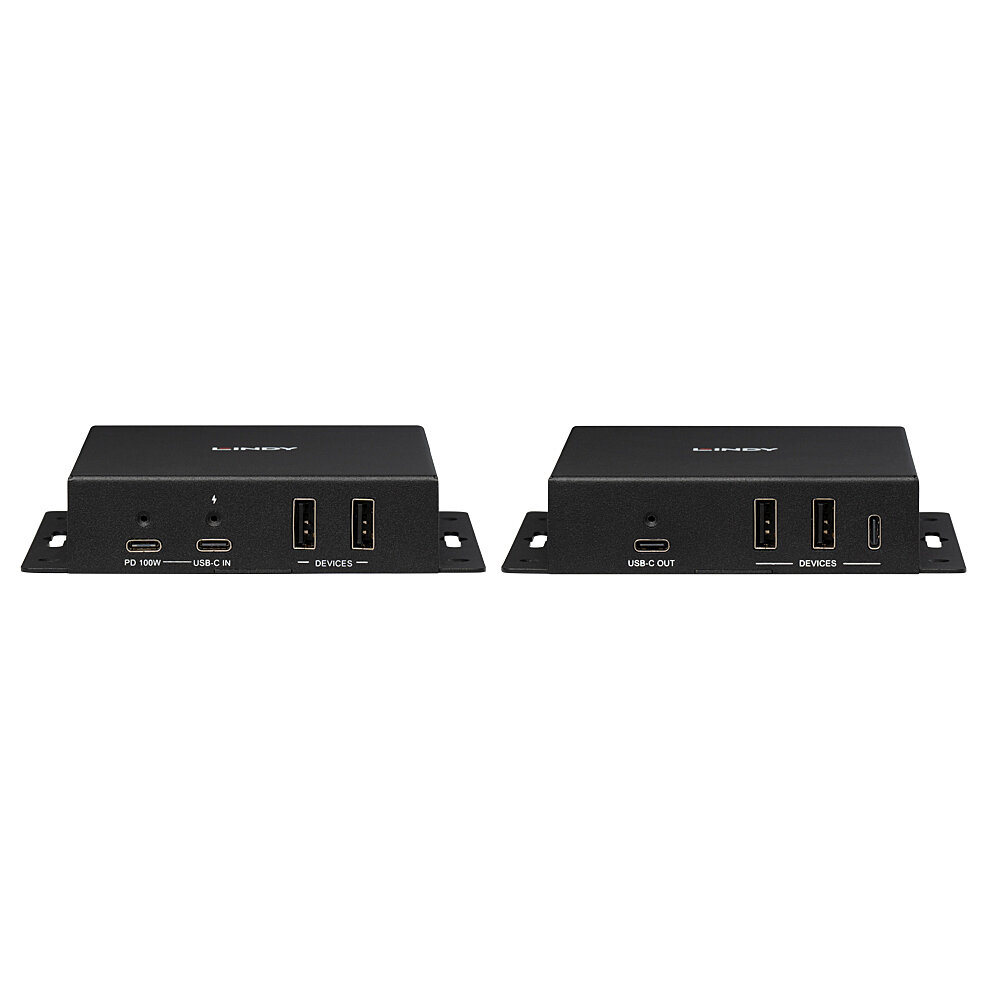

  USB Type‑C (Alt Mode) female; USB Type‑C PD female; RJ‑45 out; 2 × USB Type‑A (host) female
• Receiver ports
  RJ‑45 in; USB Type‑C Alt Mode female; 2 × USB Type‑A Device female; USB Type‑C Device female

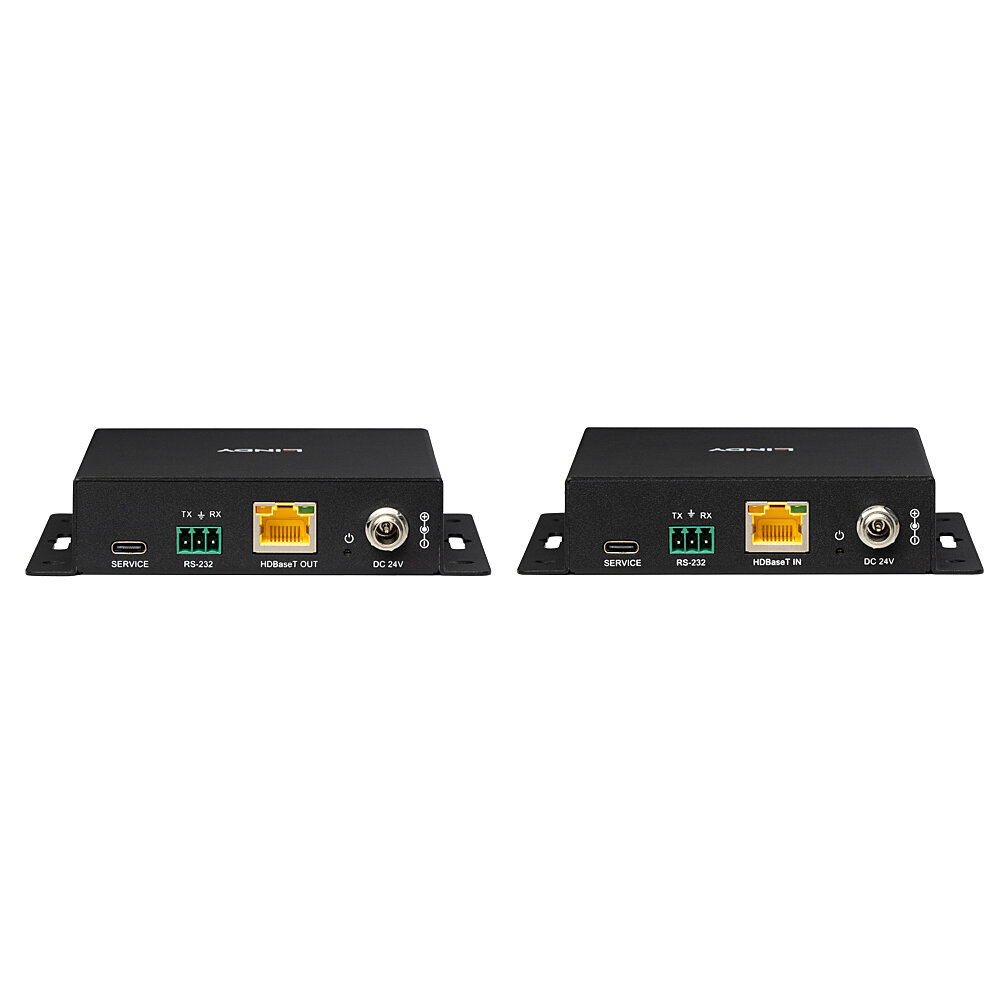

• Control ports
  USB Type‑C (female), RS‑232 3‑pin terminal block
• Power connector
  5.5/2.1 mm barrel connector for external PSU
• Included items
  Transmitter, Receiver, IEC power supply with UK/EU/US/AU cables, 2 × 3‑pin terminal block, manual
• Color
  Black
• Typical applications
  AV signal extension, meeting rooms, digital signage, pro AV installations
