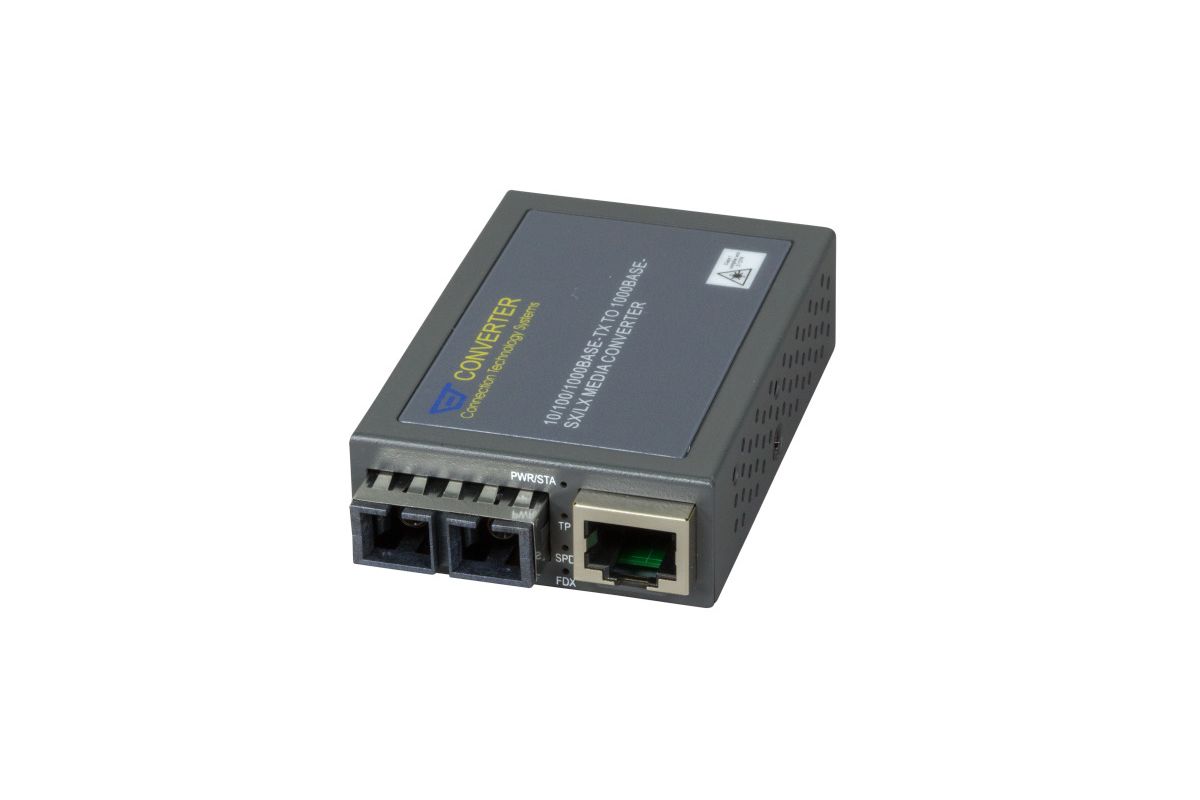

EFB-Elektronik Συμπαγής Media Converter RJ45-SC, 550 m, MM, Gigabit Ethernet (MCT-3002BTFC)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  EFB-Elektronik
• Model
  MCT-3002BTFC
• SKU
  264828
• MPN
  MCT-3002BTFC
• EAN / Barcode
  4049759168698
• Product Category
  Compact media converter / active network component
• Interface
  1 ? RJ45 (10/100/1000Base-T), 1 ? SC (1000Base-X)
• Fiber Type
  Multimode (MM)
• Connector
  SC
• Speed
  Gigabit Ethernet (1000 Mbps)
• Max Reach (MM)
  550 m
• Wavelength
  850 nm (MM BTFC variant)
• Supported Standards
  IEEE 802.3, 802.3u, 802.3ab, 802.3z
• Power Input
  AC 100–240 V
• Power Output
  DC 3.3 V
• Power Consumption
  ~2.3 W
• Dimensions (W?D?H)
  51 ? 74 ? 20 mm
• Weight
  ~100 g
• Operating Temperature
  0 °C to 50 °C
• Storage Temperature
  -20 °C to 60 °C
• Humidity
  5% to 90% RH non-condensing
• EMC / Safety Certifications
  CE, FCC Class A
• Management
  Unmanaged
• Form Factor
  Compact desktop / small housing
• Housing Material
  Plastic (compact enclosure)
• Typical Use
  Converting copper RJ45 Ethernet to SC multimode fiber for short-reach Gigabit links
