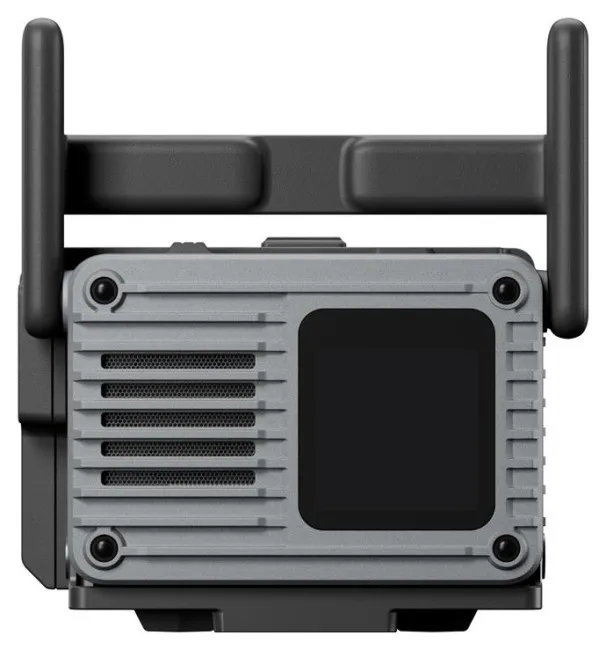

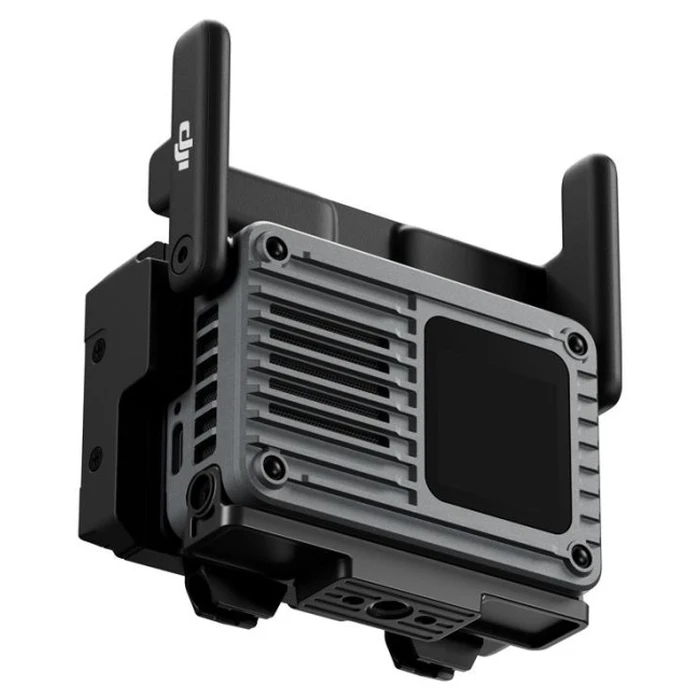

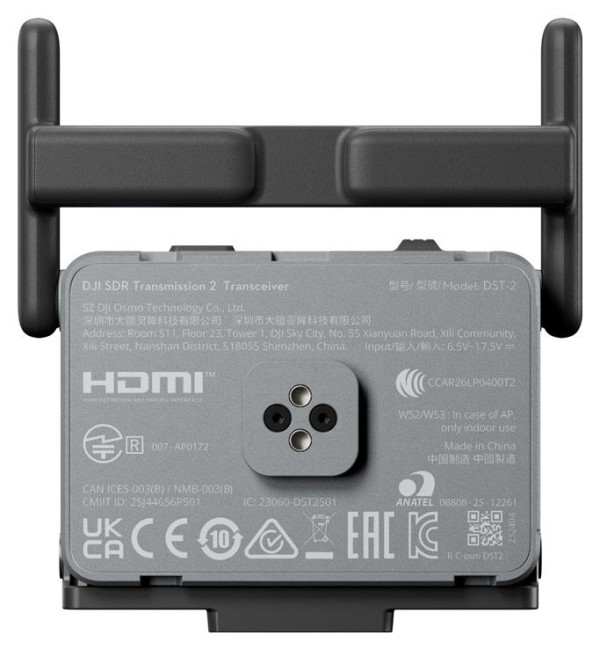

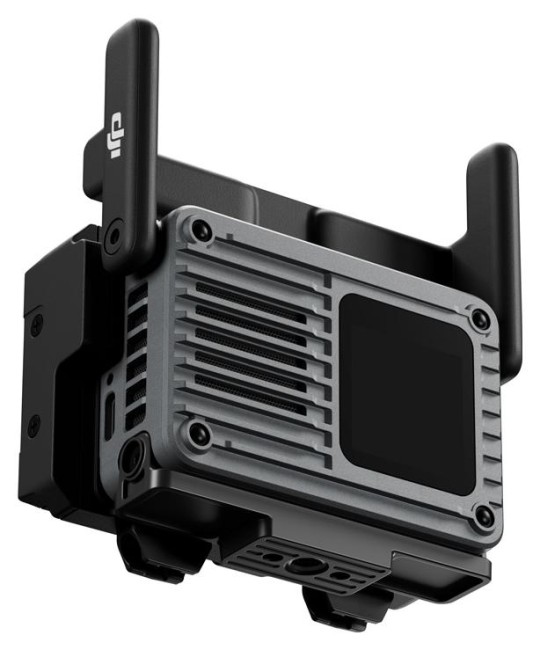

DJI SDR Transmission Combo 2 - Σύστημα ασύρματης μετάδοσης εικόνας

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  DJI
• Model
  SDR Transmission Combo 2
• MPN
  CP.TR.00000059.03
• EAN
  6937224148086
• SKU
  KMW-DR-A-DJI-212
• Product Type
  Wireless video transmission system / video transmission accessory
• Transmission Technology
  SDR (Software Defined Radio)
• Maximum Video Format
  DCI 4K @ 60 fps
• Supported Video Formats
  DCI 4K, 4K UHD, 1080p, 1080i
• HDR
  10-bit HDR
• Video Codec
  H.265
• Maximum Encoding Bitrate
  Up to 50 Mbps
• Latency
  Approximately 35 ms (typical 1T1R)
• Maximum Range
  Up to 4 km (CE, optimal conditions) (some listings: up to 6 km FCC)
• Frequency Bands
  2.4 GHz and 5 GHz
• Maximum Channel Bandwidth
  Up to 40 MHz
• Antenna
  Removable directional/diversity antennas (included)

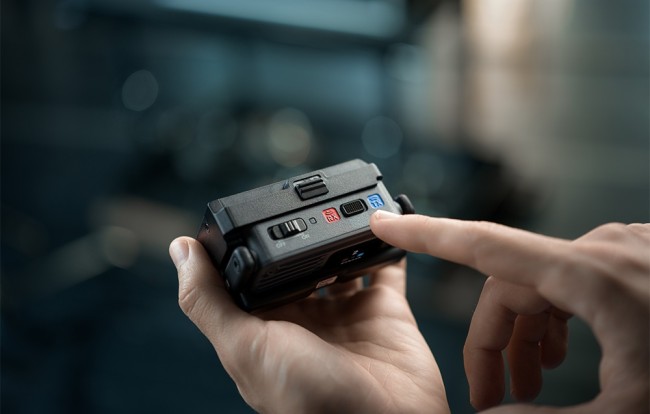

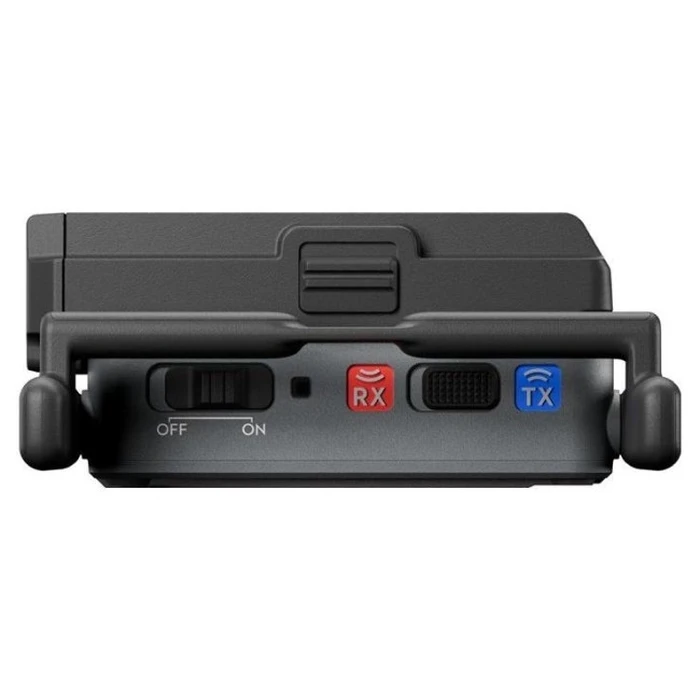

• TX/RX Switchable
  Yes (units can be used as transmitter or receiver)
• Multi-Receiver Support
  1 transmitter to up to 8 receivers (with control); multi-group support
• Multi-Unit Capacity
  Official listing references up to 5 transmitters and 40 receivers in larger deployments
• Auto Channel
  Auto Channel 2.0 frequency optimization
• Video I/O
  HDMI, USB-C
• SDI Support
  Available via optional/additional SDI module (sold separately in some listings)
• Metadata
  Metadata transmission supported
• Wi‑Fi
  Not supported in some listings (primary video link via SDR)
• Power Input Options
  USB-C PD (supports 15 V / 3 A), NP-F battery adapter compatible
• Battery Type
  NP-F (lithium-ion) supported via adapter
• Battery Voltage Range
  6.8 V – 8.4 V (NP-F referenced)
• USB-C Power Output
  15 V / 3 A (referenced)
• Power Consumption (typical)
  ~8.52 W (transmitter 1T1R) / ~7.58 W (receiver 1T1R) (referenced)
• Dimensions
  Approximately 76 × 61 × 25 mm (without antennas and cold-shoe)
• Weight
  Approximately 136 g (including antennas)
• Color
  Not consistently specified across listings
• Materials
  Not explicitly specified by manufacturer in available listings

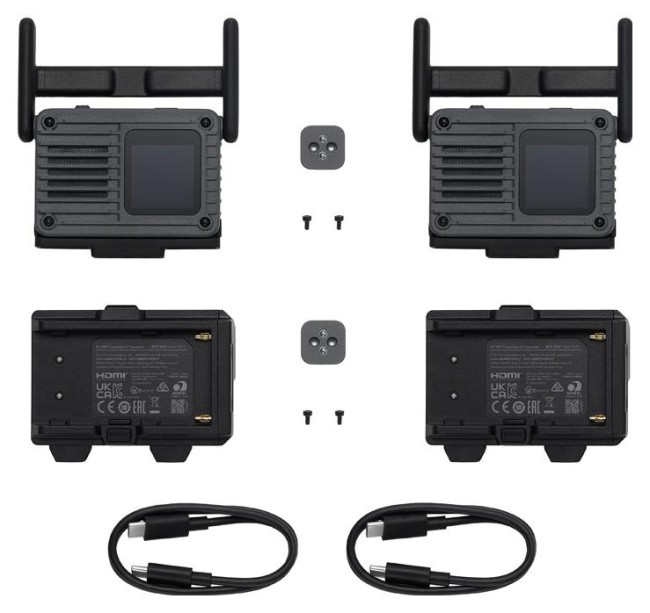

• Package Contents (typical)

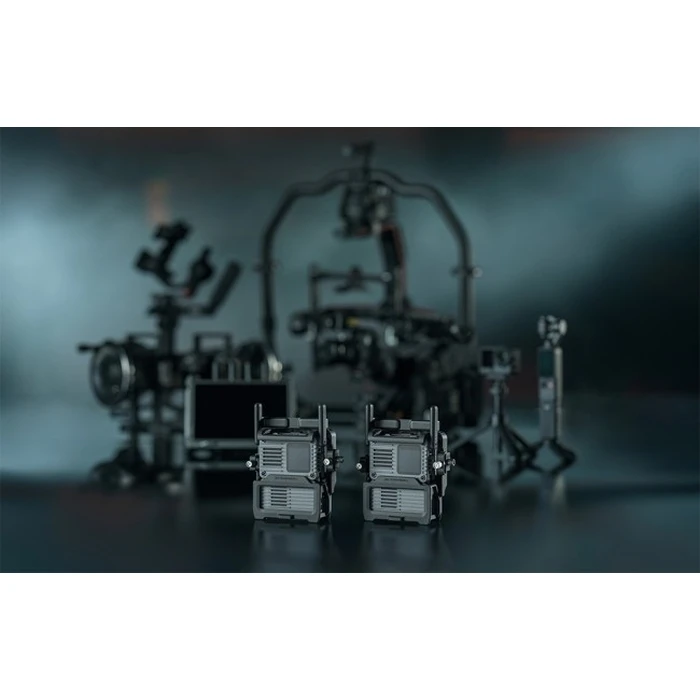

  Combo kit: 2× SDR transceiver units, antennas, NP-F battery adapters (2×) and mounting/cold-shoe accessories depending on retailer

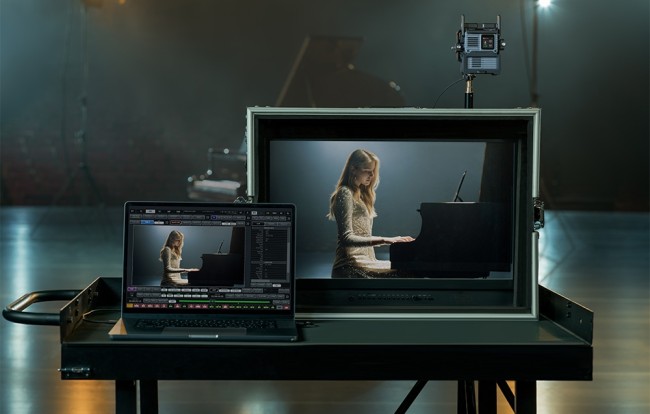

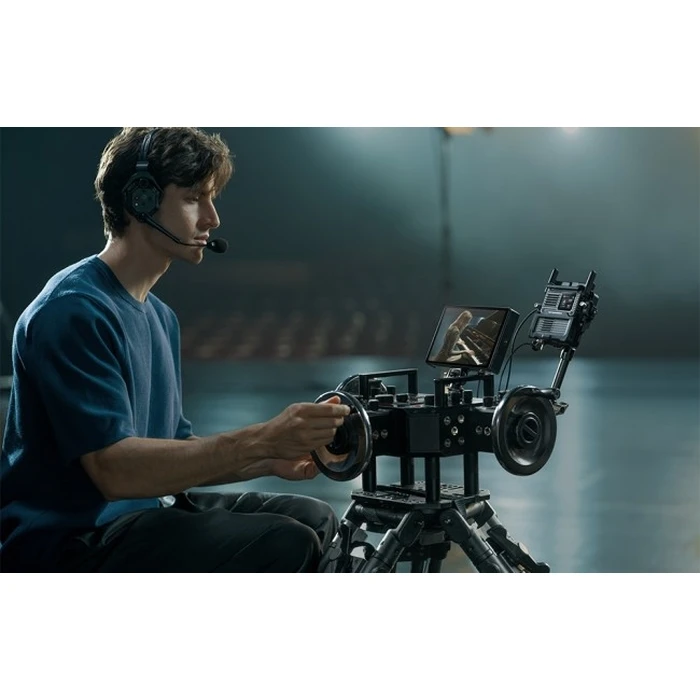

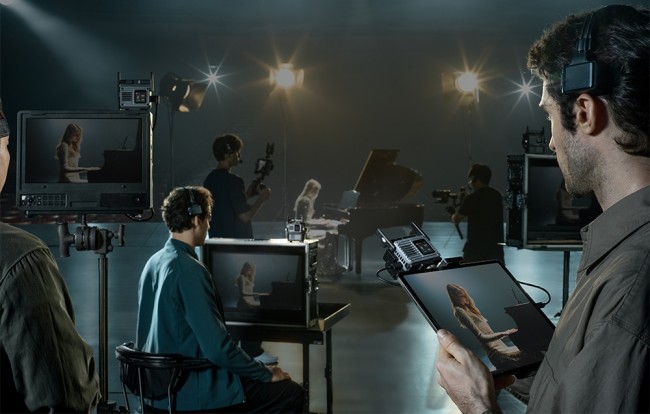

• Use Case

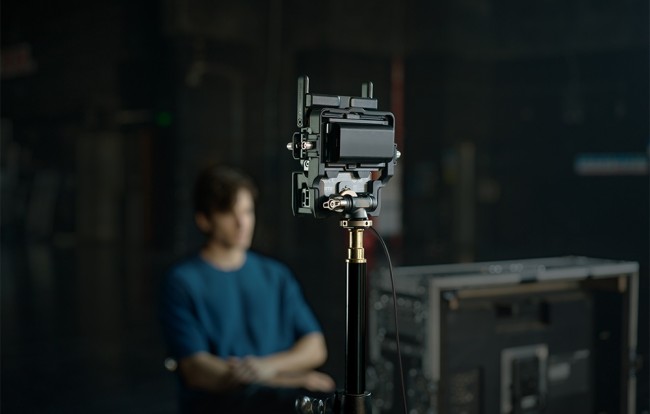

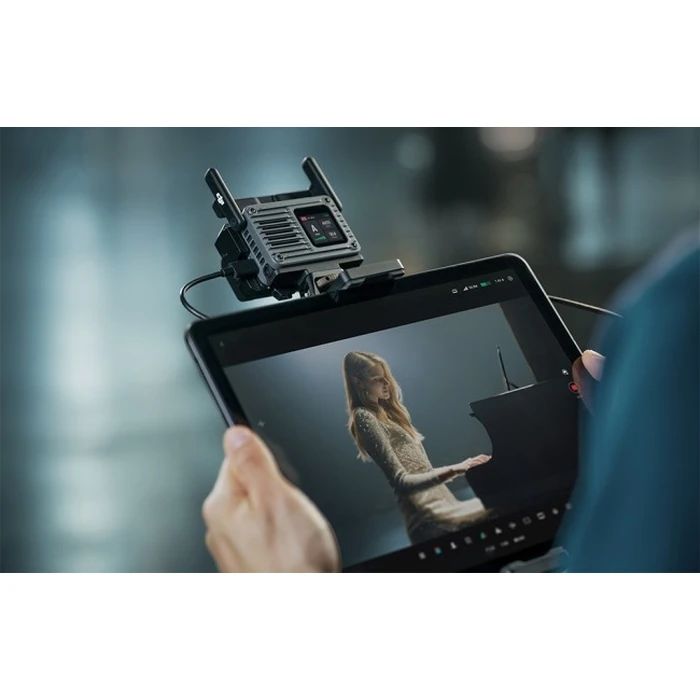

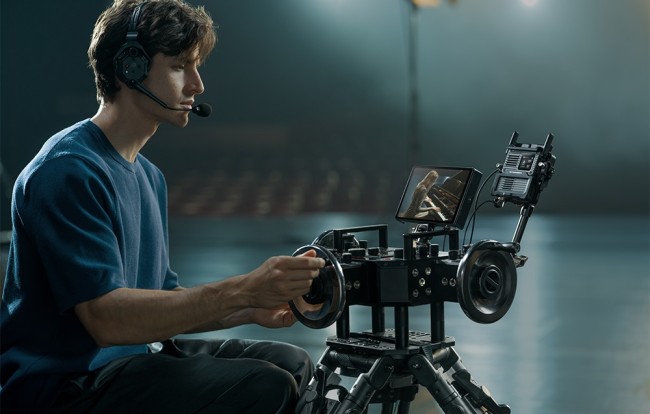

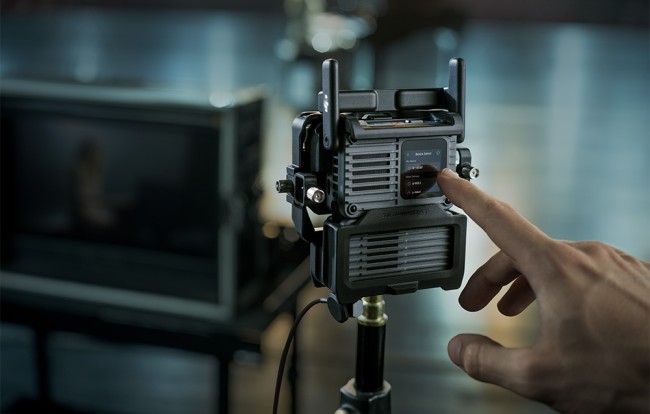

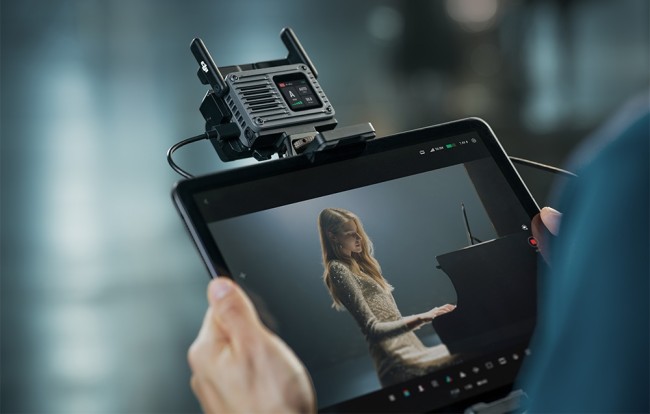

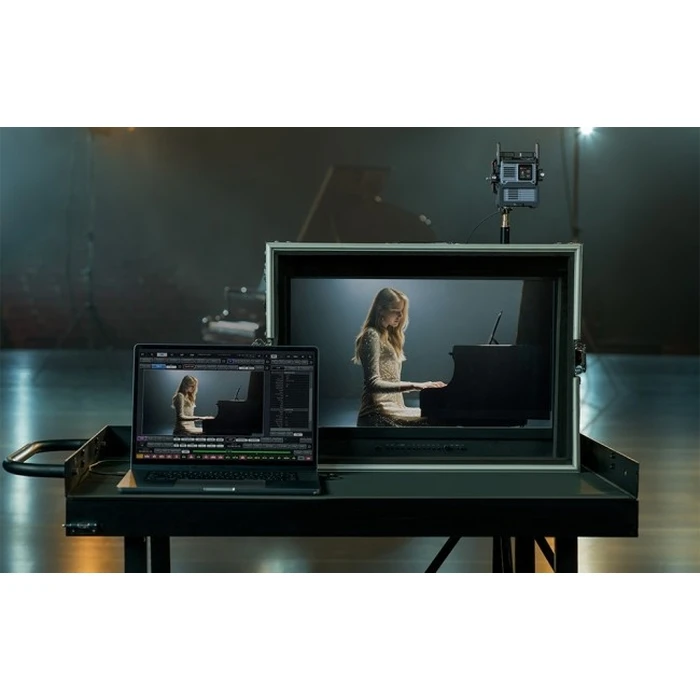

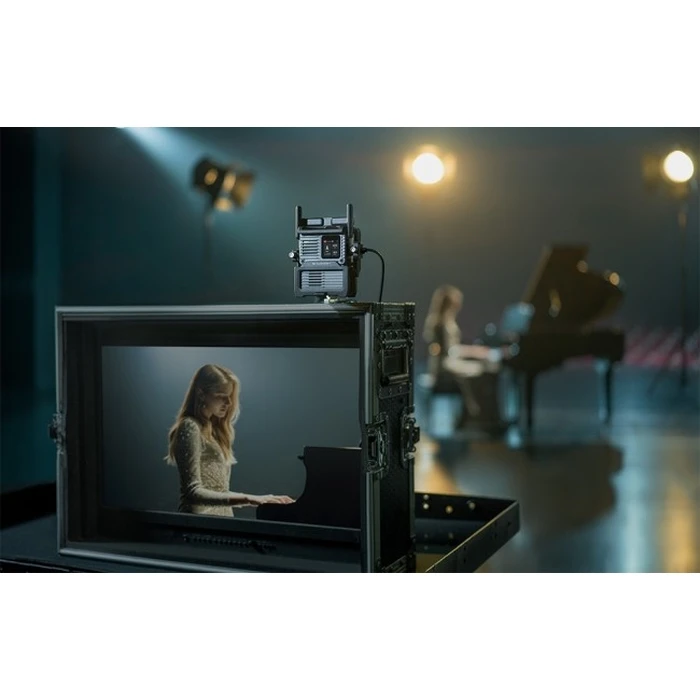

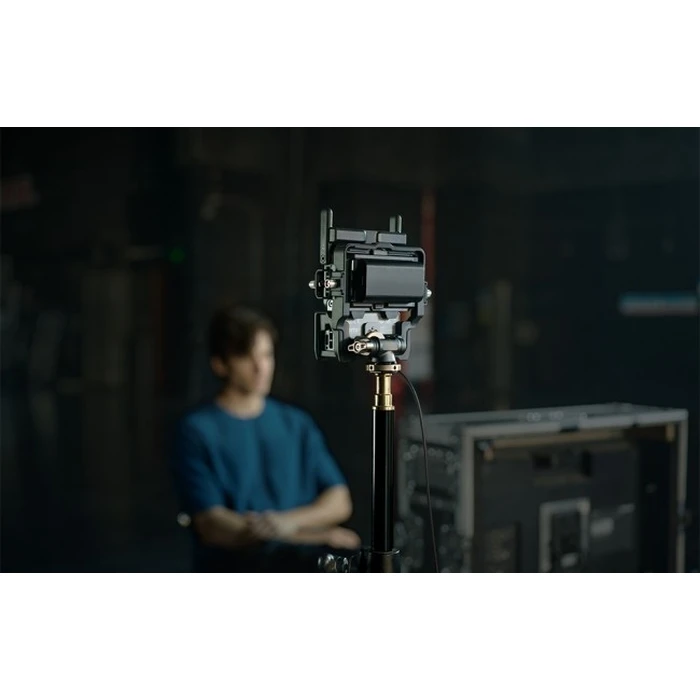

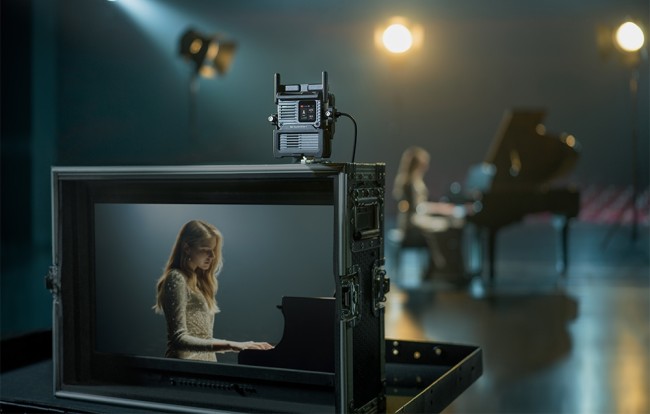

  Wireless camera monitoring, on-set production workflows, Ronin integration
• Compliance / Range Notes
  Range varies by region and regulatory limits (CE vs FCC), environmental and RF conditions affect performance
