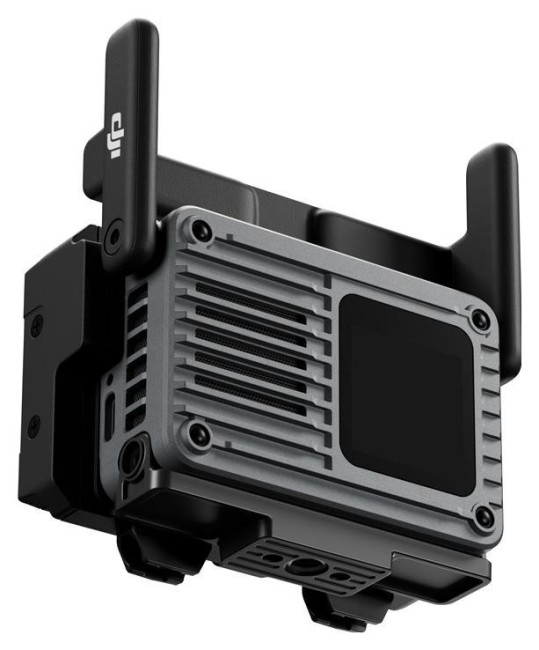

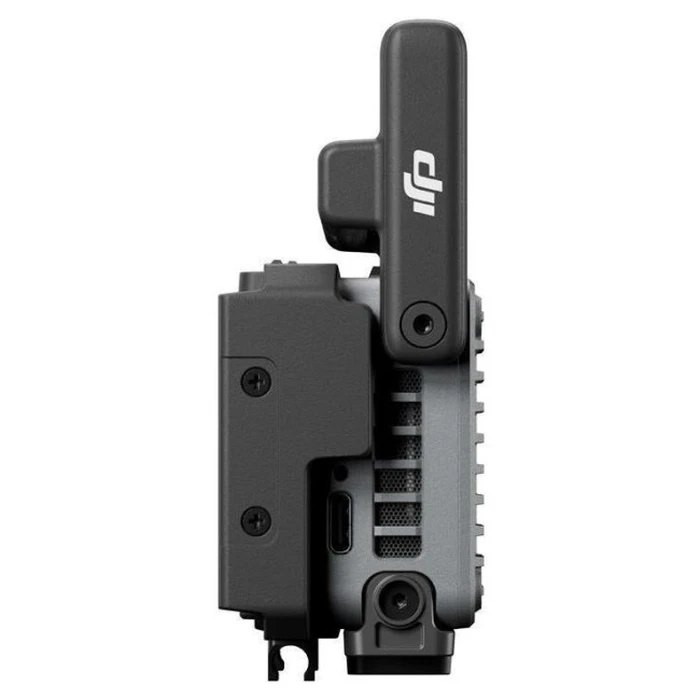

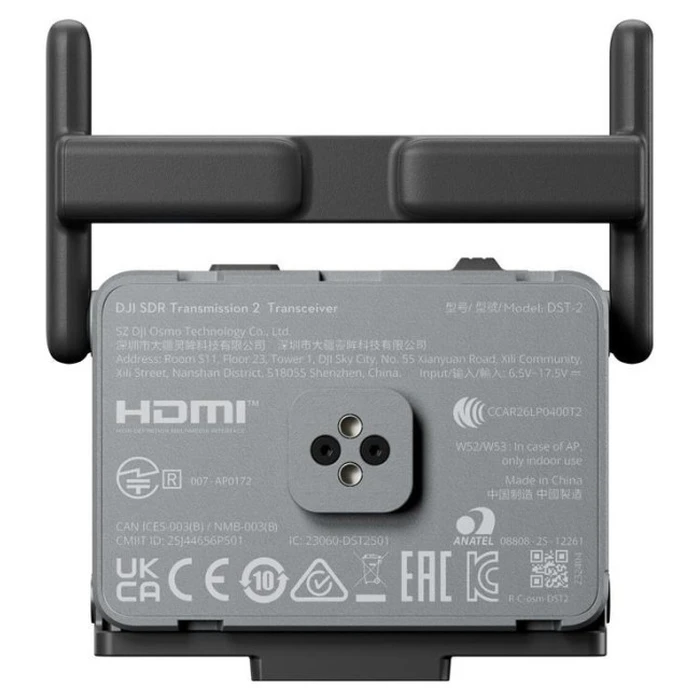

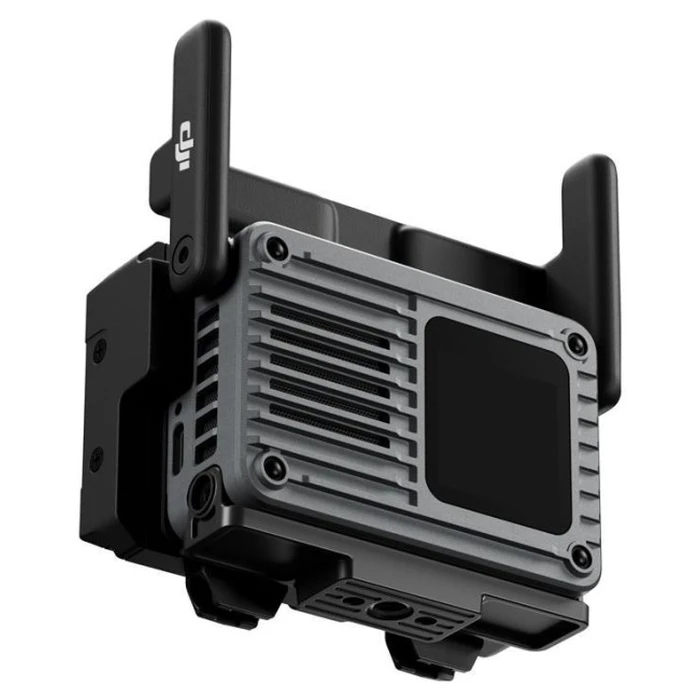

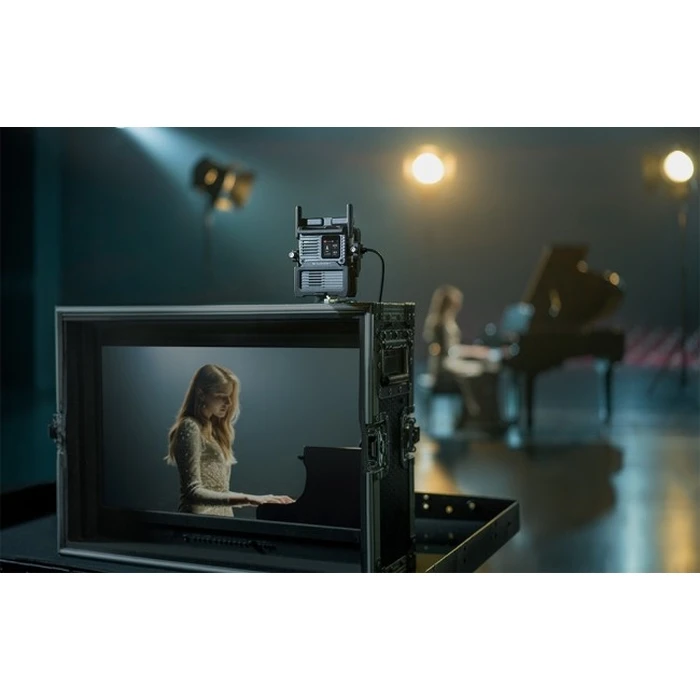

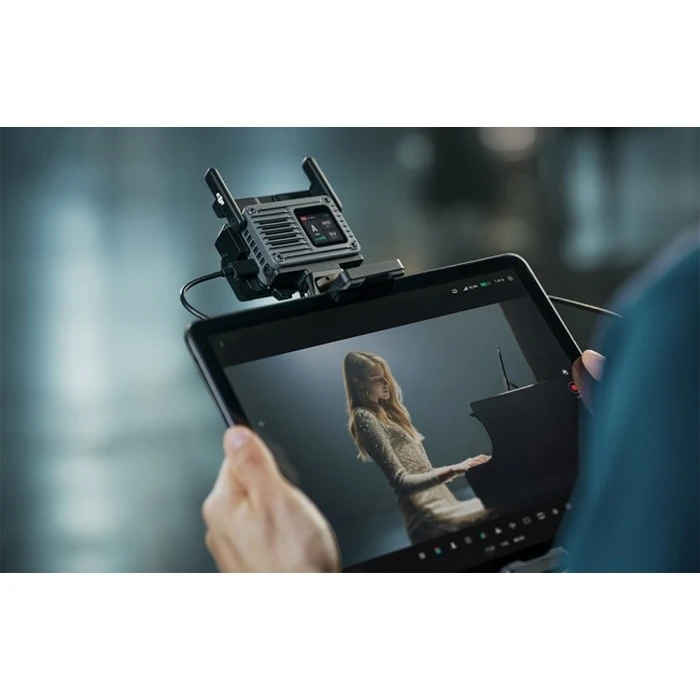

DJI SDR Transmission 2 - Σύστημα μετάδοσης εικόνας

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  DJI
• Model
  SDR Transmission 2
• Product Type
  Switchable TX/RX image/video transmission transceiver (professional monitoring system)
• Maximum Video Quality
  DCI 4K at 60 fps
• HDR Support
  10-bit HDR (HLG, HDR10)
• Video Codec
  H.265
• Maximum Bitrate
  50 Mbps
• Maximum Transmission Distance
  Up to 4 km (line-of-sight)
• Minimum Latency
  Approximately 35 ms
• Maximum Bandwidth
  40 MHz
• Frequency Bands
  2.4 GHz and 5.1–5.8 GHz
• Simultaneous Operation
  Up to 5 transmitters and 40 receivers in the same area
• Per-Transmitter Receiver Support
  One transmitter can feed up to 8 receivers with control
• Camera & Gimbal Control
  Supported
• Supported Formats
  DCI 4K, 4K UHD, 1080p, 1080i (depending on mode/configuration)
• Color Formats
  RGB and YCbCr (4:4:4, 4:2:2, 4:2:0), 8-bit and 10-bit
• HDR Transport
  HLG and HDR10
• Unit Type

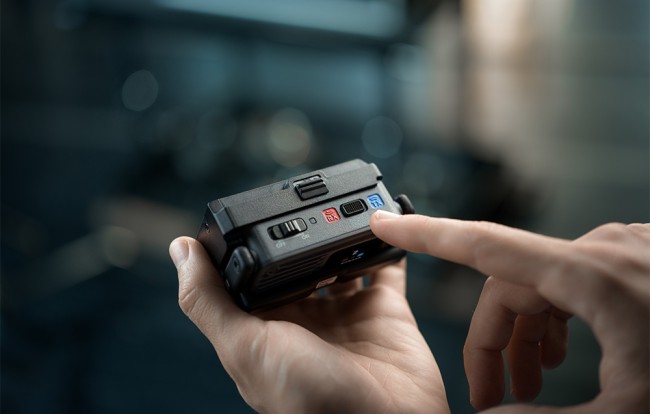

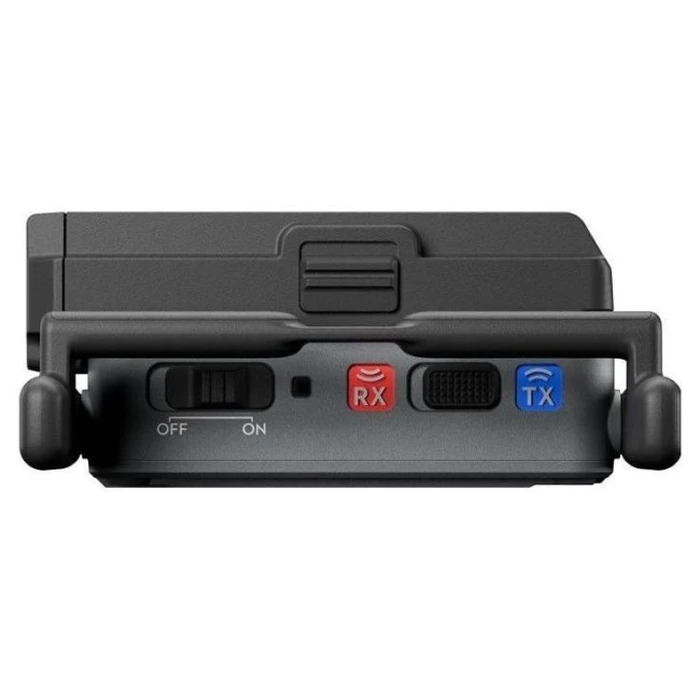

  Switchable TX/RX transceiver

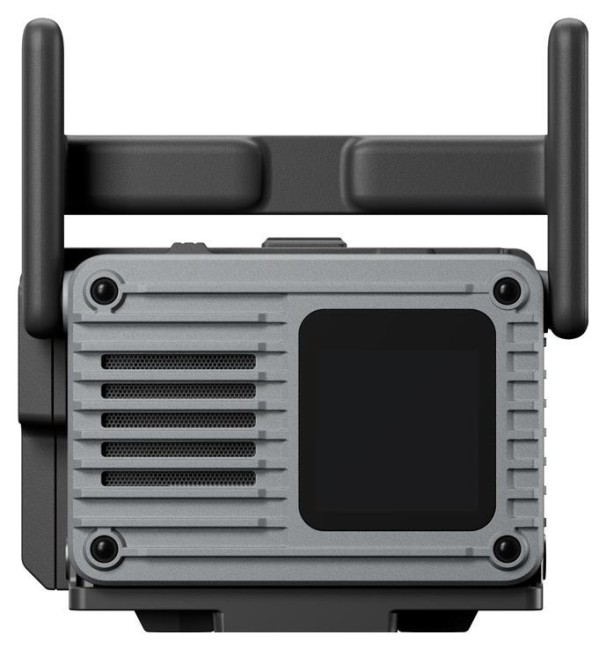

• Antennas
  Two foldable antennas

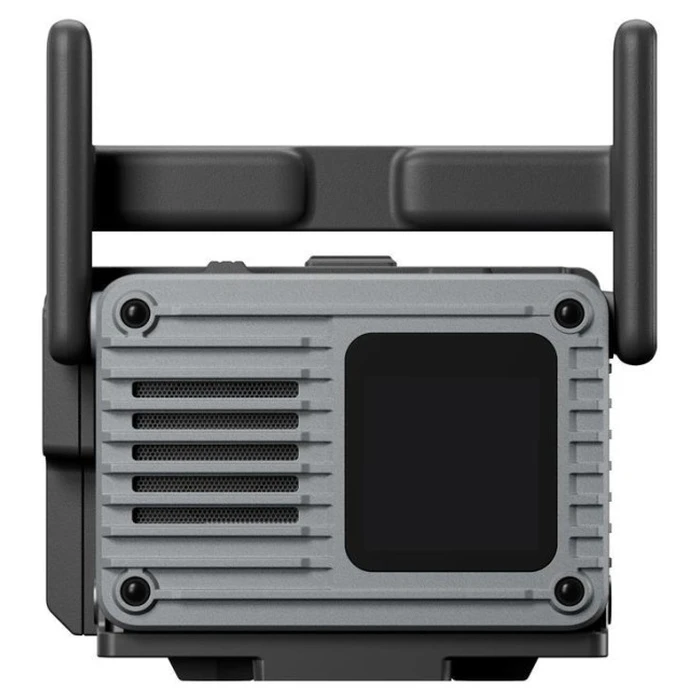

• Display
  Touchscreen
• Weight (unit)
  136 g per unit
• Dimensions (unit)
  61 × 53 × 25 mm (excluding antenna and cold shoe adapter)
• Dimensions (with SDI expansion plate & cage)
  76 × 54 × 25 mm (excluding cold shoe adapter)
• SDI Support
  3G‑SDI via optional SDI expansion plate and cage (up to 1080p60)
• HDMI
  1× HDMI input/output depending on mode
• USB‑C
  Multiple USB‑C ports; UVC/DisplayPort support and ecosystem integration; USB‑C PD output
• Battery Compatibility
  NP‑F batteries
• Battery Voltage Range
  6.8 V to 8.4 V
• USB‑C Output
  15 V / 3 A
• Power Delivery
  USB‑C PD supported

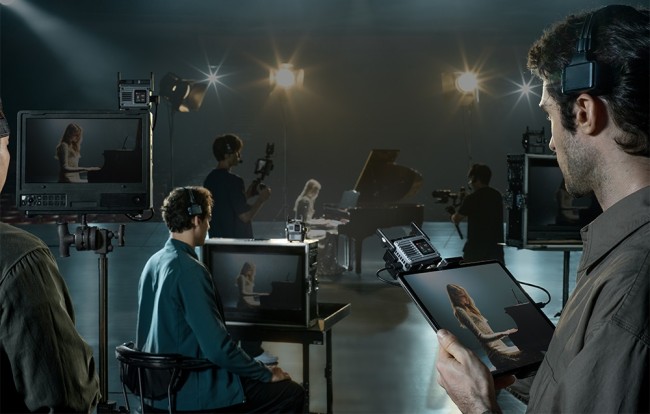

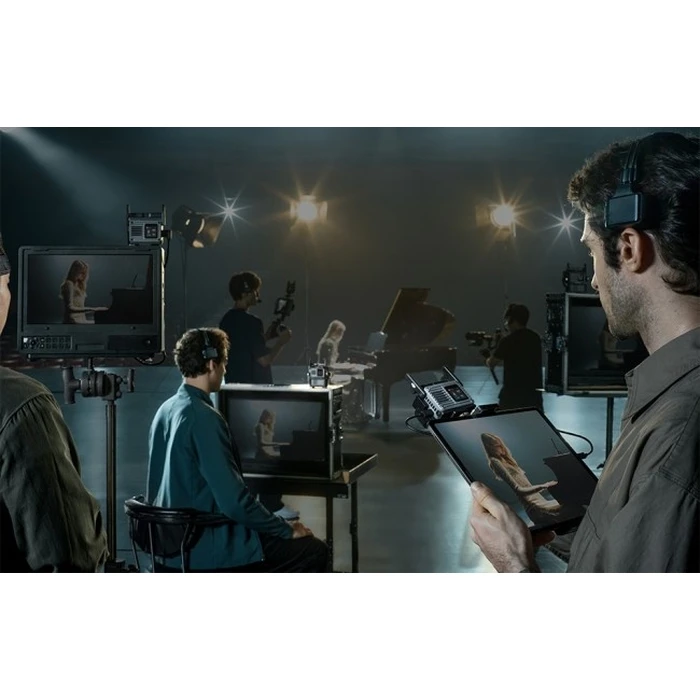

• Use Case

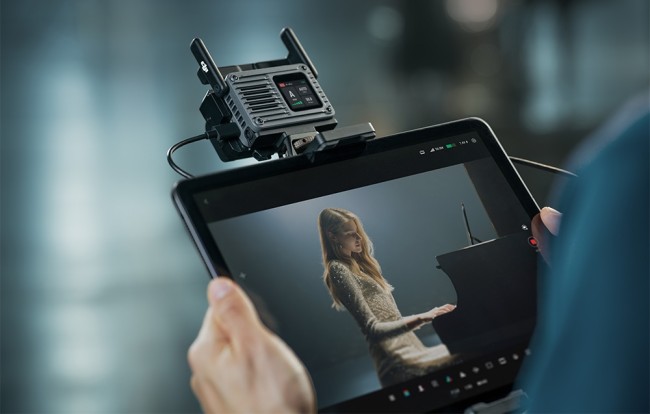

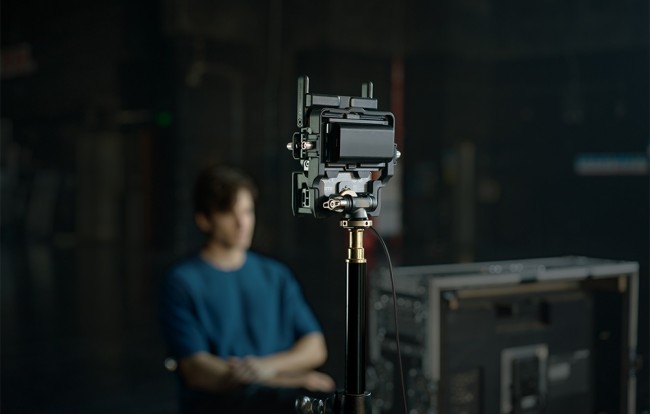

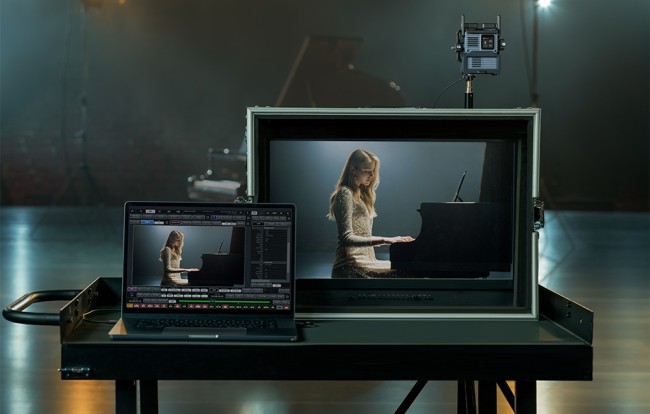

  Professional on‑set monitoring and high‑bitrate, low‑latency video transmission for film/video production

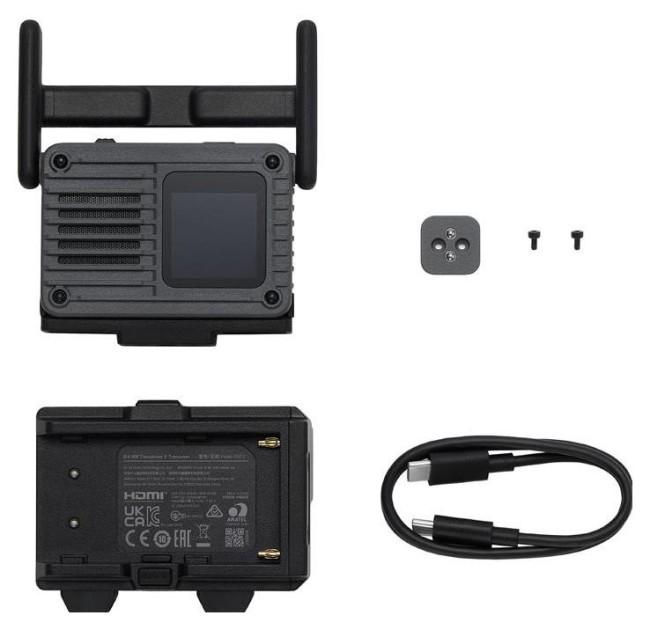

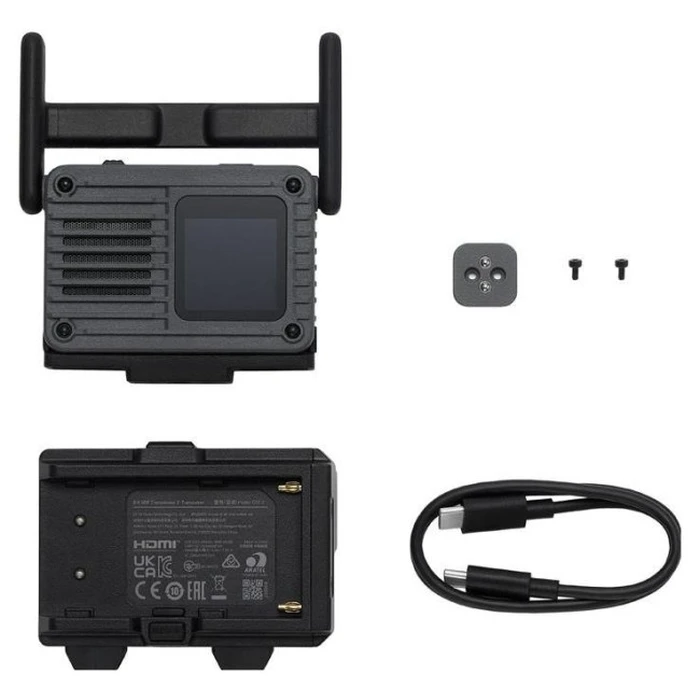

• Packaging (typical kit contents)
  Transceiver units, antennas, cold shoe adapter, USB‑C cable(s), optional SDI expansion plate (kit dependent), power accessories
