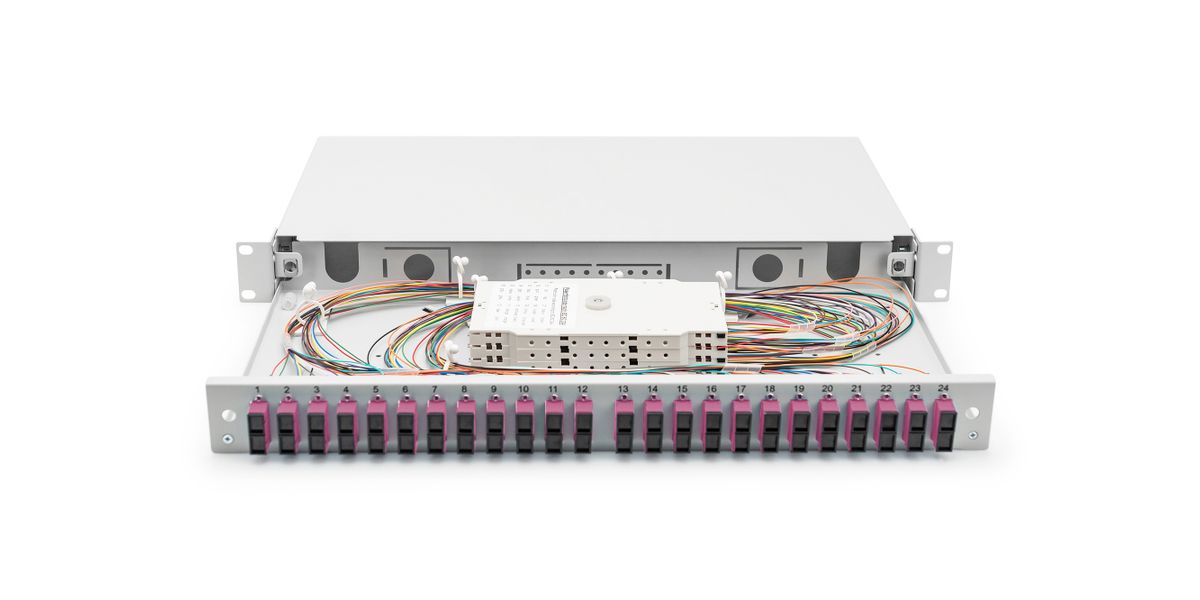

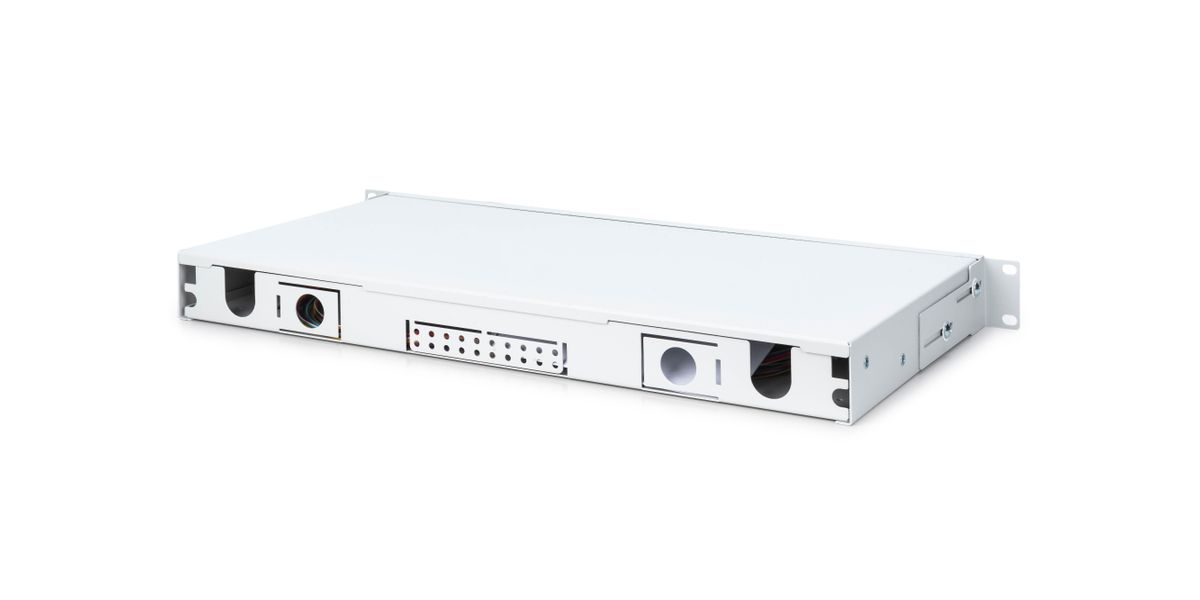

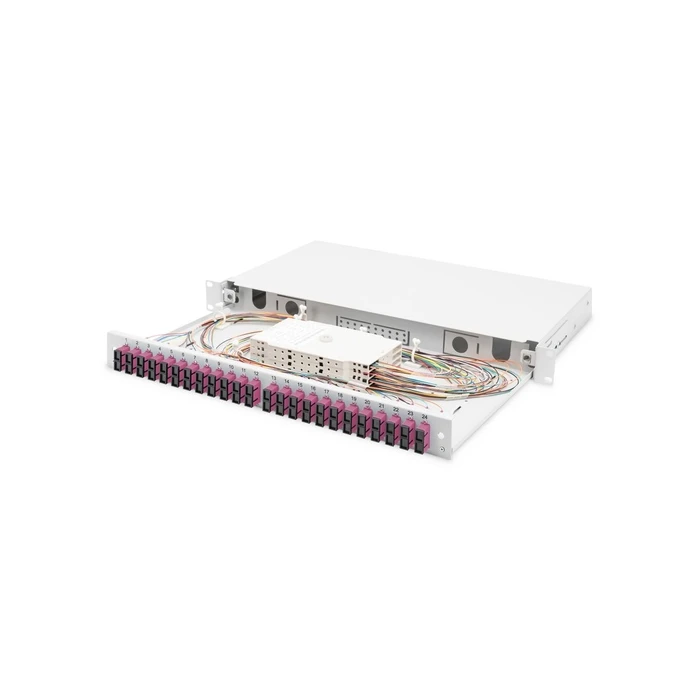

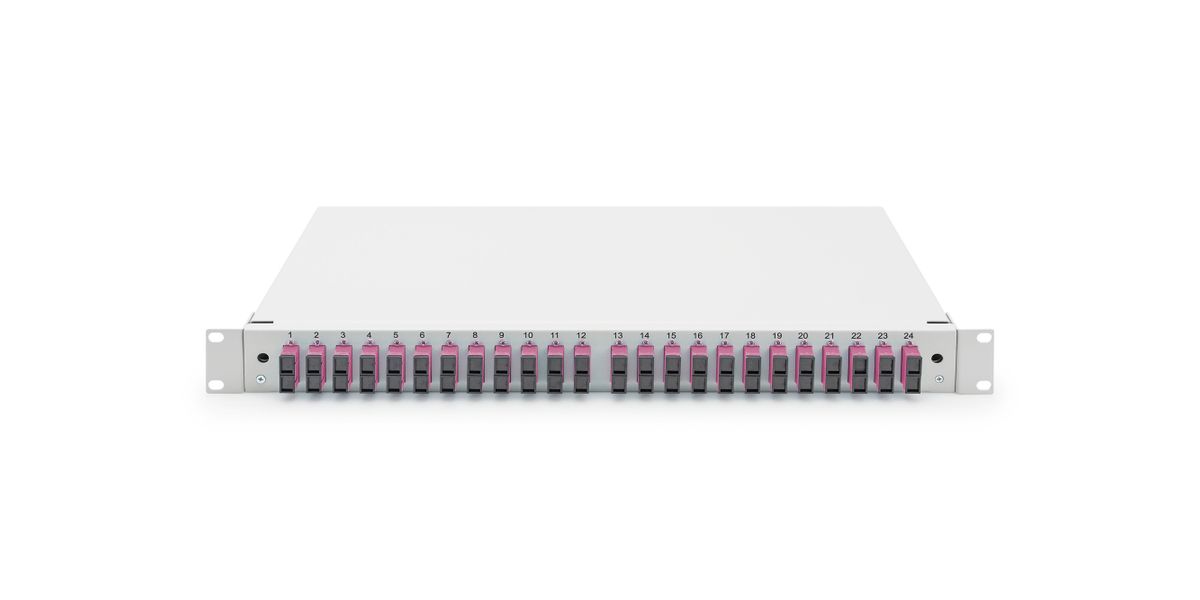

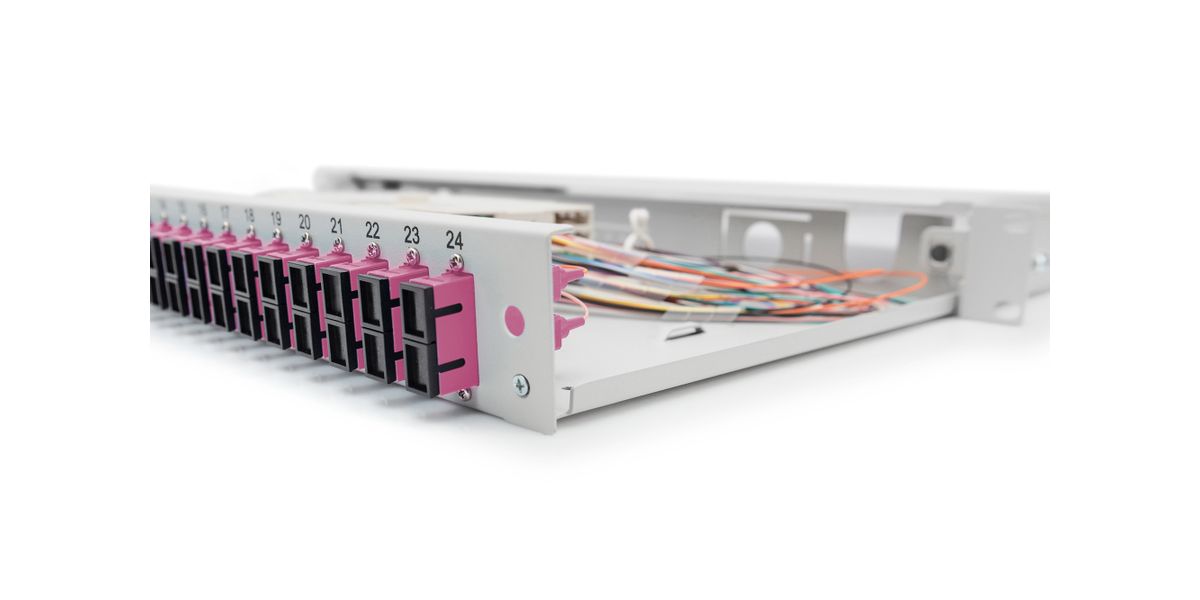

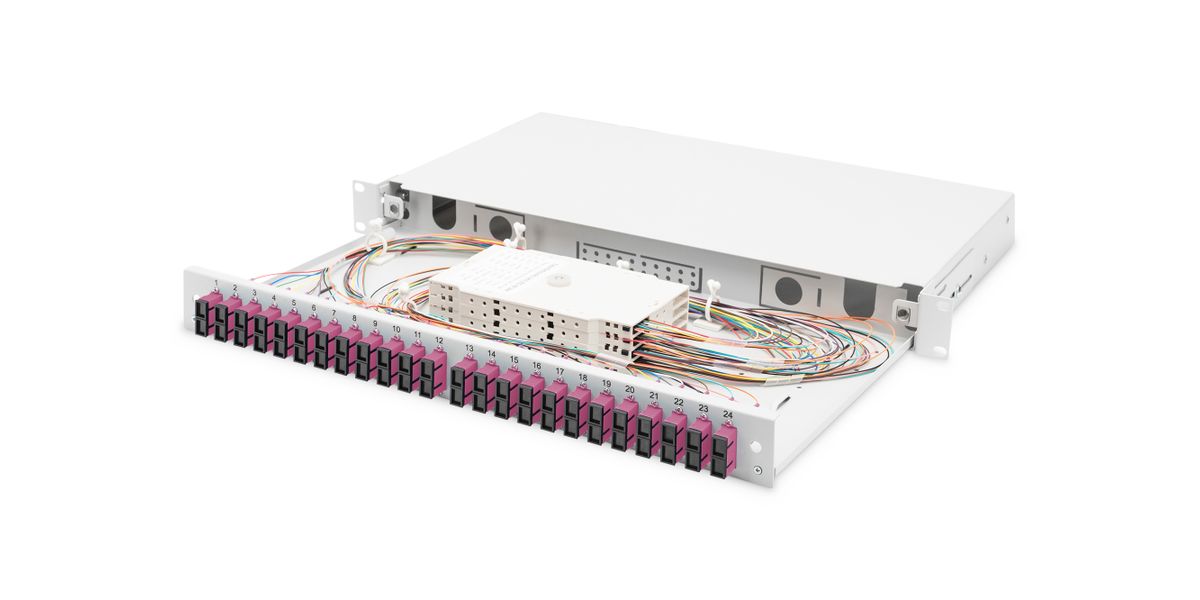

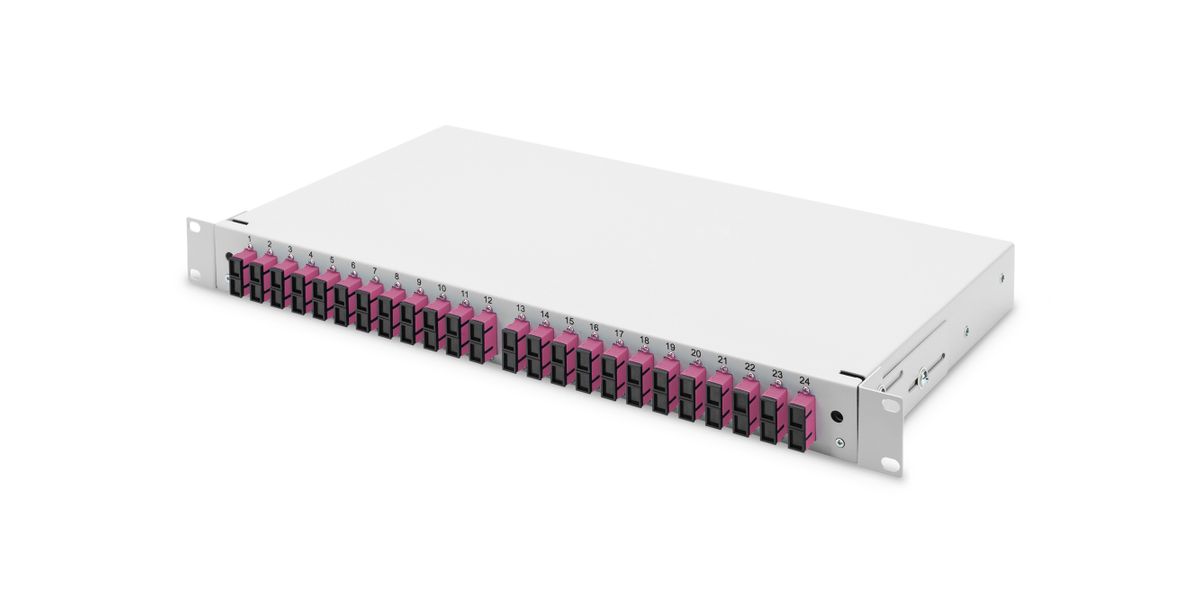

DIGITUS Κουτί Σύνδεσης Οπτικών Ινών (LWL) 1U, προεξοπλισμένο, 24x SC Duplex, OM4, γκρι (DN-96322-4)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Digitus (ASSMANN Electronic GmbH)
• Model / MPN
  DN-96322-4
• EAN
  4016032325802
• SKU (internal)
  232127
• Product Type
  1U Rack-Mount Fiber Optic Splice Box (pre-equipped)
• Fiber Class
  OM4 (multimode, 50/125 µm)
• Number of Adapters
  24x SC Duplex (DX) - 12 duplex positions (48 fiber ports total)
• Connector Type
  SC duplex (likely UPC polish), zirconia ceramic ferrule
• Pigtails

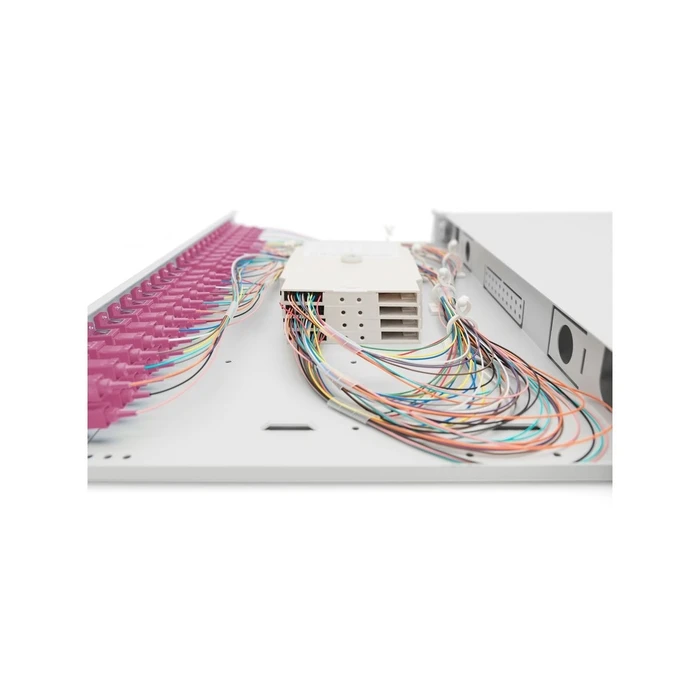

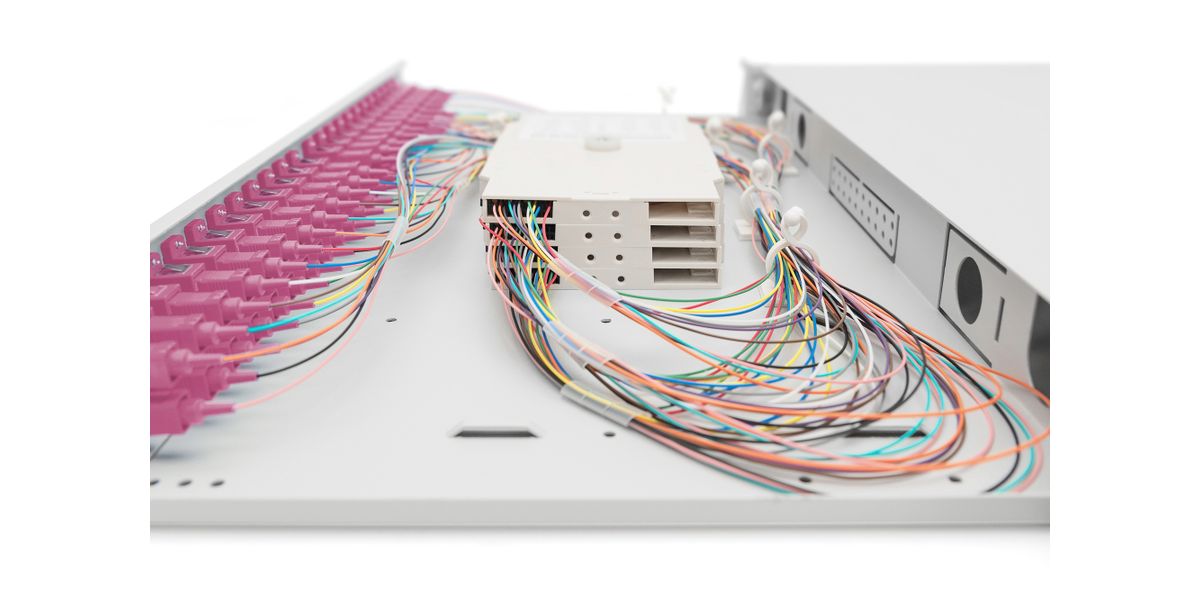

  Pre-installed colored OM4 pigtails (vorkonfektioniert)
• Splicing
  Includes splice cassette(s) (Spleißkassette) and cassette cover
• Design
  Slide-out / pull-out tray for maintenance (ausziehbar)
• Rack Units
  1 HE (1U)
• Rack Width
  19" (483 mm)
• Dimensions (W x H x D)
  483 mm x 44.45 mm x 240 mm
• Housing Material
  Painted sheet steel (Stahlblech, lackiert)
• Color
  Light gray (RAL 7035)

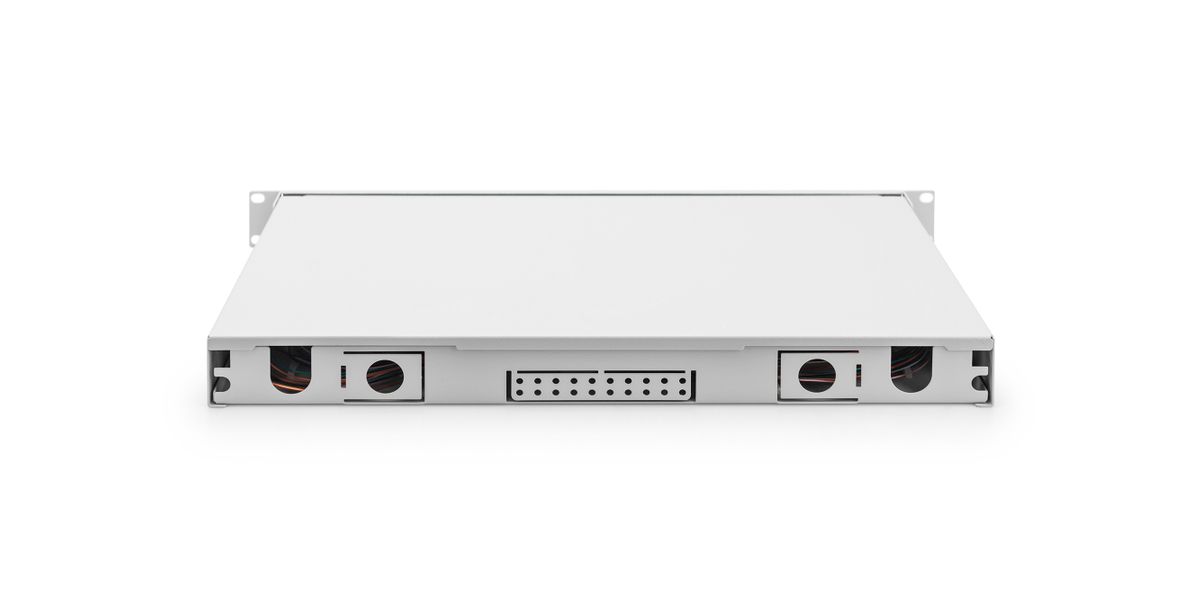

• Cable Entry / Glands
  M20 / M25 cable glands included (strain relief / Zugentlastung)
• Mounting
  19" rack mount, front plate included
• Weight (product)
  ~3060 g
• Packaging
  Carton VPE: 5 units (example packaging data available); typical single unit package approx. matching 1U rackmount box
• Typical Use Cases
  Data centers, network rooms, high-density fiber splicing and patching
• Compliance / Reliability
  Zirconia ferrule adapters for low-loss connections
• Included Items
  Splice box (pre-equipped with 24x SC DX OM4), splice cassette(s), cassette cover, M20/M25 glands, strain relief parts, colored pigtails, front plate
