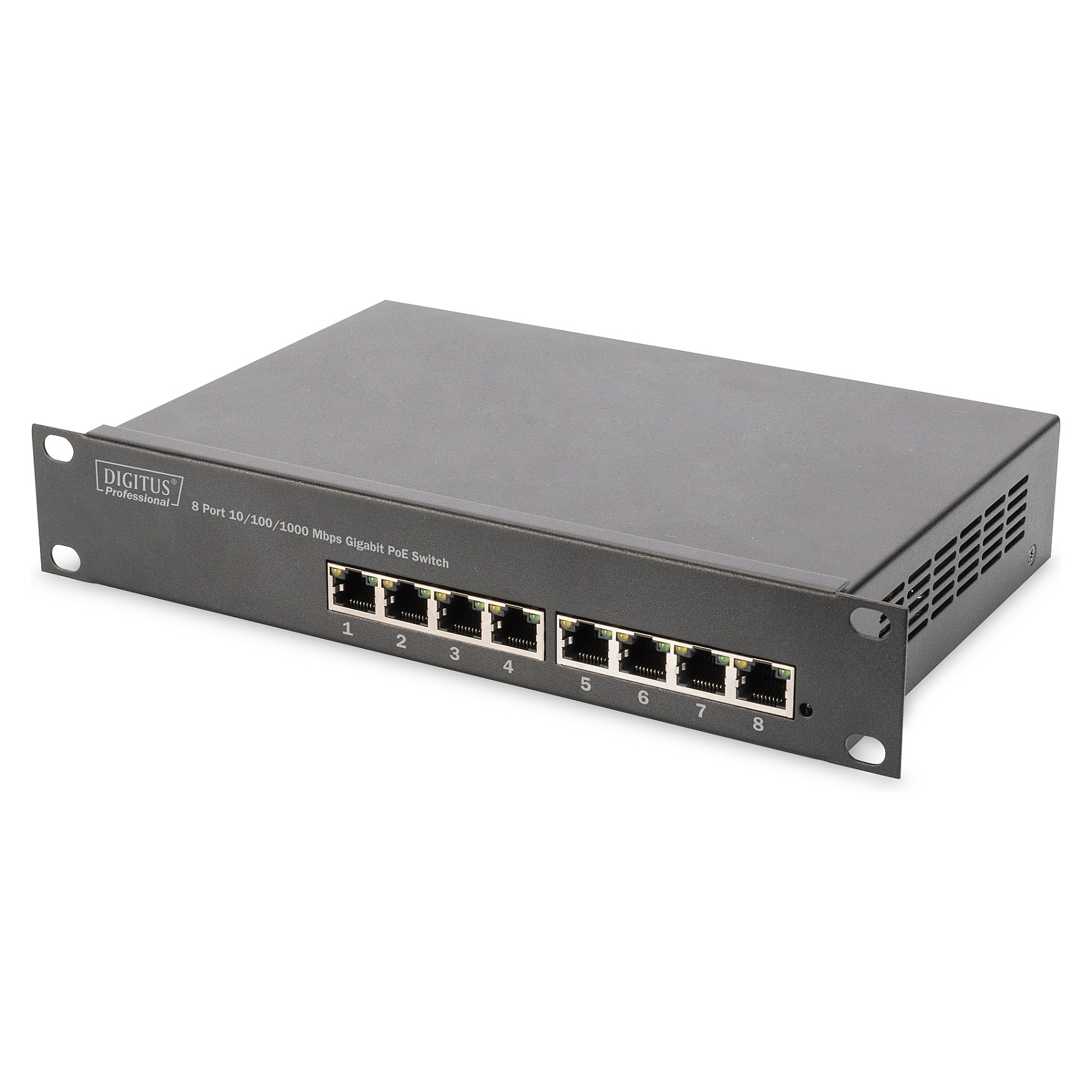

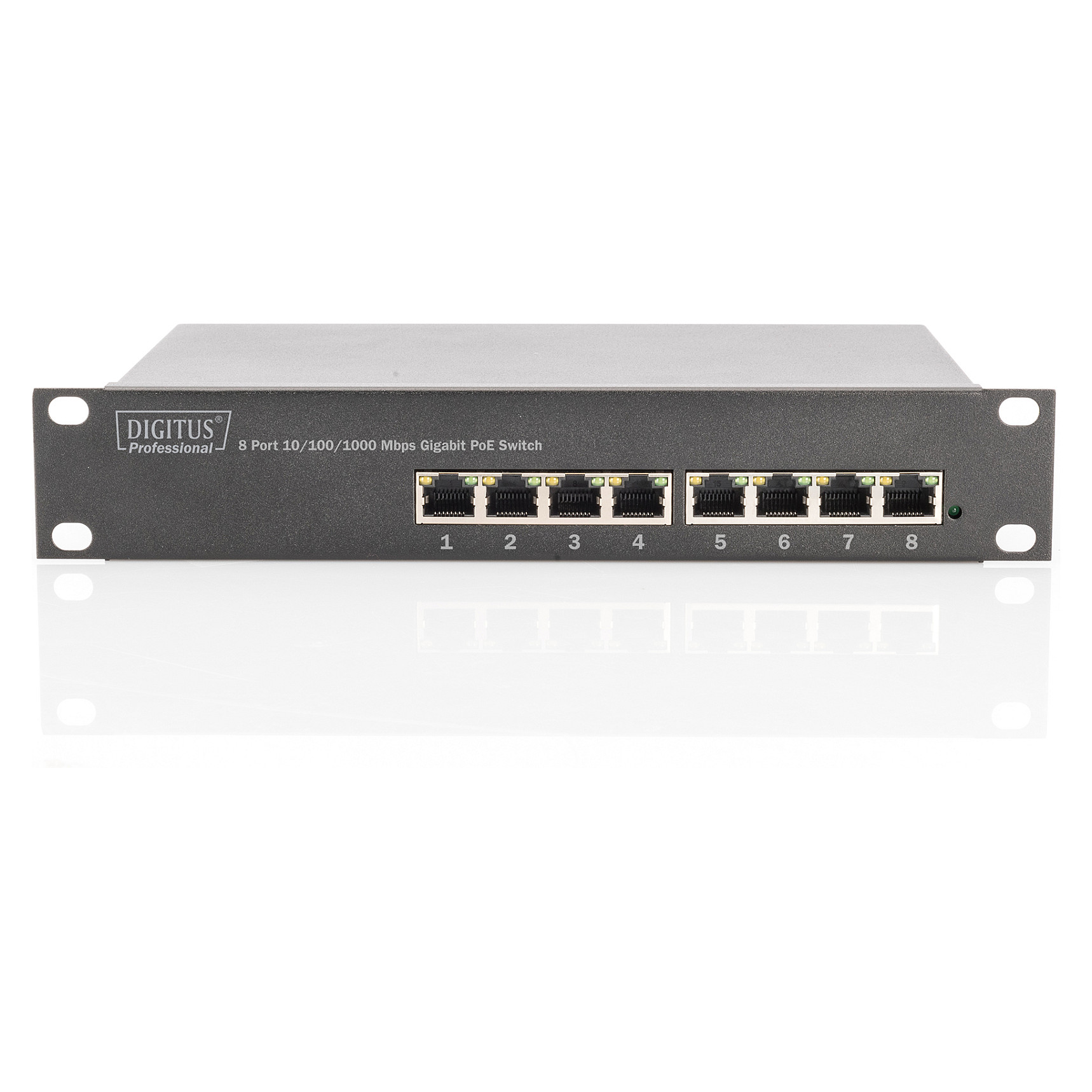

Digitus Ethernet PoE Switch, 8 θυρών PoE+, 10 ιντσών, έως 80 W PoE Budget (SKU: 21326531, MPN: DN-95317-1)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  DIGITUS
• Model / MPN
  DN-95317-1
• SKU / Artikelnummer
  21326531
• EAN / GTIN
  4016032509745
• Product Type
  8-Port Gigabit Ethernet PoE+ Switch (unmanaged)
• Ports
  8 x RJ45 Gigabit (10/100/1000 Mbps)
• PoE Ports
  8 PoE ports (all ports support PoE)
• PoE Standard
  IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
• Max PoE per Port
  Up to 30 W per port
• PoE Budget
  Merchant listing: up to 80 W; Datasheet: 96 W (conflicting values)
• Switching Capacity
  16 Gbit/s
• Packet Forwarding Rate
  11.9 Mpps
• MAC Address Table
  8K entries
• Management
  Unmanaged (standalone)
• Layer
  Layer 2 (store-and-forward)
• Ethernet Standards
  IEEE 802.3, 802.3u, 802.3x, 802.3ab
• Duplex
  Full-duplex support
• LEDs
  Status LEDs for power and each port
• Housing Material
  Metal
• Color
  Black / grey (varies by listing)
• Dimensions (W×D×H)
  250 mm × 150 mm × 42 mm
• Weight
  ~1493 g (merchant data) / datasheet lists ≈1000 g (conflict)
• Mounting
  Desktop or 10" rackmount style
• Operating Temperature
  0 °C to 40 °C
• Operating Humidity
  20% to 85%
• Non-operating Temperature
  -10 °C to 70 °C
• PoE Pin Assignment
  V- on RJ45 pins 1/2 and V+ on pins 3/6
• Protection
  Circuit protection on PoE ports
• Other Features
  No configuration required, power + data over single cable
