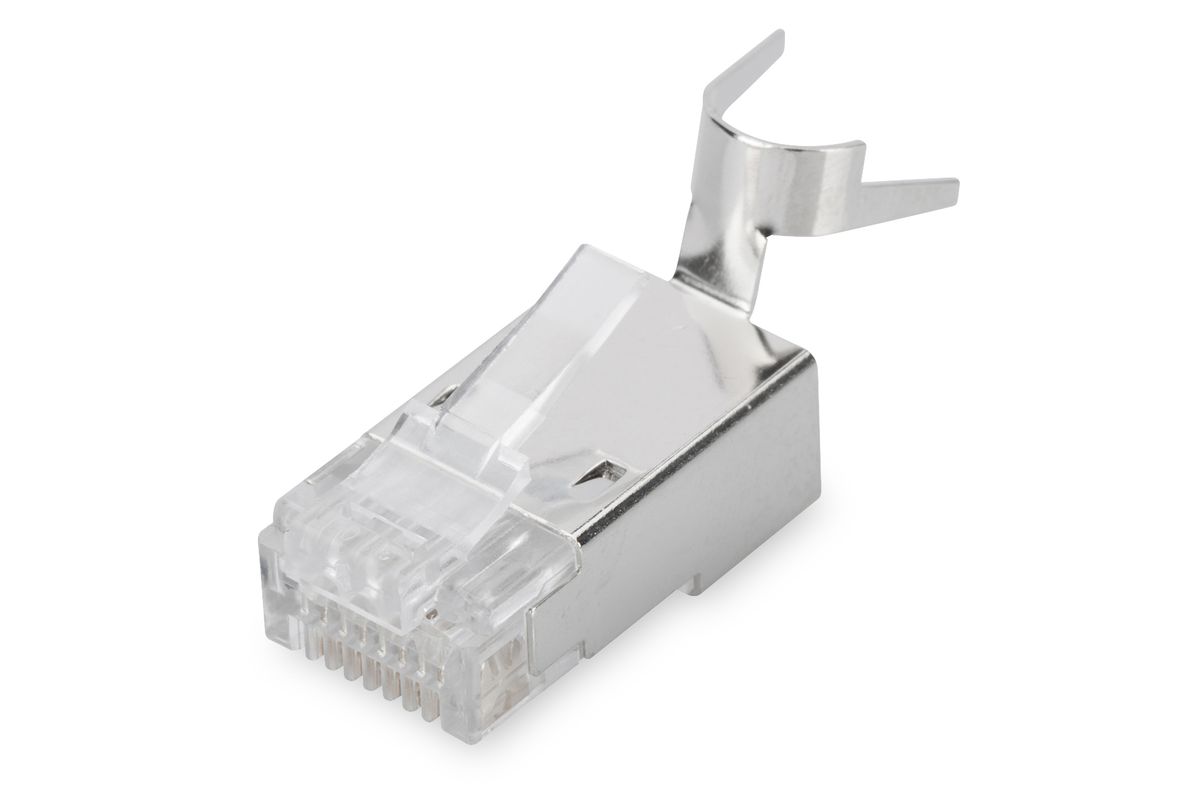

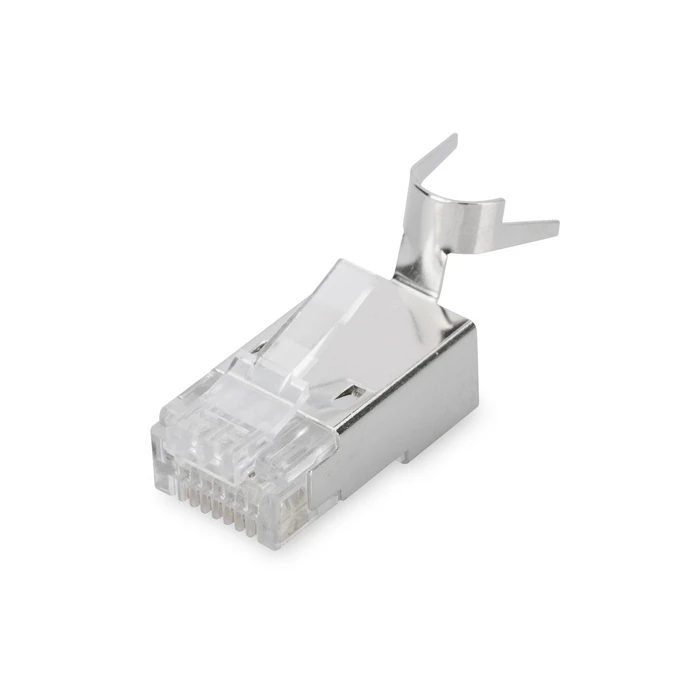

DIGITUS Modular βύσμα Cat6A για στρογγυλό καλώδιο, θωρακισμένο, 100 τεμάχια (DN-219604)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  DIGITUS
• Model / MPN
  DN-219604
• SKU
  546824
• EAN / Barcode
  4016032499459
• Pack quantity
  100 pieces
• Product type
  Modular RJ45 plug (male), 8P8C
• Network category
  CAT 6A (10GBase-T)
• Shielding
  Shielded (metal shield, STP)
• Cable type
  Round cable, solid-core copper
• Compatible conductor size
  AWG 23/1 to AWG 22/1 (solid)
• Contact material
  Phosphor bronze
• Contact plating
  Gold plating (~0.6 µm) over nickel
• Connector housing material
  Polycarbonate (natural/transparent)
• Flammability rating
  UL 94V-2
• Insertion force
  max. 30 N
• Mating durability
  >750 mating cycles
• Operating temperature range
  -40 °C to +80 °C
• Current carrying capacity
  1–1.5 A at 50 °C
• Design
  Two-piece modular plug for round cables
• Installation
  Requires a suitable crimping tool (e.g. DIGITUS DN-94004)
• Standards / Certifications
  ISO/IEC 11801 (3rd ed), EN 50173-1, EIA/TIA-568-C, IEC 60603-7-5, UL family certification reported
• Color / Finish
  Transparent polycarbonate housing, silver-colored metal shield
• Intended use
  Patch-cable assembly and field termination for high-speed networks
