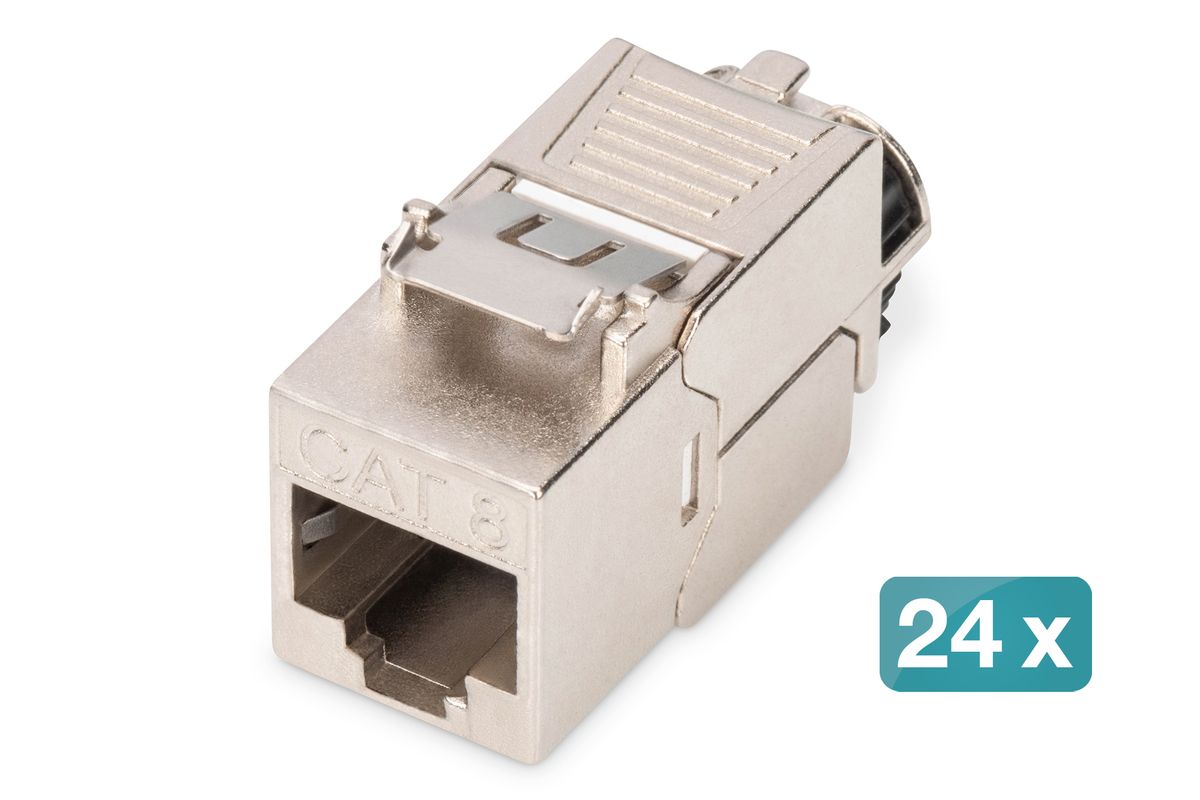

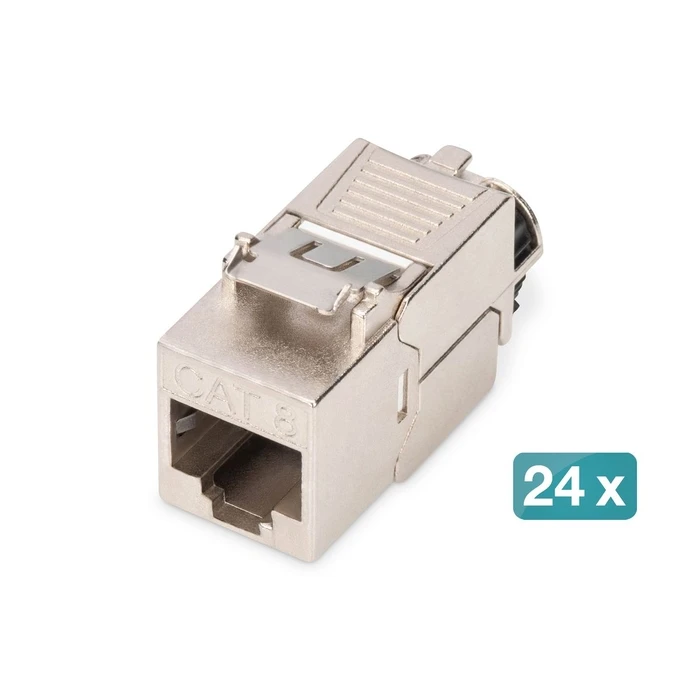

DIGITUS CAT 8.1 Keystone Modul, θωρακισμένο, εργαλείο-ελεύθερη τοποθέτηση – 24 τεμ. (DN-93816-24)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  DIGITUS
• Model / MPN
  DN-93816-24
• EAN
  4016032495222
• Product type
  CAT 8.1 Shielded Keystone Module (tool-free)
• Transmission Class
  Category 8.I / Class 1
• Max Frequency
  2000 MHz
• Transmission Speed
  25GBase-T & 40GBase-T (25 Gbit/s & 40 Gbit/s)
• Permanent Link Length
  Up to 24 m
• Channel Link Length
  Up to 30 m
• Shielding
  Fully shielded (360° cable screening), nickel-plated zinc die-cast housing
• Mounting / Termination
  Tool-free (Krone LSA+ cutting clamp)
• Housing Material
  Zinc die-cast, nickel-plated
• RJ45 Socket Material
  ABS, UL 94V-0
• Contact Material
  Phosphor bronze, nickel-plated, 0.5 µm gold plating
• PCB Material
  FR4, UL 94V-0
• Insertion Force
  Max. 30 N (IEC 60603-7-81)
• Retention Strength
  7.7 kg between jack and plug
• Operating Temperature
  -20 °C to +70 °C
• PoE Support
  IEEE 802.3 af/at/bt – PoE / PoE+ / 4PPoE (in permanent link)
• Dust Cap
  Included (shielded)
• Cable Entry
  Rear side
• Quantity per Package
  24 pieces
• Intended Use
  ToR/MoR data center cabling, 19" patch panel installations
• Standards / Compliance
  ISO/IEC 11801, IEC 60603-7-81, ANSI/TIA-568-C
