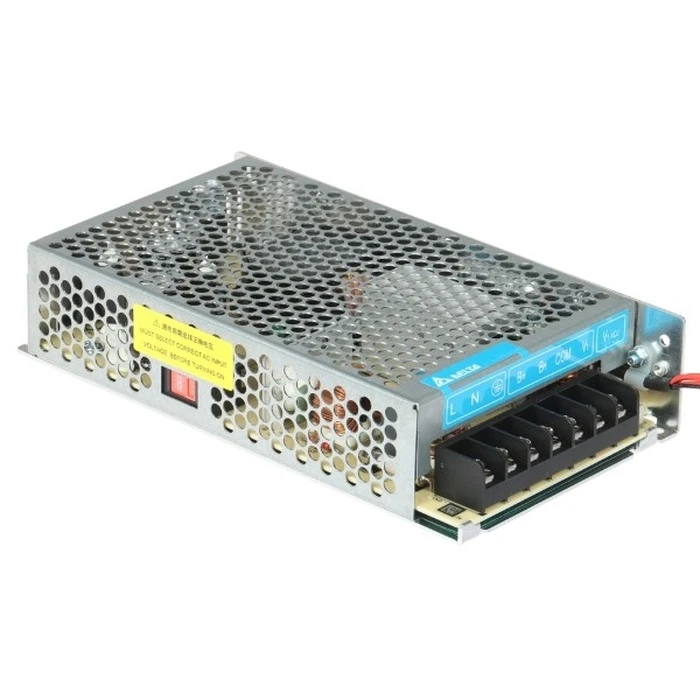

Τροφοδοτικό με εφεδρική μπαταρία PMU-13V155WCCA Delta Electronics

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Delta Electronics
• Model / MPN
  PMU-13V155WCCA
• SKU
  WLONONWCRTA67
• EAN / GTIN
  5902887100789
• Product type
  Buffered DC power supply (zasilacz buforowy)
• Output voltage (adjustable)
  12–14 V DC
• Nominal output voltage
  13.8 V DC
• Maximum output current
  11 A
• Maximum output power
  155 W
• Output current range (listed)
  0–11 A (normal mode listed in some sources)
• Battery charging current
  0.5–1.5 A (selectable)
• Battery compatibility
  SLA (sealed lead-acid)
• Battery operating range
  Continuous: 11–13.8 V DC; Minimum: 8.5 V DC; Maximum: 16 V DC
• AC input
  100–240 V AC (listings also reference selectable ranges 90–132 V / 200–240 V)
• Protections
  Deep discharge protection; Reverse battery polarity protection; Overvoltage protection; Overload/overcurrent protection; Short-circuit protection; Overtemperature (thermal) protection
• Indicators / Signaling
  DC OK (green); Battery reverse/failed (red); supports AC power and low battery indicators
• Voltage regulation
  Adjustable via precision potentiometer (listed in some specs)
• Efficiency / Performance
  High efficiency, fast transfer time to battery (as advertised)
• Physical (packaged) dimensions
  Approx. 16 x 12 x 6 cm (packaged estimate)
• Package weight
  520 g
• Product weight
  ~400 g (estimated)
• Warranty
  5 years (listed in product pages)
• Certificates / Compliance
  Listed as meeting applicable safety norms (specific certifications not listed in sources)
• Recommended applications
  CCTV, telecoms, alarm systems and other 12–14 V DC devices requiring battery backup
