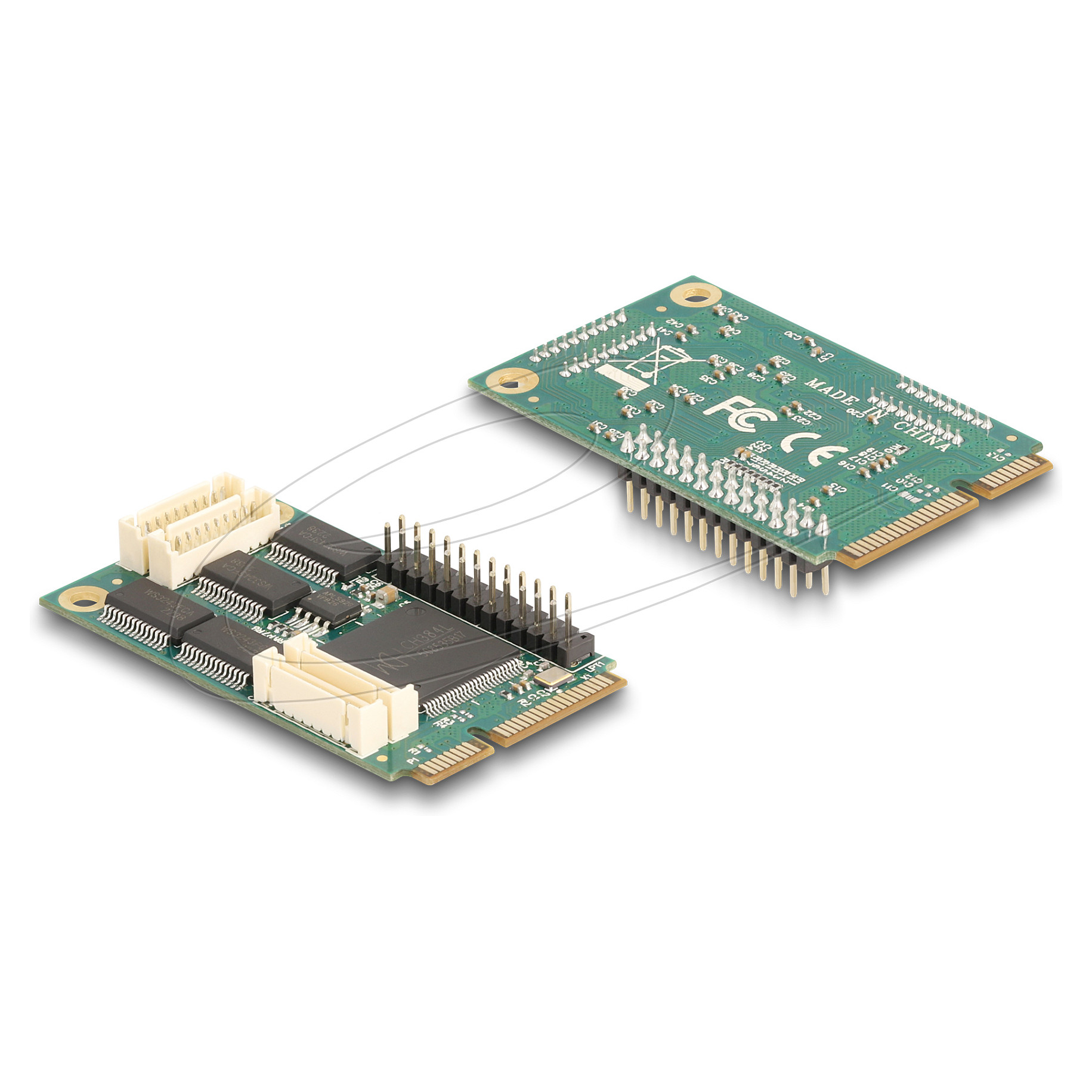

Delock Mini PCIe I/O κάρτα (full size) με 4 x σειριακές θύρες RS-232 και 1 x παράλληλη θύρα (Μοντέλο 95279)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Delock
• Model / Item No.
  95279
• SKU
  21150943
• EAN / Barcode
  4043619952793
• Chipset
  WCH382L
• Form factor

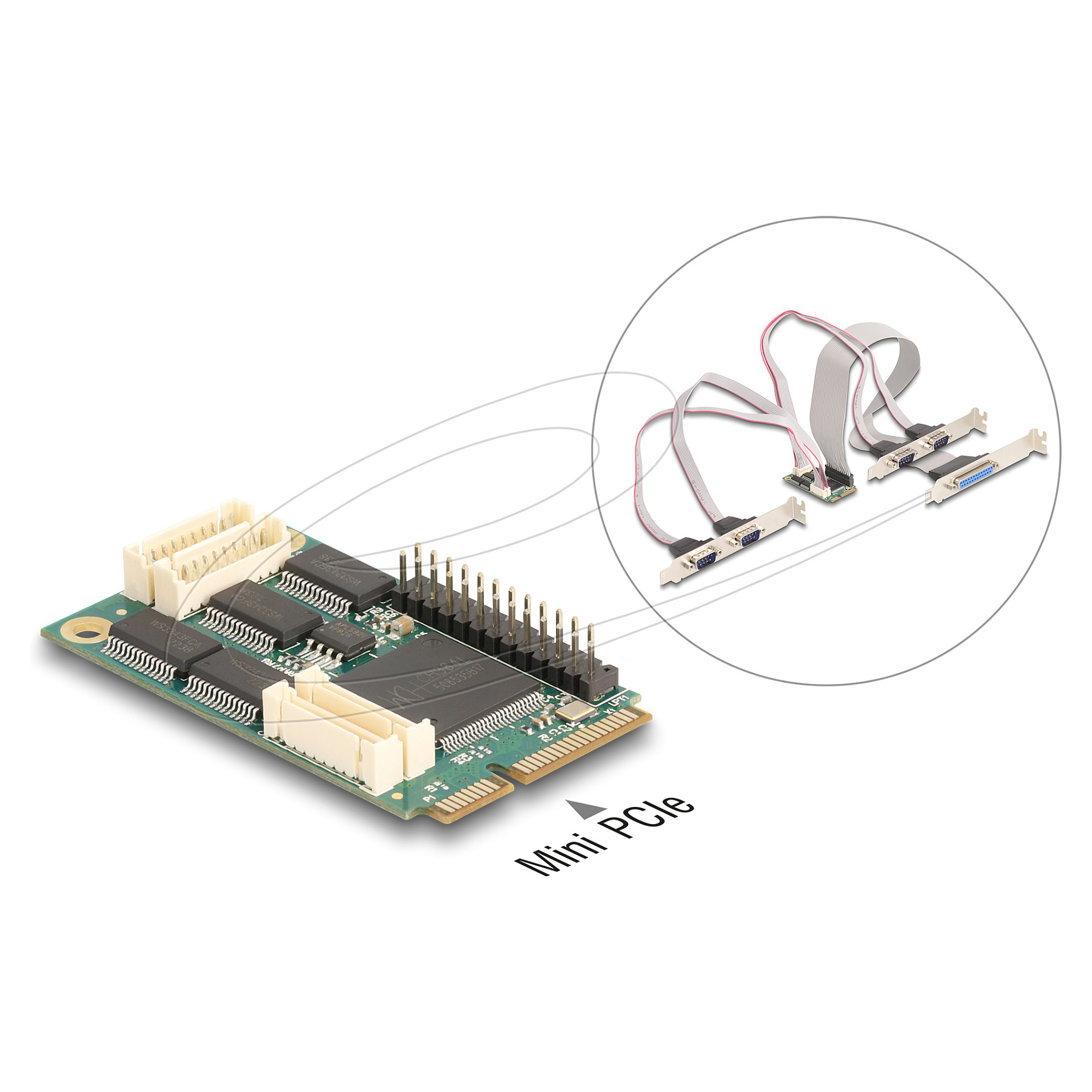

  Mini PCIe (full size)
• Interface (internal)
  Mini PCI Express Rev.1.2 (PCIe)
• External serial connectors
  4 × D-Sub 9-pin male (RS-232)
• External parallel connector
  1 × D-Sub 25-pin female (parallel)
• Internal connectors
  1 × Mini PCIe edge, 4 × 10-pin pin header, 1 × 26-pin pin header
• Serial data rate
  max. 460.8 Kbps
• Serial FIFO
  4 × 256 bytes
• Serial databits
  5, 6, 7, 8
• Serial stop bits
  1, 2
• Serial parity
  even, odd, none, mark, space
• Serial flow control
  none, hardware RTS/CTS, software XON/XOFF
• Serial signals supported
  DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
• Parallel data rate
  up to 1 Mbps
• Parallel standards
  SPP, PS/2, EPP, ECP (IEEE 1284 compatible)
• Cable length (incl. connectors)
  approx. 25 cm
• Dimensions (card)
  approx. 51 × 30 × 10 mm
• Typical package contents

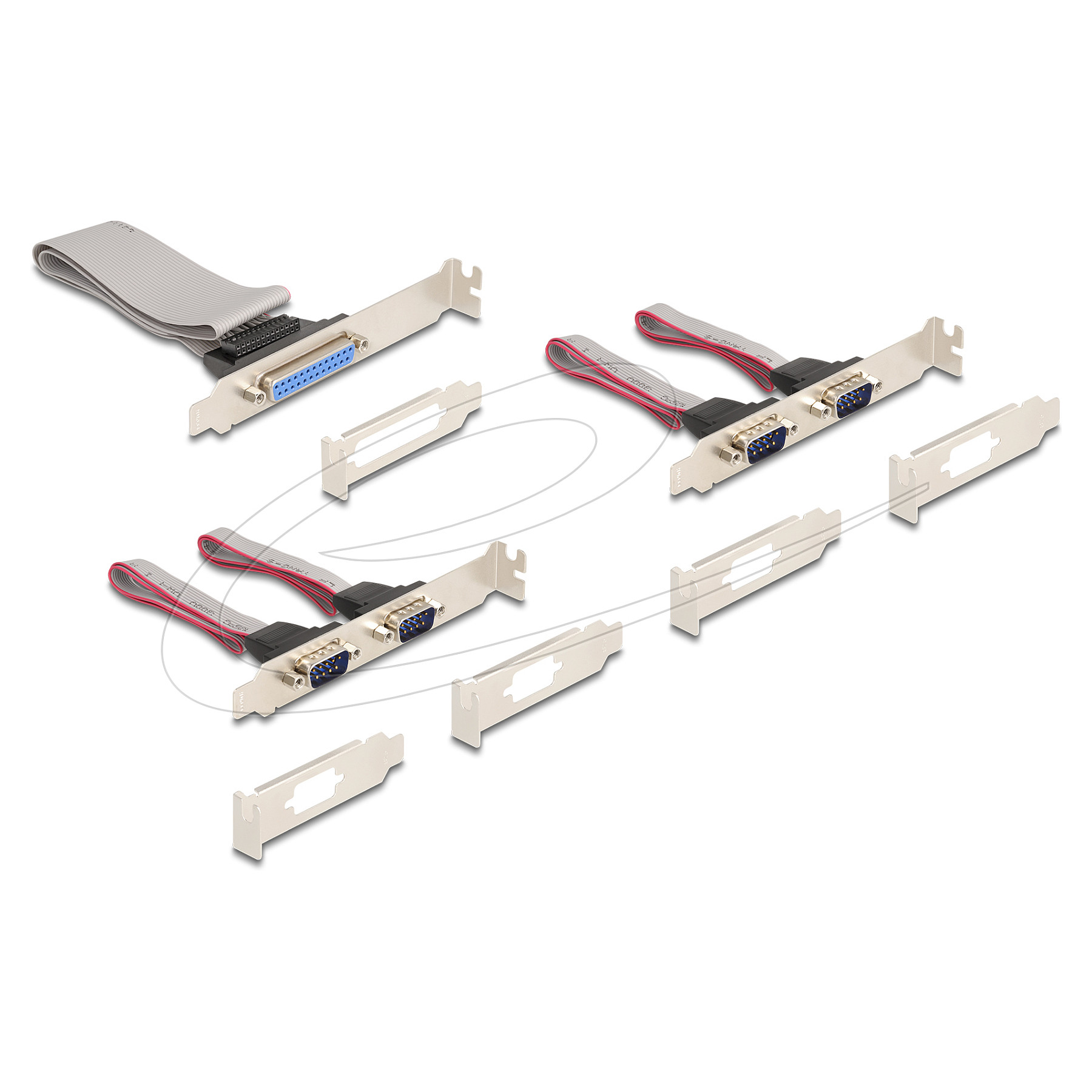

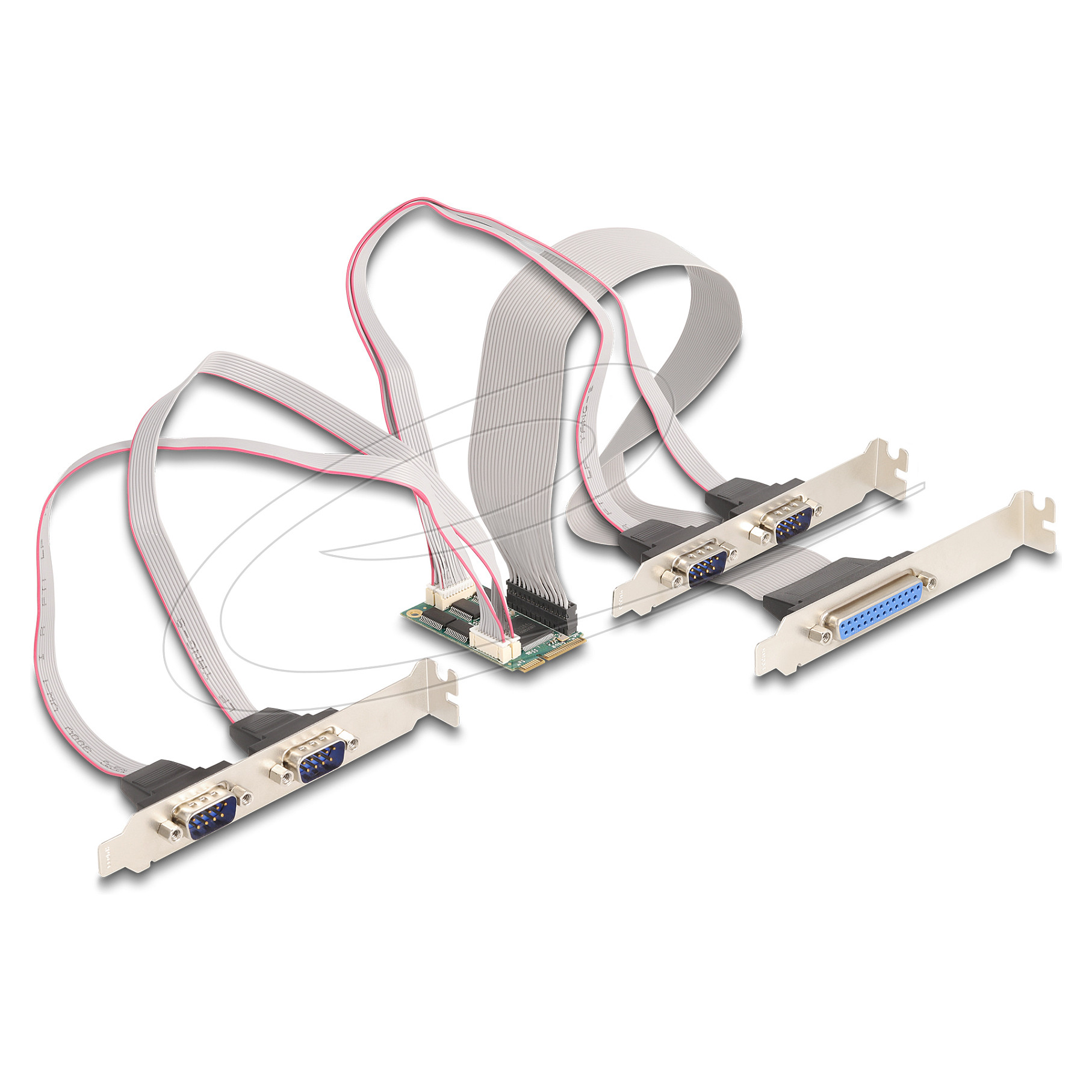

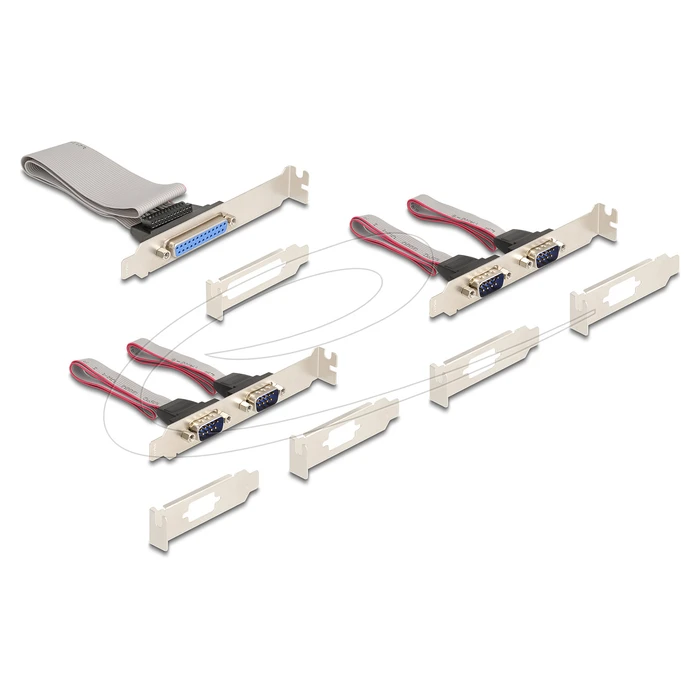

  Mini PCIe card, cable(s) to D-Sub connectors, full-size slot bracket (not all vendors show contents)
• Compatibility / OS
  Windows 10 (32/64-bit), Windows 11, Windows Server 2022
• Use cases
  Expand systems with legacy serial and parallel devices such as printers, scanners, modems
• Ports routable via bracket
  Yes
• Serial port signal levels
  RS-232 standard
