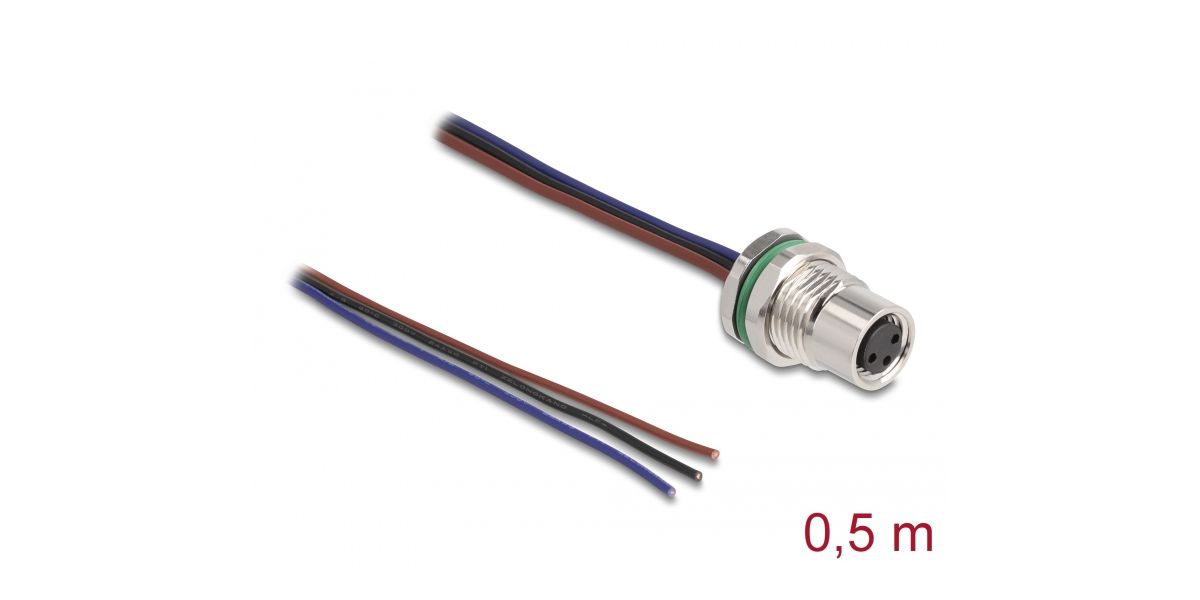

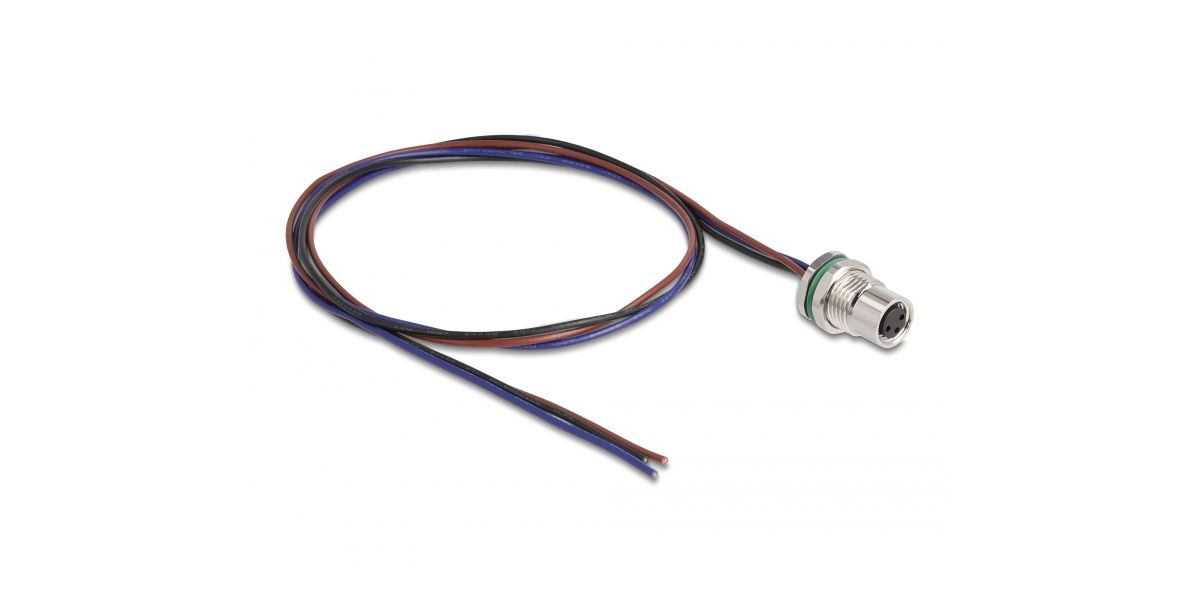

DELOCK M8 Ενσωματωμένο καλώδιο A-κωδικοποιημένο 3 Pin θηλυκό για πίνακα 0,5 m

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Delock
• Model / MPN
  80146
• EAN
  4043619801466
• Retail SKU
  482172
• Connector Type
  M8 circular connector, A-coded
• Gender
  Female (socket) - Buchse
• Number of Pins
  3 Pin

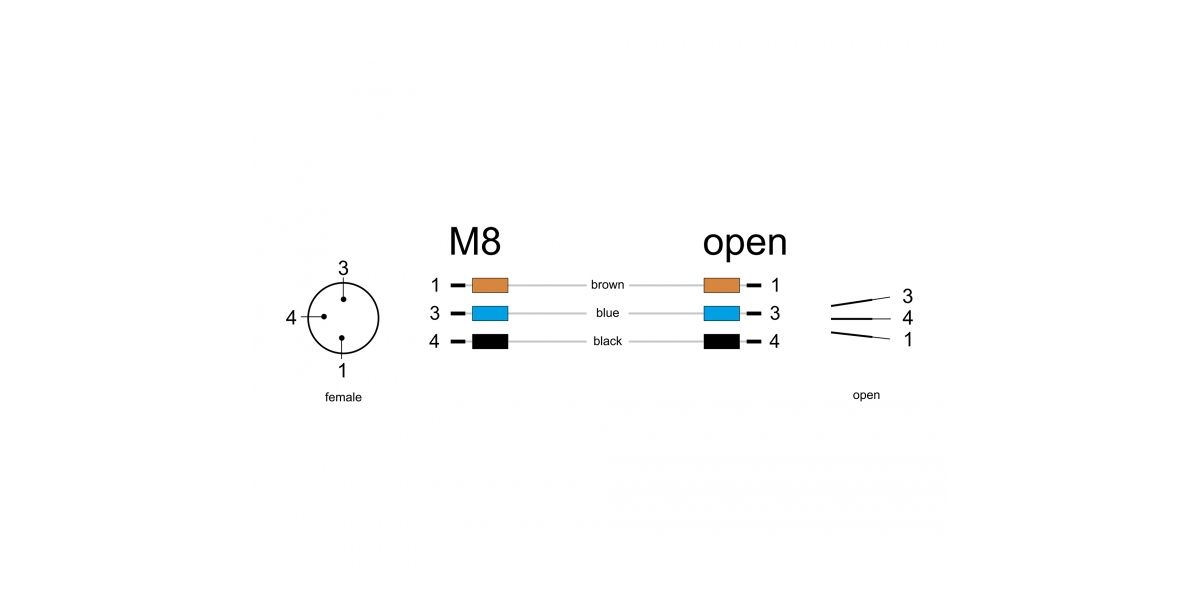

• Pin Assignment
  1:1
• Mounting Type
  Panel / front mount (Einbaukabel für Panel, Front Montage)
• Cable Length
  0.5 m
• Cable Ends
  Open cable ends (offene Kabeln)
• Shielding
  Aluminium foil + tinned copper braid
• Conductors
  Copper conductors
• Rated Voltage
  max. 60 V (typical for series)
• Rated Current
  max. 3 A (typical for series)
• Protection Class
  IP67 (typical for series M8 connectors)
• Operating Temperature Range
  -25 °C to 85 °C (typical for series)
• Thread Size
  M8 x 1.0 mm
• Wire Gauge / Conductor Size
  26-22 AWG (approx. 0.13 - 0.32 mm²)
• Contact Plating
  Gold-plated contacts (typical for series)
• Housing Material
  PA66 (typical for series housing)
• Cable Outer Color
  Black (typical)
• Packaging
  Cable in resealable bag
• Country of Origin
  China (typical)
