Delock Βιομηχανικός Gigabit Ethernet Switch 5 Θύρες RJ45 για Ράγα DIN

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Product Type
  Industrial Gigabit Ethernet Switch
• Brand
  DeLOCK
• Model / MPN
  80162
• SKU
  21154448
• EAN
  4043619801626
• Ports
  5 × RJ45 (10/100/1000 Mbps)
• Max Data Rate
  Up to 1 Gbps per port
• Supported Standards
  IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab
• Power Input
  DC 9–48 V via 5‑pin terminal (redundant supply supported)
• Power Consumption
  max. 2.1 W
• Mounting

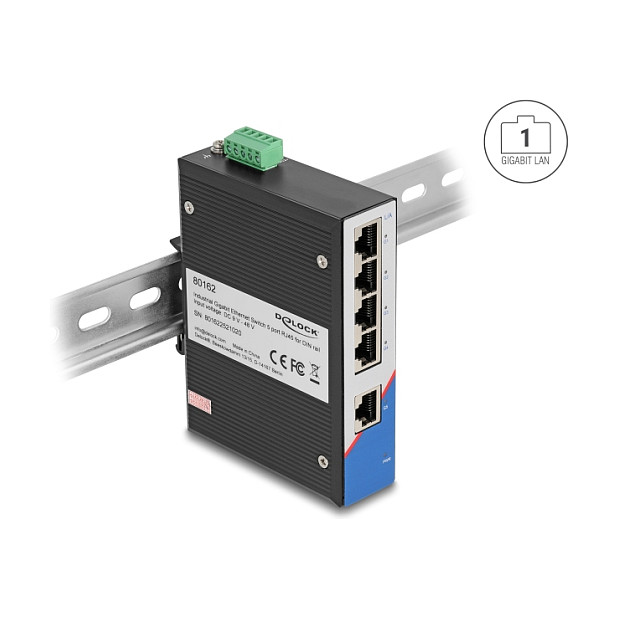

  35 mm DIN rail (Hutschiene)
• Housing Material
  Metal, black, fanless
• Ingress Protection
  IP40
• Operating Temperature
  -40 °C to 85 °C
• Dimensions
  Approx. 116 × 85 × 33 mm (L × W × H)
• Weight
  Approx. 250 g
• Status Indicators
  LEDs for link/activity and device status
• Industrial Immunity Standards
  IEC 61000‑4‑2 (ESD), IEC 61000‑4‑4 (EFT), IEC 61000‑4‑5 (Surge) Level 4
• Mechanical Standards
  IEC 60068‑2‑6 (vibration), IEC 60068‑2‑27 (shock), IEC 60068‑2‑32 (drop)
• Included Items
  Switch and user manual (power supply not included)
• Package Contents Notes
  Requires external DC 9–48 V power supply (not included)
• Dimensions (packaged)
  Estimated packaging dimensions: 12 × 9 × 4 cm
• Image / Media
  Product images and gallery available on the DeLOCK product page
