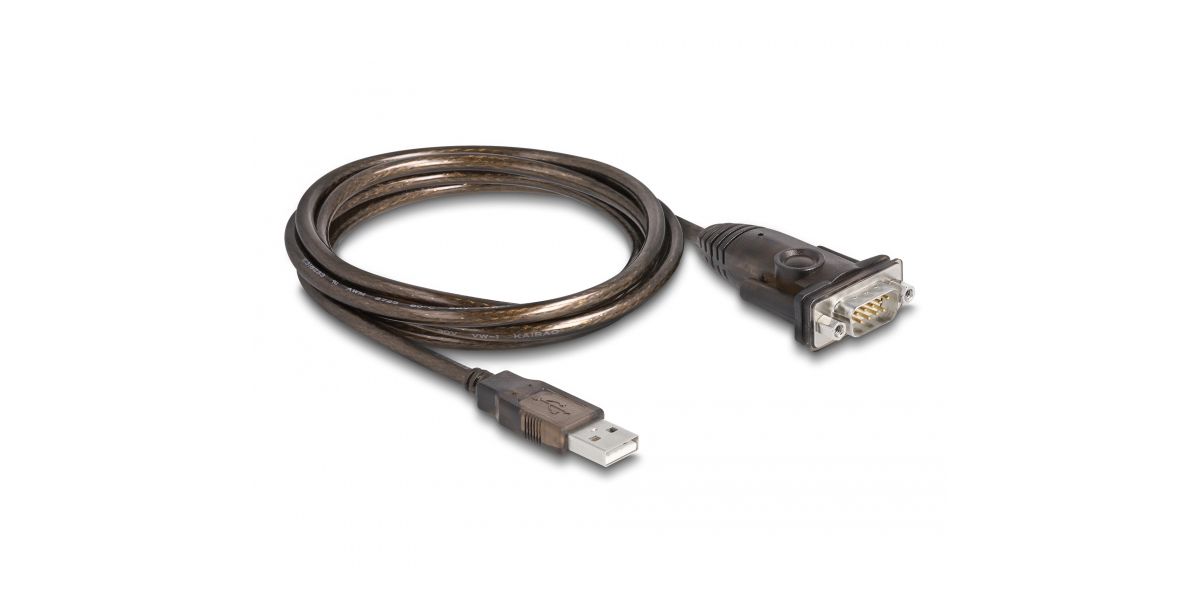

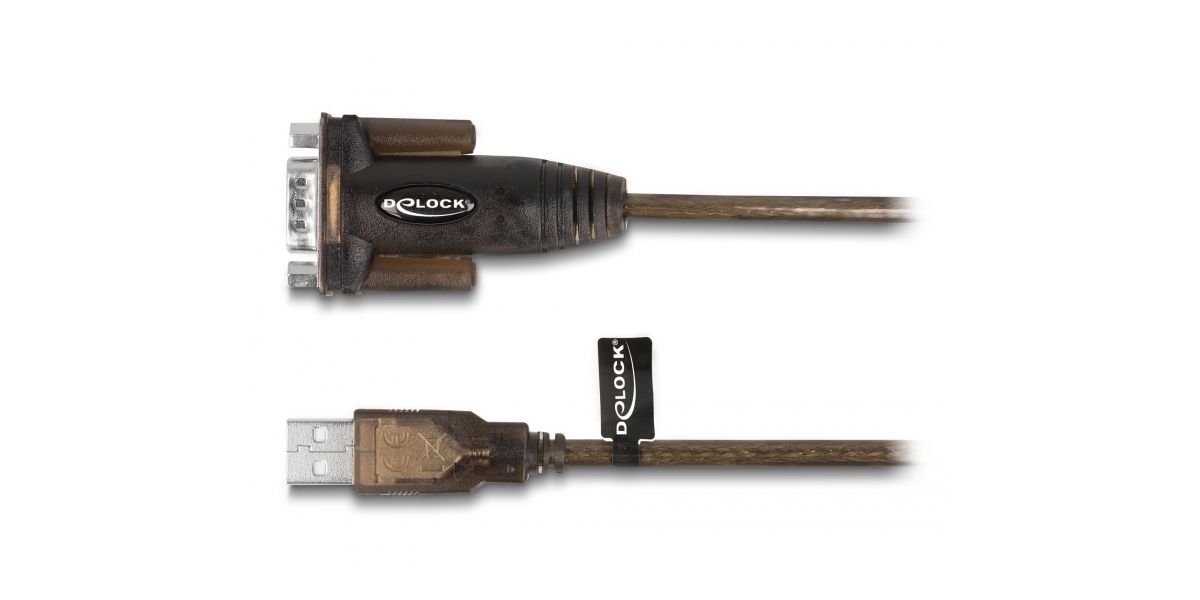

DELOCK Adapter USB 2.0 Type-A σε 1 x Σειριακή RS-232 D-sub 9 ακίδων (62645)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Delock
• Model / Item No.
  62645
• EAN
  4043619626458
• MPN
  62645
• SKU
  464340
• Product Type
  USB 2.0 Type-A to Serial RS-232 (D-Sub 9) Adapter
• Connector 1
  USB 2.0 Type-A male
• Connector 2
  Serial RS-232 D-Sub 9 (DB9) male
• Chipset
  Likely Prolific PL-2303 (used in similar Delock models)
• USB Standard
  USB 2.0 (backward compatible with USB 1.1; works on USB 3.0 ports)
• Data Transfer Rate
  Up to 460.8 kbps (typical for PL-2303 based adapters)
• Transmission
  Asynchronous, full duplex, bi-directional
• UART / FIFO
  Model-dependent (typical Prolific/FTDI FIFO buffering)
• Supported Signals
  TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
• Flow Control
  None, XON/XOFF, RTS/CTS
• Data Bits
  5, 6, 7, 8
• Stop Bits
  1, 1.5, 2
• Parity
  None, Even, Odd
• Cable Length
  Approximately 0.8 m (typical for comparable Delock models)
• Color
  Black
• Housing Material
  Plastic (adapter housing) and metal D-Sub shell
• Mounting/Fixation
  DB9 with screws/nuts (#4-40 UNC on similar variants)
• Indicators
  None on base model (some variants include LEDs)
• OS Compatibility
  Windows 8.1/10/11 (drivers required), Linux kernel 2.6+/5.x (driver dependent), macOS support varies by chipset
• Power Consumption
  Bus powered via USB (low current, typical ~20-50 mA)
• ESD Protection
  Model-dependent; similar models list ±15 kV on serial lines
• Packaging
  Retail box (product in blister/box)
• Country of Origin
  China (inferred from similar Delock models)
• Weight (product)
  ~35 g (adapter + cable)
• Dimensions (adapter+cable)
  Compact inline adapter; total cable length ~0.8 m (typical)
