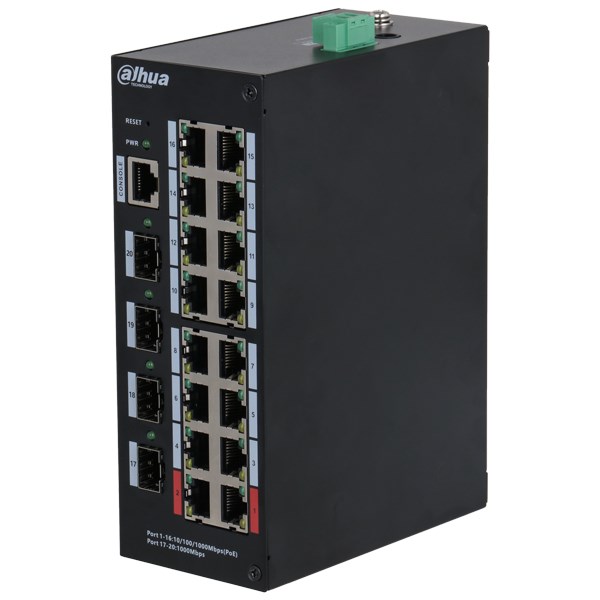

Dahua Technology HS4420-16GT-190 Διαχειριζόμενος L2 Gigabit PoE Διακόπτης 16 θυρών (Μαύρο)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Product Name
  Dahua Technology HS4420-16GT-190
• Model (MPN)
  HS4420-16GT-190
• EAN
  6923172575333
• SKU
  WLONONWCRTGRN
• Manufacturer
  Dahua Technology
• Switch Type
  Managed L2
• Form Factor
  Desktop (DIN-rail mounting supported)
• Product Colour
  Black
• Housing Material
  Metal
• Gigabit RJ-45 Ports Quantity
  16
• SFP Module Slots Quantity
  4
• Power over Ethernet (PoE)
  Yes
• PoE Ports Quantity
  16
• Total PoE Budget
  190 W
• PoE Power per Port
  Up to 90 W (IEEE 802.3bt)
• Power Source
  DC
• DC Input Voltage
  53 V
• Input Current
  3.77 A
• Power Supply Included
  Yes
• Power Consumption (Max)
  212 W
• Power Consumption Note
  Idling: 5 W
• Power Management
  Yes
• Switching Capacity
  40 Gbit/s
• Forwarding Rate
  29.76 Mpps
• Packet Buffer Memory
  4 MB
• MAC Address Table
  8000 entries
• Jumbo Frames Support
  Yes
• Jumbo Frames Size
  15000 bytes
• VLAN Support
  Yes (Port-based VLAN)
• Number of VLANs
  32
• Quality of Service (QoS) Support
  Yes
• Web-based Management
  Yes
• DHCP Features
  DHCP client
• Spanning Tree Protocol
  Yes
• Stackable
  No
• Rack Mounting
  No
• Reset Button
  Yes
• LED Indicators
  Yes
• 10G Support
  No
• Copper Ethernet Technology
  1000BASE-T
• Ethernet LAN Data Rates
  10/100/1000 Mbit/s
• Networking Standards
  IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
• Cable Types Supported
  Cat5e, Cat6
• Switching Optical Modules Type
  Gigabit Ethernet SFP
• Operating Temperature
  -30 to 65 °C
• Storage Temperature
  -40 to 70 °C
• Operating Relative Humidity
  5 - 95%
• Storage Relative Humidity
  5 - 95%
• Product Weight
  990 g
• Product Dimensions (W x D x H)
  171 mm x 123.4 mm x 64.8 mm
• Package Weight
  2100 g
• Package Dimensions (W x D x H)
  311.5 mm x 251.5 mm x 128.5 mm
• Forwarding Performance
  Layer 2 wire-speed switching suitable for PoE deployments
