Dahua DH-PFM3350-2000-EN UPS Line-Interactive 2000VA/1200W, 4 εξόδους Schuko

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Product Type
  Line-Interactive UPS (VI)
• Capacity (VA)
  2000 VA
• Output Power (W)
  1200 W
• Topology
  (VI) Line-Interactive
• Input Voltage Range
  170–280 VAC
• Input Current
  9.5 A
• Input Frequency
  50 / 60 Hz
• Power Factor
  ≥ 0.6
• Output Voltage
  230 VAC
• Output Current
  9.2 A
• Transfer Time
  4 ms – 8 ms
• Output Waveform (utility)
  Pure sine wave (AC)
• Output Waveform (battery)
  Simulated sine wave (battery mode)
• Battery Type
  Sealed lead-acid (2 × 9 Ah)
• Battery Charging Current / Voltage
  1 A / 13.7 V (approximately)
• Recharge Time
  4–6 hours to 90%
• Battery Replaceable
  Yes (sealed lead-acid batteries replaceable)
• Charge Regulation / Features
  Automatic charging and battery management
• Charging & Float Current
  1 A (typical)
• Charge Efficiency
  Recharge to 90% in 4–6 hours
• Protection - AVR
  Automatic Voltage Regulation (AVR)
• Protection - Surge & Spike
  Built-in surge protection and AC/battery protections
• Overload Response
  AC 110%: shutdown after 5 minutes; AC/battery 120%: immediate shutdown
• Audible Alarms - Battery Mode
  Beep every 10 seconds
• Audible Alarms - Low Battery
  Beep every 1 second
• Audible Alarms - Overload
  Beep every 0.5 second
• Audible Alarms - Power On/Off
  Beep every 2 seconds (status tones)

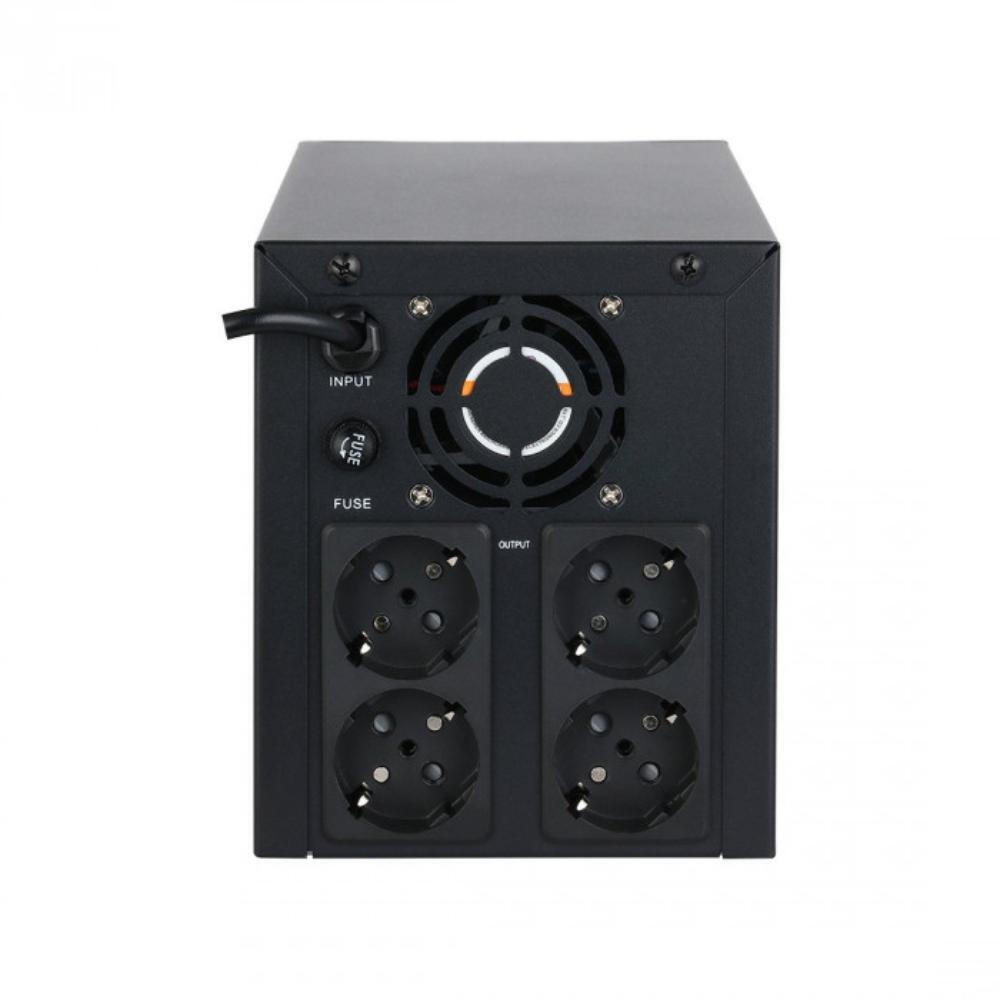

• Ports & Outlets
  4 × Schuko AC outlets
• Power Cable
  Fixed AC cable, 1.2 m
• Cooling
  Built-in fan
• Form Factor
  Tower
• Material
  Plastic front panel; metal chassis/body
• Color
  Matte black
• Dimensions (HxWxD)
  374.5 × 138.4 × 166.5 mm
• Net Weight
  12.2 kg
• Gross Weight
  12.6 kg
• Operating Temperature
  0 °C to +40 °C
• Operating Humidity
  0%–90% non-condensing
• Certifications
  CE LVD & CE EMC
• Intended Use
  Workstation, micro server, POS, small office equipment
• Model / SKU
  DH-PFM3350-2000-EN
• Brand
  DAHUA
