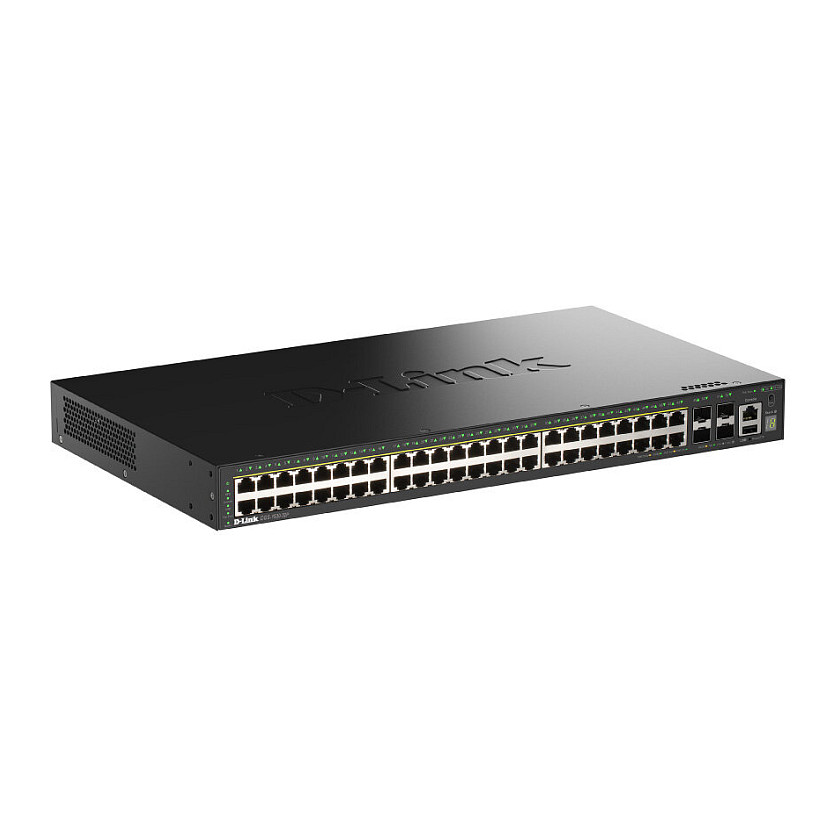

D-Link DGS-1530-52P/E 52-θυρών Smart Managed PoE+ Gigabit Switch (48x1G PoE+, 4x10G SFP+)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  D-Link (Deutschland) GmbH
• Model / MPN
  DGS-1530-52P/E
• SKU
  21162004
• EAN
  0790069474507
• Product Type
  52-Port Smart Managed PoE+ Gigabit Switch
• Series
  DGS-1530 Series
• Downlink Ports
  48 x 10/100/1000 Mbps RJ-45 (PoE/PoE+)
• Uplink Ports
  4 x 10G SFP+
• PoE Standard
  IEEE 802.3af (PoE) / IEEE 802.3at (PoE+)
• PoE Budget (internal)
  370 W
• PoE Budget (expandable)
  740 W (with redundant PSU)
• Switching Capacity
  176 Gbps
• Forwarding Rate
  130.95 Mpps
• Console Port
  RJ-45 console port
• Maximum Power Consumption
  482 W (with PoE on); ~59.2 W (PoE off)
• Power Supply
  Internal (support for redundant PSU)
• Surge Protection
  6 kV on all Gigabit RJ-45 ports
• Cooling
  3 smart fans
• Physical Dimensions (WxDxH)
  440 x 250 x 44 mm
• Product Weight
  4.35 kg
• Mounting
  Rack-mountable (1U)
• Stacking
  Physical stacking up to 9 switches
• Management
  Web GUI, CLI, SNMP, ZTP, Nuclias controller support
• Resiliency
  Ethernet Ring Protection Switching (ERPS)
• OAM
  IEEE 802.1ag Connectivity Fault Management, ITU-T Y.1731 delay measurement
• Security
  VLANs, ACLs, Port Security, 802.1X, RADIUS
• Operating Temp.
  -5 to 50 °C
• Storage Temp.
  -20 to 70 °C
• Operating Humidity
  0% to 95% non-condensing
• Storage Humidity
  0% to 95% non-condensing
• Materials
  Metal chassis (rack-mountable)
• Intended Use
  SMB/Enterprise access/aggregation with PoE devices (APs, IP phones, cameras)
