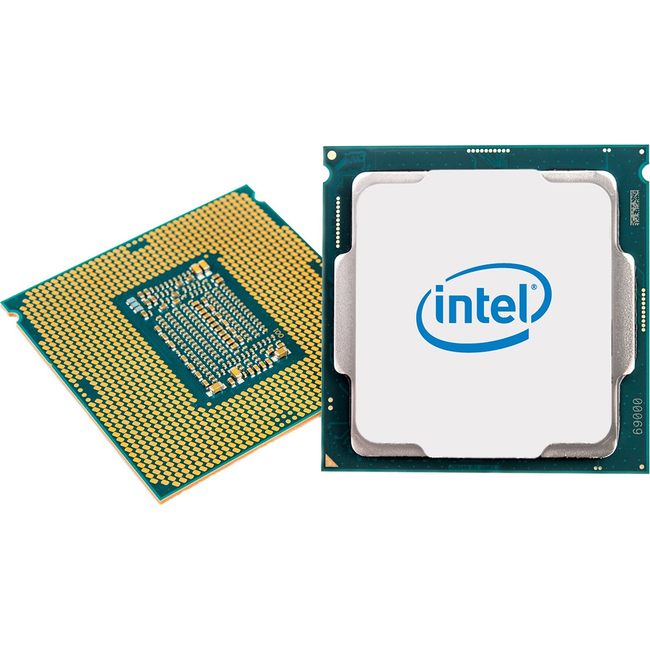

CPU Intel S1700 CORE i5 14600 TRAY GEN14

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Total Cores
  14
• Performance Cores
  6
• Efficient Cores
  8
• Total Threads
  20
• Max Turbo Frequency
  5.2 GHz (Performance Cores), 4 GHz (Efficient Cores)
• Base Frequency Performance Cores
  3.5 GHz
• Base Frequency Efficient Cores
  2.6 GHz
• Cache
  24 MB Intel Smart Cache
• L2 Cache
  20 MB
• Thermal Design Power (TDP)
  181 W
• Processor Base Power
  125 W
• Max Memory Size
  192 GB
• Memory Types
  DDR5 5600 MT/s, DDR4 3200 MT/s
• Max Memory Bandwidth
  89.6 GB/s
• ECC Memory Supported
  Yes
• Integrated Graphics
  Intel UHD Graphics 770
• Graphics Base Frequency
  300 MHz
• Graphics Max Dynamic Frequency
  1.55 GHz
• Graphics Output
  eDP 1.4b, DP 1.4a, HDMI 2.1
• Max Resolution HDMI
  4096 x 2160 @ 60Hz
• Max Resolution DP
  7680 x 4320 @ 60Hz
• Max Resolution eDP
  5120 x 3200 @ 120Hz
• Direct Media Interface (DMI) Revision
  4.0
• Max # of DMI Lanes
  8
• PCI Express Revision
  5.0, 4.0
• PCI Express Configurations
  Up to 1x16+4, 2x8+4
• Max # of PCI Express Lanes
  20
• Socket
  FCLGA1700
• Thermal Solution Specification
  PCG 2020C
• Package Size
  45.0 mm x 37.5 mm
• Max Operating Temperature
  100°C
• Intel Gaussian & Neural Accelerator
  3.0
• Intel Thread Director
  Yes
• Intel Deep Learning Boost
  Yes
• Intel Speed Shift Technology
  Yes
• Intel Turbo Boost Technology
  2.0
• Hyper-Threading Technology
  Yes
• Intel 64 Technology
  Yes
• Instruction Set
  64-bit
• Instruction Set Extensions
  Intel SSE4.1, Intel SSE4.2, Intel AVX2
• Idle States
  Yes
• Enhanced Intel SpeedStep Technology
  Yes
• Thermal Monitoring Technologies
  Yes
• Intel Standard Manageability (ISM)
  Yes
• Intel Control-Flow Enforcement Technology
  Yes
• Intel AES New Instructions (AES-NI)
  Yes
• Secure Key
  Yes
• Intel OS Guard
  Yes
• Execute Disable Bit capability
  Yes
• Intel Boot Guard
  Yes
• Mode-based Execute Control (MBEC)
  Yes
• Intel Virtualization Technology (VT-x)
  Yes
• Intel Virtualization Technology for Directed I/O (VT-d)
  Yes
• Intel VT-x with Extended Page Tables (EPT)
  Yes
