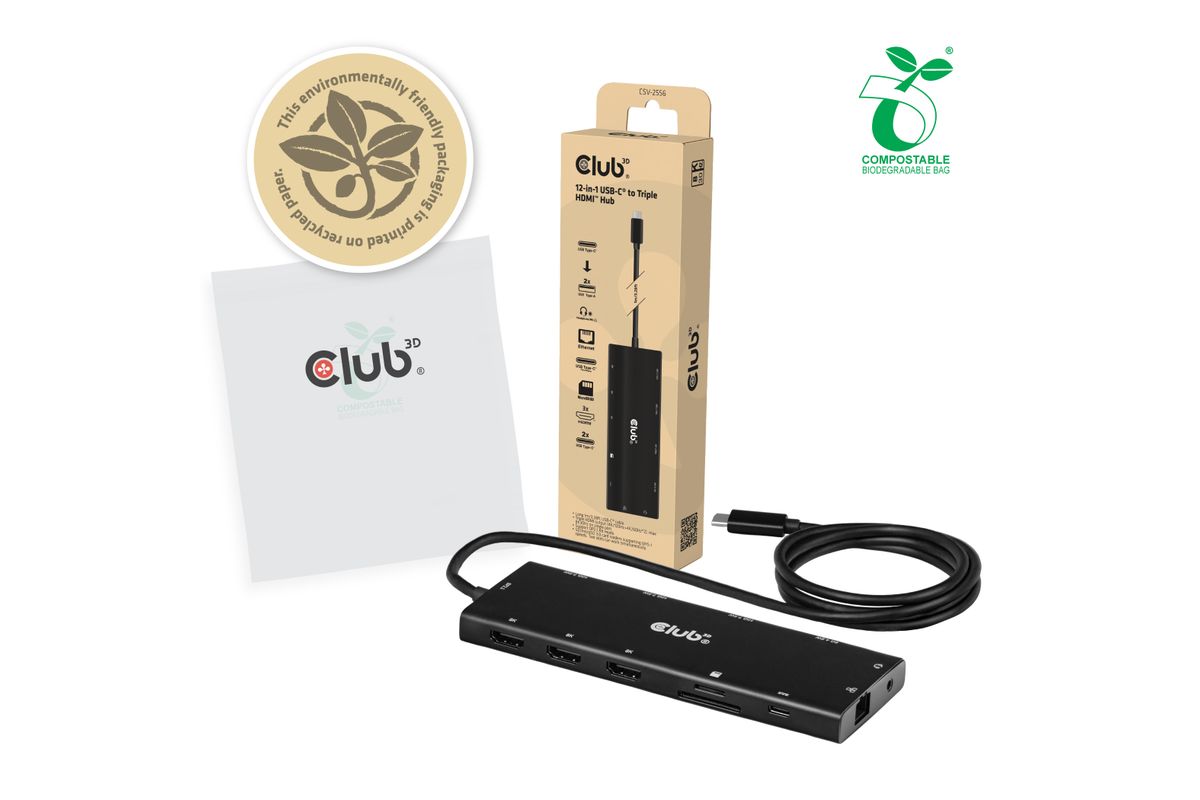

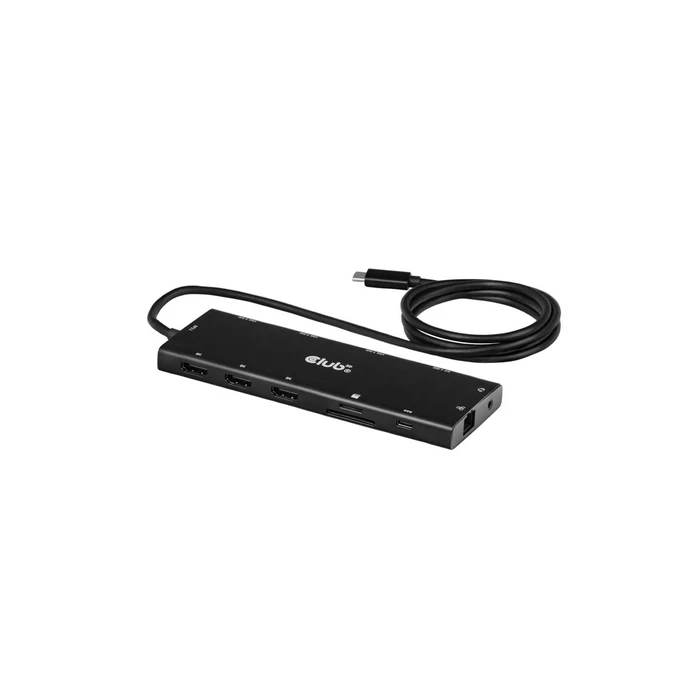

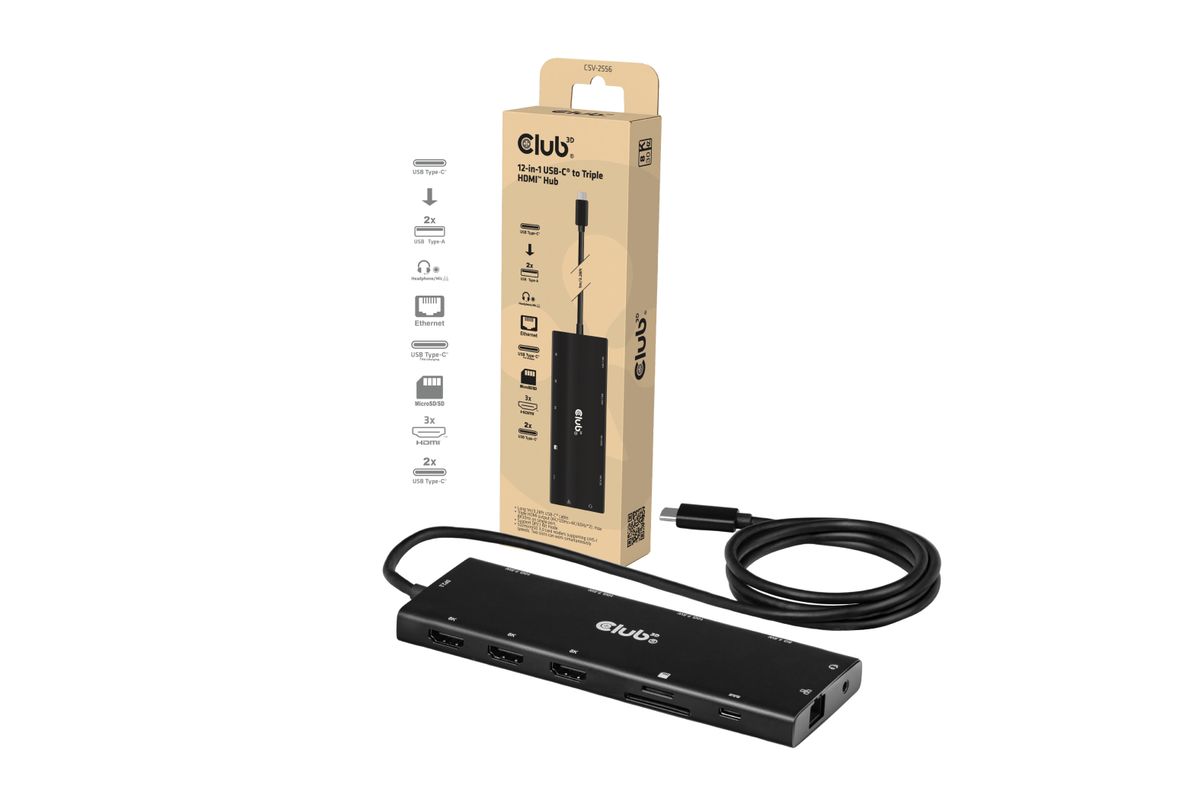

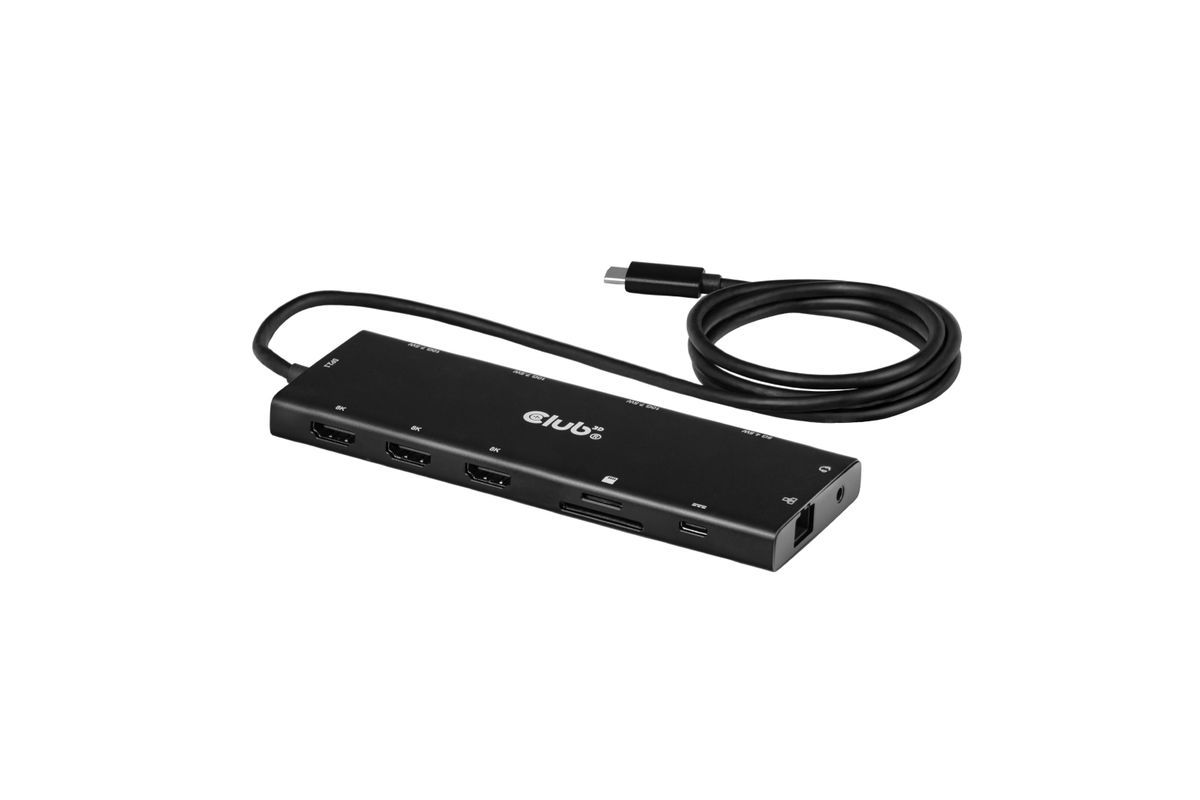

Club 3D USB‑C 12‑σε‑1 Hub, 3×HDMI / 3×USB‑C / USB‑A / LAN, 8K30Hz, PD140W (CSV‑2556)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Club 3D
• Model
  CSV-2556
• SKU
  605940
• EAN
  8719214473969
• MPN
  CSV-2556
• Product Type
  USB-C 12-in-1 Hub / Docking station
• Connection Type
  Wired, integrated USB-C host cable (≈1 m)
• Host Interface
  USB-C (requires DisplayPort Alt Mode)
• Video Output
  3× HDMI (via DisplayPort 2.1 Alt Mode)
• Single Display Max
  Up to 8K @ 30 Hz

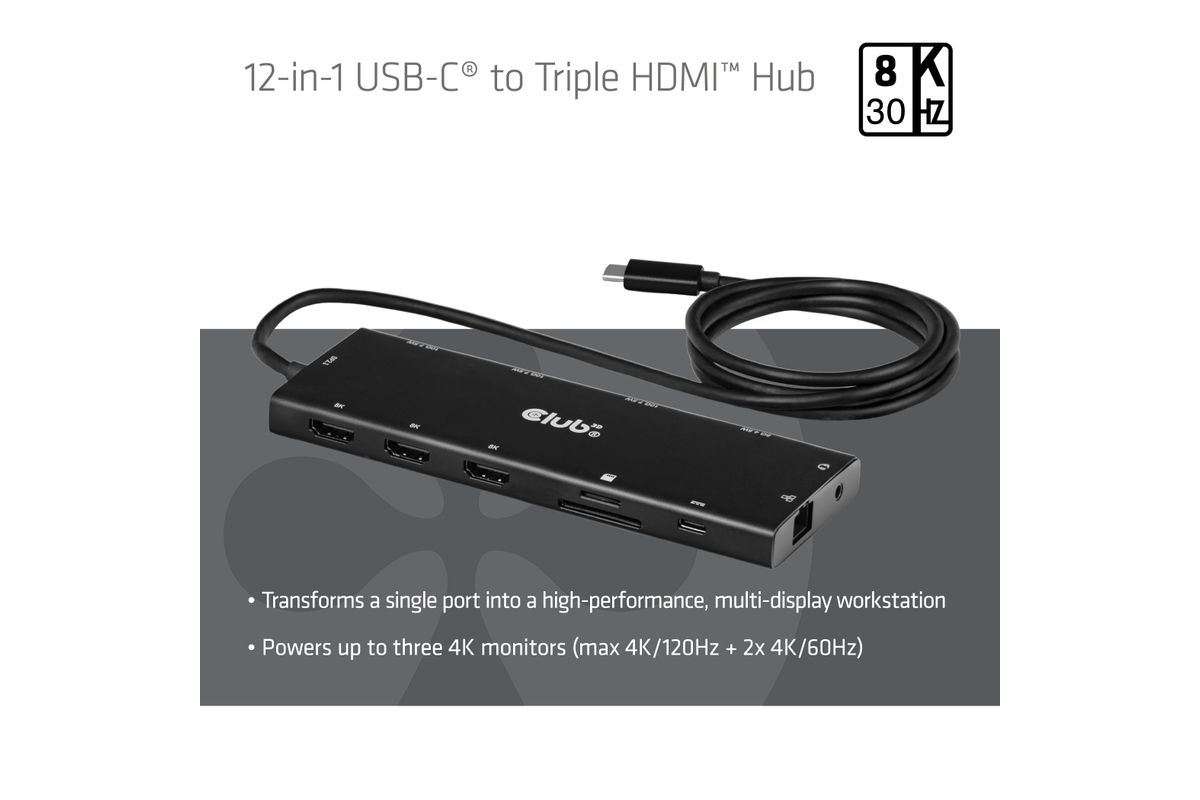

• Triple Display Configurations
  1×4K@120Hz + 2×4K@60Hz (multi-monitor mode)
• HDMI Version
  HDMI 2.1 (listed)

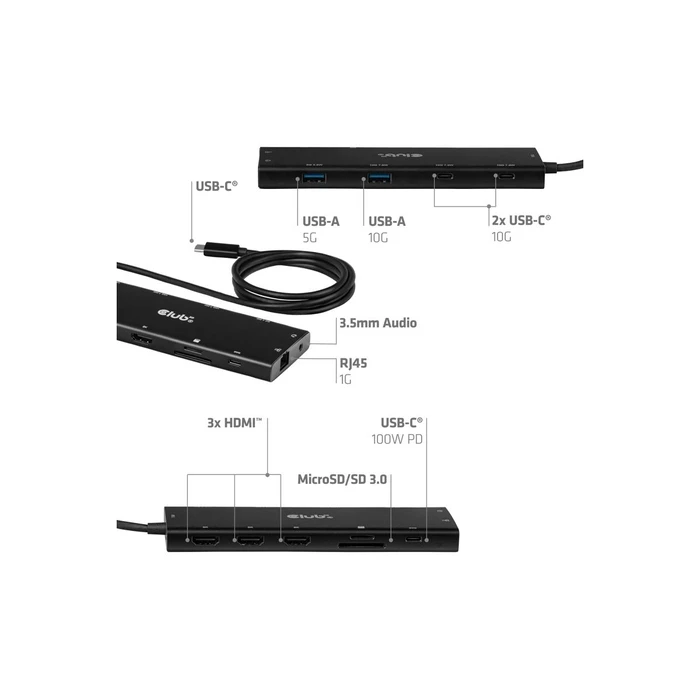

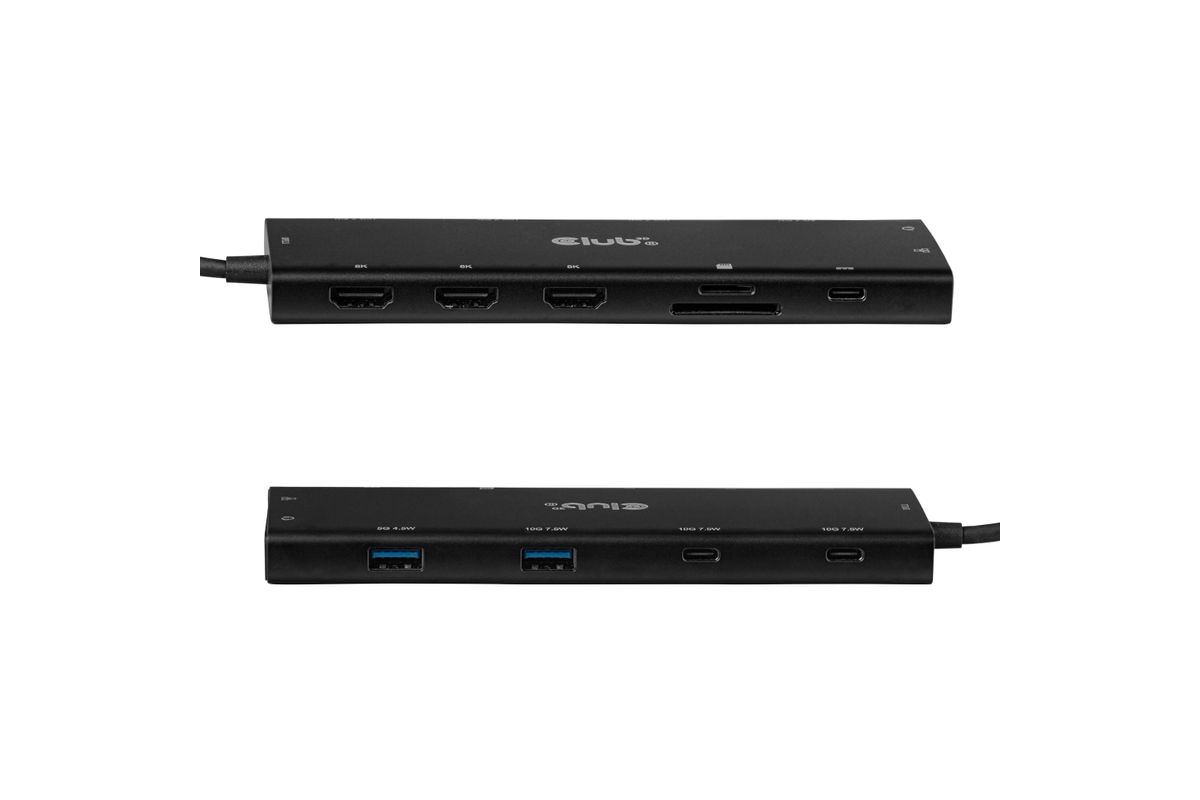

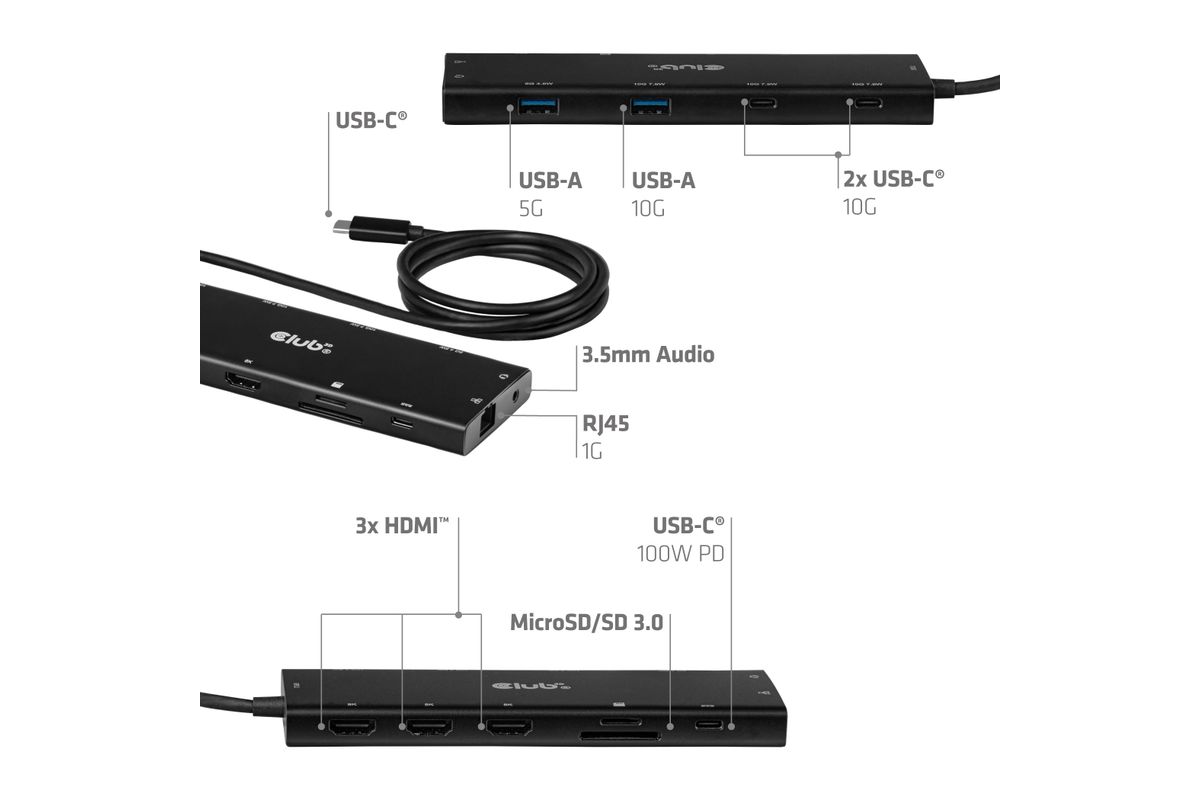

• USB-A Ports
  1× USB-A 3.2 Gen 1, 1× USB-A 3.2 Gen 2
• USB-C Downstream Ports
  2× USB-C 3.2 Gen 2 (data)
• Max USB Data Rate
  Up to 10 Gbps
• Ethernet
  1× RJ-45 Gigabit Ethernet (10/100/1000 Mbps)
• Audio
  1× 3.5 mm combined headphone/mic jack (up to 96 kHz listed)
• Card Reader
  SD and microSD (SD/SDHC/SDXC, microSD/microSDHC/microSDXC)
• Power Delivery (advertised)
  PD140W (retail title)
• Power Delivery (passthrough listed)
  Up to 100 W (detailed listings)
• Power Supply
  USB-C PD passthrough (no separate PSU listed)
• Housing Color
  Black

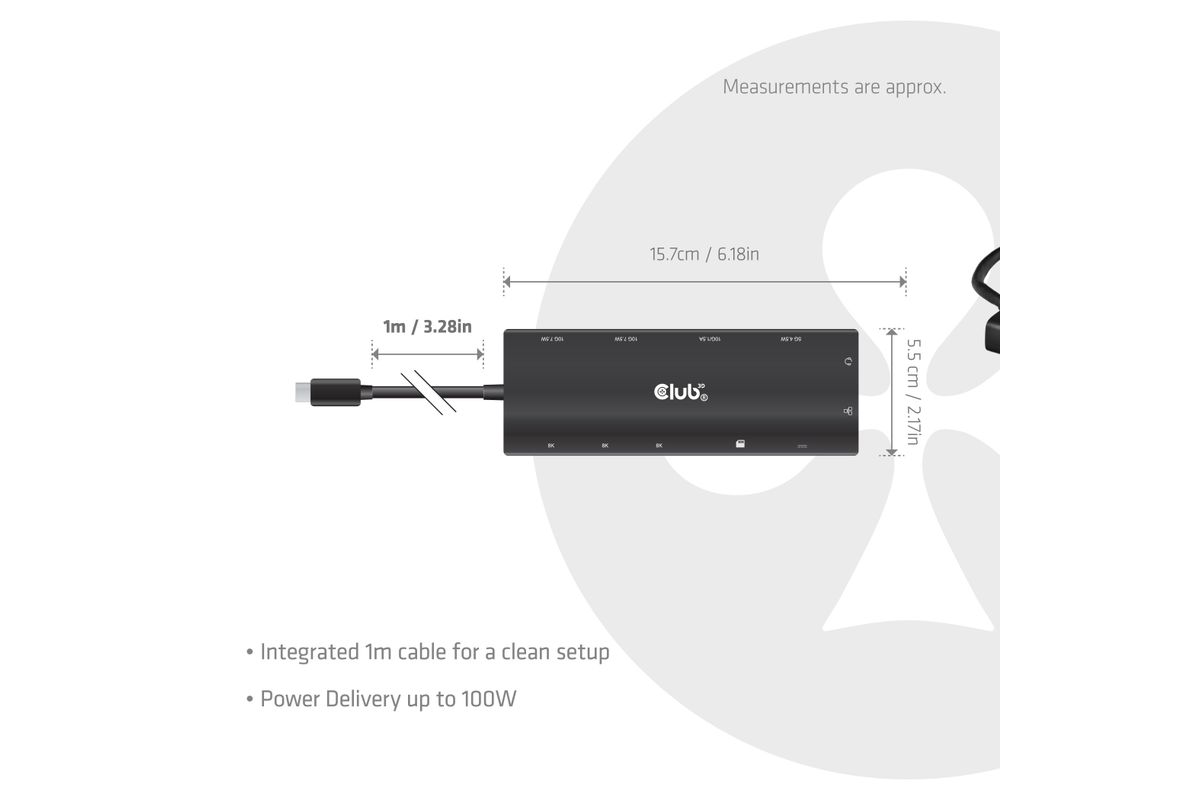

• Dimensions (W×D×H)
  55 × 157 × 14 mm
• Product Weight
  191 g
• Integrated Cable Length
  ≈1 m
• Material
  Plastic housing (black) — typical for dock hubs
• Intended Use

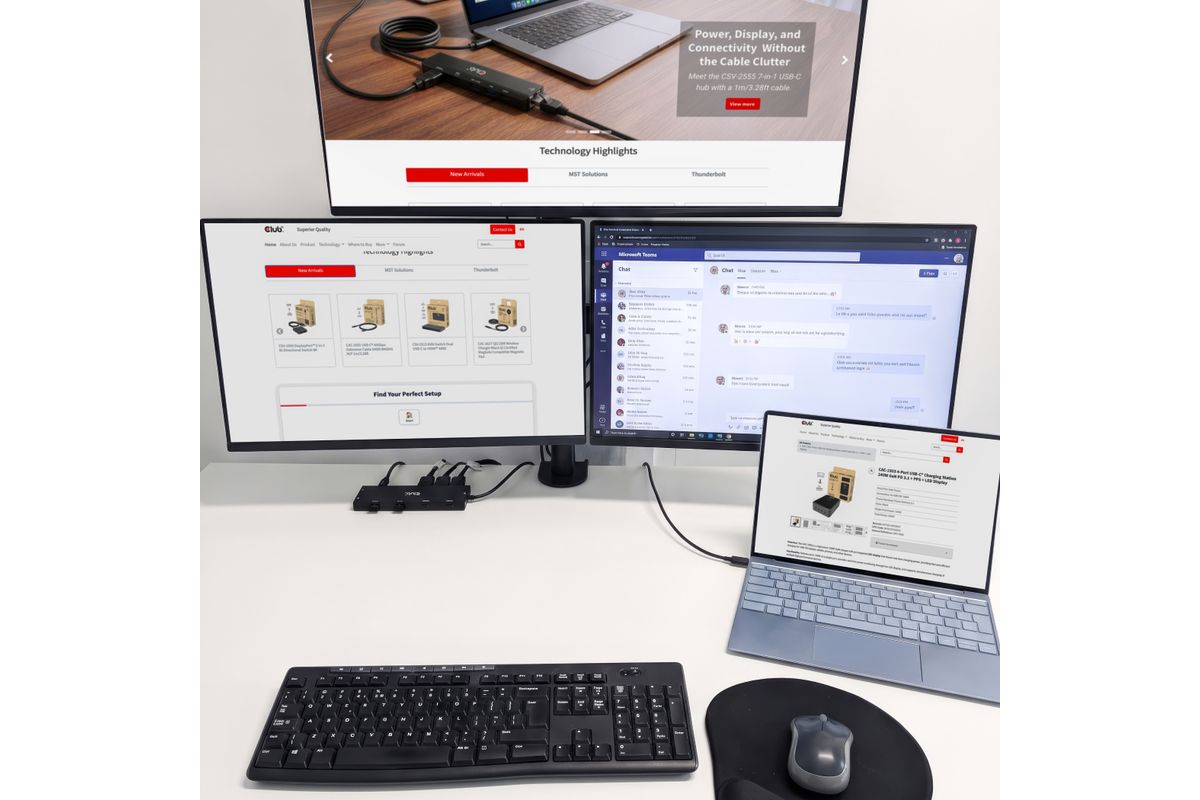

  Multi-monitor workstations, productivity, creative setups
• Notes
  Display functionality requires host USB-C port supporting DisplayPort Alt Mode; verify PD passthrough on packaging/datasheet
