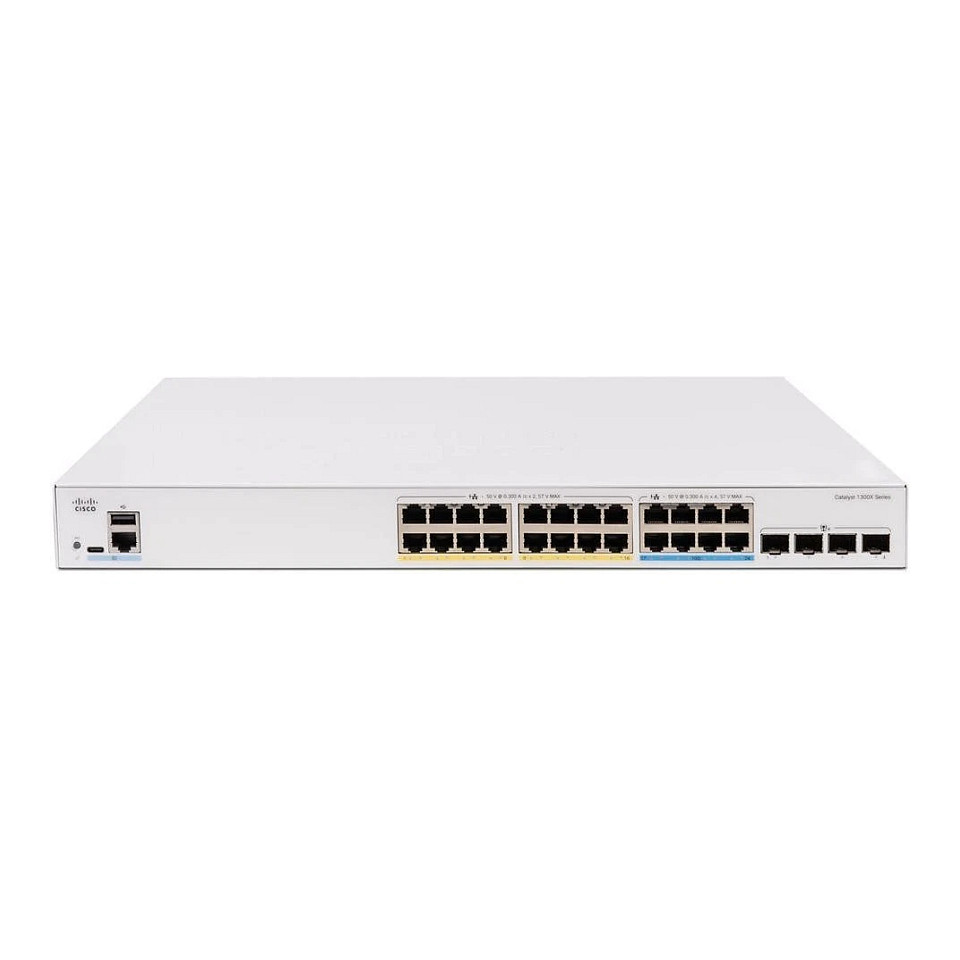

Cisco Catalyst C1300X-24T-4X - Διαχειριζόμενος L3 Switch 24x RJ45 + 4x 10G SFP+ (Rack 1U)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Cisco Systems Inc.
• Model / MPN
  C1300X-24T-4X (also listed as C1300-24T-4X in some listings)
• Product Type
  Managed Layer 3 Access Switch
• Form Factor
  1U rack-mountable
• Access Ports
  24 x 10/100/1000Base-T (RJ45)
• Uplink Ports
  4 x 10G SFP+ (10 Gigabit SFP+ modules)
• Switching Capacity
  128.0 Gbps (Cisco datasheet value)
• Forwarding Rate
  95.23 Mpps
• CPU
  ARM dual-core (~1.5 GHz)
• Memory
  2 GB DRAM (C1300X series)
• Flash
  512 MB (reported in reseller metadata)
• Layer 3 Features
  Static routing, IPv4/IPv6, RIP v2, OSPF, Policy-based routing (PBR)
• VLANs & L2 Features
  VLANs, STP/RSTP, link aggregation, IGMP snooping
• Security Features
  802.1X, ACLs, DHCP snooping, port security, UDLD, loopback detection
• QoS
  Layer 2/3 QoS features supported
• Management
  Web GUI, CLI, SNMP, Cisco Business Dashboard
• Stacking
  Hardware stacking supported (plug-and-play stack configuration)
• Power Supply
  Internal AC power supply (100–240V AC typical)
• Operating Temperature
  -5° to 50°C
• Certifications
  UL, CSA, CE, FCC Part 15 Class A
• Cabling Requirements
  10G ports: Cat6a or better; other ports: Cat5e or better
• Dimensions (HxWxD)
  ~4.45 cm x 44.5 cm x 29 cm (1U rack width/depth approximate)
• Weight
  ~3000 g (product weight approximate)
• Included Accessories
  Rack-mount brackets and screws; rubber feet for desktop use (rack-mount kit typical)
• Recommended Clearance
  ~3 in (7.6 cm) around ventilation openings
• Use Case
  Edge/access layer for small/medium enterprise, branch offices
