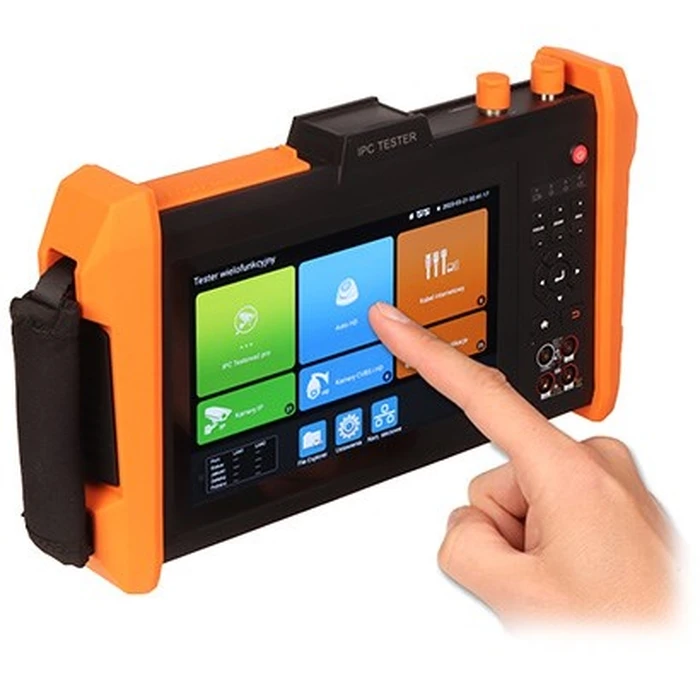

Tester CCTV CS-H9-70E - Πολυλειτουργικός Φορητός Ελεγκτής Κάμερας 7"

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Model
  CS-H9-70E
• SKU
  WLONONWCRSHJD
• EAN
  5902887089107
• MPN
  CS-H9-70E
• Brand
  Unknown / Generic
• Display
  7-inch capacitive touchscreen
• Resolution
  1280 × 800 px
• Video inputs
  AHD/HD-CVI/HD-TVI/CVBS via BNC, HD-SDI via BNC, VGA, HDMI
• Video outputs
  CVBS (BNC), VGA, HDMI
• Supported video standards
  AHD/HD-CVI/HD-TVI up to 8 MP, HD-SDI up to 8 MP, CVBS PAL/NTSC, IP up to 8K H.265 / 4K H.264 (manufacturer/variant claims)
• Network
  2 × RJ45 LAN ports, PoE support
• Audio
  1 × audio in (mini-jack), 1 × audio out (mini-jack)
• PTZ control
  RS-485 port, supports 30+ protocols (Pelco-D, Pelco-P, Hikvision, Samsung, Panasonic, YAAN, Lilin-FAST, etc.)
• Cable & signal tools
  Video signal level meter, cable testing and diagnostics (AHD/HD-CVI/HD-TVI/CVBS)
• Optical/fiber measurement
  Variant-specific optical wavelengths reported in some sources (850/1300/1310/1490/1550/1625 nm, −70 to +10 dBm) — treat as variant-specific
• Battery runtime
  ~16 hours (manufacturer/retailer claim / may vary by configuration)
• Weight
  700 g (device, approximate)
• Package weight
  1200 g (approximate)
• Dimensions
  Not specified by sources (portable handheld size with 7" display)
• Materials
  Plastic housing (typical)
• Color
  Not specified
• Included accessories
  Typically: BNC cable(s), RS-485 lead, power adapter/charger, user manual (varies by seller)
• Use case
  Field installation, setup and troubleshooting of analog and IP surveillance cameras
