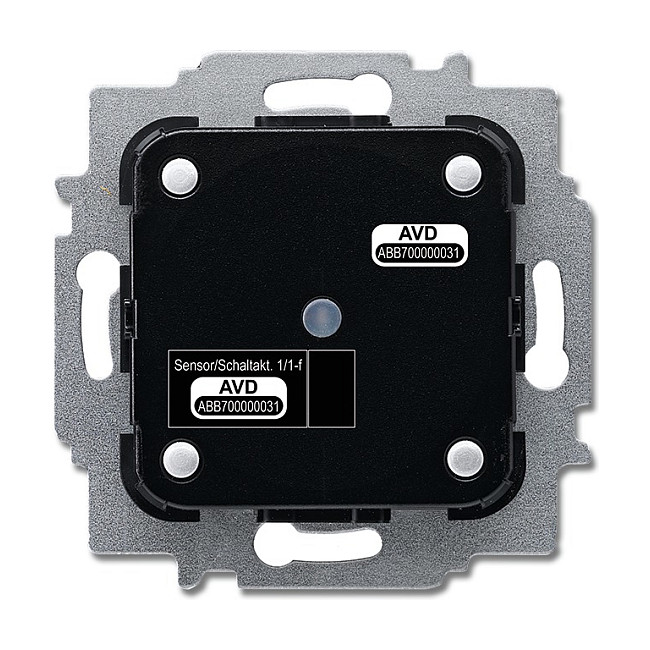

BUSCH JAEGER BJ 6211/1.1 Αισθητήρας/Ενεργοποιητής Διακοπής 1/1 για Busch-free@home

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Busch-Jaeger
• Model
  BJ 6211/1.1 (2CKA006220A0012)
• SKU
  21314462
• EAN
  4011395179987
• MPN
  2CKA006220A0012
• Product type
  Sensor / Switch Actuator (1/1)
• Core function
  Integrated switching actuator for 127/230 V~ consumers
• Operating voltage
  230 V AC, 50/60 Hz
• Rated current
  10 A
• Rated power
  2300 W
• Capacitive load rating
  10 AX
• Output
  1 x normally open contact (potential-free)
• Protection class / IP rating
  IP20
• Installation depth
  32 mm
• Mounting type
  Flush-mounted / under-plaster installation in a flush box
• Connection
  Bus connection via included bus terminal
• Terminals
  Screw terminals (family manual: 2 x 2.5 mm² solid, 2 x 1.5 mm² flexible)
• Power consumption
  < 1 W (family/wireless manual)
• Permitted ambient temperature
  -5 °C to +45 °C
• Storage temperature
  -20 °C to +70 °C
• Preconfiguration
  Preconfigured out of the box for basic switching
• Configuration method
  Web Interface of the System Access Point (groups, scenes, parameters)
• Compatibility
  Busch‑free@home 1‑gang rocker inserts and free@home ecosystem
• Safety/installation notes
  Physical separation of bus and mains wiring required; use insulating tubing/electronic box if spacing not possible
• Included items
  Device and bus terminal (quick guide/documentation)
