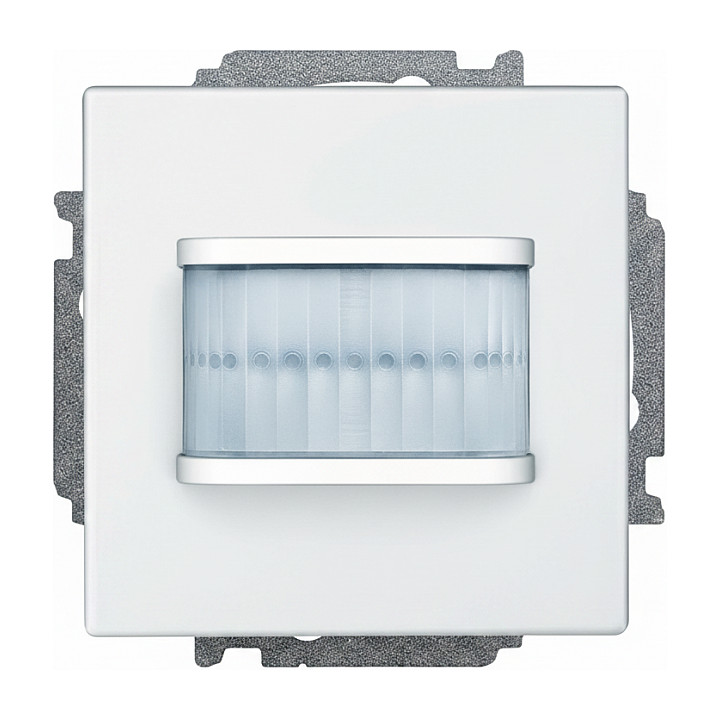

Busch-Jaeger 6225/1.0-84 Αισθητήρας Κίνησης Busch-free@home studioweiß

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  BUSCH-JAEGER
• Model / Type
  6225/1.0-84
• MPN / Product ID
  2CKA006220A0109
• EAN / Barcode
  4011395179857
• Product Type
  Bewegungsmelder (motion sensor) / Automatikschalter
• System
  Busch-free@home / free@home (TP)
• Channels
  1-channel motion sensor
• Color
  studioweiß (RAL 9016)
• Material
  Thermoplastic plastic (Kunststoff)
• Surface Finish
  Untreated, glossy
• Protection Rating
  IP20
• Mounting Type
  Unterputz (flush-mounted)
• Installation Orientation
  Vertical (senkrecht)
• Recommended Mounting Height
  1.1–1.3 m (ideal ~1.1 m)
• Detection Angle
  180°
• Detection Range
  Up to 6 m
• Brightness Threshold
  Configurable, 1–500 lux
• Minimum Switching Time
  30 seconds (minimum)
• After-run Time
  Programmable via System Access Point web interface
• Power Supply
  24 V DC via bus line
• Bus Connection
  Bus terminal included
• Bus Load / Participants
  1 bus participant, 12 mA bus load
• Cable Type
  J-Y(St)Y 2x2x0.8 mm
• Wire Stripping Length
  6–7 mm
• Operating Temperature
  -5 °C to +45 °C
• Storage Temperature
  -20 °C to +70 °C
• Dimensions
  71 × 71 × 30 mm
• Installation Depth
  8.5 mm
• Product Weight
  58 g
• Design Compatibility / Frame Families
  Platform 63, future® linear, Busch-axcent®, solo®, carat®, Busch-dynasty®
• Lens Variant
  Selectable lens with pet-immune detection corridor (Tierschneise)
• Programming / Configuration
  Via System Access Point web interface (requires bus voltage)
• Application
  Automatic switching of actuators based on motion and brightness
