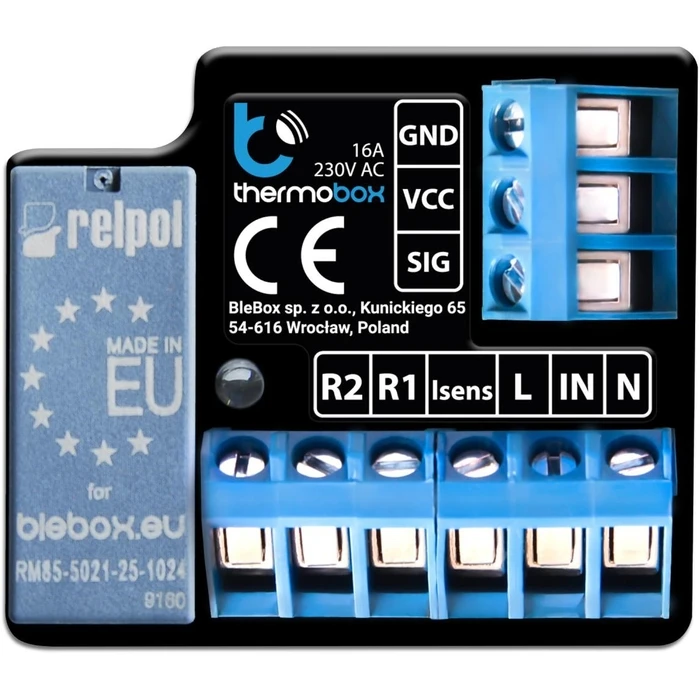

Μονάδα θέρμανσης BLEBOX thermoBox (Wi‑Fi, 230V, 16A, 3.68kW)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Blebox
• Model
  ThermoBox
• Type
  Heating module / Smart Switch / Thermostat controller
• MPN
  ThermoBox
• Supply Voltage
  230V AC (also supports 24V DC control 16A)
• Max Current
  16 A (230V AC) / 16 A (24V DC)
• Max Power
  3.68 kW (at 230V)
• Number of Outputs
  1
• Output Type
  Dry contact / relay (single channel)
• Communication
  Wi‑Fi (802.11) - smartphone app control
• Compatible Loads
  Resistive loads, heating elements, convectors; special considerations for LED lamps and loads with high inrush current
• Temperature Measurement Range
  -55°C to 125°C
• Sensor Operating Range
  -20°C to 50°C
• Device Operating Temperature
  -20°C to 50°C
• Storage Temperature
  -55°C to 125°C
• Temperature Accuracy
  ±0.5°C (in range -10°C to 85°C)
• Protection Rating
  IP20
• Dimensions
  41.5 x 47 x 12 mm (width x height x depth)
• Enclosure Material
  Polyurethane composite, halogen‑free, self‑extinguishing (V‑130°C)
• Mounting
  Flush-mounted electrical box or suitable casing (installation in recessed box or enclosure)
• Dimming
  No (not a dimmer)
• Dry Contact Input
  Yes
• Installation Method
  Installed in electrical box / casing; intended for in‑box mounting
• Number of Channels
  1
• Protocol
  Wi‑Fi (local network; requires router)
• Hazard Pictograms
  GHS02 (Flammable), GHS07 (Harmful)
• IP Class
  IP20
• Additional Notes
  May limit current for loads with high inrush (some LED lamps) - follow manufacturer guidance for such loads
