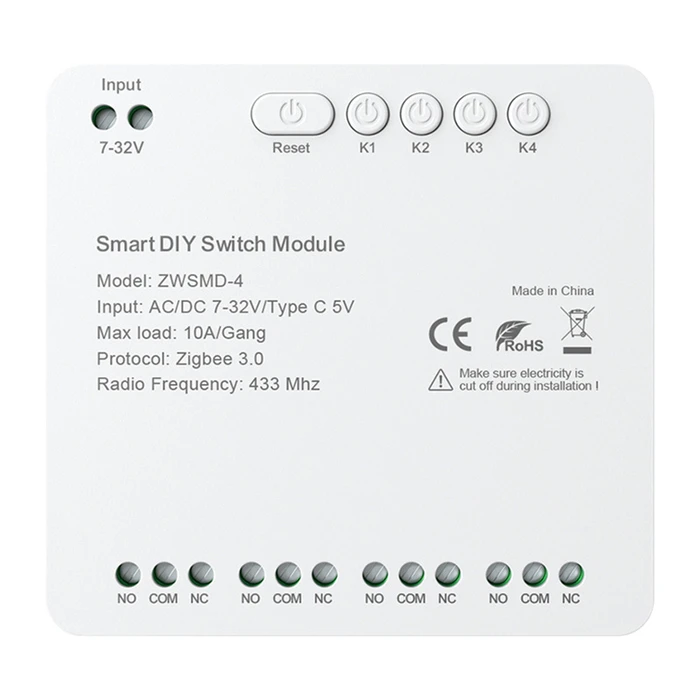

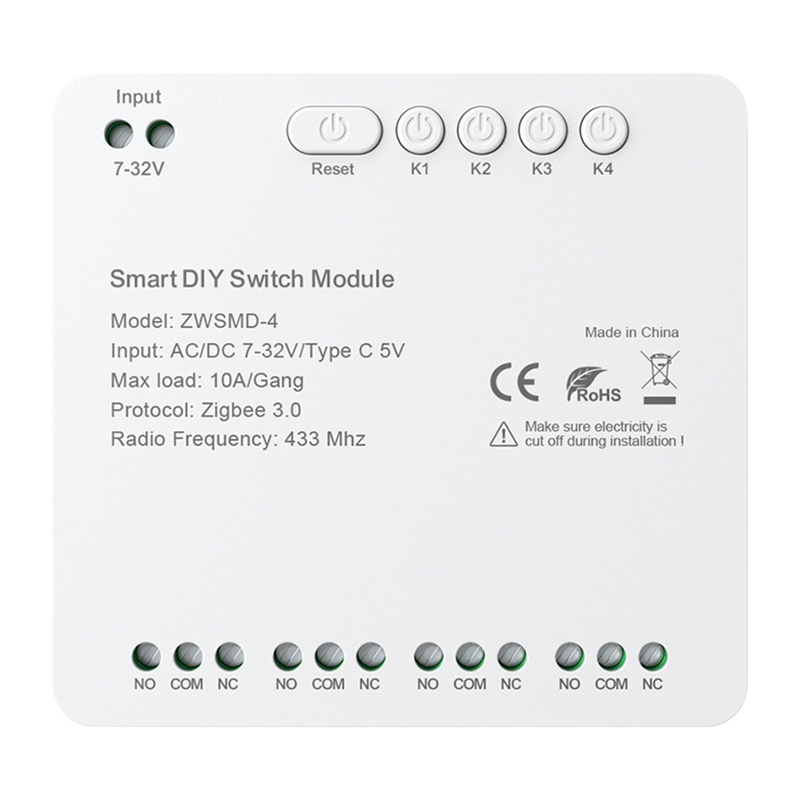

Avatto ZWSMMD ZigBee Διακόπτης 4CH Ξηρής Επαφής 32V DC

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Avatto
• Model / MPN
  ZWSMD-4-32V
• Name
  Avatto ZWSMMD ZigBee Switch 4CH Dry Contact 32V DC
• SKU / EAN
  6976037362340
• Device Type
  4-channel ZigBee dry-contact relay / switch module
• Channels
  4 CH
• Contact Type
  Dry contact (voltage-free)
• Input / Working Voltage
  DC 24–32V (family references 7–32V in some Zigbee2MQTT notes)
• Wireless Protocol
  Zigbee 3.0 (IEEE 802.15.4)
• Frequency Band
  2.412 GHz – 2.484 GHz
• Maximum Load (reference)
  LED 150W / 5A (per AVATTO module family documentation)
• Operating Temperature
  -10°C to +40°C
• Operating Range
  <100 m (typical line-of-sight spec in documentation)
• Dimensions
  39 × 39 × 19.4 mm
• IP Rating
  IP20
• Certifications
  CE, RoHS
• Warranty
  2 years
• Typical Applications
  Lighting control, access control systems, low-voltage fans, home audio triggers, motorized gate control
• Contact Isolation
  Voltage-free (suitable for isolating control circuits)
• Mounting/Form Factor
  Compact module (module intended for in-panel/flush installation in automation setups)
