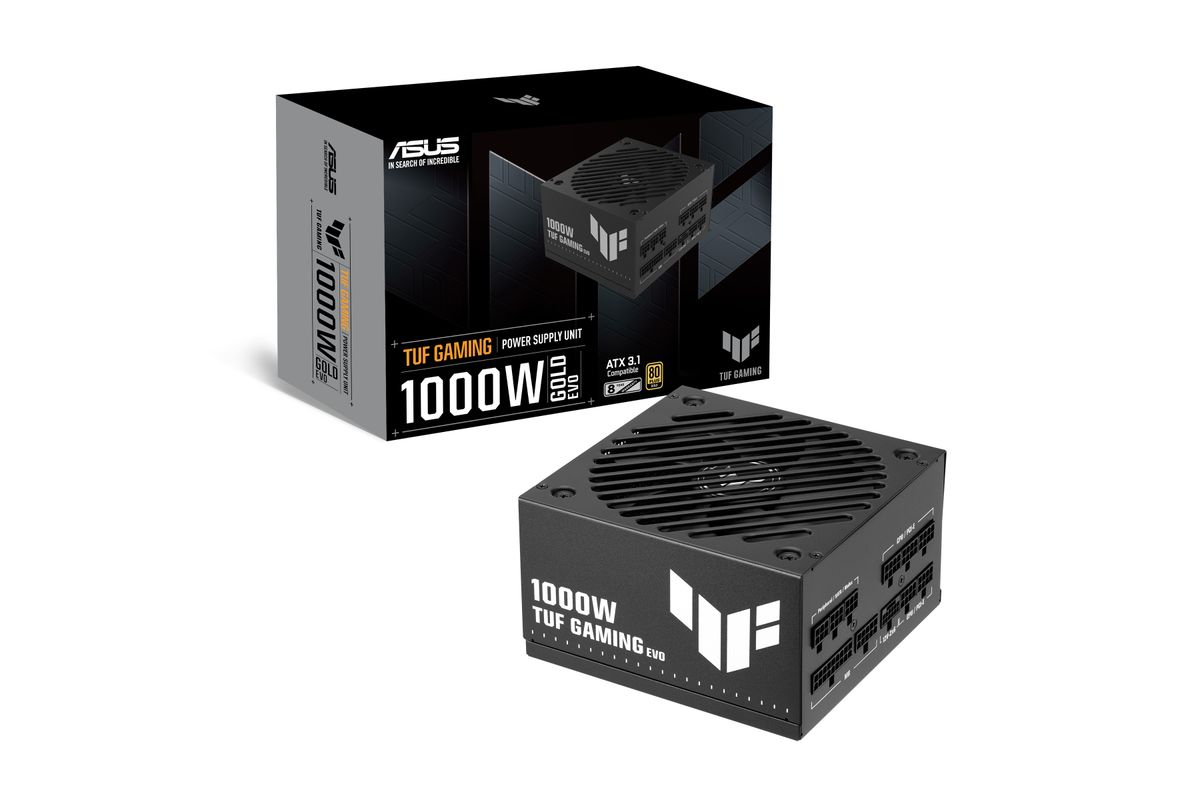

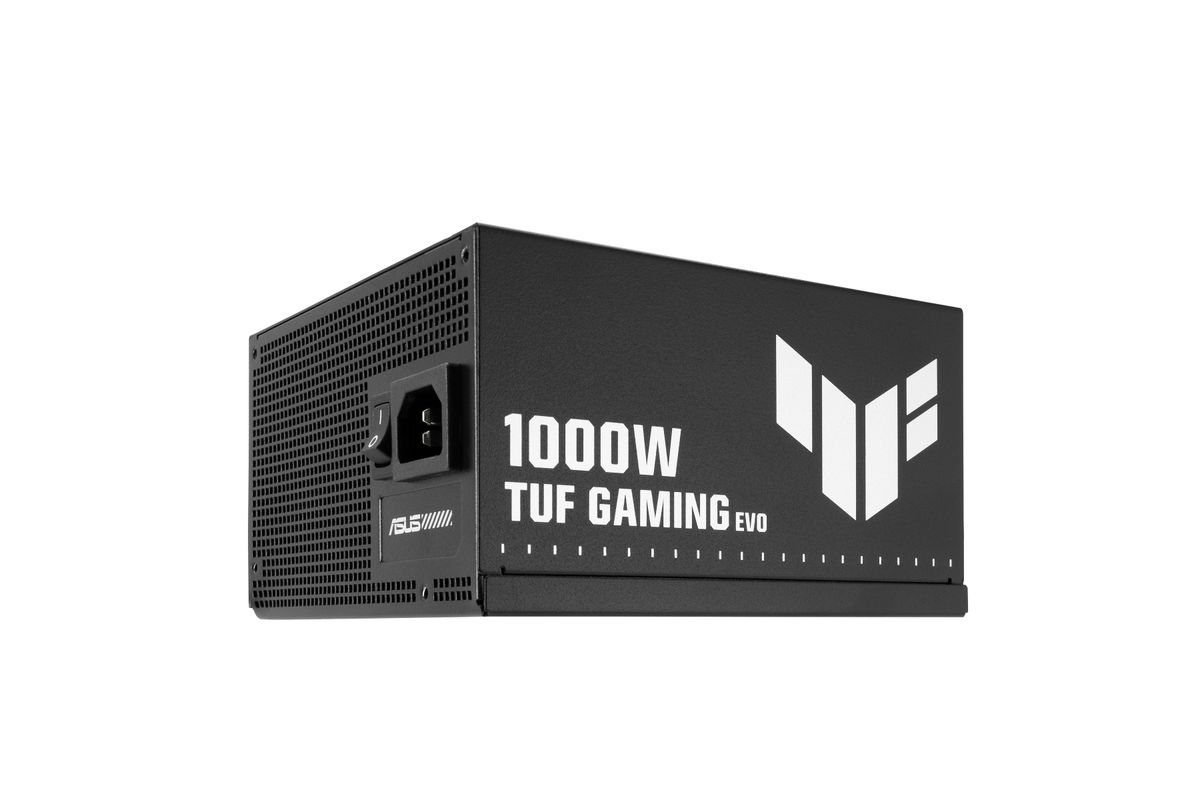

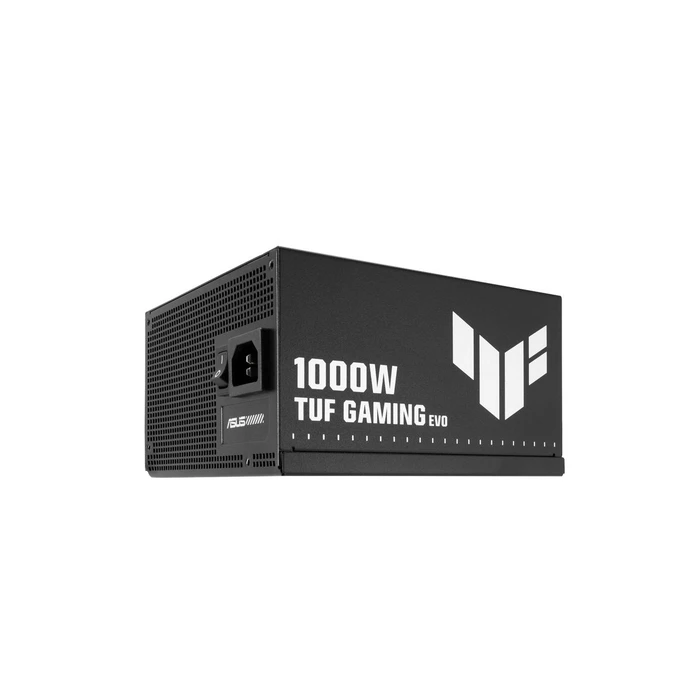

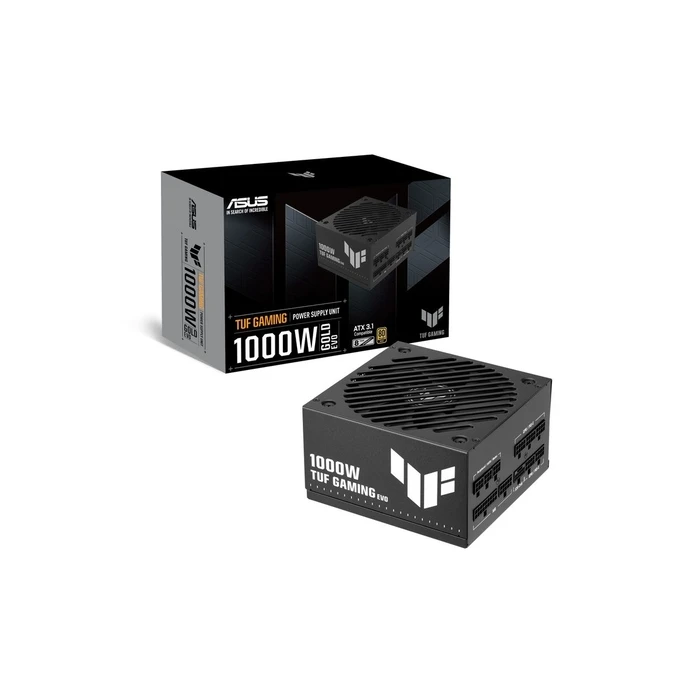

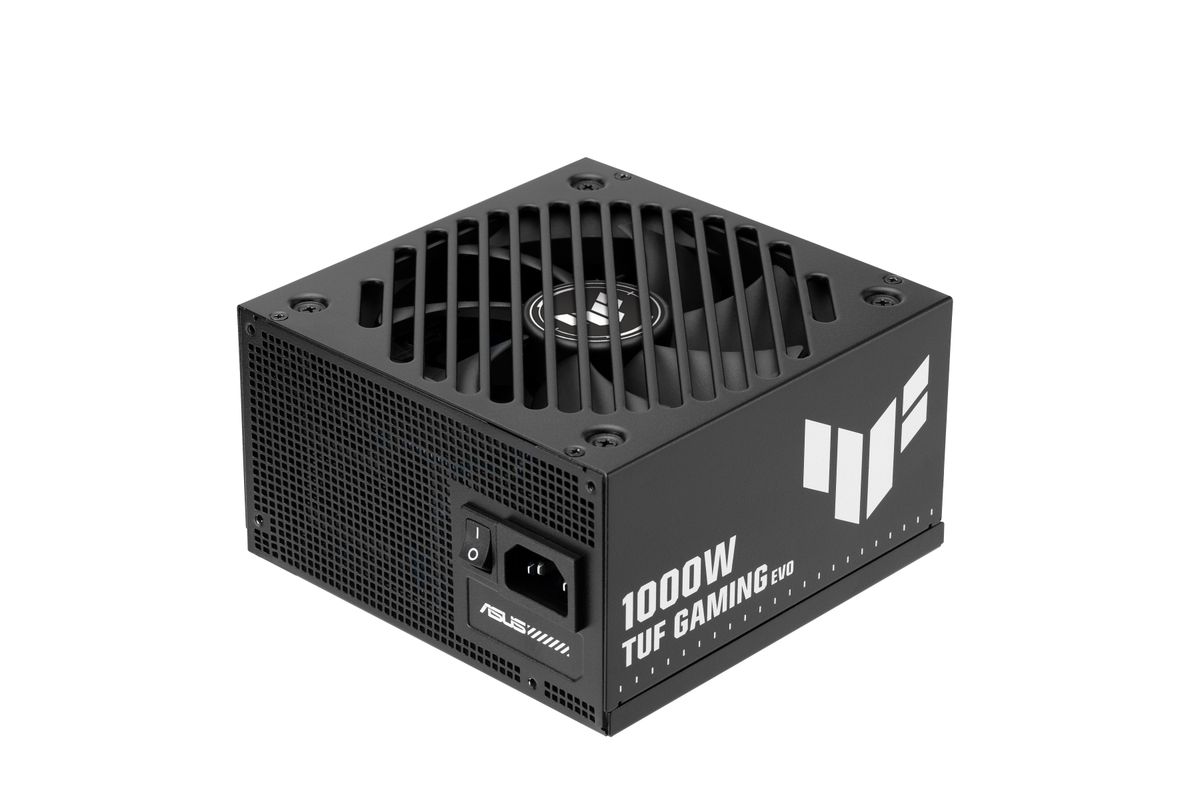

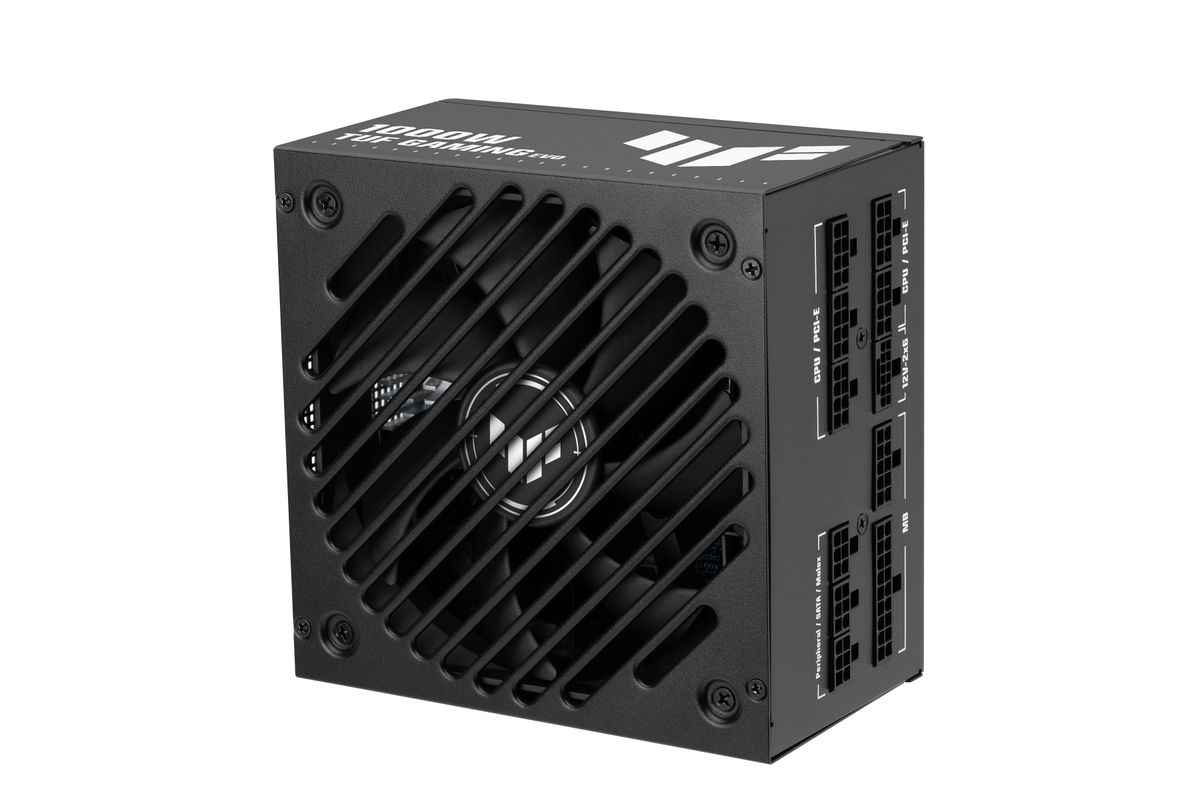

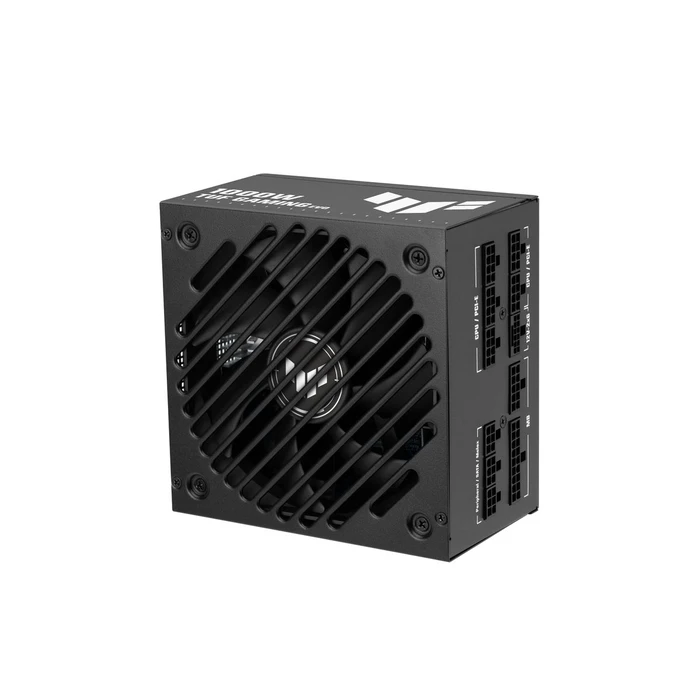

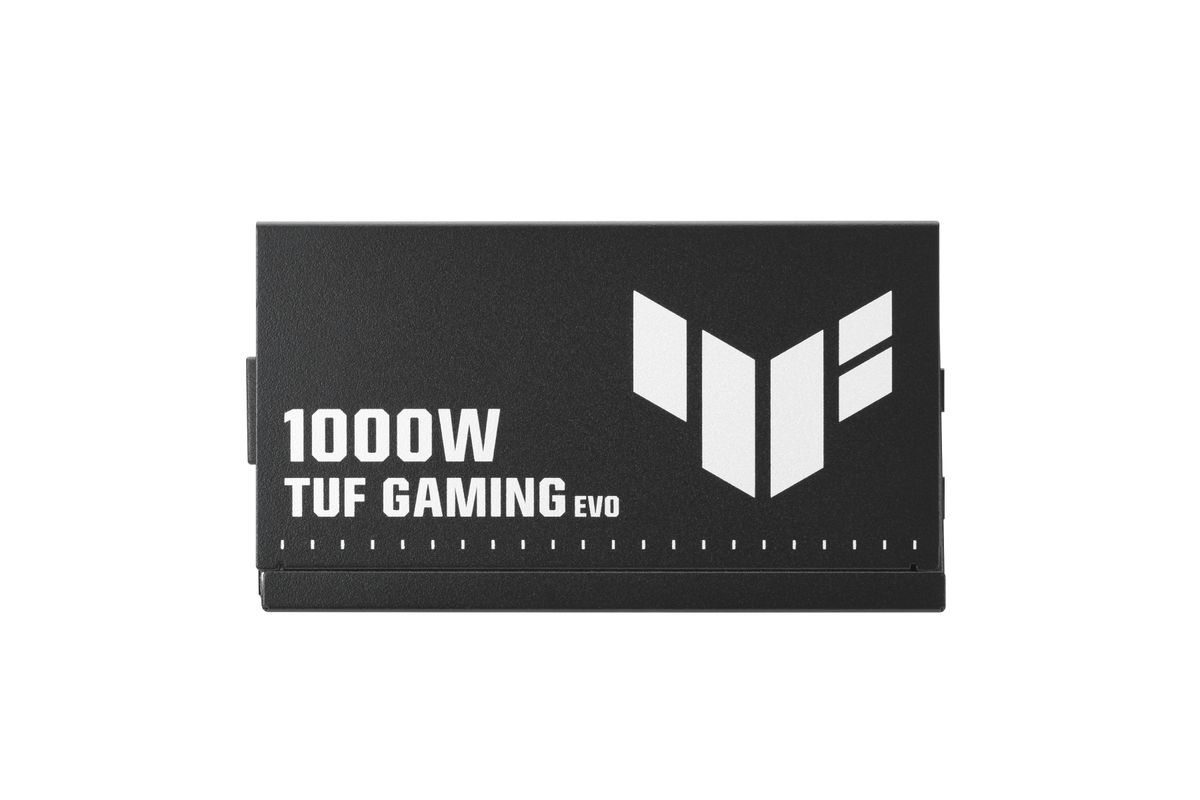

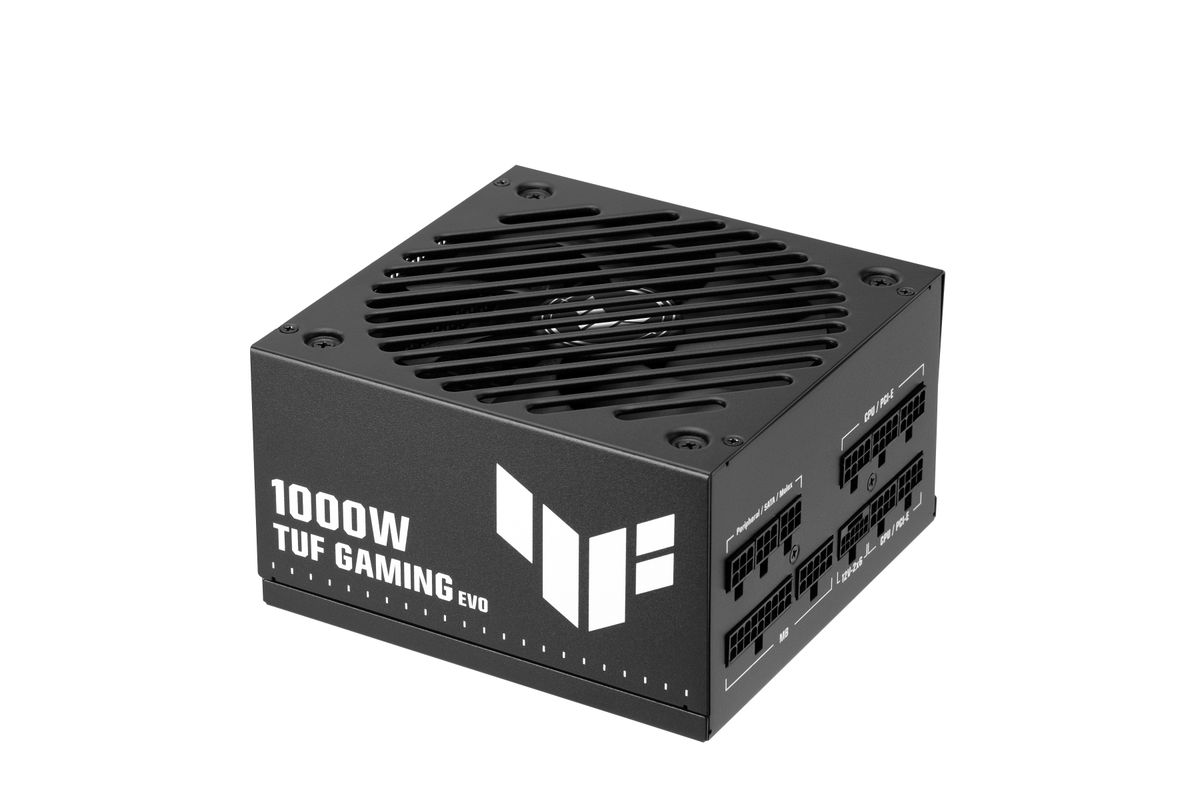

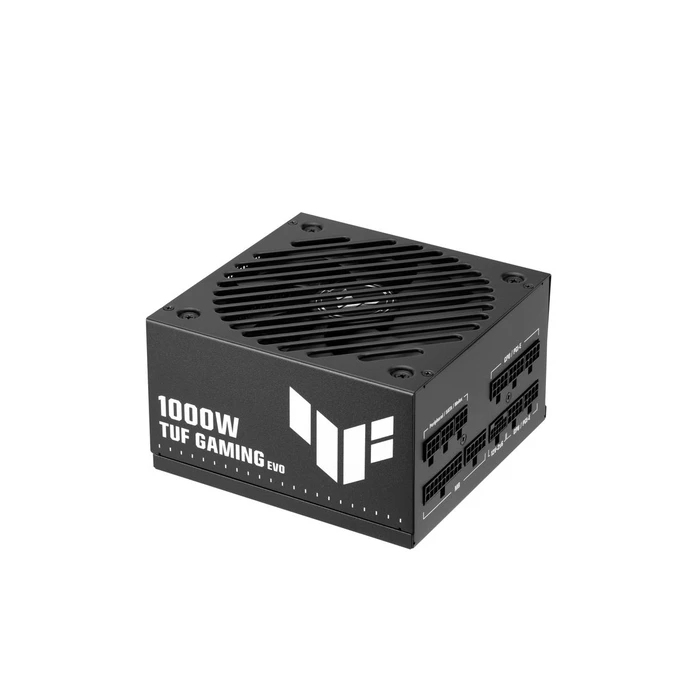

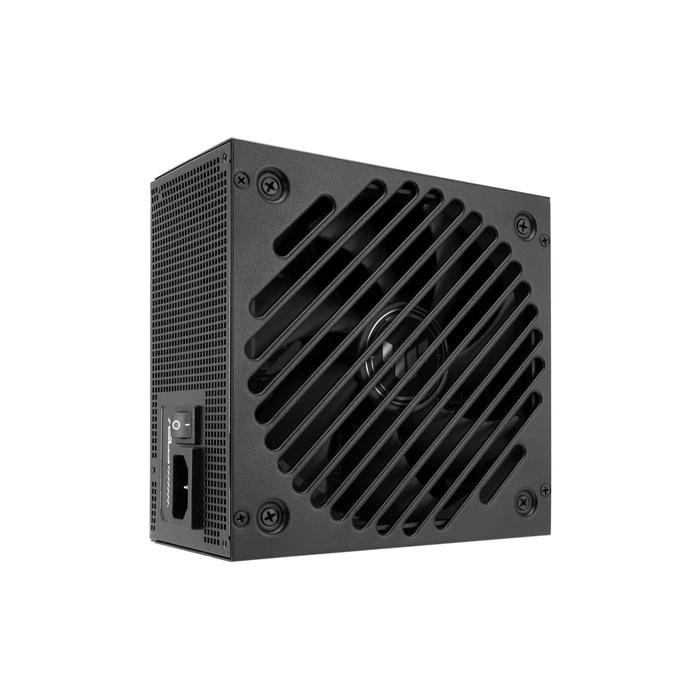

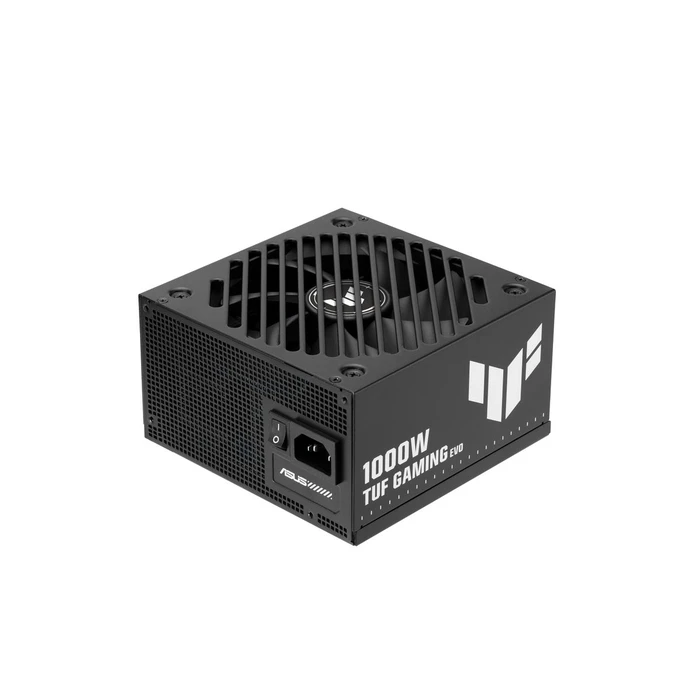

ASUS Τροφοδοτικό TUF-GAMING-1000G-EVO 1000W 80+ Gold (ATX 3.1, PCIe 5.1)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Model
  TUF-GAMING-1000G-EVO
• Brand
  ASUS
• Total Output Power
  1000W
• Efficiency Rating
  80 PLUS Gold (up to ~92% peak)
• ATX Standard
  ATX 3.1
• PCIe Support
  PCIe® Gen 5.1 (includes 16-pin 12V-2x6 cable)
• Form Factor
  ATX12V
• PFC Type
  Active PFC

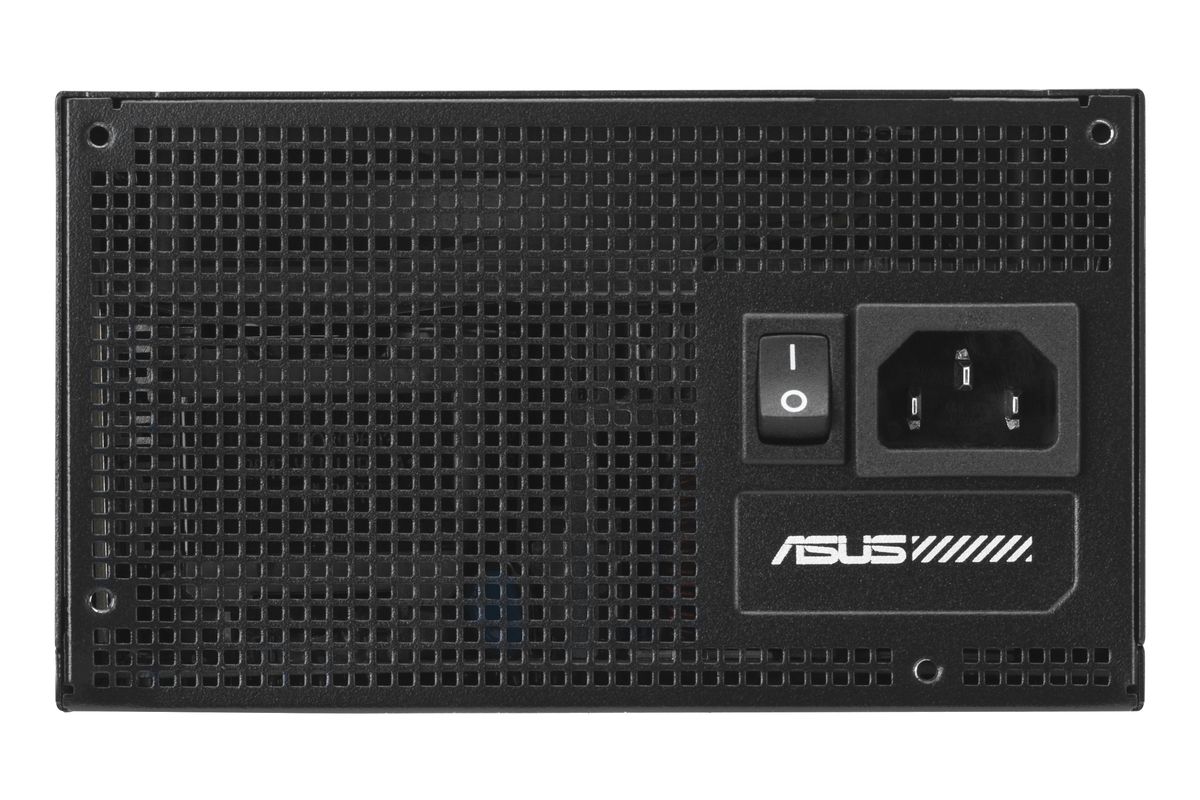

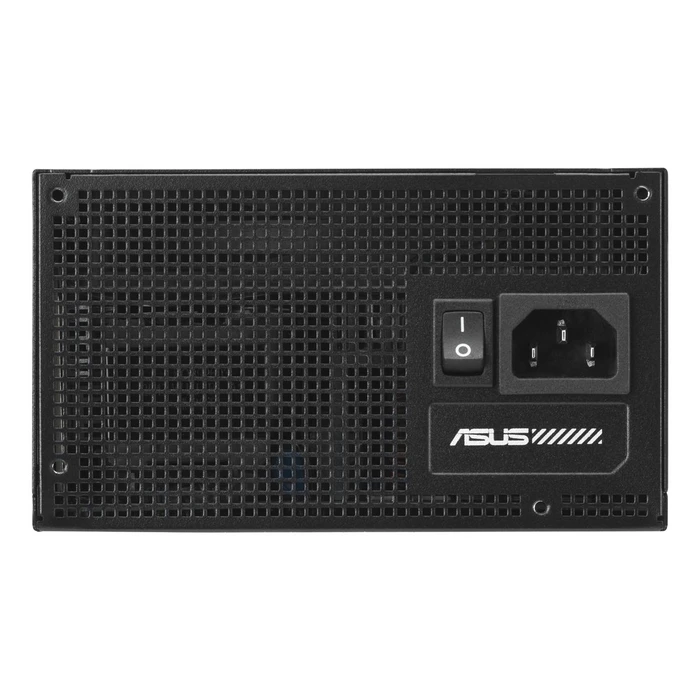

• AC Input Range
  100–240 Vac
• DC Output Rails
  +3.3V, +5V, +12V, -12V, +5Vsb
• Maximum Load Amps
  +3.3V: 25A; +5V: 25A; +12V: 83.33A; -12V: 0.3A; +5Vsb: 3A
• Combined Load (Watts)
  +3.3V/+5V: 125W; +12V: 1000W; -12V: 3.6W; +5Vsb: 15W
• Protections
  OPP, OVP, UVP, SCP, OCP, OTP
• Dimensions (W×D×H)
  150 × 150 × 86 mm
• Product Weight
  1720 g
• MTBF
  >120,000 hrs @ 40°C
• Operating Temperature Range
  -40°C to +85°C (27 cycles rating)
• Humidity/Corrosion Resistance
  Up to 95% humidity and 240 hrs salt fog resistance
• Capacitors
  TUF 5K black metallic capacitors (military-grade) and Japanese low-ESR caps

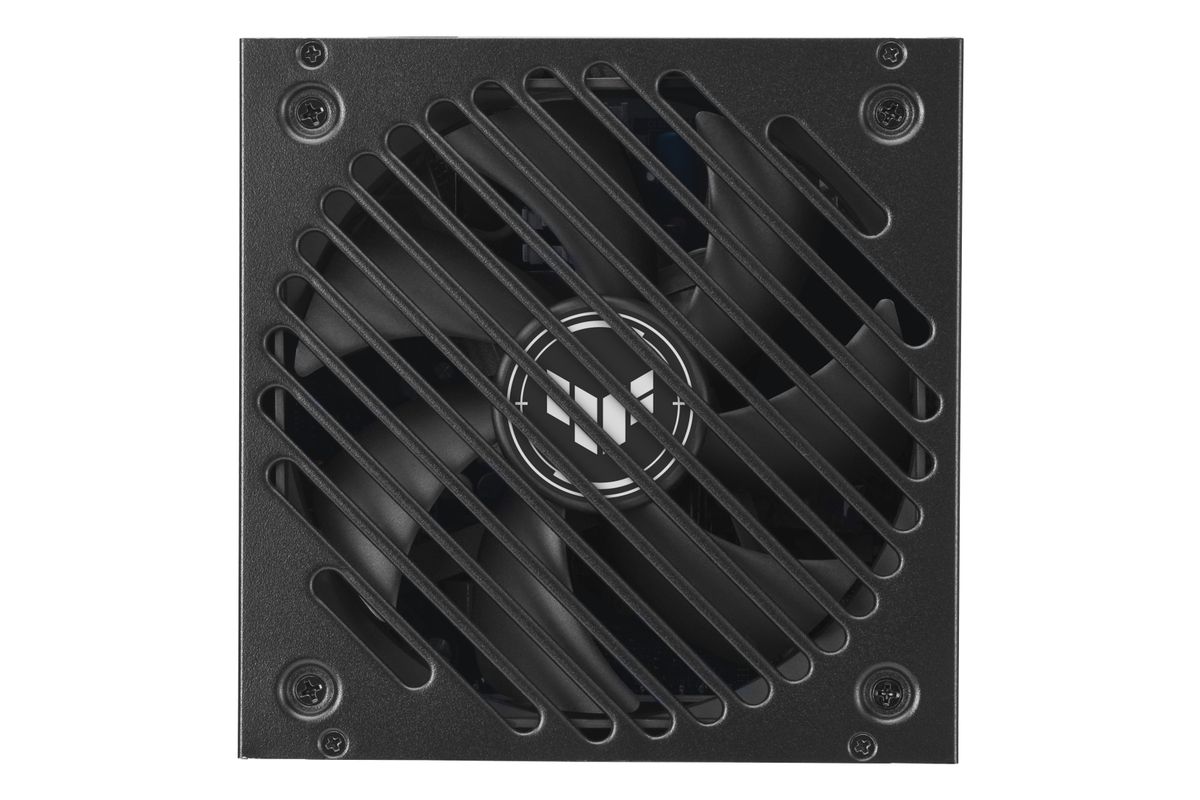

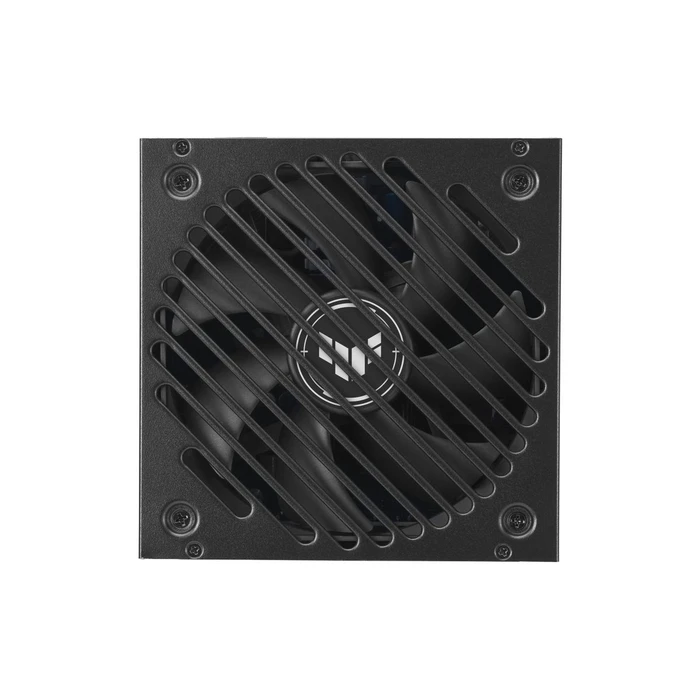

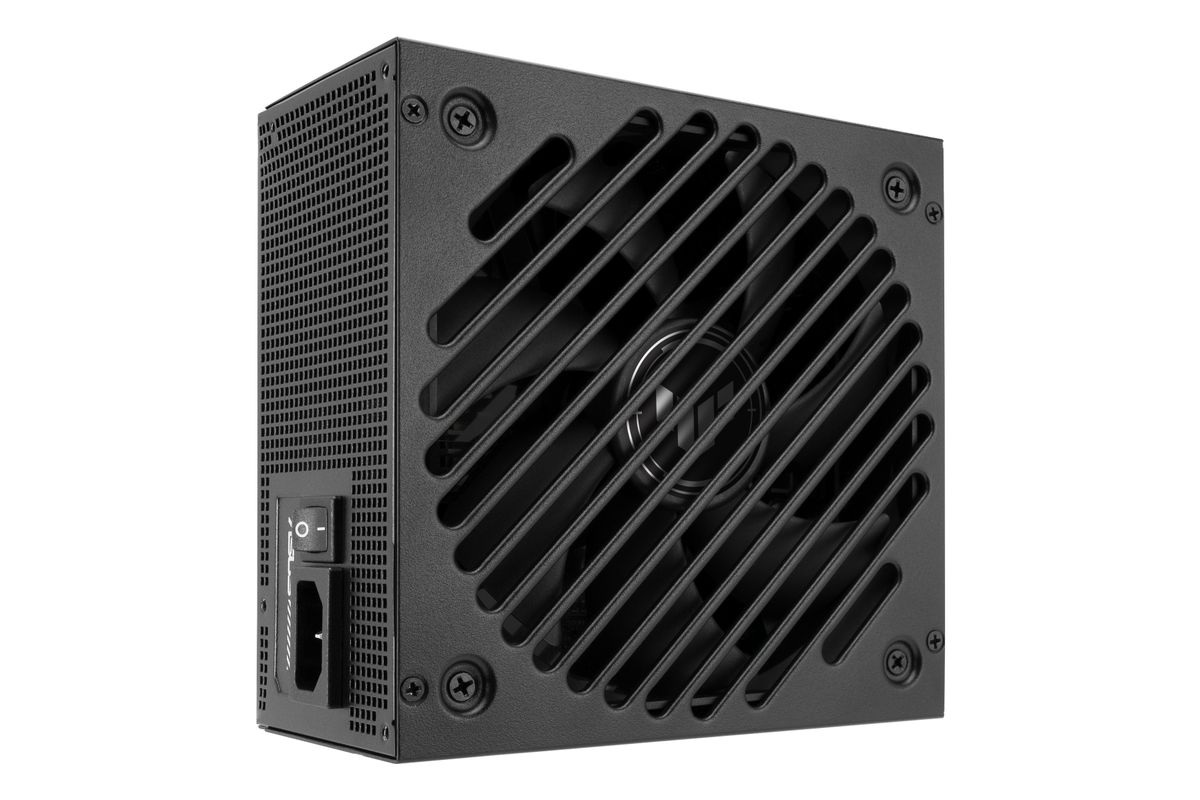

• Fan
  135 mm dual ball bearing fan (~80,000 hrs)
• PCB Protection
  Conformal coating for moisture/dust protection

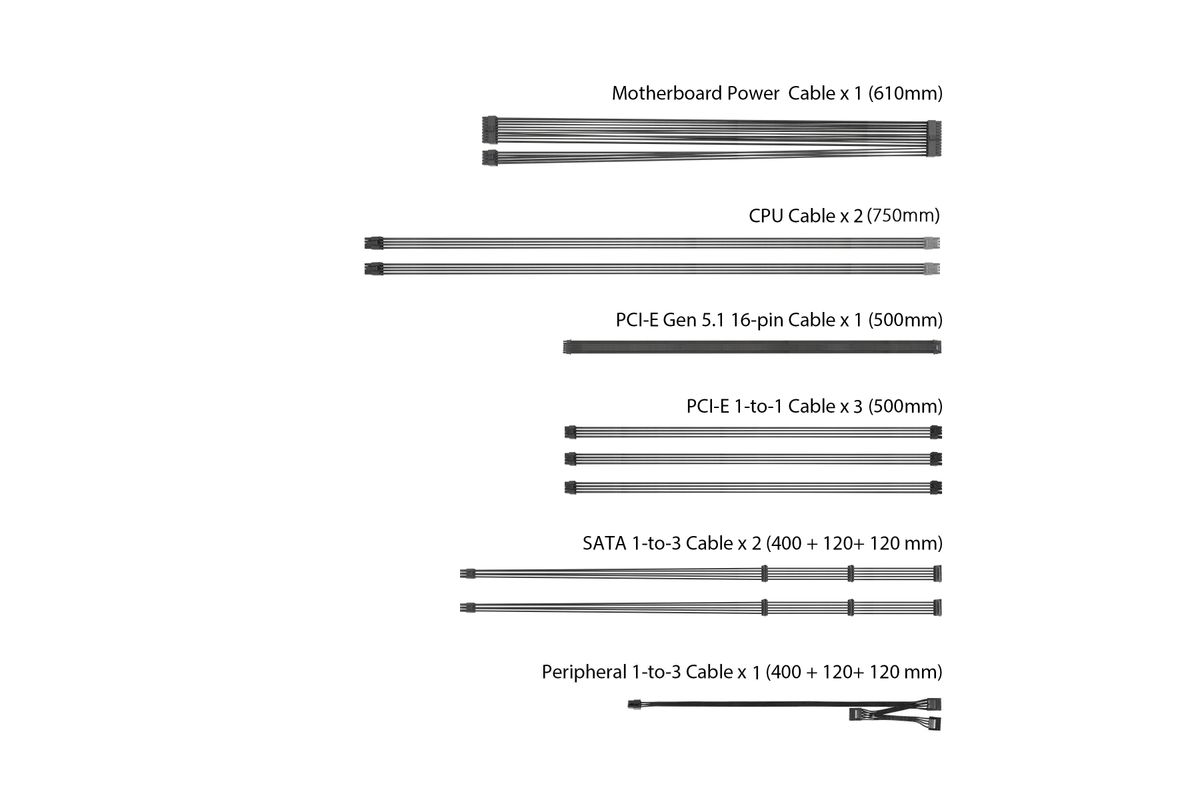

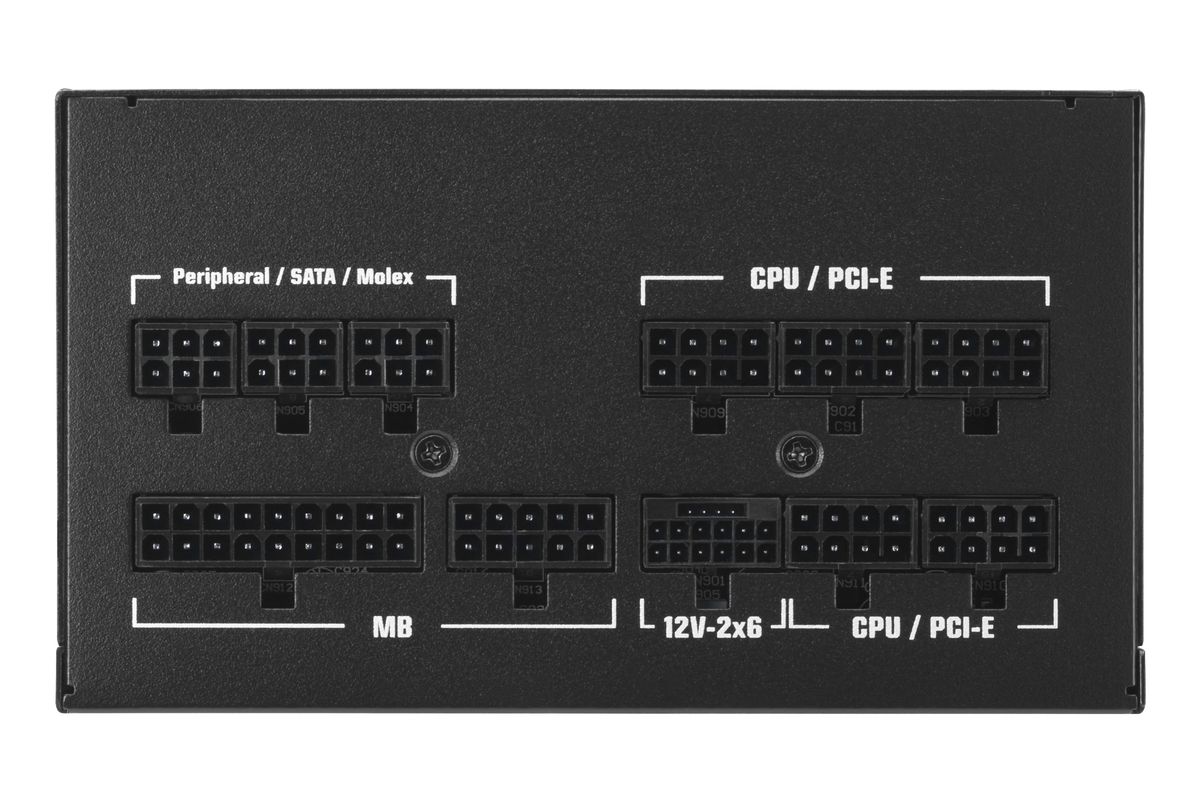

• Connectors Included

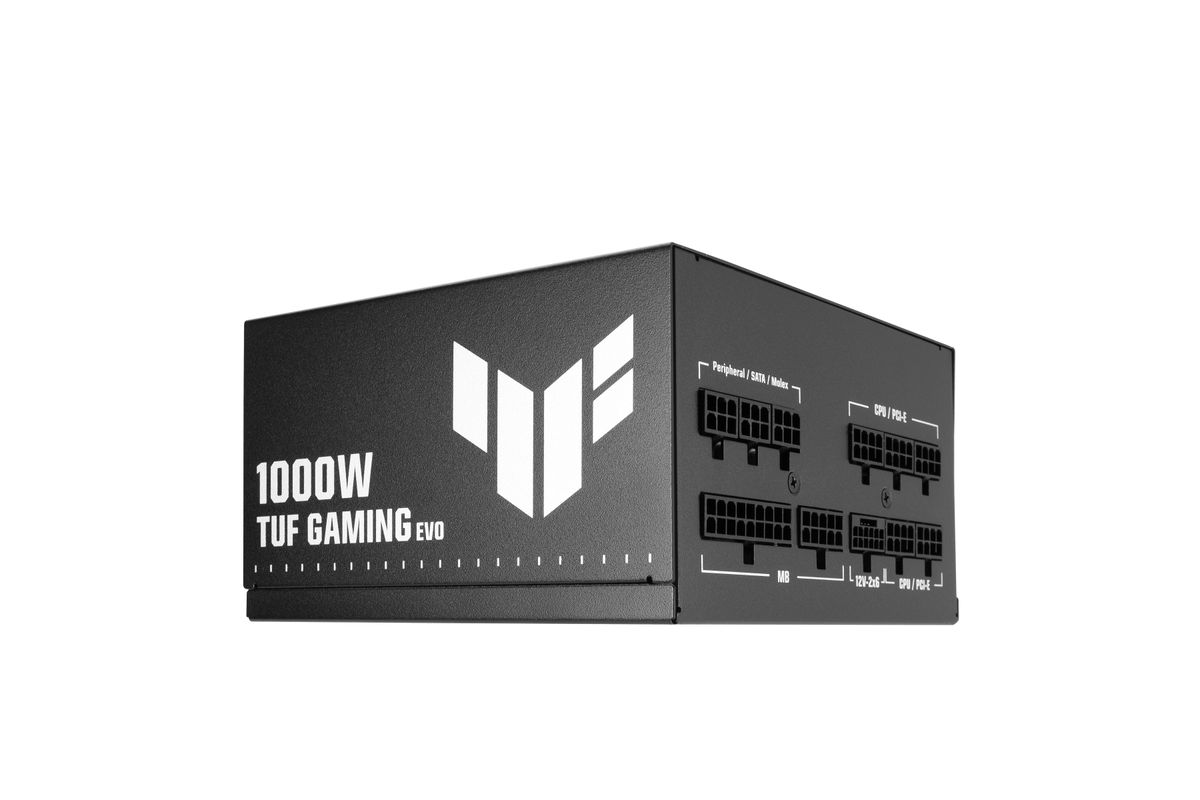

  20+4pin MB, 4+4pin CPU, 16-pin PCIe Gen5 (500mm), 3× 8pin-to-6+2 PCIe, 2× SATA 1-to-3, 1× Peripheral 1-to-3

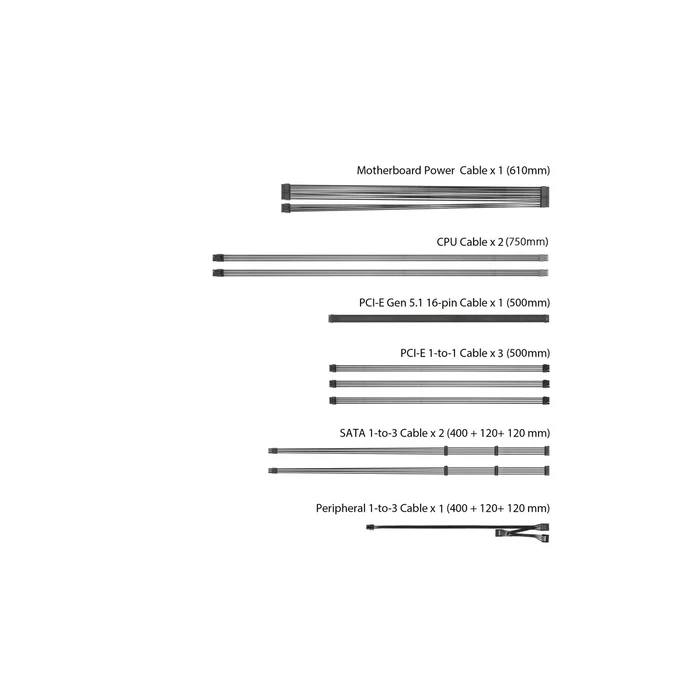

• Cables
  Motherboard, CPU, PCIe Gen5 16-pin, PCIe 1-to-1 cables, SATA and peripheral cables
• Warranty
  10 years
• ROHS Compliance
  Yes
• Material Highlights
  Low-ESR Japanese capacitors, metallic TUF capacitors, conformal coating
