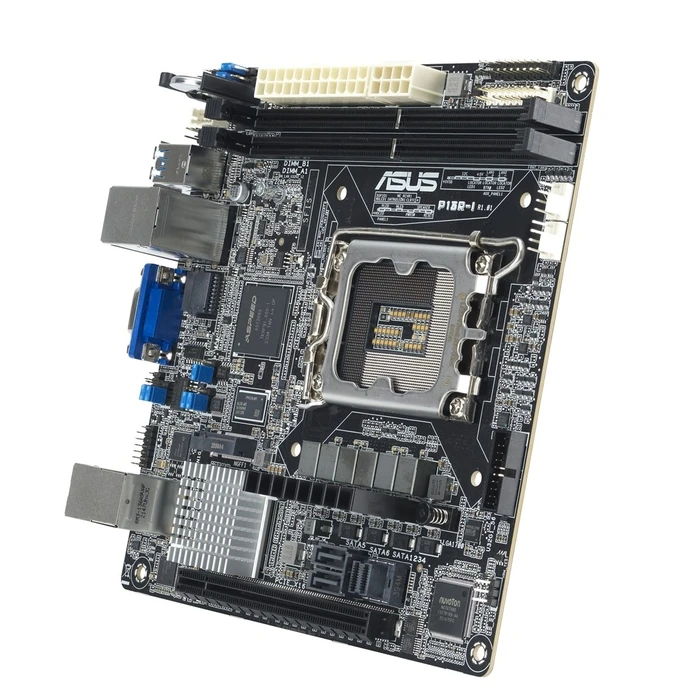

ASUS P13R-I Intel C262 LGA 1700 Mini-ITX μητρική

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  ASUS
• Model
  P13R-I
• Manufacturer Part Number (MPN)
  90SB0CR0-M0UAY1
• EAN
  4711636232623
• Category
  Mini-ITX Server Motherboard
• Chipset
  Intel C262
• CPU Socket
  LGA 1700
• Compatible Processor Series
  Intel® Xeon®, Intel Xeon E, Intel® Pentium®
• Form Factor
  Mini ITX (170 x 170 mm)
• Memory Type
  DDR5-SDRAM
• Memory Slots
  2 DIMM
• Maximum Memory
  64 GB
• Memory Channels
  Dual-channel
• ECC Compatibility
  Yes (ECC supported)
• Supported Memory Speeds
  3600, 4000, 4400, 4800 MHz (up to 4800 MHz)
• On-board Graphics/BMC
  AST2600 (on-board graphics memory 64 MB)
• PCIe Slots
  1 x PCIe 5.0 x16 (full-length)
• M.2 Slots
  1 (supports 2280, PCIe 4.0)
• SATA Ports
  6 x SATA III 6 Gb/s
• Supported Storage Drive Interfaces
  PCIe 4.0 (M.2), SATA III
• Total Supported Drives
  7 (6 SATA + 1 M.2)

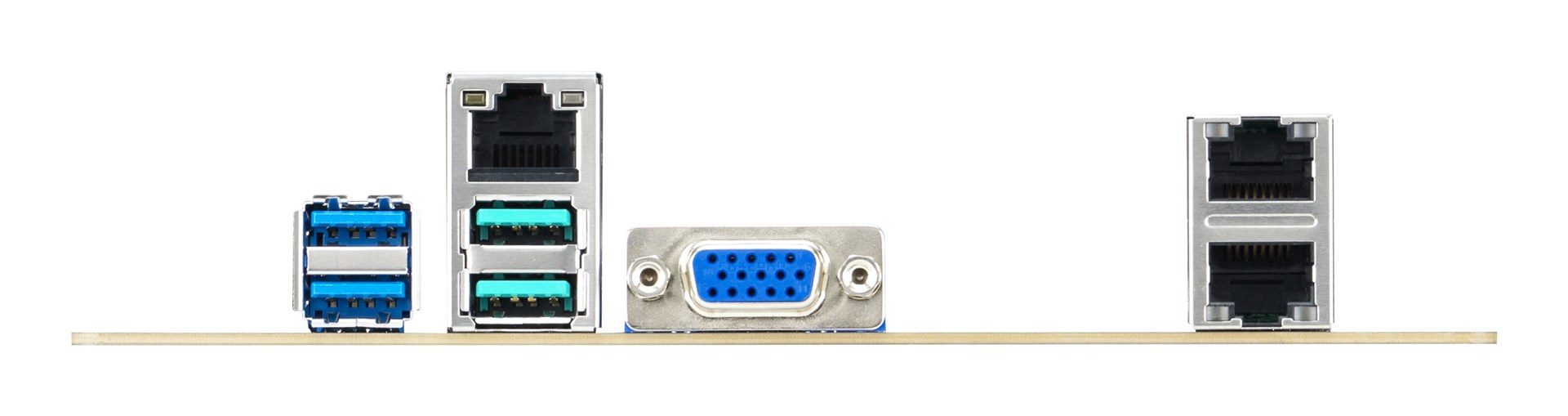

• USB Ports (rear)
  2 x USB 3.2 Gen1 (Type-A), 2 x USB 3.2 Gen2 (Type-A)
• Video Output
  VGA (D-Sub)
• Ethernet LAN Ports
  3 x Gigabit Ethernet (RJ-45)
• Wi-Fi
  No
• Bluetooth
  No
• Cooling Type
  Passive
• Number of CPU Fan Connectors
  1
• Number of Chassis Fan Connectors
  2
• Front Panel Connector
  Yes
• TPM Connector
  Yes
• Chassis Intrusion Connector
  Yes
• COM Connector
  1
• Operating Temperature Range
  10 - 50 °C
• Storage Temperature Range
  -40 - 70 °C
• Storage Relative Humidity
  20 - 90%
• Product Colour
  Black
• Package Weight
  1200 g
• Package Dimensions (W x L x H)
  34.1 x 28.1 x 7.8 cm
• Board Dimensions
  170 x 170 mm
• Component For
  Server
• Cooling Solutions Supported
  Passive (board-level)
• On-board Management
  BMC (AST2600)
• First M.2 Highest PCI Express Generation
  PCIe 4.0
• First M.2 Largest Key Size
  2280
• Number of SATA III Connectors
  6
• Number of M.2 Slots
  1
• Number of PCIe x16 Slots
  1 (PCIe 5.0)
• USB 3.2 Gen2 Type-A Ports Quantity (rear)
  2
• USB 3.2 Gen1 Type-A Ports Quantity (rear)
  2
