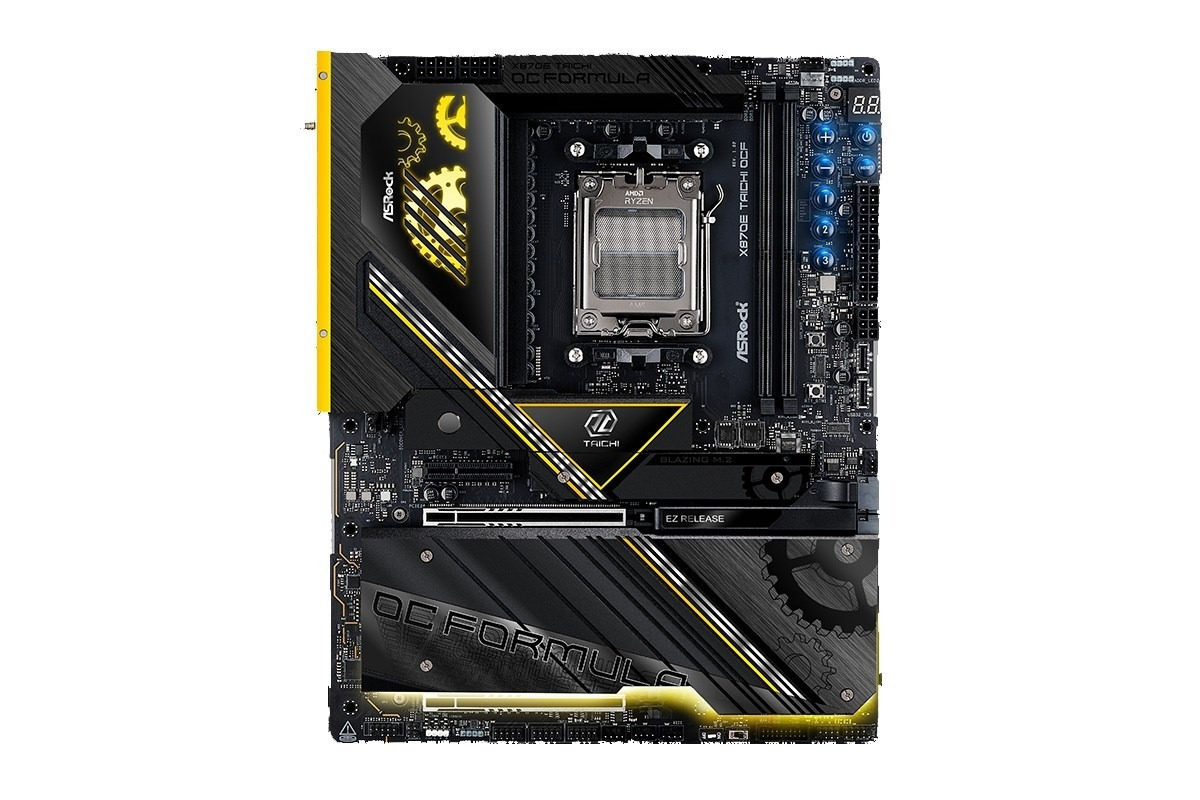

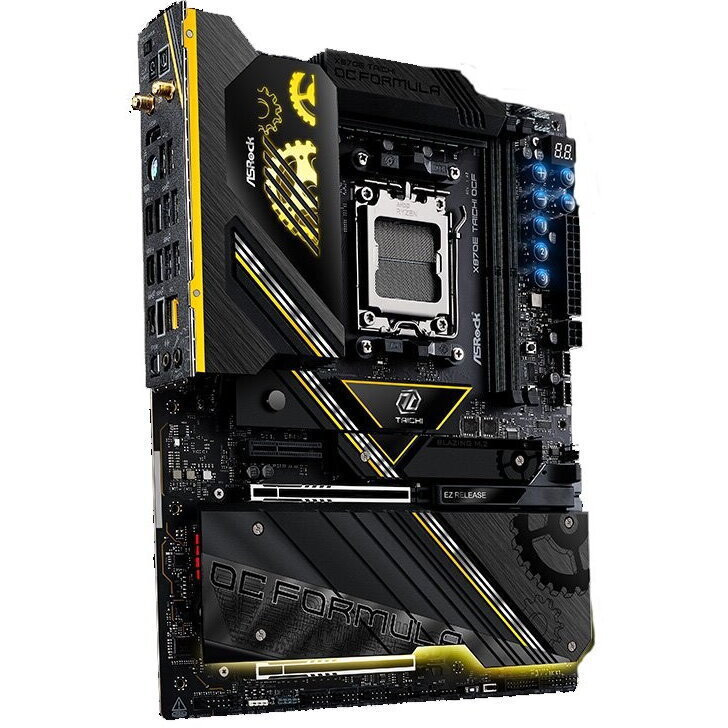

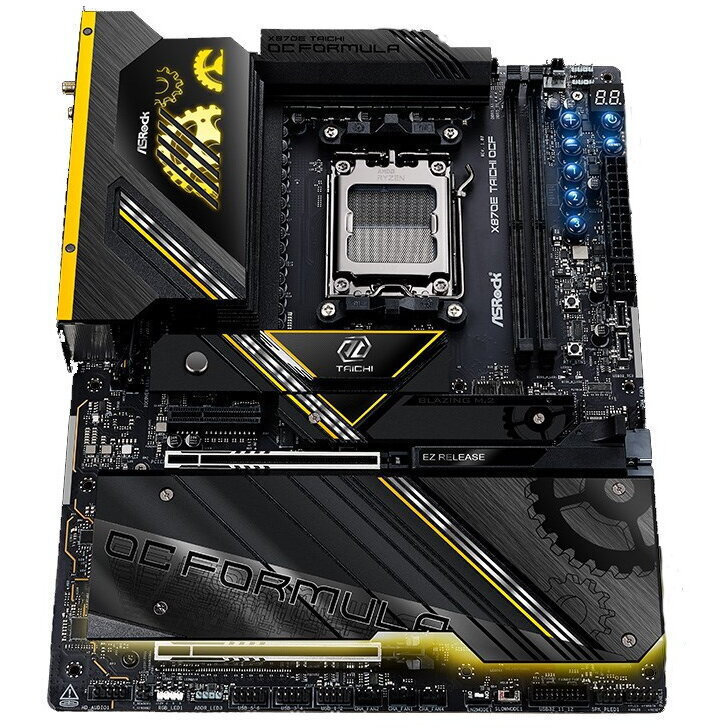

ASRock X870E Taichi OCF AM5 ATX (Μητρική DDR5, HDMI, USB-C)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  ASRock
• Model
  X870E Taichi OCF
• MPN
  90-MXBTG0-A0UAYZ
• EAN
  4711581492509
• Form Factor
  ATX (305 x 244 mm)
• Socket
  AM5
• Chipset
  AMD X870E
• CPU Support
  AMD Ryzen (Zen 4, Zen 5)
• VRM Design
  22+2+1 Dr.MOS with 110A Smart Power Stages (SPS) for VCore+SOC
• PCB
  10-layer PCB with 2oz copper
• Memory Type
  DDR5
• Memory Slots
  2 DIMM slots
• Memory Configuration
  Dual Channel; 1 DIMM per channel optimized; Supports OC up to 8000OC / 8400OC
• M.2 Slots (total)
  5 (2x PCIe 5.0 x4, 3x PCIe 4.0 x4)
• SATA Ports
  2 x SATA III 6Gb/s
• PCIe Slots
  2 x PCIe x16 (Gen5), 1 x PCIe x16 (Gen4)
• Onboard USB-A
  2 x USB 2.0, 7 x USB 3.2
• Onboard USB-C
  1 x USB 3.2 Type-C, 2 x USB4 Type-C
• USB4 Speed
  40 Gbps
• Video Outputs
  HDMI
• Ethernet (LAN) Ports
  5 (multi-LAN configuration)
• WiFi/Bluetooth
  Yes (onboard)
• Audio
  5.1 channels, Optical S/PDIF
• Extras
  BIOS Flashback; Clear CMOS button; RGB header
• Cooling/Heatsinks
  Large aluminum VRM heatsinks; extended cooling for M.2 areas
• Intended Use
  Desktop high-performance / gaming / overclocking
• Form Factor Standard
  ATX
• Boxed Weight (approx)
  1500 g
• Product Weight (approx)
  950 g
