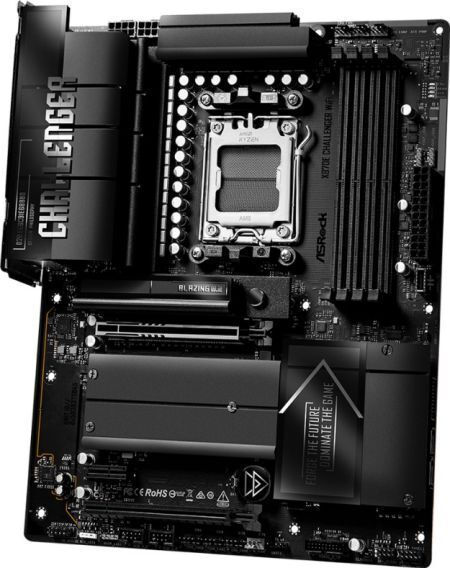

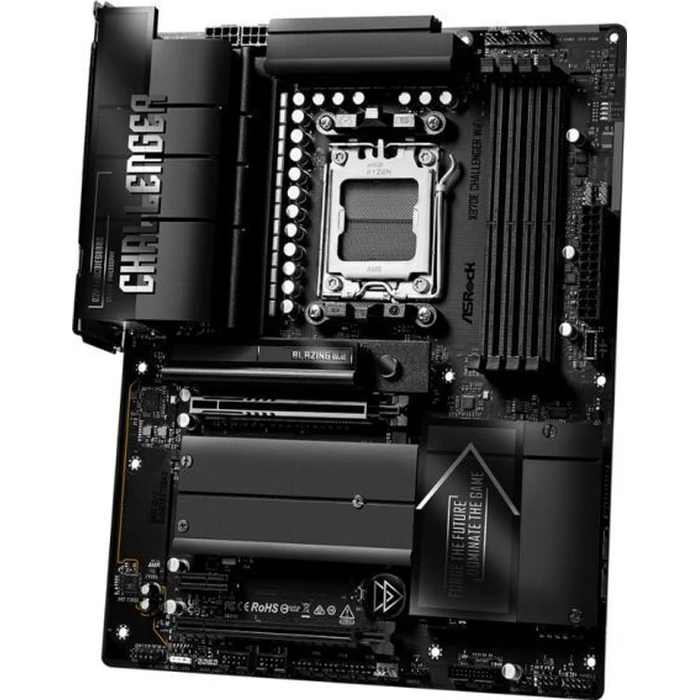

ASRock X870E Challenger WiFi Μητρική Κάρτα ATX Socket AM5 (90-MXBUG0-A0UAYZ)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Form Factor
  ATX (30.5 cm x 24.4 cm)
• Chipset
  AMD X870E
• CPU Socket
  AM5
• Supported CPUs
  AMD Ryzen™ 9000, 8000 and 7000 series
• VRM / Power Design
  20+2+1 Phase Power Design with 110A Smart Power Stage (SPS) for VCore+SOC
• Memory Type
  DDR5
• Memory Slots
  4 DIMM slots (Dual Channel)
• Maximum Memory
  256GB
• Memory Speeds
  Supports DDR5 up to 8200+ MHz (OC); AMD EXPO and Intel XMP profiles
• ECC Support
  Supports ECC and non‑ECC unbuffered DDR5 (platform dependent)
• PCIe Slots
  1 x PCIe 5.0 x16 (primary, CPU), additional PCIe slots including PCIe 3.0 x16 (x2 mode)
• M.2 Slots
  4 x M.2 slots (support RAID 0/1/10 for M.2)
• SATA Ports
  4 x SATA III 6.0 Gb/s (support RAID 0/1)
• Rear USB Ports
  2 x USB4 Type‑C (40 Gb/s), 5 x USB 3.2 Gen2, 3 x USB 3.2 Gen1, 2 x USB 2.0
• Front Header
  Front Panel Type‑C USB 3.2 Gen2x2 (20 Gb/s)
• LAN
  Realtek RTL8126 5 Gbps Ethernet
• WiFi & Bluetooth
  802.11be 2x2 Wi‑Fi 7 (MLO support), Bluetooth 5.4
• Audio Codec
  Realtek ALC4082 7.1‑channel HD Audio with Nahimic audio software
• Optical Audio
  Optical S/PDIF out
• Onboard Features
  BIOS FlashBack, Clear CMOS, Front Type‑C header, multiple fan and pump headers
• RGB
  3 x Addressable RGB headers; Polychrome RGB support
• Storage RAID
  M.2 RAID 0/1/10; SATA RAID 0/1
• Dimensions
  Motherboard size: 30.5 cm x 24.4 cm (Standard ATX)
• BIOS Features
  Supports modern BIOS features for overclocking and flashing
• Intended Use
  High‑end desktop gaming, overclocking, content creation
