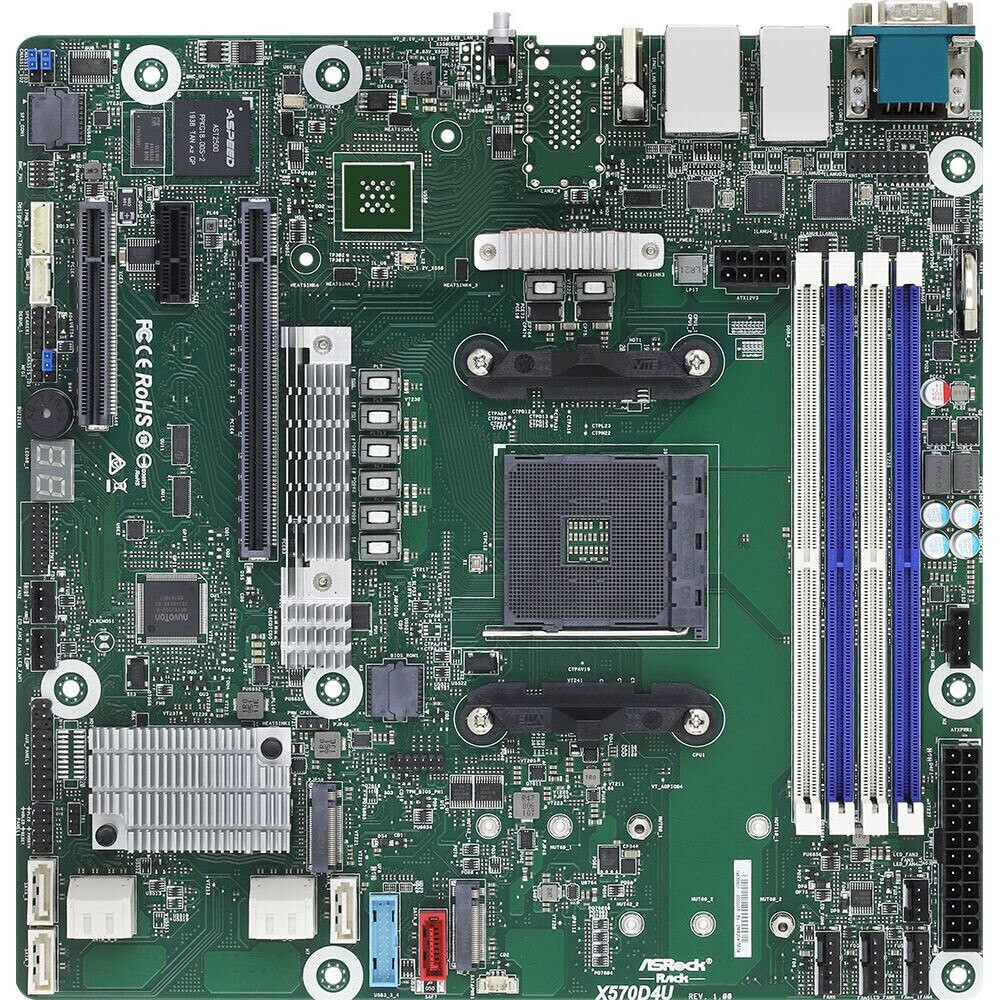

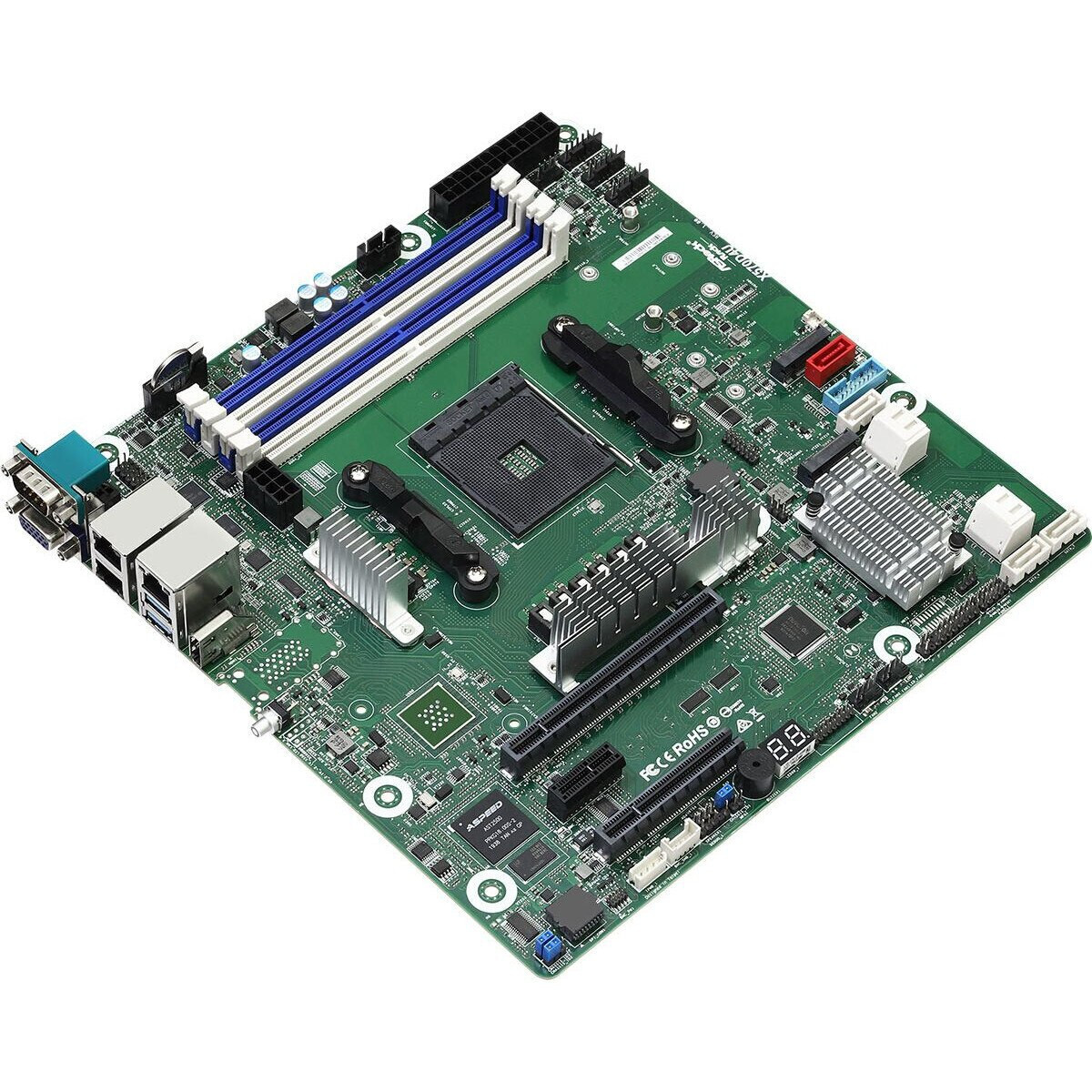

ASRock X570D4U Μητρική Micro ATX (Socket AM4)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Product Name
  ASRock X570D4U Micro ATX Motherboard
• Manufacturer
  ASRock
• Model
  X570D4U
• Form Factor
  Micro ATX (244 mm x 244 mm)
• Socket
  Socket AM4
• Chipset
  AMD X570
• Supported CPU Family
  AMD Ryzen (Zen 2, Zen 3)
• Memory Type
  DDR4-SDRAM
• Memory Slots
  4 DIMM slots
• Maximum Internal Memory
  32 GB
• ECC Compatibility
  Non-ECC
• Supported Memory Clock Speeds
  2400, 2666, 2933, 3200 MHz
• Memory Voltage
  1.2 V
• Unbuffered Memory
  Yes
• PCI Express x16
  1 x PCIe 4.0 x16 slot
• PCI Express x8
  1 x PCIe x8 slot
• PCI Express x1
  1 x PCIe x1 slot
• M.2 Slots
  2 M.2 (PCIe 4.0) slots
• M.2 Interfaces
  PCIe 4.0 (x2 M.2)
• SATA Connectors
  12 x SATA III (6 Gb/s)

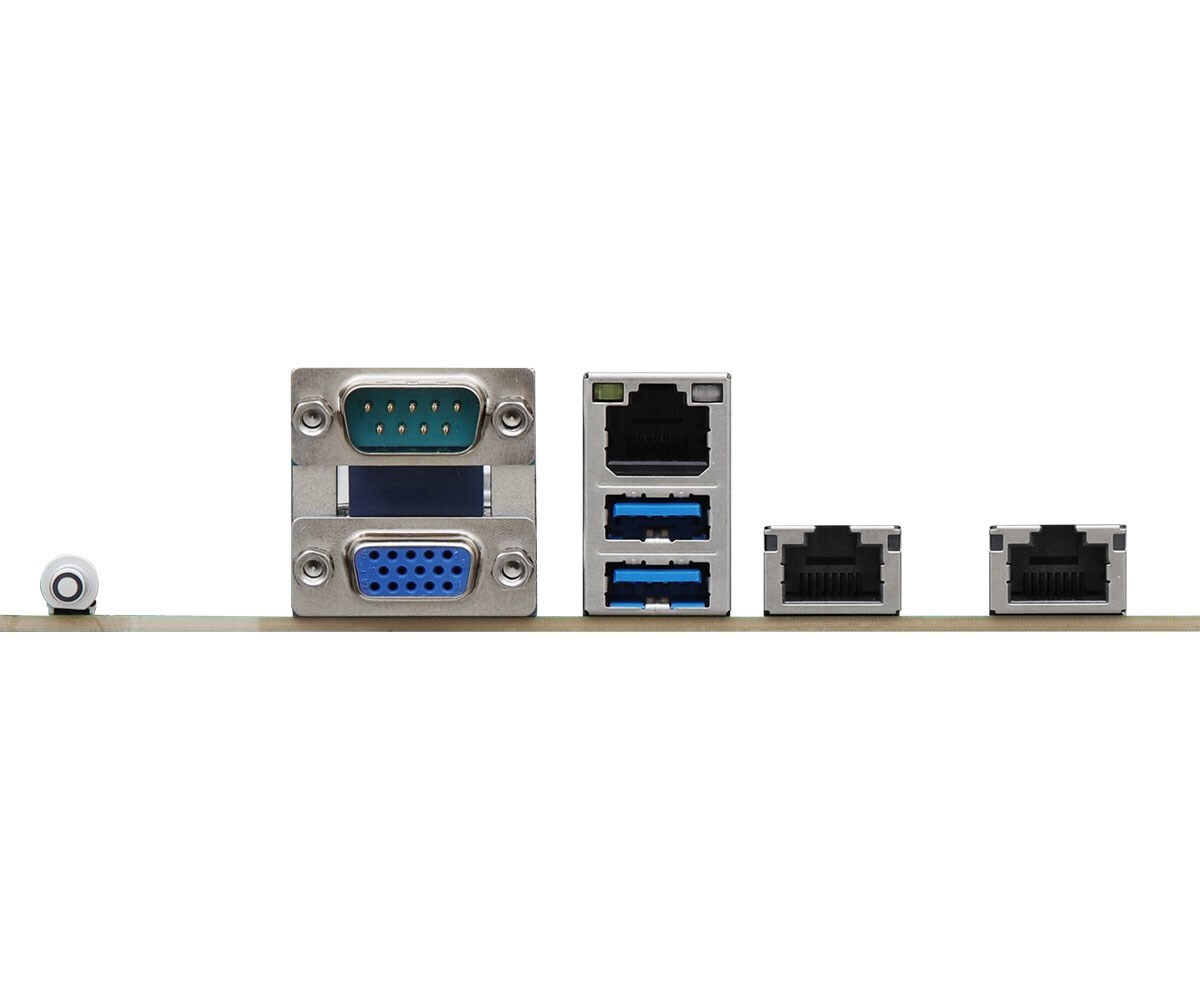

• USB Ports (rear)
  2 x USB 3.2 Gen1 (Type-A)
• Ethernet LAN Ports
  3 x Gigabit RJ-45
• LAN Controllers
  Intel I210, Realtek RTL8211E
• Video Outputs
  1 x HDMI, 1 x VGA (D-Sub)
• Onboard Graphics/Management
  ASPEED (AST2500)
• BIOS Type
  UEFI AMI
• ACPI Version
  2.0
• RAID Support
  Yes (RAID 1, RAID 10)
• TPM Connector
  Yes
• Chassis Intrusion Connector
  Yes
• Power Connectors
  24-pin ATX, 12V CPU connector
• Operating Temperature
  10 - 35 °C
• Storage Temperature
  -40 - 70 °C
• Width x Depth
  244 mm x 244 mm
• Number of SATA III Ports
  12
• Harmonized System (HS) Code
  84733020
• Warnings
  Do not open or disassemble the motherboard.; The motherboard may contain electronic components hazardous to health - avoid direct contact.; Use only in a dry and well-ventilated area.
