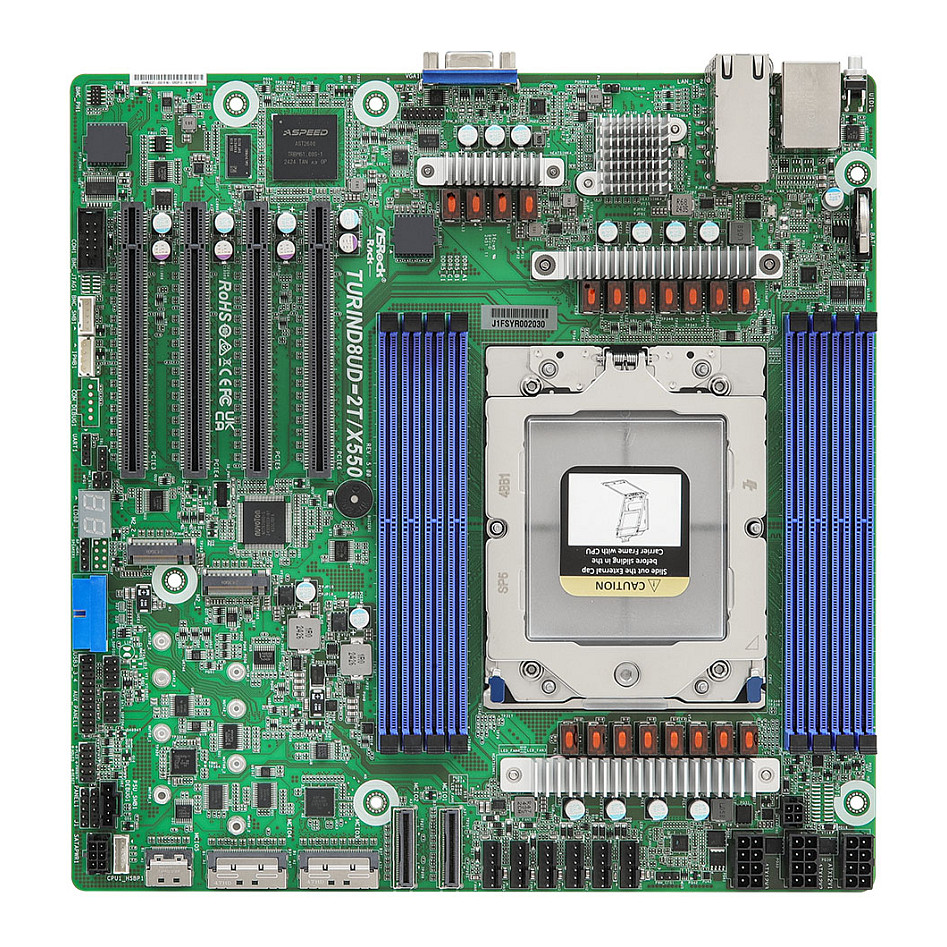

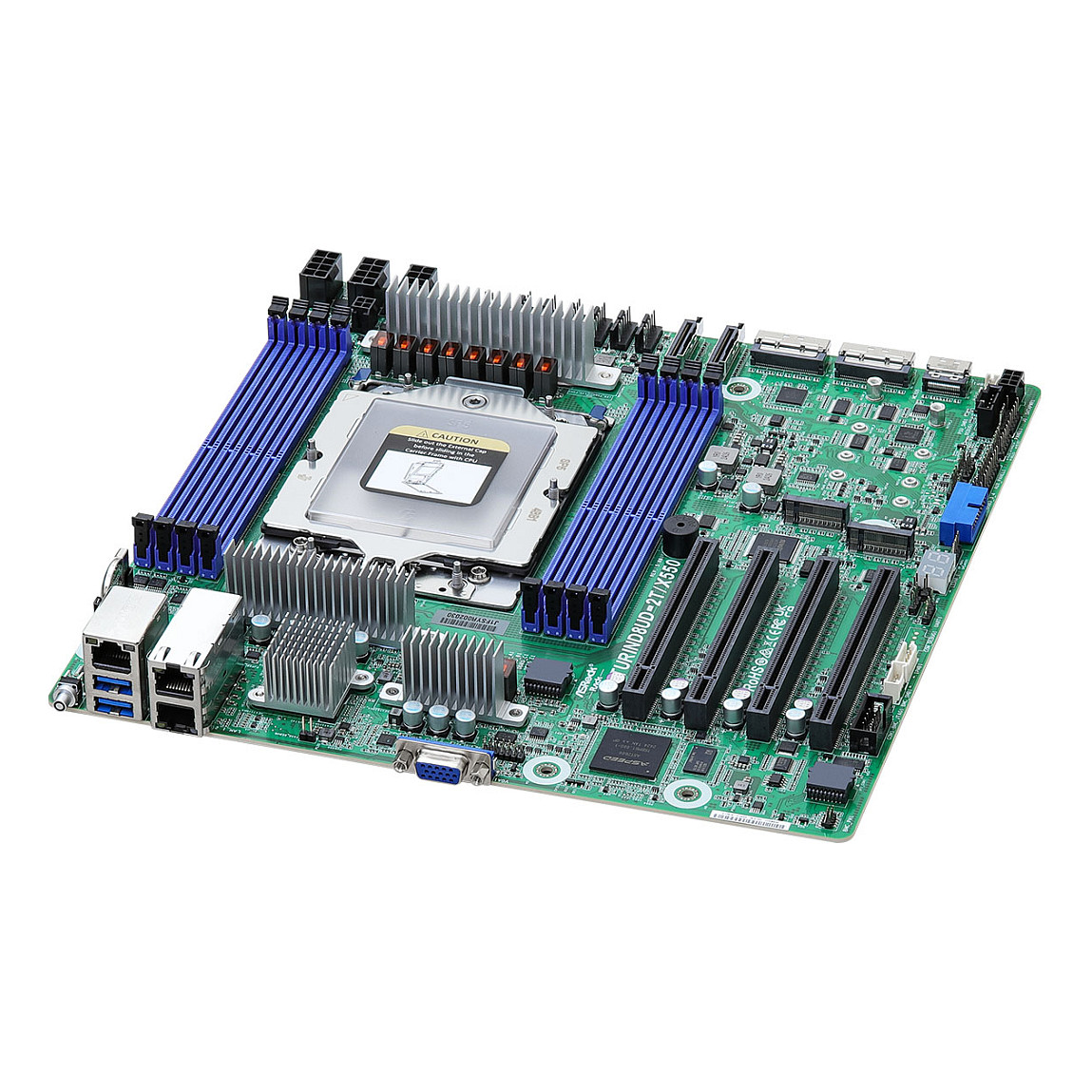

ASRock Rack TURIND8UD-2T/X550 Deep Micro-ATX Μητρική Πλακέτα (Socket SP5) για Server

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  ASRock Rack
• Model
  TURIND8UD-2T/X550
• SKU
  21155754
• MPN
  TURIND8UD-2T/X550
• EAN / Barcode
  4711430525488
• Category
  Mainboards & Zubehör → Mainboards - AMD
• Board Type
  Server motherboard (Deep Micro-ATX)
• Form Factor
  Deep Micro-ATX (≈264.16 x 266.7 mm)
• Socket
  Single Socket SP5 (LGA6096)
• CPU Support
  AMD EPYC 9004 & 9005 series (including 3D V-Cache and 97x4 series)
• Supported CPUs per Board
  1
• TDP Support
  Up to 400W
• DIMM Slots
  8 x DDR5 RDIMM (288-pin)
• Memory Type
  DDR5 RDIMM and RDIMM-3DS
• Memory Configuration
  1DPC (1 DIMM per channel)
• Memory Speed
  Up to 6400 MT/s
• Max DIMM Capacity
  RDIMM: 128 GB; RDIMM-3DS: 256 GB
• Maximum System Memory
  Up to 4 TB (vendor listings)
• PCIe Expansion
  4 x PCIe 5.0 / CXL 2.0 x16 slots
• MCIO
  Multiple MCIO connectors (2 x PCIe5.0 x8; 2 x PCIe5.0 x8 or 8x SATA6Gb/s; 1 x PCIe5.0 x4)
• M.2 Slots
  2 x M-key M.2 (PCIe 5.0 x4) supporting 2280/2260/2242/2230
• SATA Support
  Up to 16 x SATA 6Gb/s (via MCIO configurations)
• Network Controller
  Intel X550-AT2
• LAN Ports
  2 x RJ45 10GbE
• Remote Management
  IPMI with ASPEED AST2600 BMC
• BMC Memory
  512 MB DDR4 VRAM (BMC VRAM)
• BIOS
  AMI UEFI BIOS, 256 Mb (32 MB) SPI Flash ROM

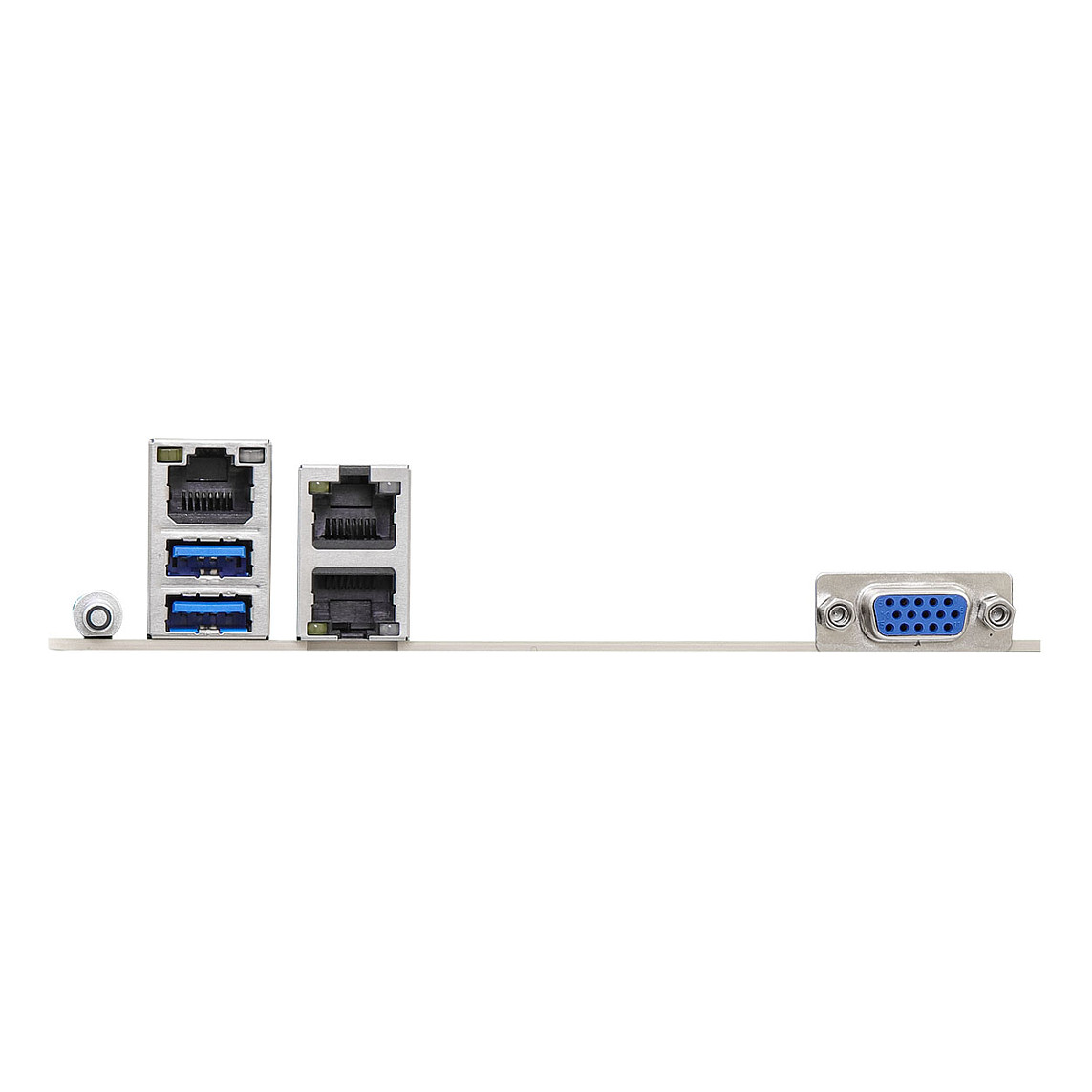

• Rear I/O USB
  2 x USB 3.2 Gen1 Type-A
• Video
  VGA (D-Sub)
• Management Port
  Dedicated OOB management port
• Power Input
  Supports ATX PSU or 12V DC-IN (compact board layout; standard 24-pin ATX not used in traditional way)
• Onboard Features
  CXL 2.0 support on PCIe 5.0 slots, flexible MCIO for storage/expansion
• Typical Use Case
  Compact rack servers, workstations, storage or networking appliances requiring PCIe5.0 and 10GbE
• Dimensions (Board)
  264.16 mm x 266.7 mm
• Packaging (estimated)
  Retail box with anti-static protection and accessories
