ASRock Rack SIENAD8-2L2T ATX Μητρική Πλακέτα Socket SP6 (LGA 4844) για Server

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  ASRock Rack
• Model
  SIENAD8-2L2T
• SKU
  21294444
• EAN / Barcode
  4711430522302
• MPN
  SIENAD8-2L2T
• Category
  Mainboards & Zubehör → Mainboards - Server
• Form Factor
  ATX (12" x 9.6" / 30.48 x 24.384 cm)
• CPU Socket
  Single Socket SP6 (LGA 4844)
• Supported CPUs
  AMD EPYC 8005 / 8004 series (Siena)
• Chipset / Platform
  AMD EPYC SoC / EPYC 8004 platform
• Memory Slots
  8 x DDR5 DIMM slots
• Memory Type
  DDR5 RDIMM
• Memory Channels
  6-channel platform (EPYC 8004) with 8 DIMMs (2DPC / 1DPC)
• Max DIMM Capacity
  Up to 96GB per DIMM (reported)
• Memory Voltage
  1.1V (DDR5 typical)
• PCIe Expansion
  PCIe Gen5 / CXL support; reported four PCIe Gen5 x16 slots (three support CXL 1.1) plus an x8 slot
• OCP Support
  OCP NIC 3.0 support (PCIe 5.0 x16 options)
• M.2 Slots
  2 x M-key M.2 slots (2280 / 22110) — PCIe 5.0 x4 or SATA 6Gb/s
• Additional Storage
  1 x MCIO and 1 x OCuLink reported (MCIO can support PCIe5/CXL x8 or 8 x SATA 6Gb/s)
• SATA
  Up to 10 x SATA 6Gb/s reported (via EPYC 8004 platform configuration)
• LAN
  Dual 10GbE (Intel X710-AT2) + Dual 1GbE (Intel i210-AT)
• Management / BMC
  ASPEED AST2600 BMC with dedicated OOB management port

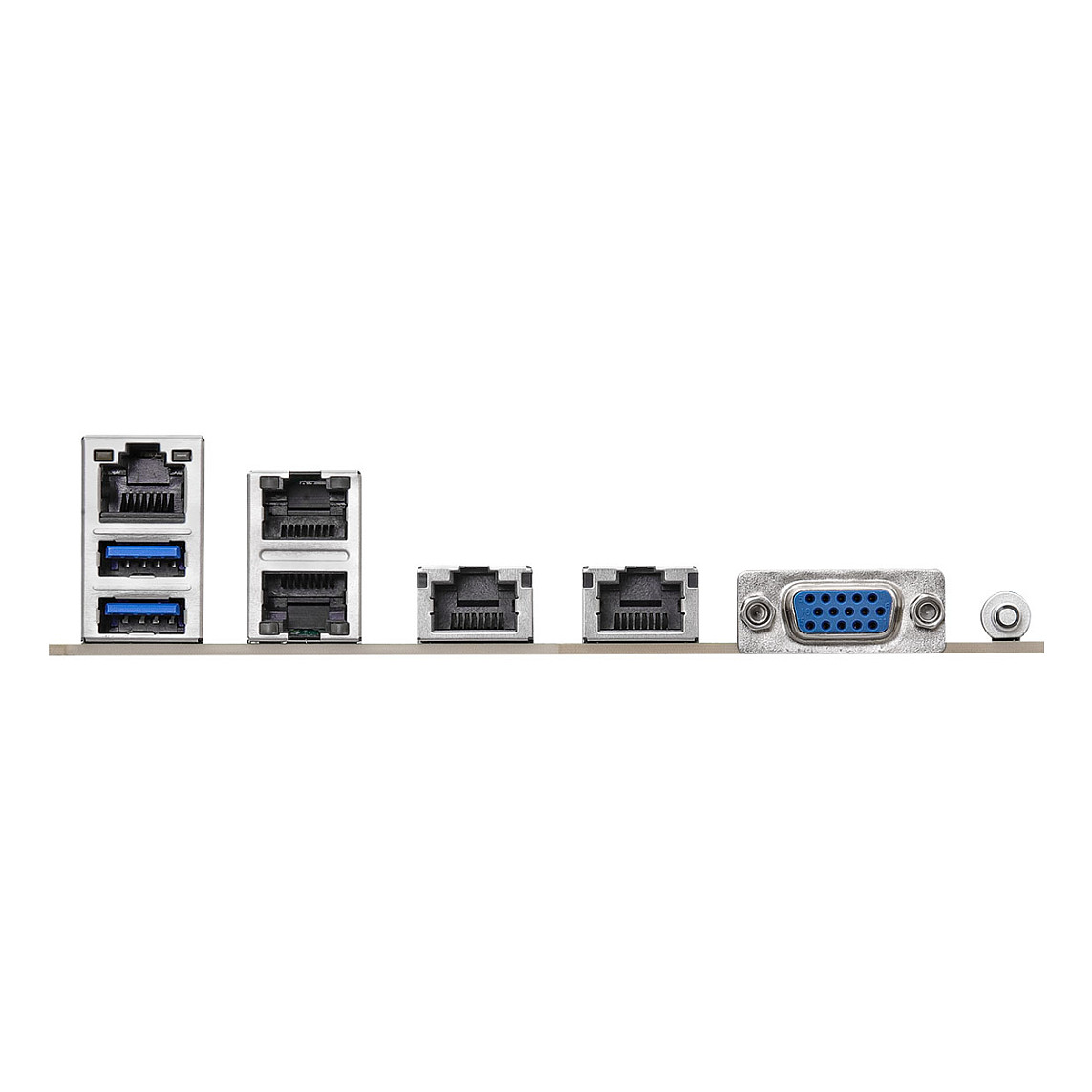

• Rear I/O
  VGA (listed as mini DisplayPort/VGA function in some listings), 2 x USB 3.2 Gen1 Type-A, network ports, management port
• Power
  2 x 8-pin 12V ATX power inputs (reported)
• Package Contents
  Motherboard; I/O shield; SATA cables; documentation (varies by retailer)
• Target Use
  Server workloads, high-density / high-bandwidth compute and storage
• Weight (product)
  ~1482 g
• Dimensions (board)
  12" x 9.6" (30.48 x 24.384 cm)
• Compliance / Notes
  Designed for AMD EPYC 8004 “Siena” platform; emphasizes PCIe Gen5 and CXL capabilities
