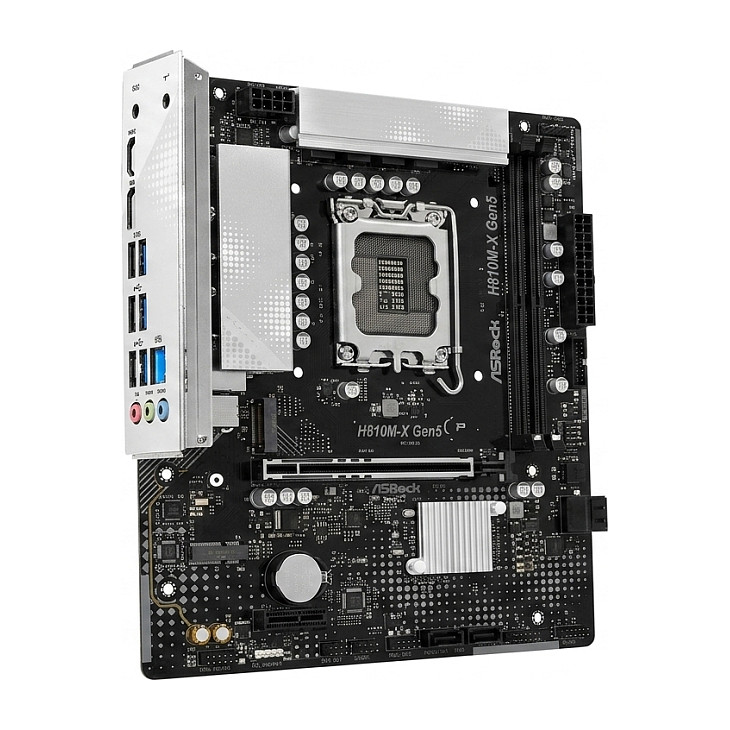

ASRock H810M‑X Gen5 DDR5 Intel S1851 (90-MXBU90-A0UAYZ) - λιανικής

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Product Name
  ASRock H810M-X Gen5 DDR5 (90-MXBU90-A0UAYZ)
• Brand
  ASRock / ASRock EUROPE B.V.
• Model
  H810M-X Gen5
• MPN
  90-MXBU90-A0UAYZ
• EAN / Barcode
  4711581493827
• Form Factor
  micro-ATX (244 mm x 244 mm)
• CPU Socket
  Intel LGA1851
• Compatible Processors
  Intel Core Ultra Series 2 (LGA1851)
• Chipset
  Intel H810 (Gen5 variant)
• Power Delivery / VRM
  6+1+1+1+1 power phase design
• Memory Type
  DDR5
• Memory Slots
  2 x DDR5 DIMM
• Maximum Memory Capacity
  Up to 128 GB
• Memory Speed Support
  Up to 6400 MT/s (depending on CPU and memory)
• Memory Channel
  Dual-channel
• Primary PCIe Slot
  1 x PCIe 5.0 x16
• Additional Expansion Slot(s)
  1 x PCIe 4.0 x1
• M.2 Slots
  1 x Hyper M.2 (PCIe Gen4 x4)
• SATA Ports
  4 x SATA3 (6 Gb/s)
• Onboard LAN
  Realtek 2.5Gb LAN
• Onboard Audio
  Realtek ALC897 7.1-channel HD Audio Codec
• Rear I/O Video Outputs
  HDMI, DisplayPort, D-Sub (VGA)
• USB (Overview)
  1 x Front USB 3.2 Gen1 Type-C header (up to 5 Gbps), 4 x USB 3.2 Gen1, 6 x USB 2.0 (counts may include headers)
• Internal Headers
  Front USB Type-C header, USB 3.2 Gen1 header(s), multiple USB 2.0 headers, system fan headers, RGB + ARGB headers
• Wi‑Fi Support
  M.2 Key-E slot for optional Wi‑Fi/Bluetooth module (module not included on standard retail board)
• BIOS
  UEFI BIOS (ASRock) with standard features
• Audio Capacitors / Hardware
  High-quality audio capacitors (as per ASRock specification), isolated audio PCB section
• I/O Shield
  Integrated / included in retail packaging (typical for ASRock retail boards)
• RGB
  Onboard RGB header(s) and addressable RGB header(s)
• Storage Interfaces
  1 x M.2 (PCIe Gen4 x4), 4 x SATA3
• Typical Retail Contents
  Motherboard, I/O shield, SATA cables, M.2 screw(s), Quick Installation Guide, driver/software resources (DVD or online)
• Board Dimensions
  244 mm x 244 mm (micro-ATX)
• Weight (board)
  Approximately 650 g
• Retail Packaging Weight (est.)
  Approximately 1200 g
