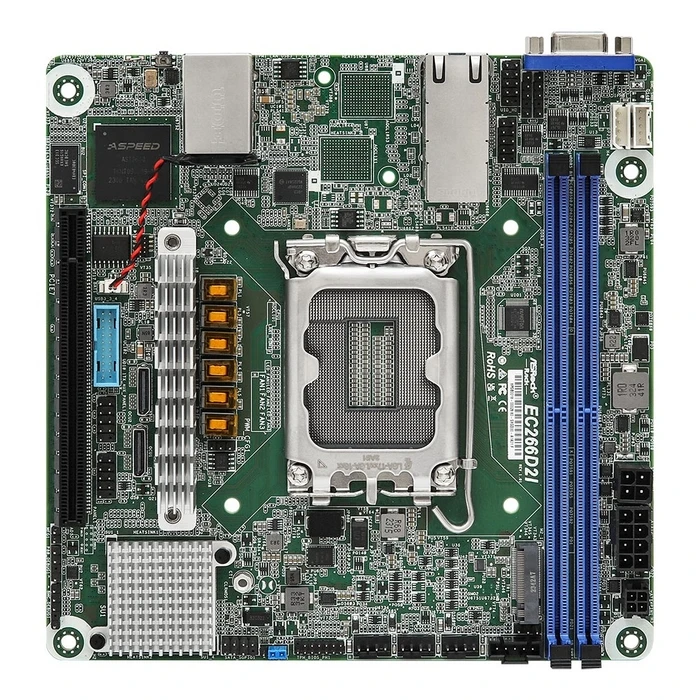

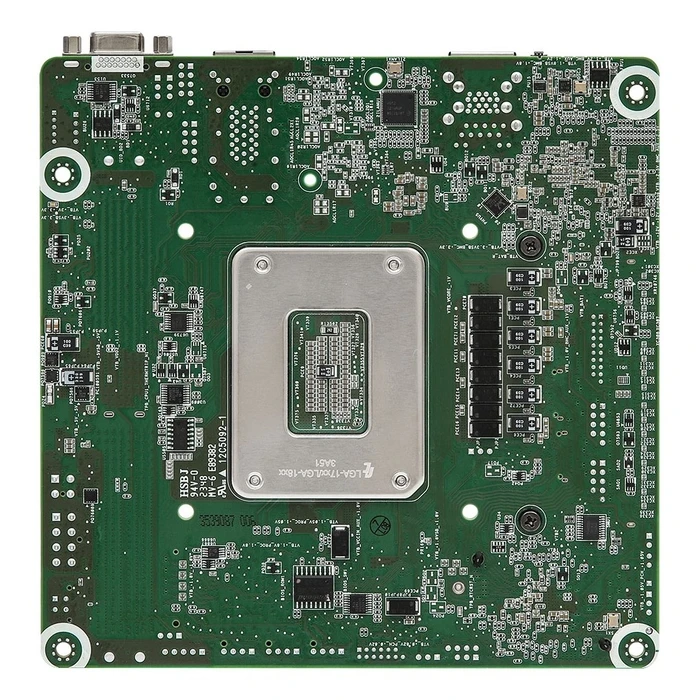

ASRock EC266D2I μητρική πλακέτα Intel C266 LGA1700 Mini ITX (Server)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  ASRock
• Model
  EC266D2I
• SKU
  PLGASRSIN0031
• MPN
  EC266D2I
• EAN
  4711430521763
• Category
  Intel server motherboards
• Form Factor
  Mini ITX (170.2 x 170.2 mm)
• Chipset
  Intel C266
• CPU Socket
  LGA 1700
• Compatible Processors
  Intel Xeon E, Intel Xeon, Intel Pentium Gold
• On-board Graphics / BMC
  Aspeed AST2600 (BMC)
• Memory Type
  DDR5
• Memory Slots
  2 x DIMM
• Maximum Internal Memory
  32 GB
• Memory Voltage
  1.1 V
• ECC Compatibility
  Yes (ECC supported)
• Supported Memory Clock Speed (max)
  4800 MHz
• Memory Channel
  Dual Channel
• PCI Express Slots
  1 x PCIe x16 (Gen 5)
• M.2 Slots
  1
• OCuLink Connectors (NVMe support)
  2
• SATA III Connectors
  8 (6 Gb/s)
• USB 3.2 Gen1 (Type-A) Rear Ports
  2
• USB 3.2 Gen1 Connectors (internal)
  3
• Ethernet LAN (RJ-45) Ports
  2 (one dedicated IPMI LAN)
• IPMI LAN
  Yes
• COM Connector
  1
• TPM Connector
  Yes
• ATX Power Connector
  24-pin
• EPS Power Connector
  8-pin
• Peripheral (Molex) Power Connector
  1 (4-pin)
• RAID Support
  Yes (RAID levels: 1, 5, 10)
• BIOS Type
  AMI
• BIOS Memory Size
  256 Mbit
• ACPI Version
  6.4
• SMBIOS Version
  2.8
• On-board Management
  IPMI / BMC (Aspeed AST2600)
• Operating Temperature
  10 - 35 °C
• Storage Temperature
  -40 - 70 °C
• Storage Relative Humidity
  20 - 90%
• Weight (product)
  350 g
• Package Weight
  800 g
• Dimensions (board)
  170.2 x 170.2 mm
