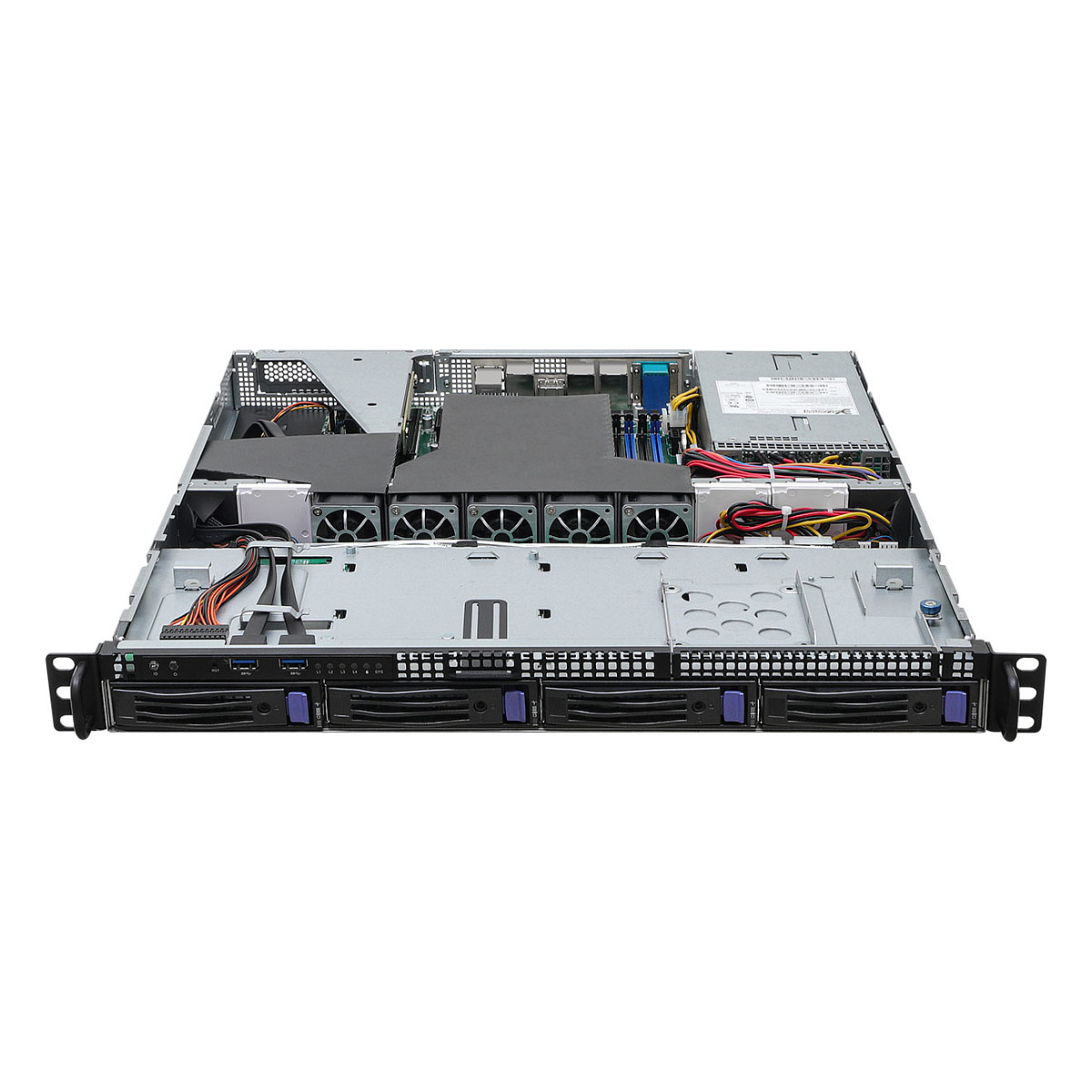

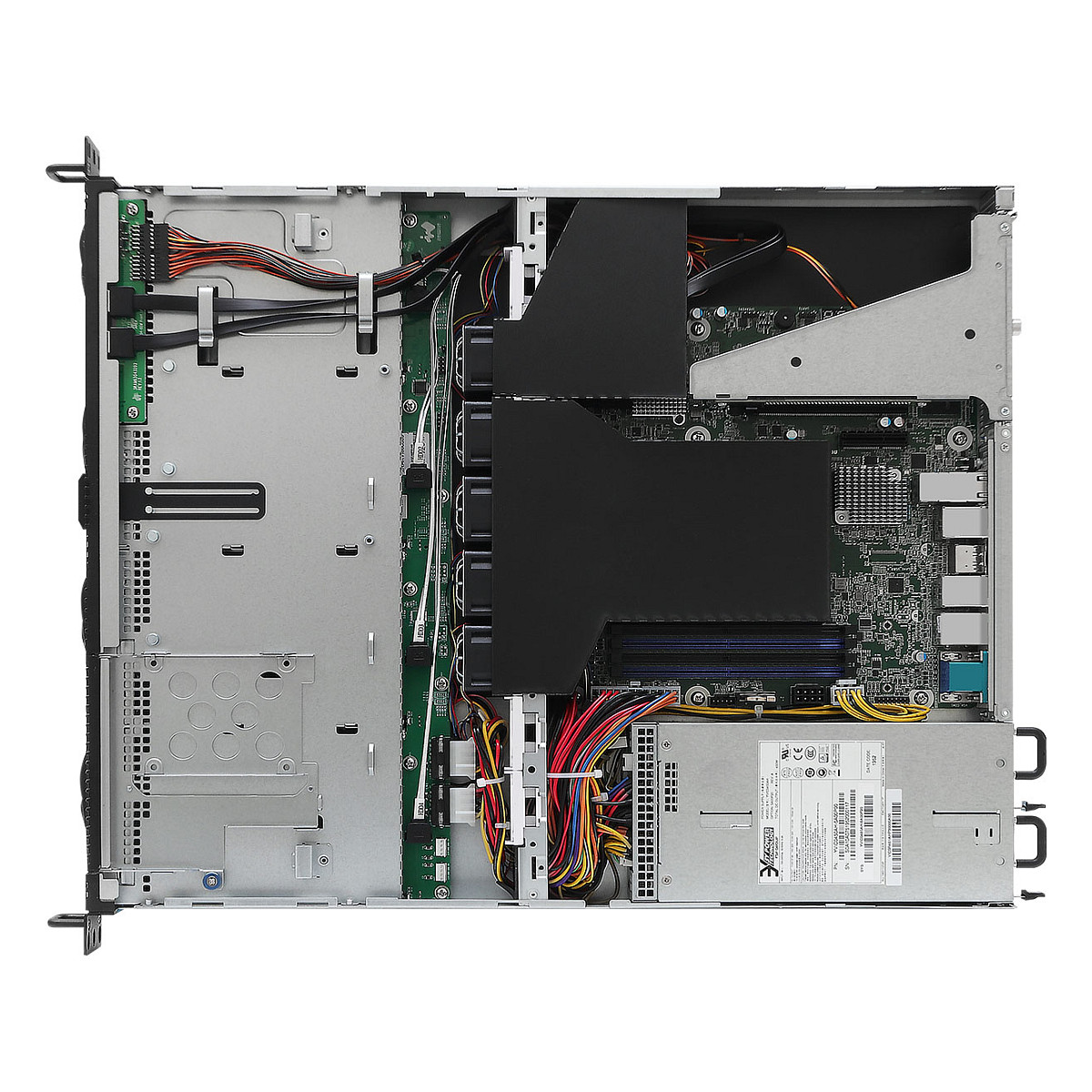

ASRock Barebone Server Single Socket AM5 1U4LW-B650/2L2T RPSU — 1U rackmount barebone server, Socket AM5, B650, DDR5, 4x hot-swap 3,5" bay, Dual 10GbE

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  ASRock / ASRock Rack
• Model
  1U4LW-B650/2L2T RPSU
• Product type
  1U Rackmount Barebone Server (Barebone System)
• SKU
  21155737
• MPN
  1U4LW-B650/2L2T RPSU
• EAN
  4711430520087
• CPU socket
  Socket AM5 (LGA 1718)
• Supported processors
  AMD Ryzen 7000/8000/9000 series (vendor listings) and selected AMD EPYC 4004/4005 (per ASRock Rack / retailers)
• Number of processors supported
  1
• Chipset
  AMD B650
• Architecture
  64-bit
• Memory type
  DDR5 SDRAM (UDIMM)
• Memory standard
  DDR5-5200 / PC5-41600 (manufacturer guidance)
• Memory slots
  4 x DIMM
• ECC support
  Supports DDR5 ECC and non-ECC UDIMM (per ASRock Rack)
• Maximum memory
  Manufacturer indicates support for large UDIMM capacities; some listings conflict (retailer listed 32 GB, reviews and ASRock Rack documentation indicate support up to 192 GB with appropriate modules)
• Drive bays
  4 x hot-swap 3.5" SATA bays
• Supported storage interface
  SATA (3.5" drives) + 1 x M.2 (PCIe 5.0 x4)
• Total expansion bays
  4 hot-swap drive bays
• PCIe slots
  1 x PCIe 4.0 x16 (full-height)
• M.2 slots
  1 x M.2 (PCIe 5.0 x4)
• 10GbE networking
  2 x RJ45 10GbE (Broadcom BCM57416)
• 1GbE networking
  2 x RJ45 1GbE (Intel i210) — listed on manufacturer page
• BMC / Management
  ASPEED AST2600 BMC with IPMI (out-of-band management)
• Graphics controller (BMC)
  ASPEED AST2600
• Video outputs
  HDMI and DisplayPort (manufacturer page); some retailer listings also mention VGA
• USB ports
  6 x USB 3.2 Gen1 (total)

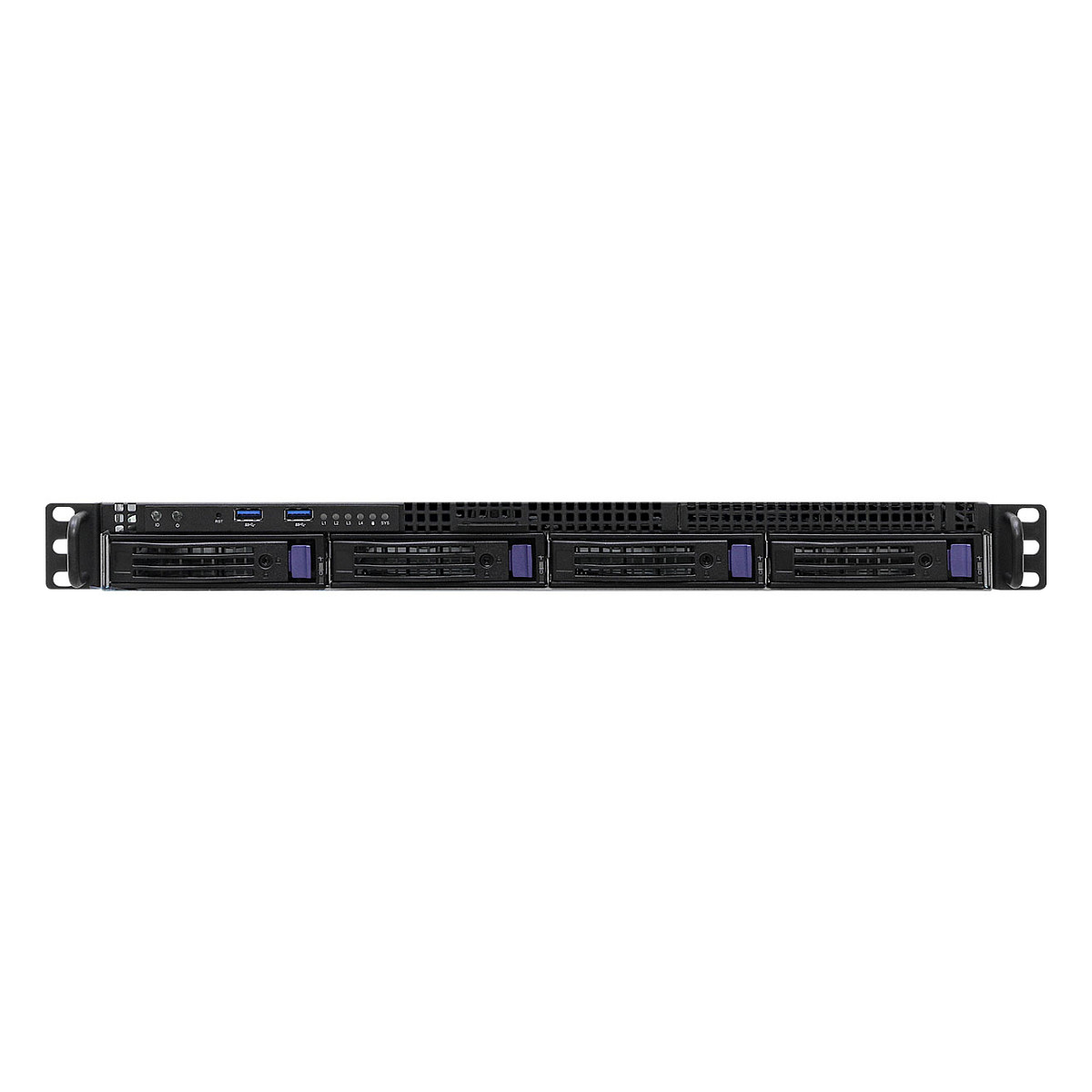

• Front I/O
  Hot-swap 3.5" drive bays, status LEDs, power/reset (varies by build)

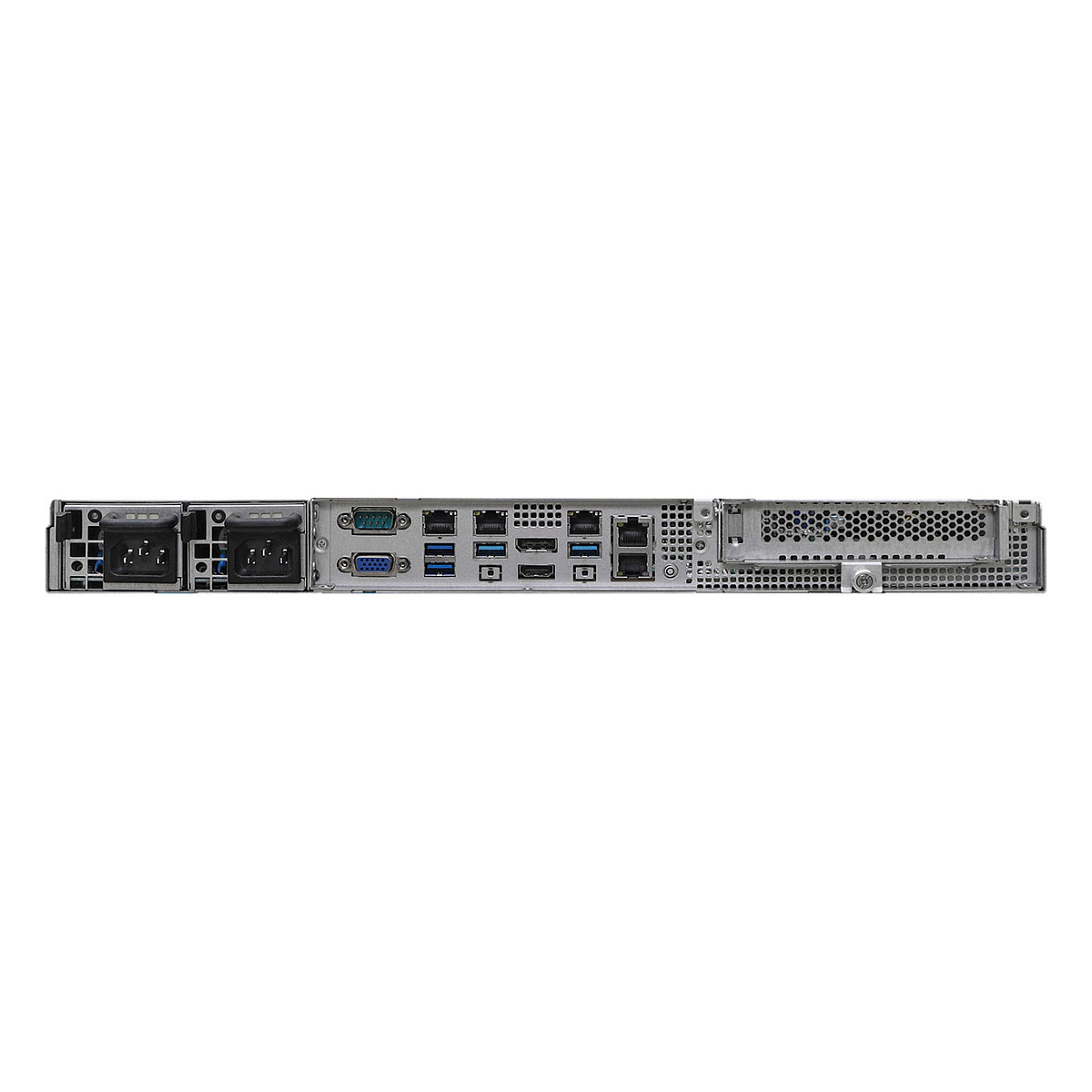

• Rear I/O
  LAN ports, USB ports, video outputs, management port (IPMI)
• Power supply
  450 W redundant PSU (1+1) per ASRock Rack product page
• PSU efficiency
  Listed as 80Plus Gold/Platinum in different listings; sample review units showed Gold while spec page lists Platinum (sample-vs-spec discrepancy)
• Form factor
  1U rackmount
• Rack height
  1U
• Chassis width
  19 inches (standard rack width)
• Chassis depth
  ~21 inches (approx. 53 cm) — manufacturer / reviews
• Chassis height
  ~1.7 inches (approx. 4.3 cm)
• Dimensions (approx.)
  Width 19" (~48.3 cm) x Depth 21" (~53.3 cm) x Height 1.7" (~4.3 cm)
• Weight (product)
  ~7000 g (estimated typical barebone 1U chassis weight)
• Package weight
  ~9000 g (estimated)
• Warranty
  Manufacturer / typical retailer base: 1 year (varies by seller)
• Intended use
  Compact general-purpose server, shallow rack deployments, small footprint datacenter or edge applications
• Notable features
  4 hot-swap 3.5" bays, dual 10GbE, full-height PCIe x16, M.2 PCIe 5.0 support, IPMI management
