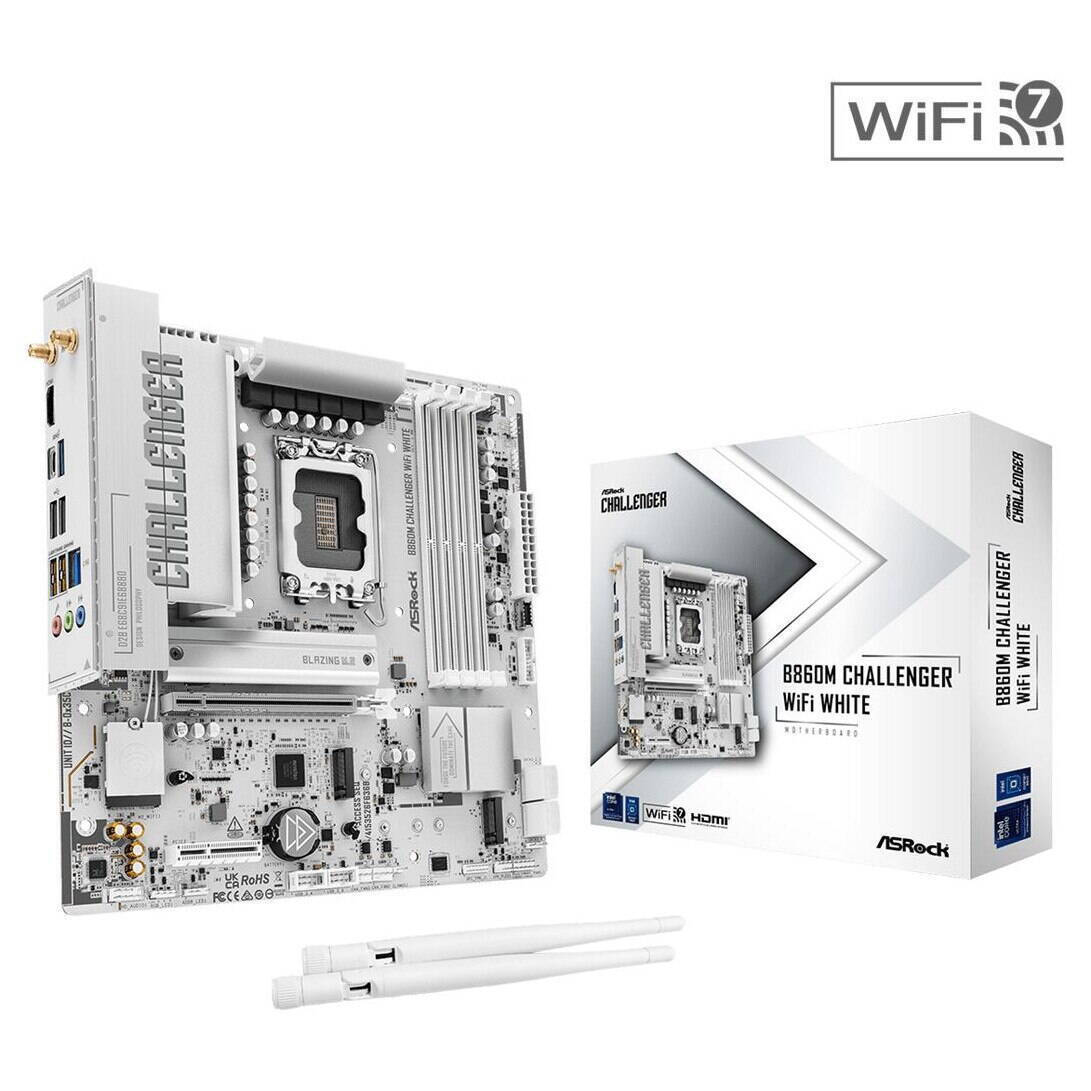

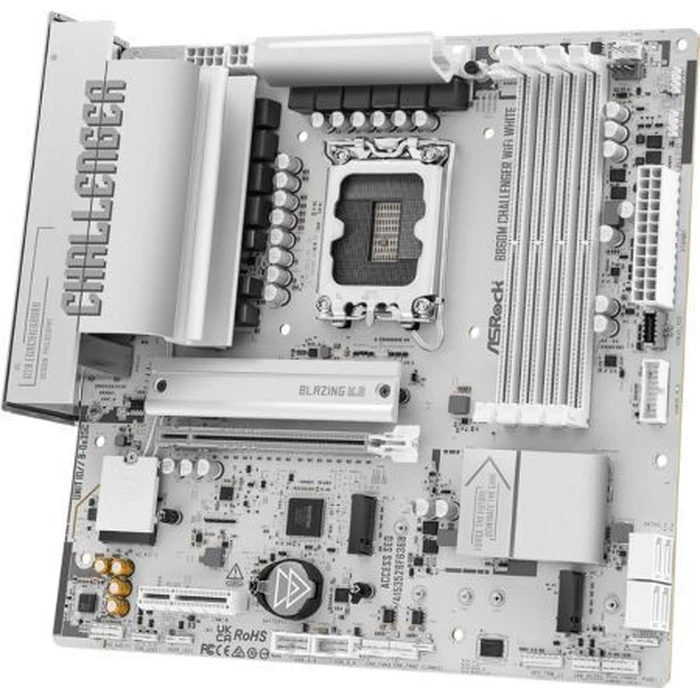

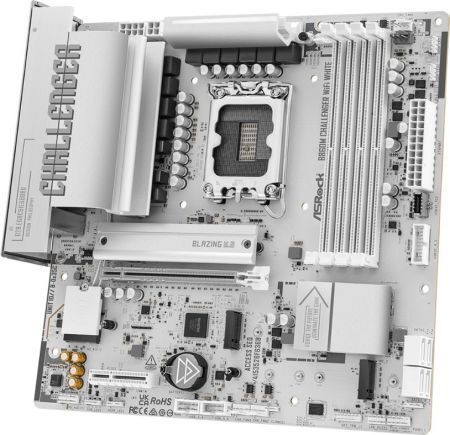

ASRock B860M Challenger WiFi White Micro ATX Μητρική Πλακέτα (Socket Intel 1851)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  ASRock
• Model
  B860M Challenger WiFi White
• Form Factor
  Micro ATX (24.4 cm x 24.4 cm)
• Chipset
  Intel B860
• CPU Socket
  Intel Socket 1851 (LGA1851)
• Supported CPUs
  Intel® Core™ Ultra Processors (Series 2)
• Power Phase Design
  10+1+1+1+1 Dr.MOS (VCore+GT+SA)
• Memory Type
  DDR5
• Memory Slots
  4 DIMM
• Memory Channels
  Dual Channel
• Maximum Memory
  256GB
• Memory Speed (OC)
  Up to 8666+ MHz (OC)
• PCIe x16 Slot
  1 x PCI‑Express x16 (CPU dependent, product states PCIe 5.0 support)
• Additional PCIe Slot
  1 x PCIe 4.0 x4 slot
• M.2 Slots
  3 x M.2 slots (NVMe capable)
• SATA Ports
  4 x SATA III 6.0 Gb/s
• RAID Support
  RAID 0/1/5/10 (SATA)
• Ethernet LAN
  Dragon RTL8125BG 2.5 Gbps Ethernet
• Wi‑Fi
  802.11be 2x2 (Wi‑Fi 7)
• Bluetooth
  Bluetooth 5.4
• Audio Codec
  Realtek ALC897 7.1 CH HD Audio
• Audio Software
  Nahimic Audio support
• USB Ports (rear)
  USB 3.2 Gen1 Type‑A & Type‑C (quantity per panel varies)
• Video Output
  HDMI (rear)
• RGB Headers
  3 x Addressable RGB headers
• Color / Aesthetic
  All‑White design with white heatsinks
• Form Factor Dimensions
  24.4 x 24.4 cm (board)
• Intended Use
  Gaming, streaming, content creation, white compact builds
• Special Features
  Lightning Gaming Ports (low jitter), EMI protection on LAN, premium white heatsinks
• Included Features
  Onboard Wi‑Fi 7 module, Bluetooth, multiple M.2 slots, robust VRM for high loads
