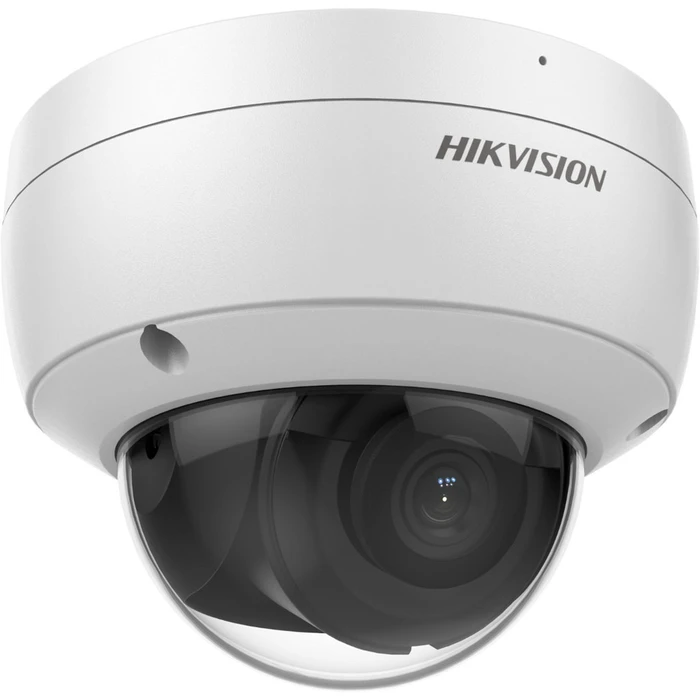

Κάμερα Παρακολούθησης Hikvision Dome IR DS-2CD2143G2-IU(2.8mm) 4MP

Τεχνικά Χαρακτηριστικά

• Behavioral analysis
  Intruder detection, line crossing detection
• Energy source
  Gleichstrom, PoE
• Power consumption (max.)
  5 W
• Power consumption (Power over Ethernet (PoE))
  6.5W
• DC Output Volt
  12
• DC output current
  0,4 A
• operating temperatur
  -30 - 60 °C
• Storage temperature range
  -30 - 60 °C
• Relative humidity in operation
  0 - 95%
• Humidity during storage
  0 - 95%
• Type
  IP security camera
• Assisted positioning
  Outside
• Transmission technology
  Wired
• Number of languages
  33
• Certification
  FCC SDoC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: 6, 2016); KC (KN 32: 2015, KN 35: 2015) UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
• Form factor
  Dome
• Mounting type
  Ceiling/Wall
• Product color
  White
• Housing material
  Aluminium
• International protection class (IP code)
  IP65
• IK-Codex
  IK10
• Angle of rotation
  355°
• Viewing angle (horizontal)
  103°
• Viewing angle (vertical)
  55°
• Viewing angle of the lens, diagonal
  122°
• Tilt angle range
  0 - 75°
• Swivel range
  0 - 355°
• Camera shutter speed
  1/3 - 1/100000 s
• Sensor type
  CMOS
• Number of sensors
  1
• Size of the image sensor
  25,4 / 3 mm (1 / 3")
• Number of lenses
  1
• Maximum aperture
  1,6
• Distance detection (wide)
  67 m
• Distance determination (wide)
  6 m
• Distance detection (wide)
  13 m
• Distance observation (wide)
  26 m
• Fixed focal length
  2,8 mm
• Night vision distance
  30 m
• LED Typ
  AND
• Infrared wavelength
  850 nm
• Maximum resolution
  2680 x 1520 Pixel
• Total megapixels
  4 MP
• Video compression formats
  H.264, H.264+, H.265, H.265+, M-JPEG
• Supported graphics resolutions
  640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520
• Up to 30 frames per second
  30 fps
• Audio input channels
  1 channels
• Audio Channels
  1 channels
• Supported audio formats
  AAC, MP3, PCM
• Samplerate
  48 kHz
• Ethernet interface type
  Fast Ethernet
• Network standard
  IEEE 802.1x, IEEE 802.3af
• Supported network protocols
  TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE
• Number of users
  32 users
• Compatible memory cards
  MicroSD (TransFlash), MicroSDHC, MicroSDXC
• Max. memory card size
  256 GB
• Number of Ethernet LAN ports (RJ-45)
  1
• Height
  84,7 mm
• diameter
  11,1 cm
• Weight
  530 g
• Packaging width
  150 mm
• Packaging depth
  150 mm
• Packaging height
  141 mm
• Package weight
  806 g
• Number of cameras
  1
